Used Moore G-450-P CNC Jig Grinder | FANUC Precision Grinding Machine

Loading carousel...

Product Highlight

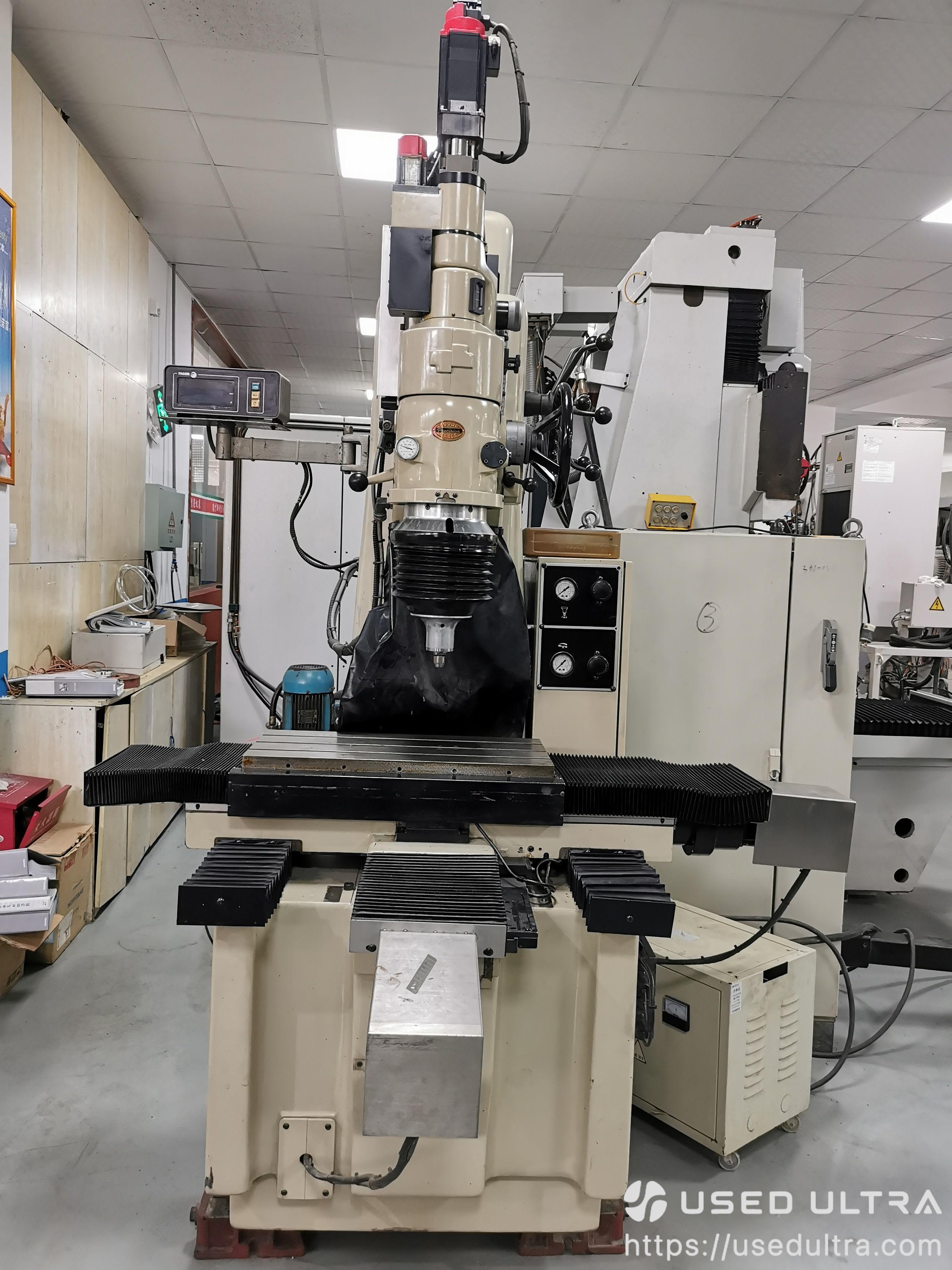

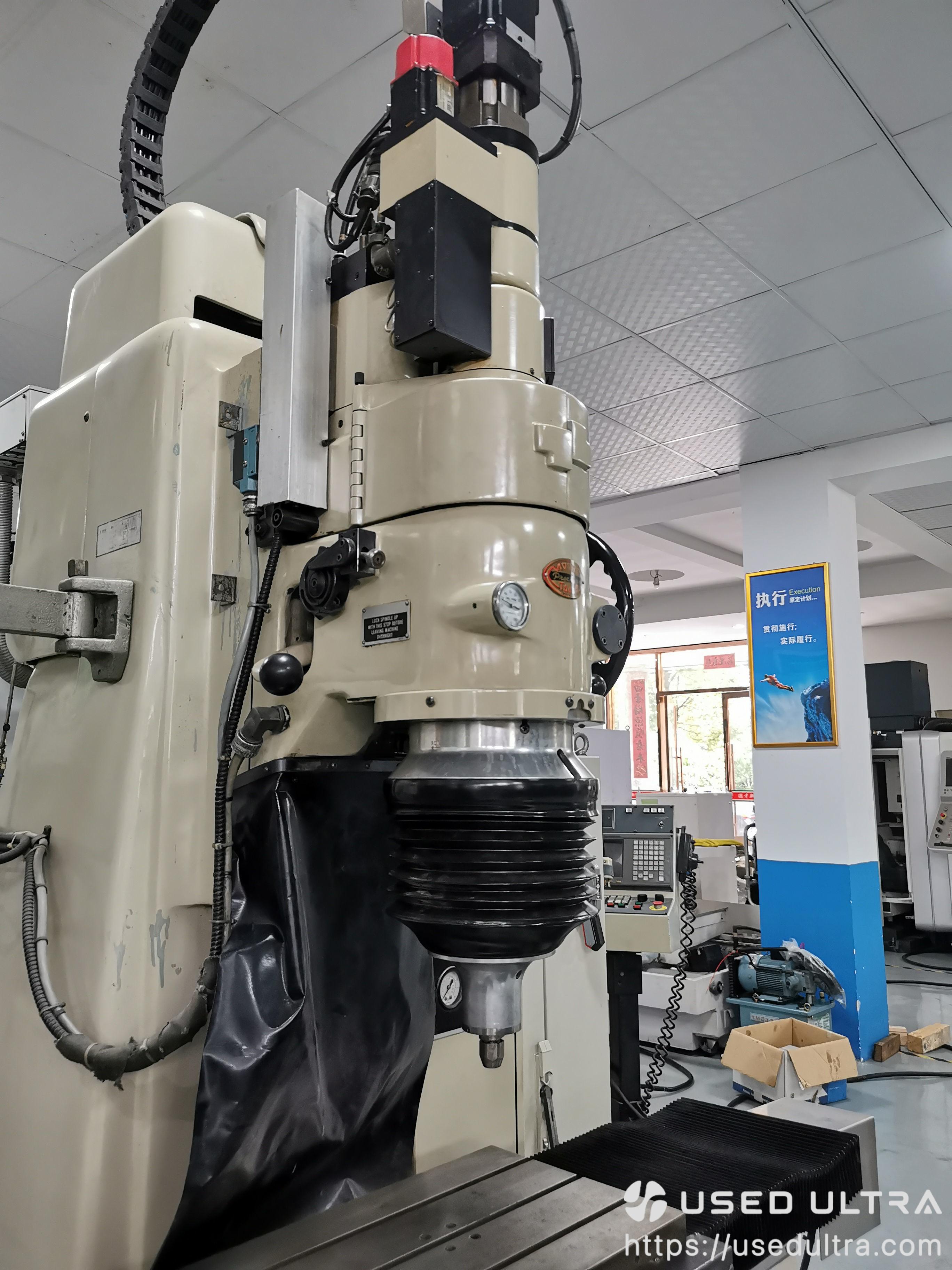

Used Moore G-450-P CNC Jig Grinder is a high-precision coordinate grinding machine manufactured by Moore Tool Company, USA. Known for its rigid structure and precision grinding capability, this machine is designed for manufacturers requiring accurate bore finishing, contour grinding and complex tooling production.

This used Moore jig grinder is equipped with a FANUC CNC control system and is an economical solution for precision machining workshops, mold makers and tool manufacturers seeking advanced grinding performance.

Product Description

Used Moore G-450-P CNC Jig Grinder, a high-precision coordinate grinding machine designed for mold, die, aerospace and precision tooling applications. Equipped with FANUC CNC control, this second-hand Moore jig grinder offers excellent accuracy and cost-effective performance for advanced manufacturing needs.

Product Specifications

Item	Specification
Machine Type	Used CNC Jig Grinder / Coordinate Grinding Machine
Brand	Moore Tool Company
Model	G-450-P
Machine Origin	USA

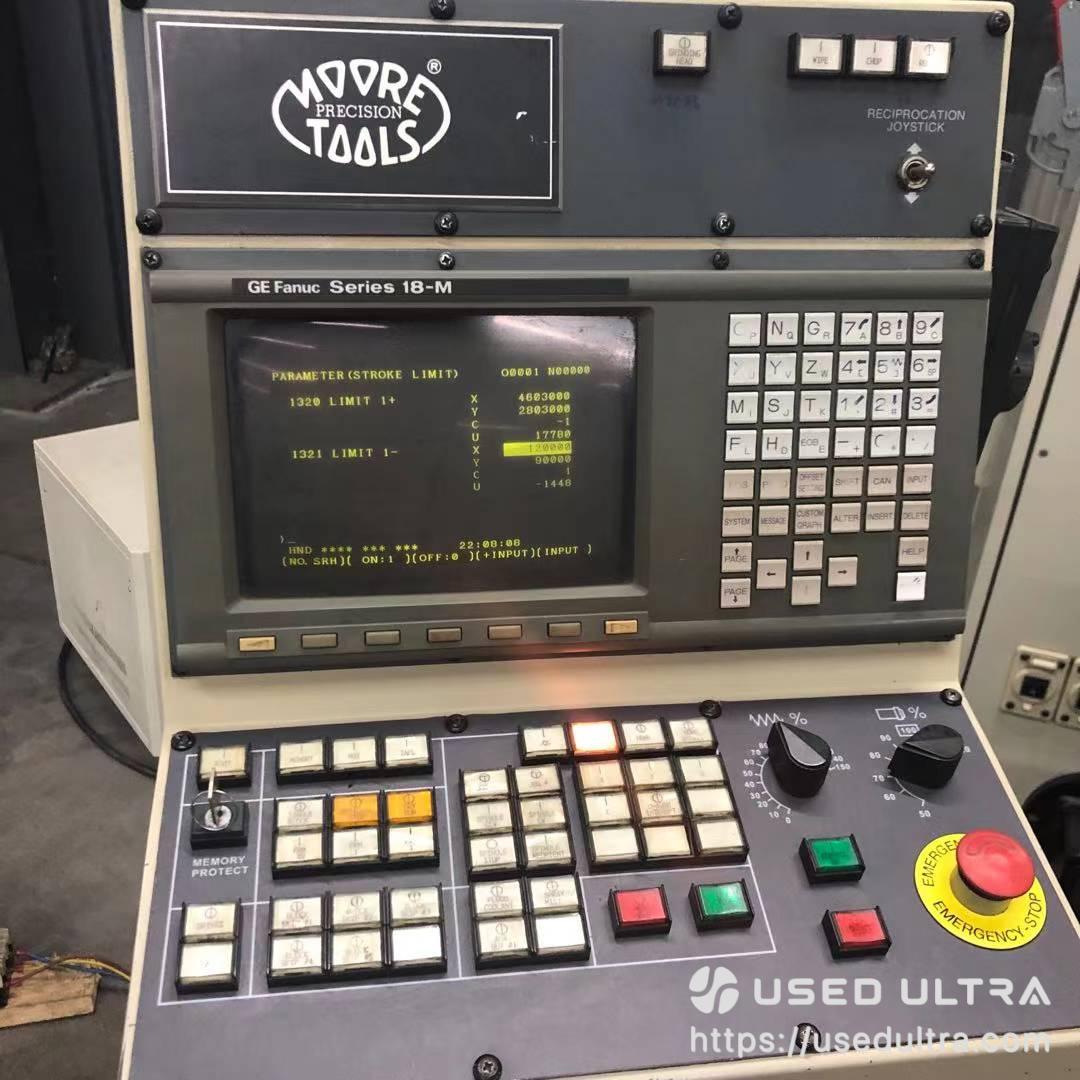

CNC Control	FANUC Series 18-M CNC System
Control Type	CNC Continuous Path Control
Axis Configuration	X / Y / C / U Axis Control (configuration may vary by machine setup)

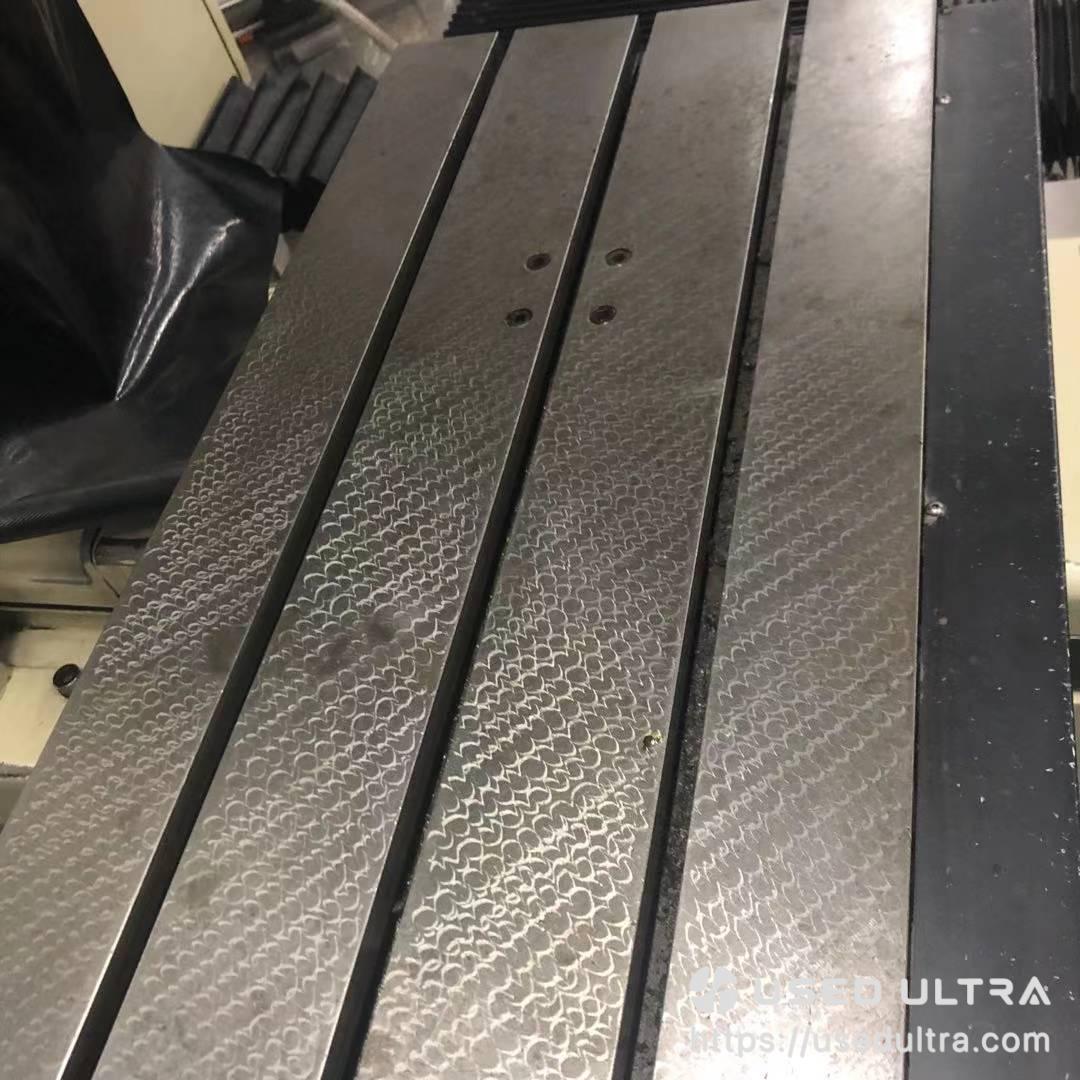

Table Working Surface	Approx. 280 × 610 mm
X Axis Travel	Approx. 450 mm
Y Axis Travel	Approx. 280 mm
Spindle Vertical Travel	Approx. 320 mm
Grinding Capacity	Approx. 0.4–127 mm diameter
Maximum Grinding Diameter with Extension	Up to approx. 343 mm
Grinding Spindle Speed	Up to approx. 175,000 RPM (depending on spindle configuration)
Table Traverse Speed	Up to approx. 1,500 mm/min
Reciprocation Speed	Up to approx. 175 cycles/min
Machine Type	Vertical precision jig grinding machine
CNC System	FANUC industrial CNC controller
Condition	Used machine / second-hand equipment
Application	Precision hole grinding, contour grinding, mold and tooling production

Specifications are based on Moore 450 series jig grinder documentation; actual G-450-P configuration may vary depending on options and previous upgrades.

Product Application & Industry

Used Moore G-450-P CNC Jig Grinder is suitable for industries requiring ultra-precision machining and tight tolerance control.

Typical Applications:

Precision mold and die manufacturing
Injection mold components
Automotive tooling production
Aerospace precision parts
Semiconductor equipment components
Medical device components
Precision mechanical parts
Tool and fixture manufacturing
Hardened steel component machining
High-accuracy bore and contour grinding

This machine is especially suitable for manufacturers looking for a reliable used CNC coordinate grinding machine with proven Moore precision technology without the investment cost of a new system.
