Used Moore 450CP CNC Jig Grinder

Loading carousel...

Product Highlight

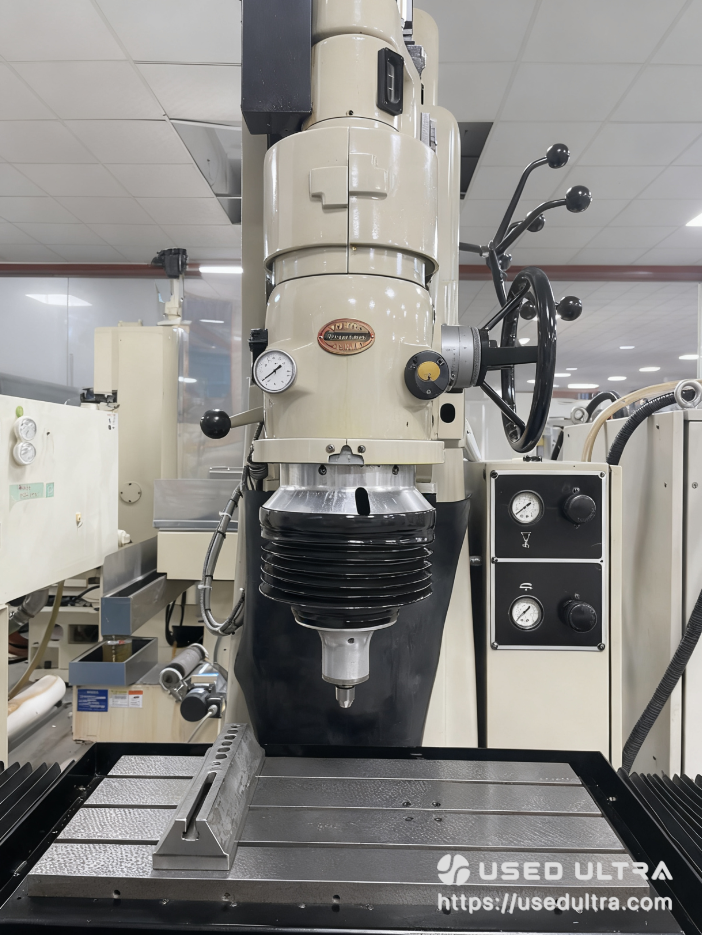

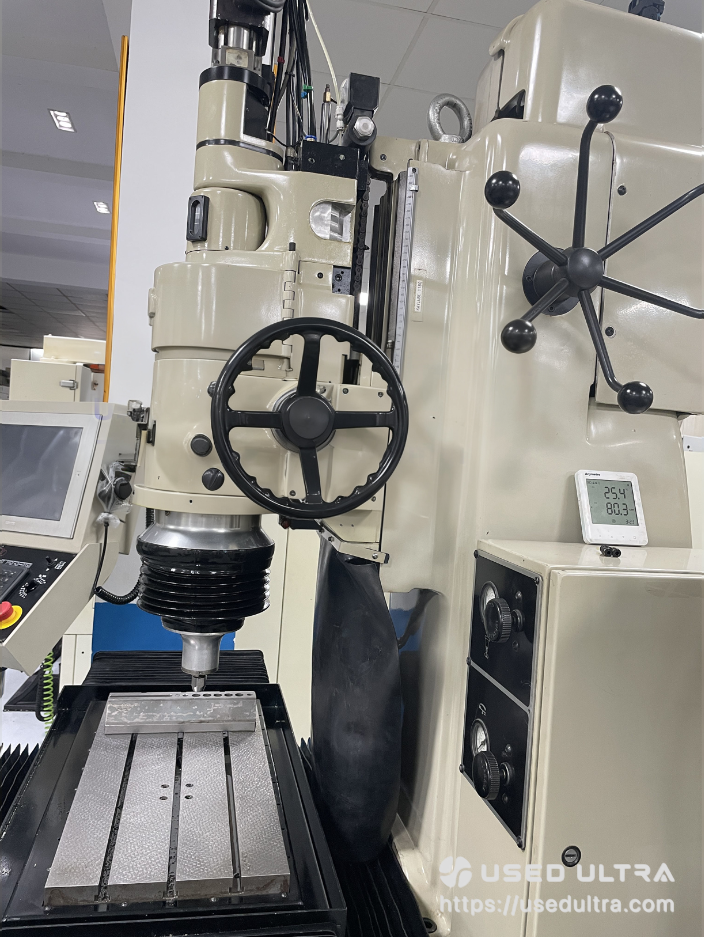

Used Moore 450CP CNC jig grinder is a Japan-sourced, recently refurbished precision grinding machine designed for accurate hole and contour finishing. With 460 × 290 mm XY travel, 360° C-axis positioning, 18 mm U-axis travel, a 500 × 300 mm worktable and a 40,000 rpm grinding spindle, it is well suited for precision molds, dies, gauges, aerospace components, tooling and hard-material machining.

Product Description

Used Moore 450CP CNC jig grinder sourced from Japan and recently refurbished. Featuring continuous-path XY contour grinding, 460 × 290 mm XY travel, 360° C-axis positioning, 18 mm U-axis travel, a 500 × 300 mm worktable, and a 40,000 rpm grinding spindle. A strong choice for precision mold, die, gauge, aerospace, tooling and hard-material grinding applications.

Technical Specifications

Parameter	Specification
Brand	Moore
Model	450CP
Machine Type	CNC Jig Grinder / Coordinate Grinding Machine
Condition	Used, Recently Refurbished
Brand / Manufacturer Origin	USA
Equipment Source	Japan-Sourced
X-Axis Travel	460 mm
Y-Axis Travel	290 mm
C-Axis Range	360°
U-Axis Travel	18 mm
Grinding Range	460 × 290 mm
Worktable Size	500 × 300 mm
Grinding Spindle Speed	40,000 rpm
Contour Grinding	XY-Axis Coordinated Continuous-Path Grinding
Seller-Stated Contour Capability	0.02 mm

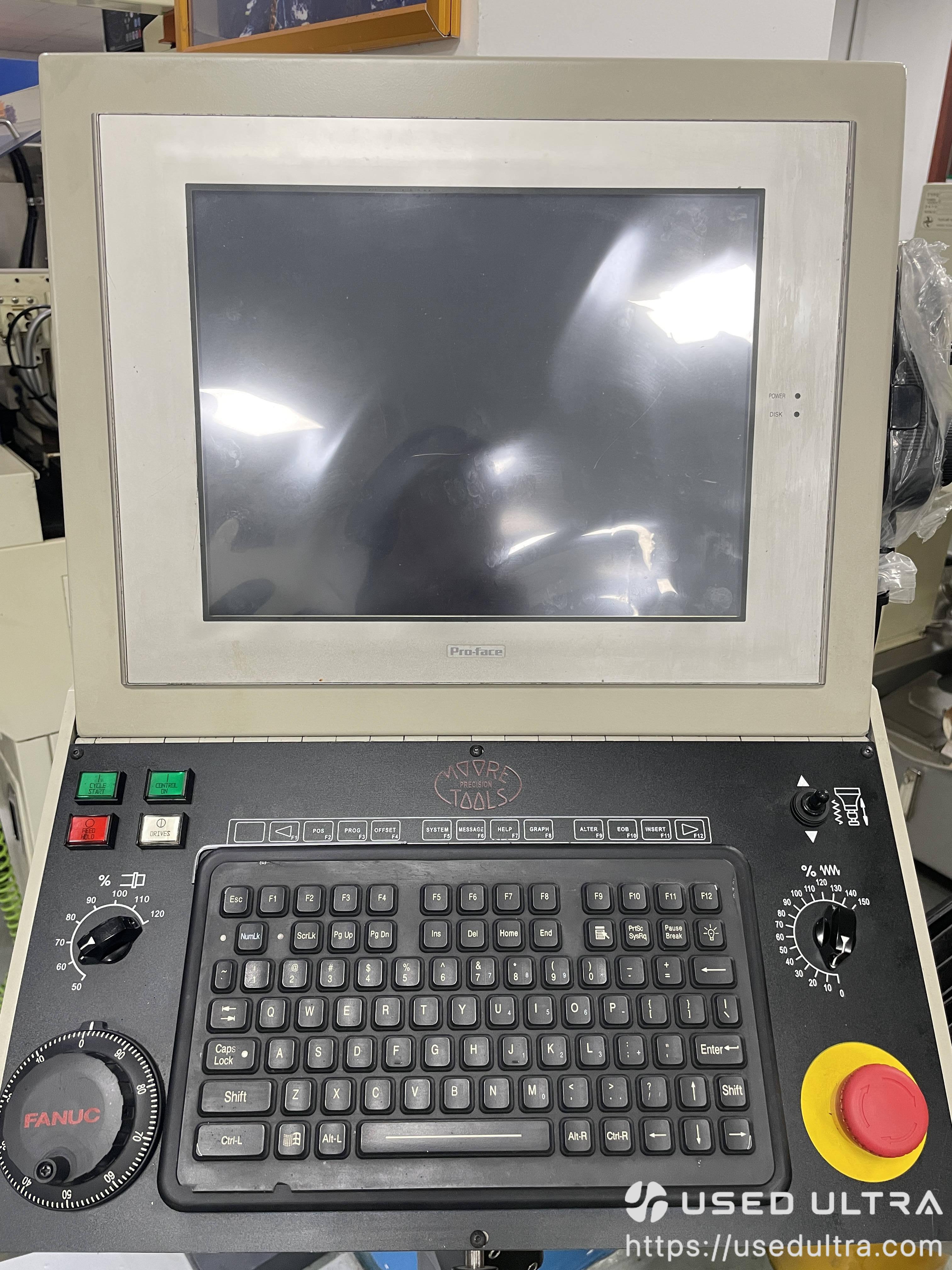

Control	Moore CNC System with Industrial Operator Interface
Availability	In Stock
Pre-Sale Verification	Machine Trial / Sample Grinding Available

Applications & Suitable Industries

Used Moore 450CP CNC jig grinder is designed for applications where precise hole geometry, contour grinding, positioning and fine surface finishing are required. It is particularly suitable for manufacturers that need high-precision grinding capability without the investment required for a new jig grinding machine.

Typical applications include:

Precision stamping dies, plastic injection molds, bottle-cap molds, thin-wall molds, silicone molds and rubber-seal molds
Aerospace engine casing components, stator components and other precision aerospace tooling
Precision jigs, fixtures, gauges, inspection tooling and machine-tool components
Optical instrument components and metrology equipment parts
Precision holes, internal profiles, curved contours and complex mold features
Ceramics, glass, carbide, hardened steel and other difficult-to-machine materials
Powder metallurgy dies, precision press tooling and motor-related tooling
High-accuracy components for electronics, automotive, medical, mold-making and general precision engineering

The machine is especially valuable for workshops already using EDM, wire EDM, CNC milling and surface grinding but requiring an additional process for high-accuracy hole and contour finishing.

FAQ

Can the Moore 450CP perform contour grinding, or is it only suitable for precision holes?

Yes. This machine supports coordinated XY-axis continuous-path grinding, allowing it to handle precision holes as well as profiles and complex contours. The supplied machine information states a contour grinding capability of 0.02 mm, subject to tooling, setup, material and final acceptance conditions.

What are the travel and worktable dimensions of this Moore 450CP?

The machine has approximately 460 mm X-axis travel, 290 mm Y-axis travel, 360° C-axis range and 18 mm U-axis travel. The listed worktable size is 500 × 300 mm, making it suitable for a wide range of precision mold and tooling components.
