Used HAUSER S40 CNC Jig Grinder | Swiss FANUC Machine

Loading carousel...

Product Highlight

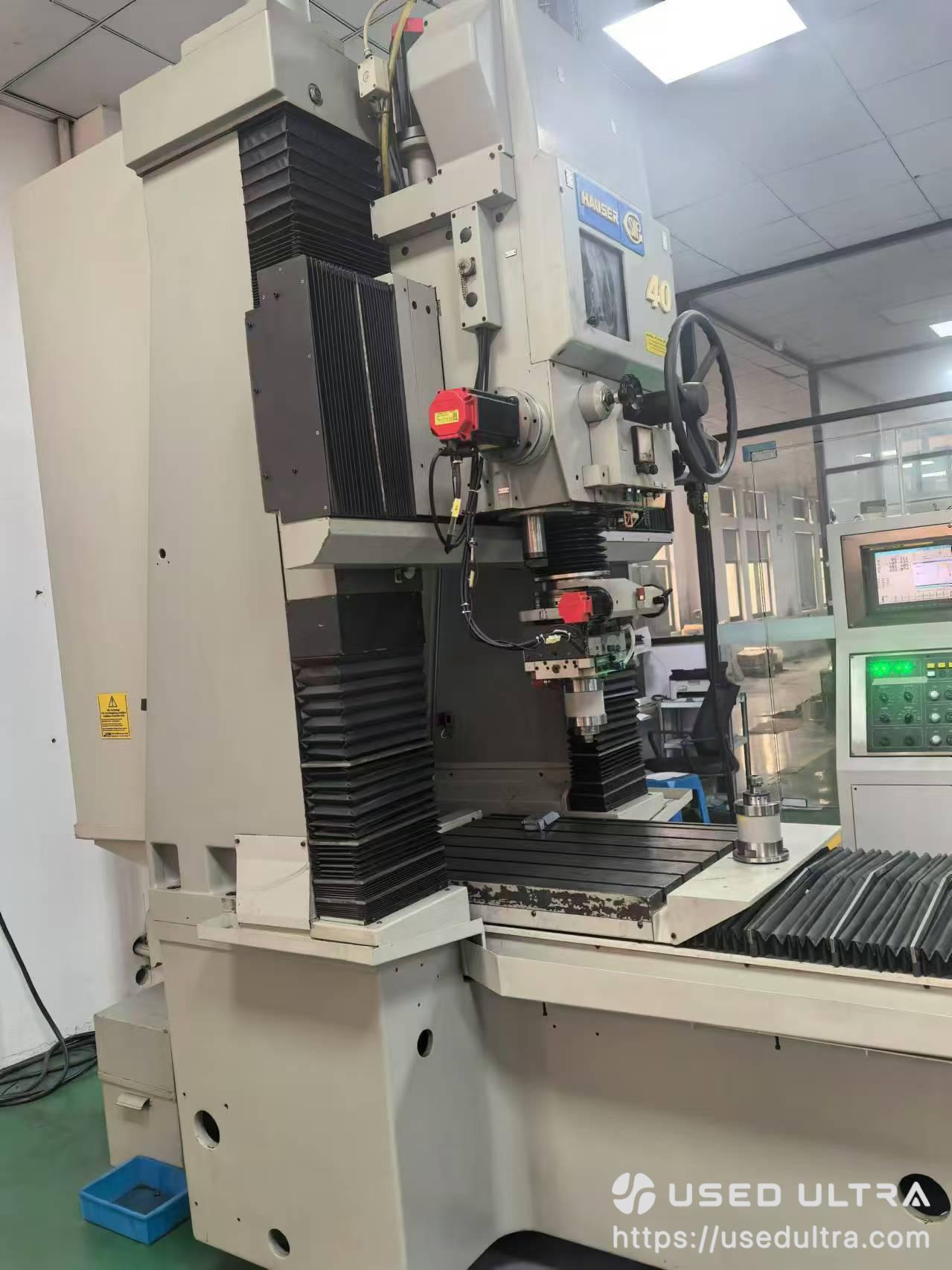

Used HAUSER S40 is a Swiss-built high-precision CNC jig grinding machine designed for accurate bore, contour, taper and tool grinding. This pre-owned machine features FANUC Series 18i-MB control, 650 × 450 mm X/Y travel, 500 mm W-axis travel and grinding spindle speeds up to 80,000 rpm. It is a practical option for mold, die, aerospace, automotive and precision engineering companies seeking proven jig grinding capability at a lower investment than new equipment.

Product Description

Used HAUSER S40 CNC jig grinding machine made in Switzerland, equipped with a FANUC Series 18i-MB control. Featuring 650 mm X-axis travel, 450 mm Y-axis travel, 500 mm W-axis travel and grinding spindle speeds up to 80,000 rpm, this precision jig grinder is well suited for dies, molds, tooling and high-accuracy component production.

Technical Specifications

Specification	Details
Condition	Used / Pre-owned
Brand	HAUSER
Model	S40
Machine Type	CNC Jig Grinding Machine / Coordinate Grinder

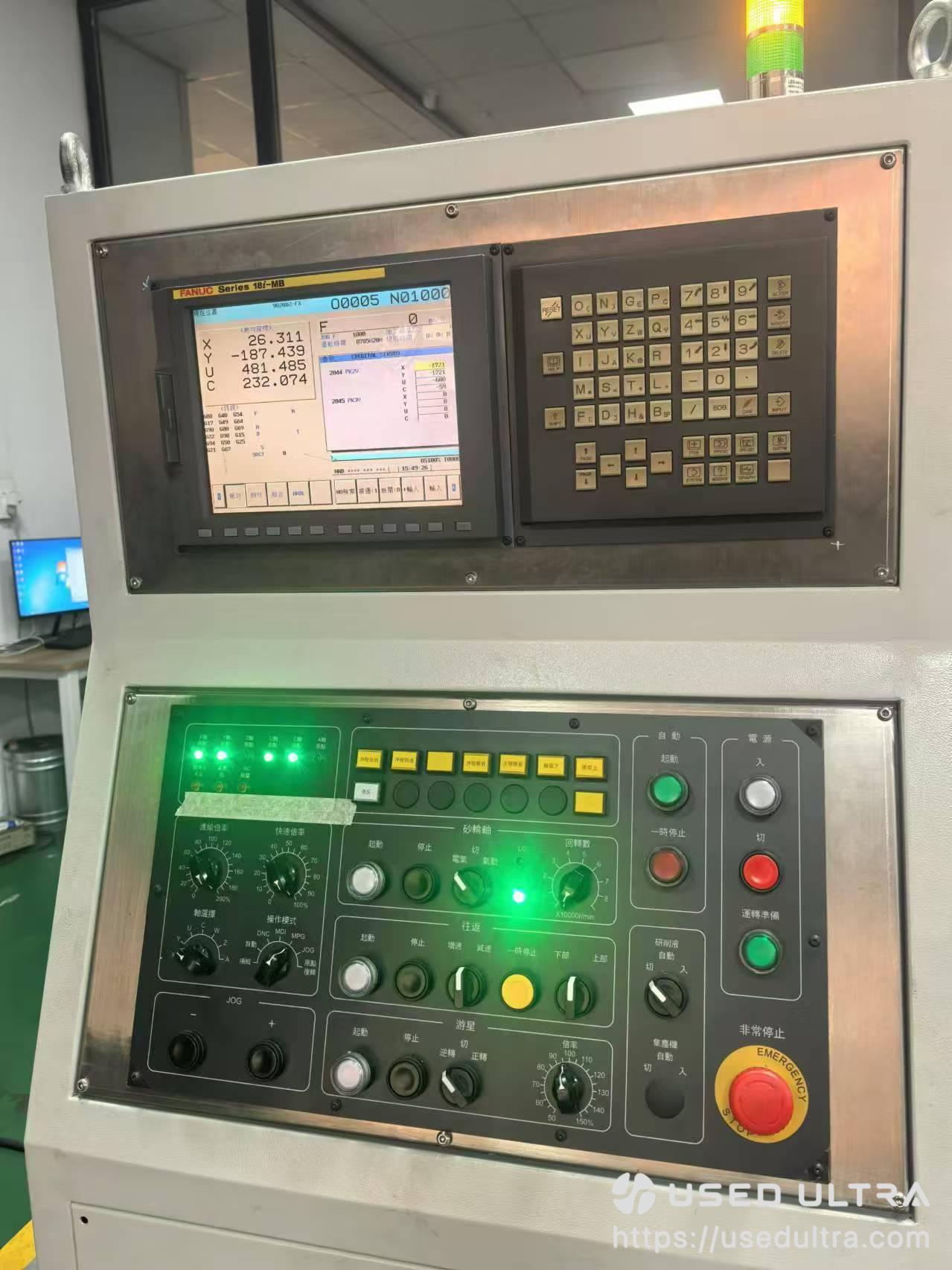

CNC Control	FANUC Series 18i-MB
Country of Origin	Switzerland
X-Axis Travel	650 mm
Y-Axis Travel	450 mm
W-Axis Vertical Travel	500 mm max.
Standard Grinding Diameter	Up to Ø230 mm
Grinding Diameter with Cantilever Plate	Up to Ø360 mm
Grinding Head Stroke	125 mm max.
Taper Grinding Depth	Up to 44 mm
Z-Axis Stroke Speed	0.5–12,000 mm/min
Z-Axis Stroke Frequency	Up to 4 Hz
U-Axis Radial Adjustment	Approx. 5.5 mm
Planetary Speed	Approx. 5–250 rpm

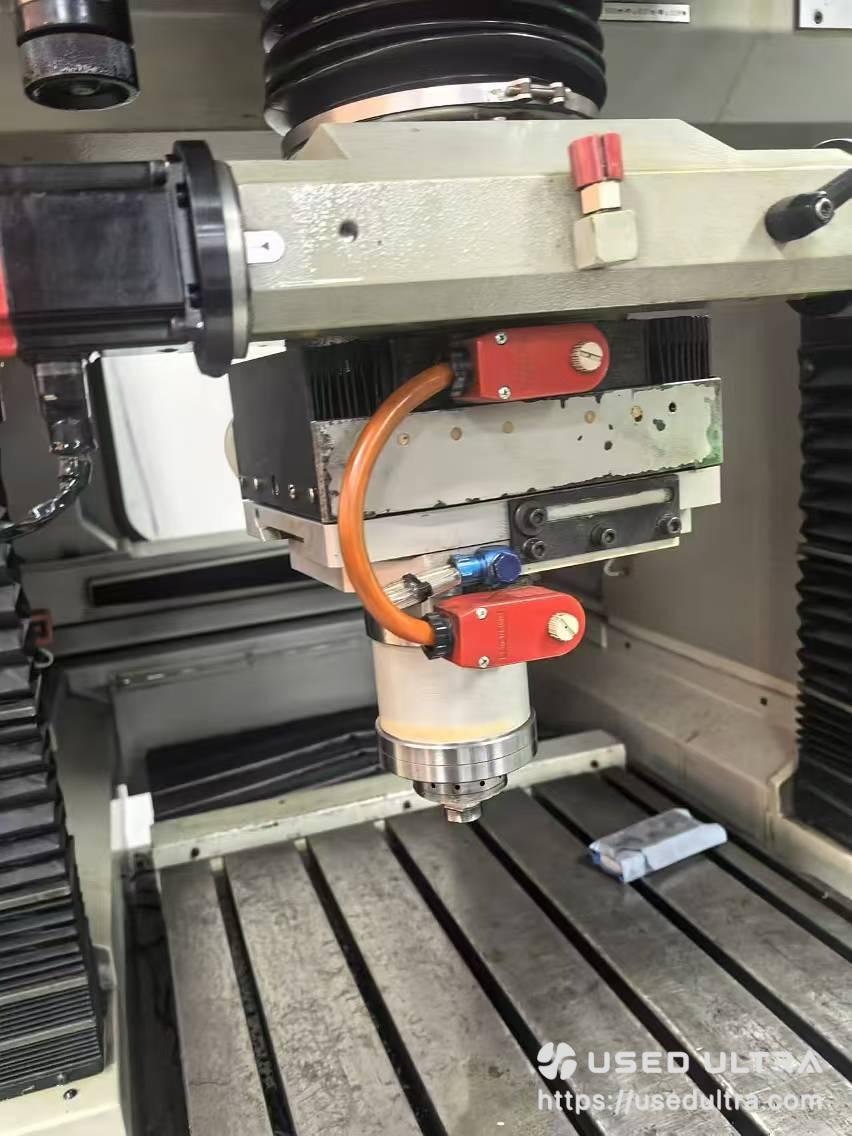

Grinding Spindle Speed	Up to 80,000 rpm
Electrical Supply	3 × 380 V / 50 Hz
Machine Weight	Approx. 5,600 kg
Machine Length	Approx. 2,650 mm
Machine Width	Approx. 2,000 mm
Machine Height	Approx. 3,150 mm

HAUSER S40 references on the used-equipment market consistently show the 650 mm X, 450 mm Y and 500 mm W working range, with planetary motion up to 250 rpm and high-speed grinding configurations. Exact equipment packages can vary between individual S40 machines.

Applications & Suitable Industries

Used HAUSER S40 CNC jig grinder is designed for precision grinding operations where bore geometry, position, contour accuracy and surface quality are important. Typical applications include:

Precision mold and die manufacturing
Punches, dies and fine-blanking tooling
High-accuracy bore and hole grinding
Internal contour and profile grinding
Taper and precision cavity grinding
Aerospace precision components
Automotive tooling and precision components
Medical component and tooling production
Watchmaking and fine mechanical components
Gauges, fixtures and precision machine-tool components

HAUSER continues to be positioned by its current manufacturer group as a specialist brand for high-precision jig and coordinate grinding, particularly for die and mold work and components requiring demanding form and positional tolerances.

FAQ

What CNC control does this HAUSER S40 use?

This machine is equipped with a FANUC Series 18i-MB CNC control, a widely used industrial CNC platform that many operators and maintenance teams are already familiar with.

What is the working travel of the HAUSER S40?

The machine provides approximately 650 mm X-axis travel, 450 mm Y-axis travel and 500 mm W-axis vertical travel, making it suitable for precision molds, dies, tooling and complex components.

What grinding capacity does this used HAUSER S40 offer?

The standard grinding diameter is approximately Ø230 mm, while grinding diameters up to approximately Ø360 mm can be achieved with the appropriate cantilever plate configuration. Grinding spindle speed can reach up to 80,000 rpm.
