Product Highlight

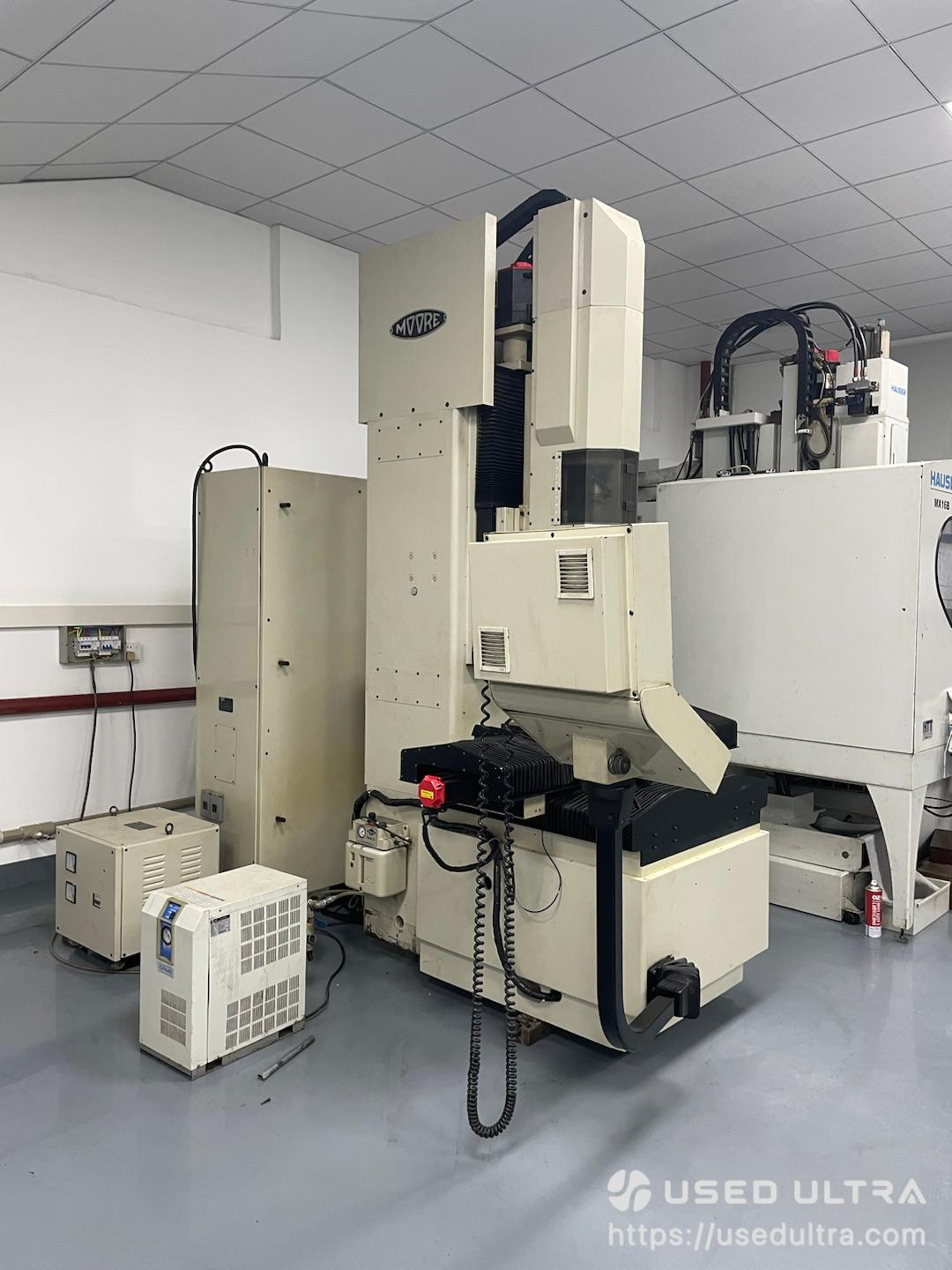

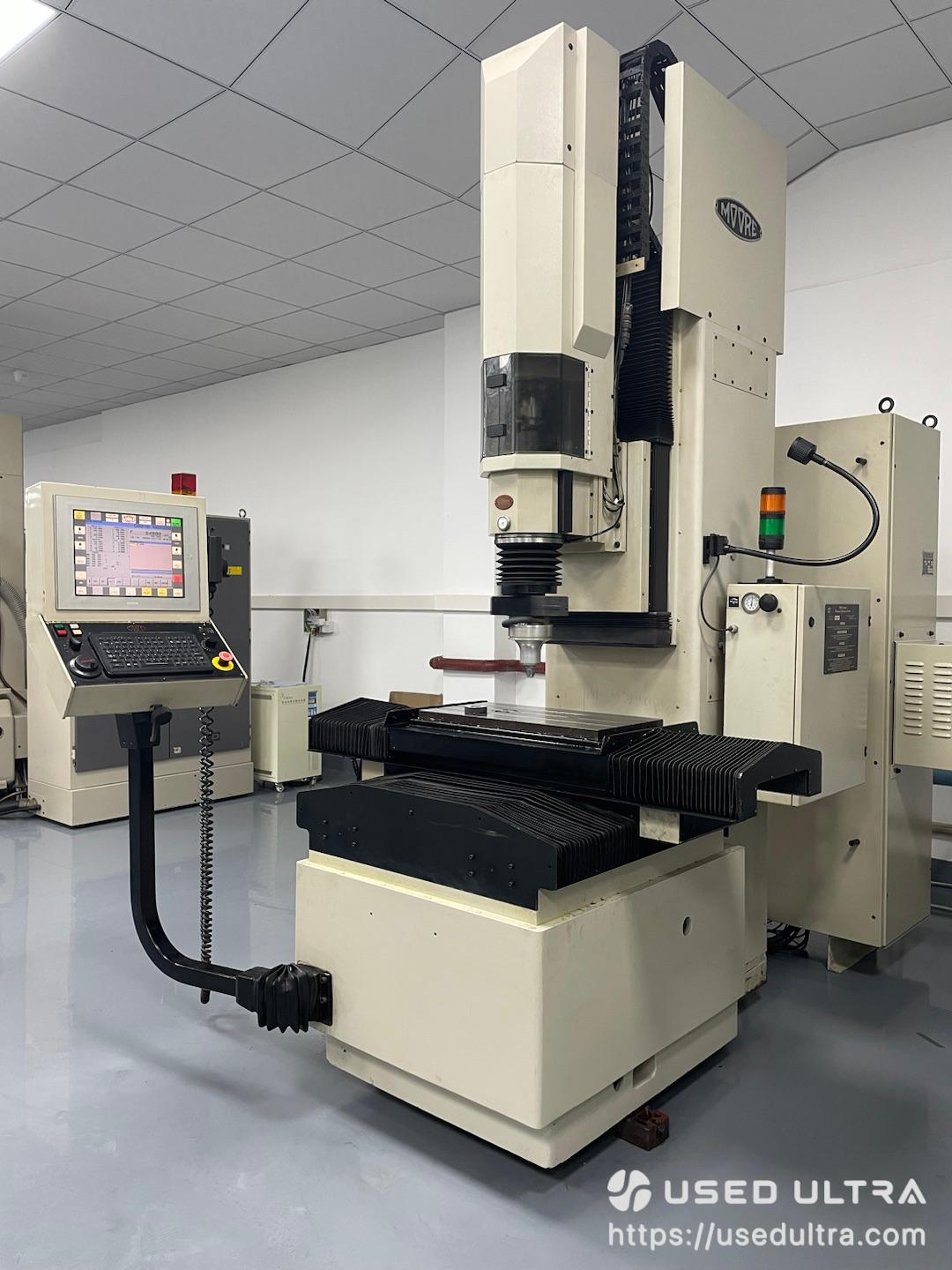

Used MOORE 500CPZ CNC Coordinate Measuring Machine is a high-precision inspection system designed for micron-level dimensional measurement. Manufactured by MOORE Special Tool, this machine combines rigid construction, CNC control, and advanced measurement capability for demanding quality control applications. With Renishaw laser calibration verification available, it is suitable for precision manufacturing companies requiring reliable used CMM equipment.

Product Description

Used MOORE 500CPZ CNC coordinate measuring machine, professionally maintained and tested with laser calibration records. Featuring ultra-high accuracy positioning and Renishaw measurement verification, this machine is ideal for precision inspection applications in aerospace, mold, automotive, and advanced manufacturing industries.

Product Specifications

Item	Specification
Machine Type	Used CNC Coordinate Measuring Machine (CMM)
Brand	MOORE
Model	500CPZ
Machine Origin	USA
Control System	CNC Precision Measurement System
Measuring Range X Axis	500 mm
Measuring Range Y Axis	300 mm
Measuring Range Z Axis	300 mm
Worktable Size	305 mm × 610 mm
Distance Between Worktable Surface and Z-axis Mounting Flange	280 mm – 762 mm
Maximum Spindle Speed	1–300 rpm
Probe Rotation Speed	6,000–175,000 rpm
Rapid Traverse Speed (X/Y/Z)	2,000 mm/min
Continuous Motion Speed	190 cycles/min (25 μm stroke)
Positioning Accuracy X Axis	0.5 μm
Positioning Accuracy Y Axis	0.6 μm
Positioning Accuracy Z Axis	4.0 μm
Repeatability X Axis	0.3 μm
Repeatability Y Axis	0.4 μm
Repeatability Z Axis	2.0 μm
X-axis Straightness Error	0.8 μm
Y-axis Straightness Error	2.0 μm
Z-axis Straightness Error	2.0 μm
Reference Measurement System	Renishaw Laser Calibration Tested
Calibration Verification	Renishaw XCal-View Measurement Report Available

Technical specifications are provided for reference. Actual machine condition should be confirmed before purchase.

Machine Features & Applications

Features

High precision CNC coordinate measurement capability
Suitable for micron-level dimensional inspection
Rigid structure designed for high accuracy measurement
Verified with Renishaw laser calibration testing
Suitable alternative for companies seeking used precision inspection equipment at lower investment cost
Ideal for laboratories and production quality control departments

Applications

This used MOORE 500CPZ CMM is commonly used for:

Aerospace component inspection
Precision mold and die measurement
Automotive parts quality control
Medical device component inspection
Semiconductor and electronics precision components
High-accuracy mechanical parts verification
Research and development laboratories

FAQ

What accuracy can I expect from this used MOORE CMM?

The machine specifications indicate micron-level positioning accuracy, with X/Y positioning accuracy around 0.5–0.6 μm and verified measurement results from Renishaw calibration testing.

What industries use the MOORE 500CPZ coordinate measuring machine?

It is widely suitable for aerospace, automotive, precision machining, mold manufacturing, electronics, and advanced engineering inspection applications.
