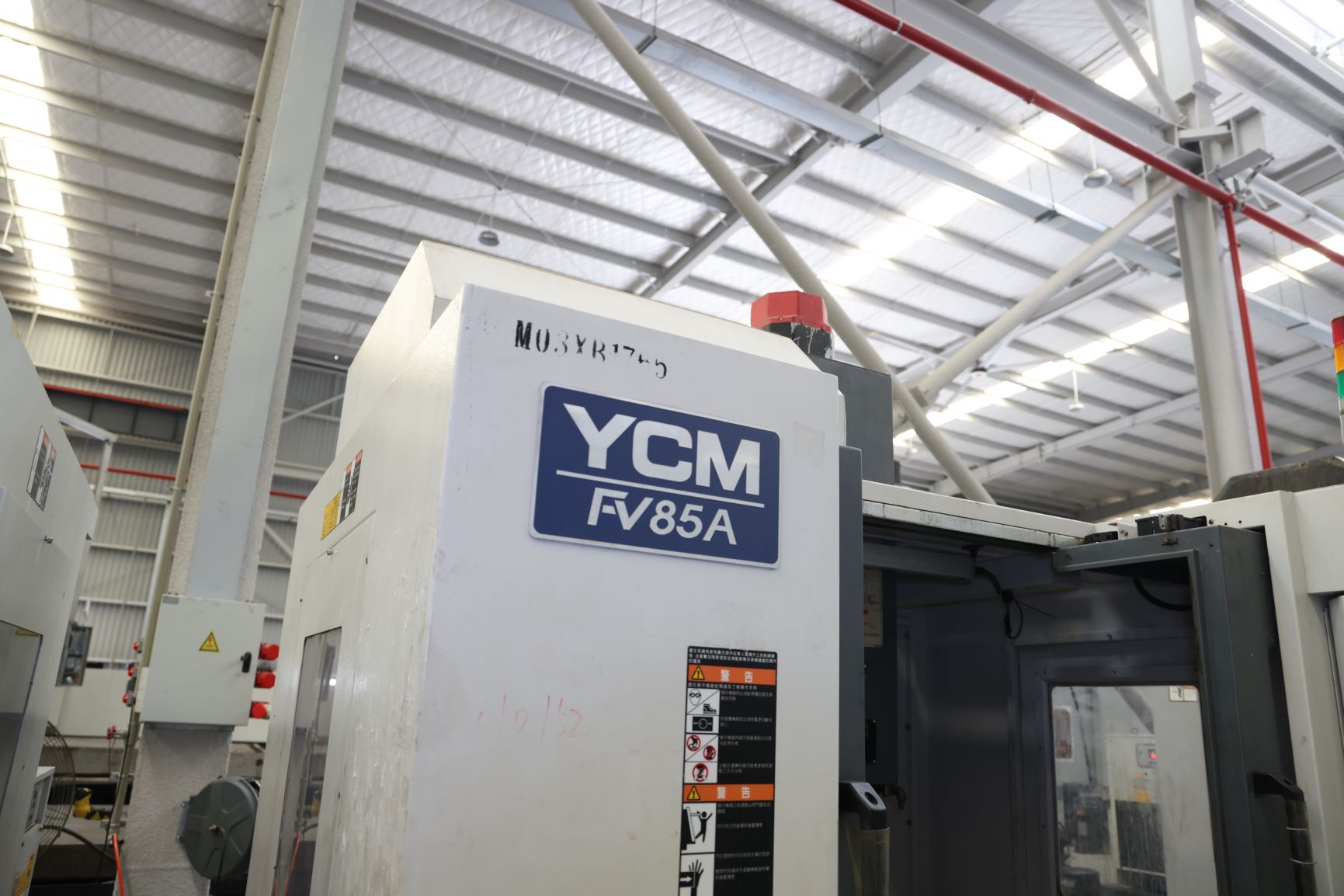

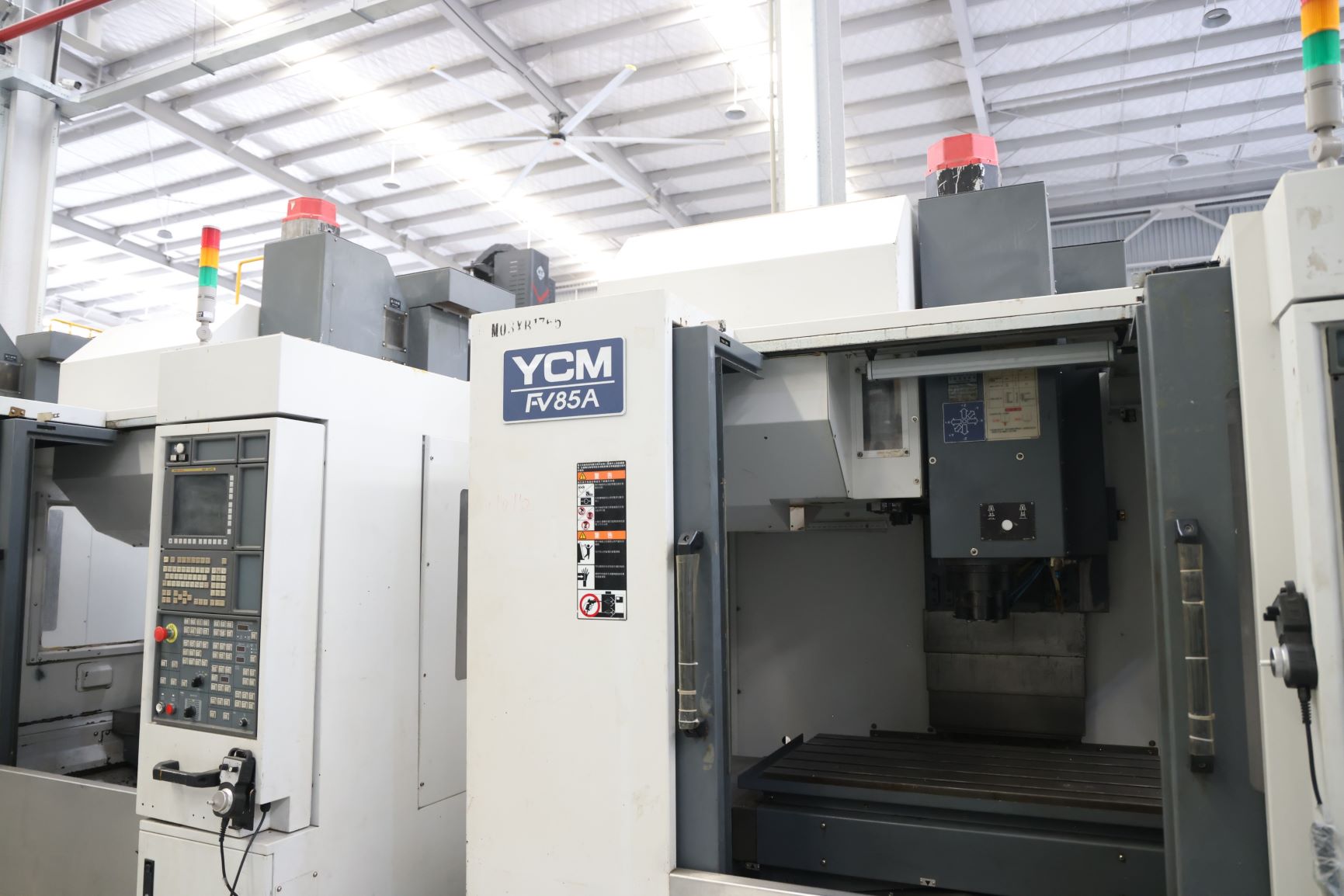

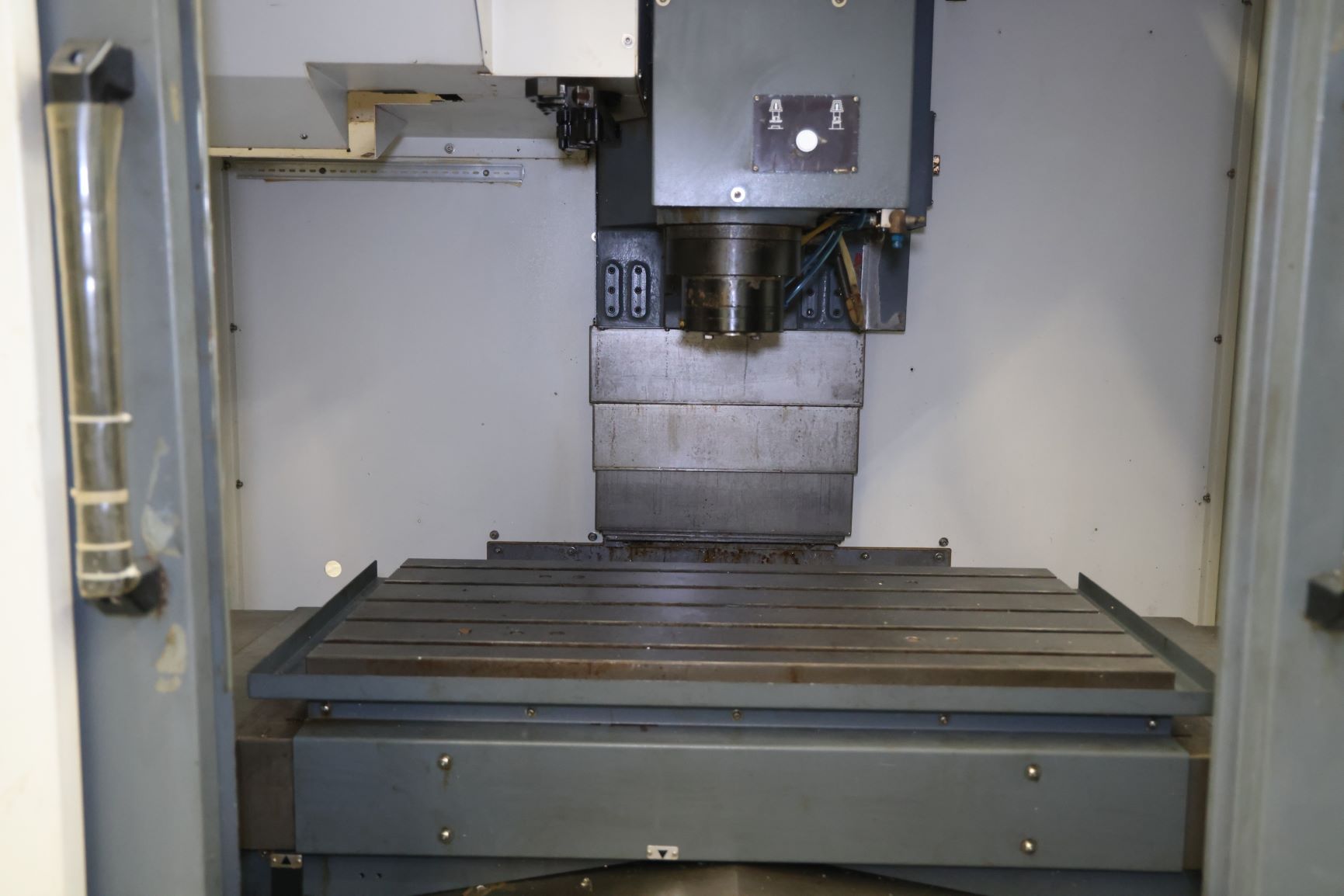

Used YCM FV85A Vertical Machining Center

Loading carousel...

Product Highlight

Used YCM FV85A is a Taiwan-made 3-axis vertical machining center featuring a Fanuc MXP-200FB control, 850 × 520 × 540 mm travel, a 15,000 rpm BBT40 direct-drive spindle and a 24-tool automatic tool changer. It provides a practical CNC machining solution for mold work, precision components and general production machining.

Product Description

Used YCM FV85A vertical machining center, originally manufactured in Taiwan, combines an 850 × 520 × 540 mm machining travel, 15,000 rpm BBT40 direct-drive spindle, and Fanuc MXP-200FB CNC control. Equipped with a 24-tool arm-type ATC and three-axis linear guideways, it is a practical pre-owned CNC solution for precision milling, drilling, tapping, mold work, and general metal parts production.

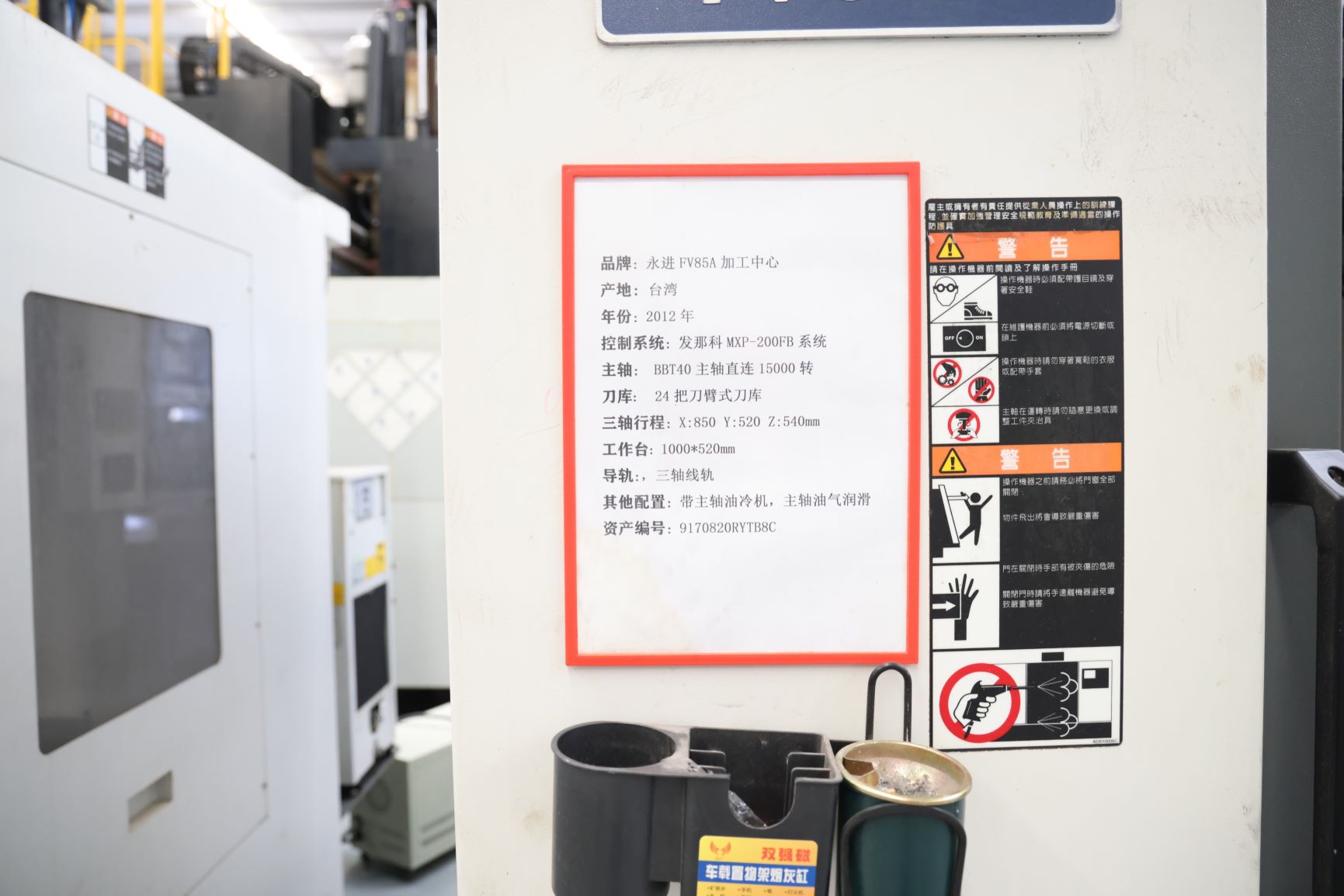

Technical Specifications

Specification	Details
Machine Type	Used Vertical Machining Center / CNC Milling Machine
Brand	YCM / Yeong Chin Machinery
Model	FV85A
Country of Origin	Taiwan
Manufacturing Year	2012
CNC Control	Fanuc MXP-200FB
X-Axis Travel	850 mm
Y-Axis Travel	520 mm
Z-Axis Travel	540 mm
Table Size	1000 × 520 mm

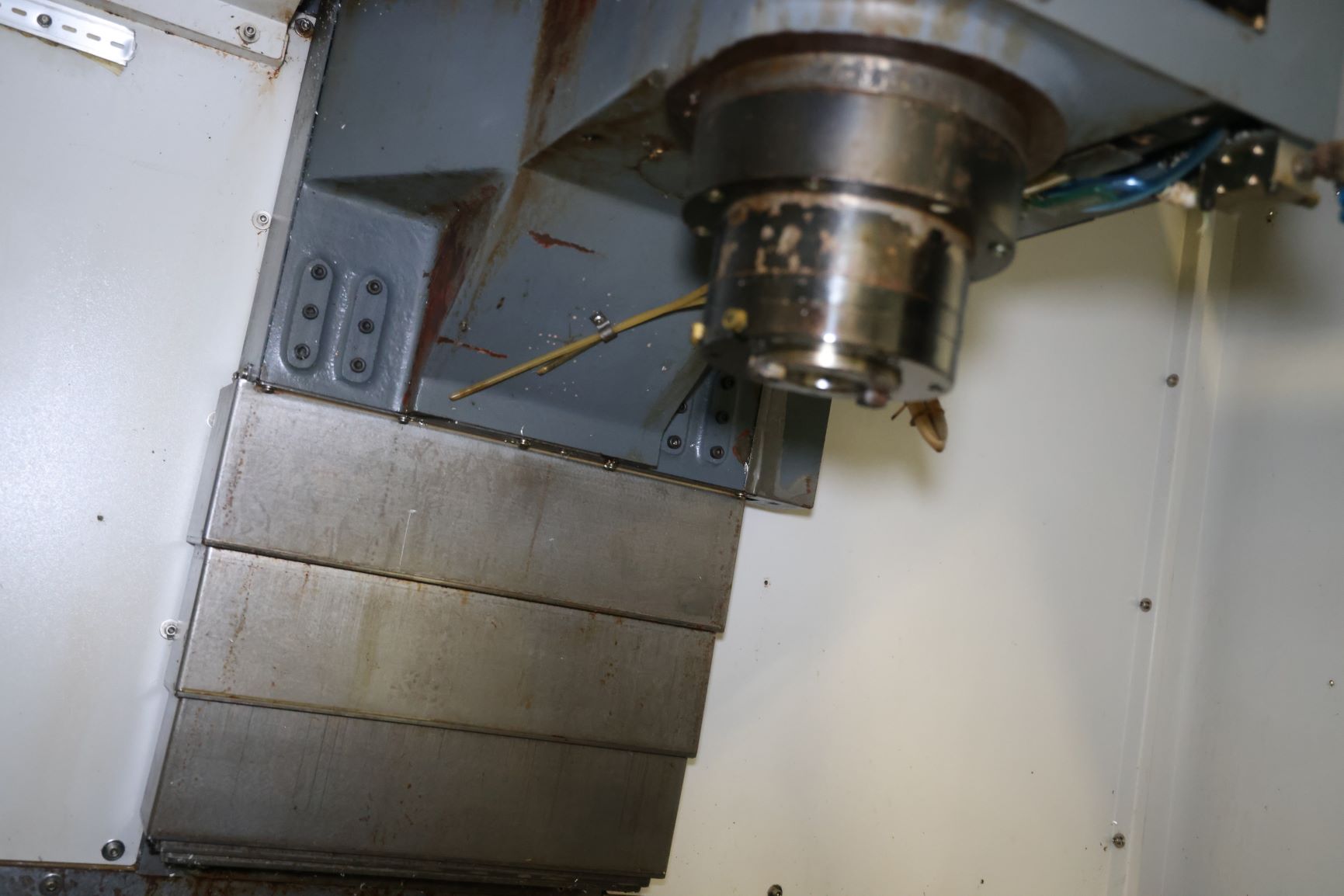

Spindle Taper	BBT40
Spindle Type	Direct-drive spindle
Maximum Spindle Speed	15,000 rpm
Tool Magazine	24-tool arm-type ATC
Guideway Type	Linear guideways on X/Y/Z axes
Spindle Cooling	Spindle oil cooler
Spindle Lubrication	Oil-air lubrication
Number of Controlled Axes	3 Axis
Machine Condition	Pre-owned / Used

The core FV85A specifications are also consistent with published listings for this model, including 850 × 520 × 540 mm travel, 15,000 rpm spindle capability and a 24-position ATC.

Applications & Suitable Industries

Used YCM FV85A CNC vertical machining center is suitable for manufacturers that need medium-size machining capacity without the investment required for a new CNC machine. Its 15,000 rpm spindle makes it particularly useful for applications where higher spindle speed and efficient finishing are important.

Typical applications include mold and die machining, precision mechanical components, automotive parts, aluminum components, steel parts, fixtures and tooling, drilling and tapping operations, general CNC milling, batch production, maintenance workshops, subcontract machining, and small-to-medium manufacturing plants.

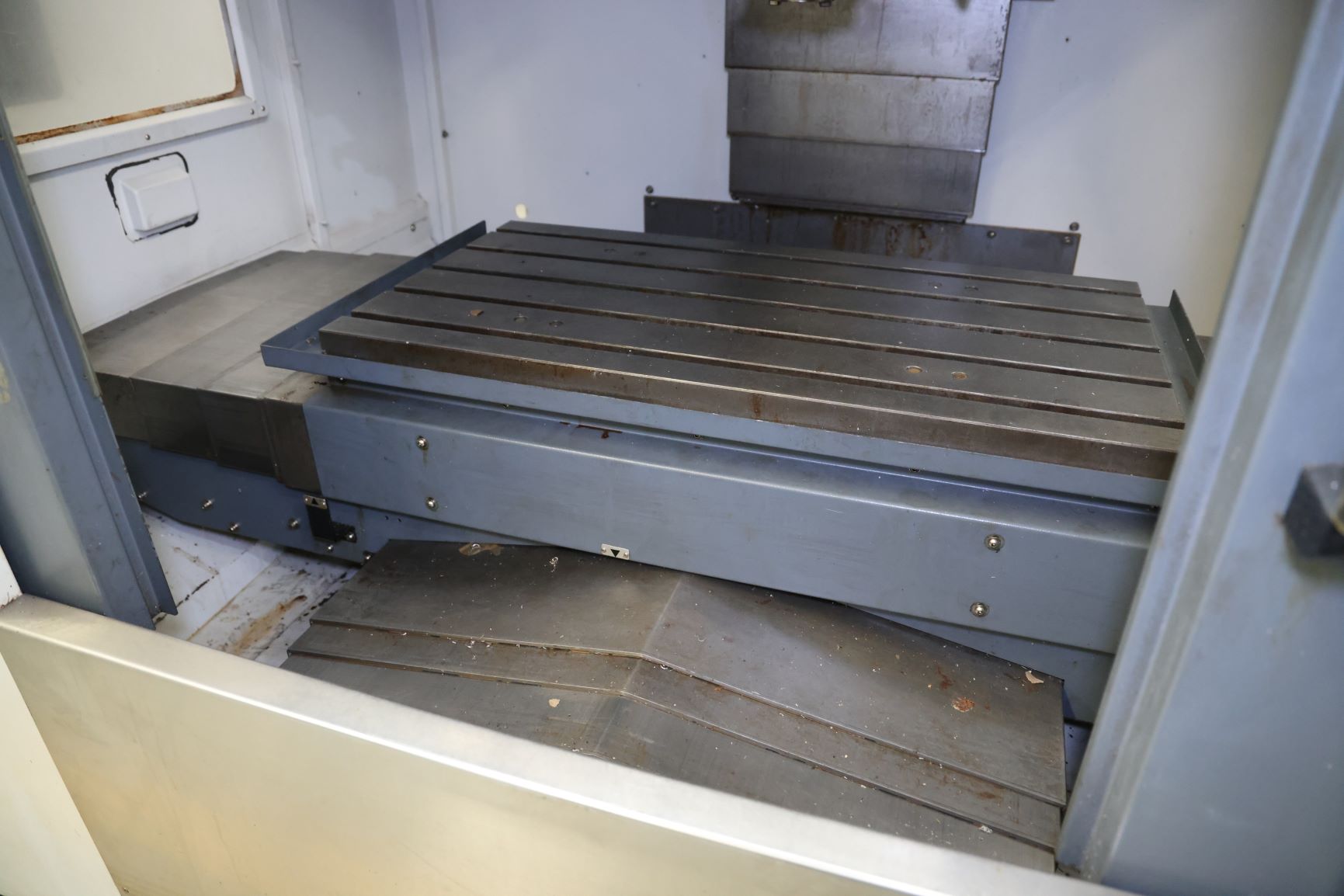

The 1000 × 520 mm worktable and 850 mm X-axis travel also provide useful capacity for a wide variety of medium-size workpieces.

FAQ

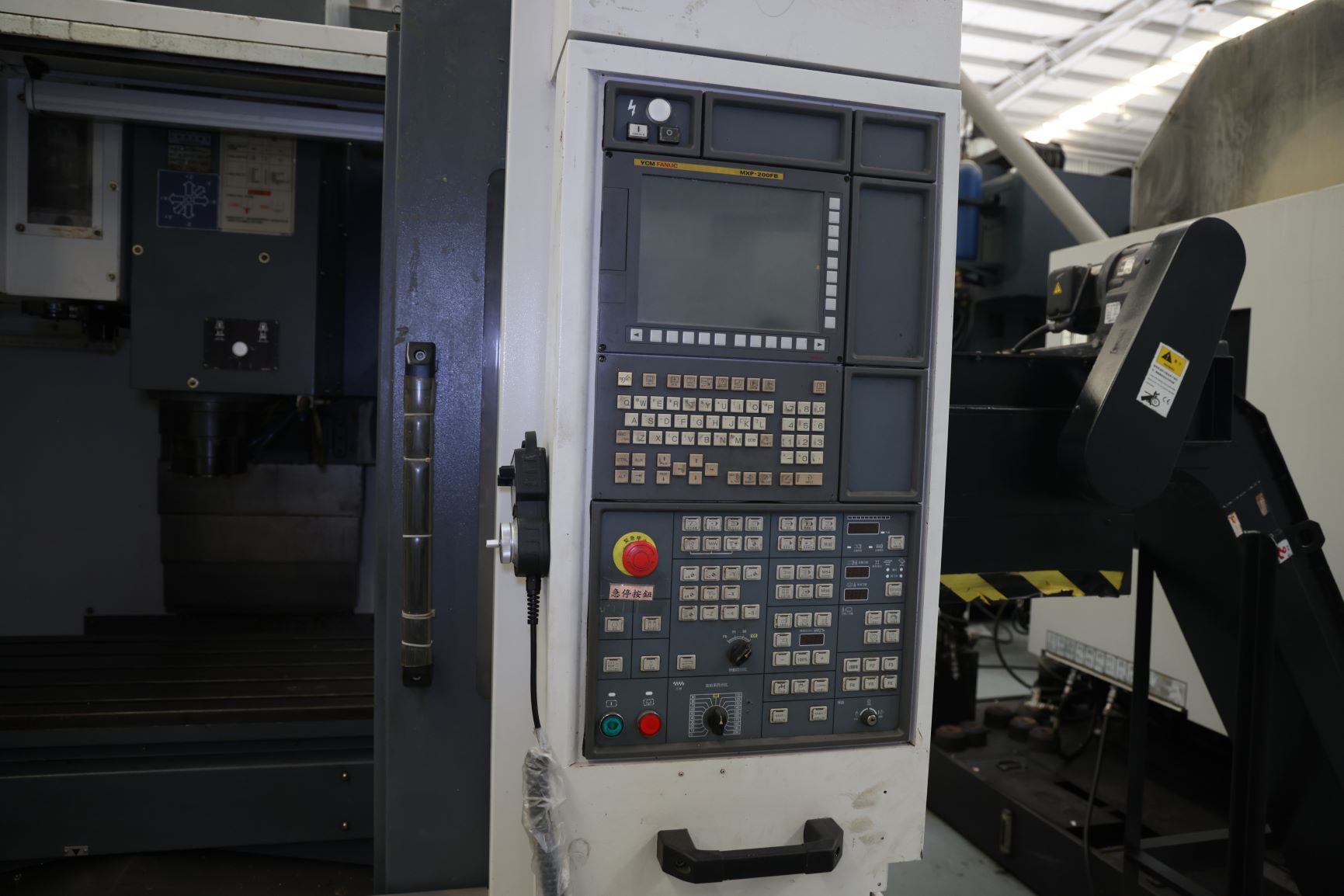

What CNC control does this YCM FV85A use?

This machine is equipped with a Fanuc MXP-200FB CNC control, providing a familiar control platform for workshops already operating Fanuc-controlled CNC machinery.

What is the machining travel of the YCM FV85A?

The machine provides 850 mm X-axis travel, 520 mm Y-axis travel and 540 mm Z-axis travel, with a 1000 × 520 mm worktable.

Is the YCM FV85A suitable for mold and precision parts machining?

Yes. Its 15,000 rpm BBT40 spindle, three-axis linear guideways and medium-size machining envelope make it suitable for mold components, precision parts, aluminum machining, general steel machining and production work.

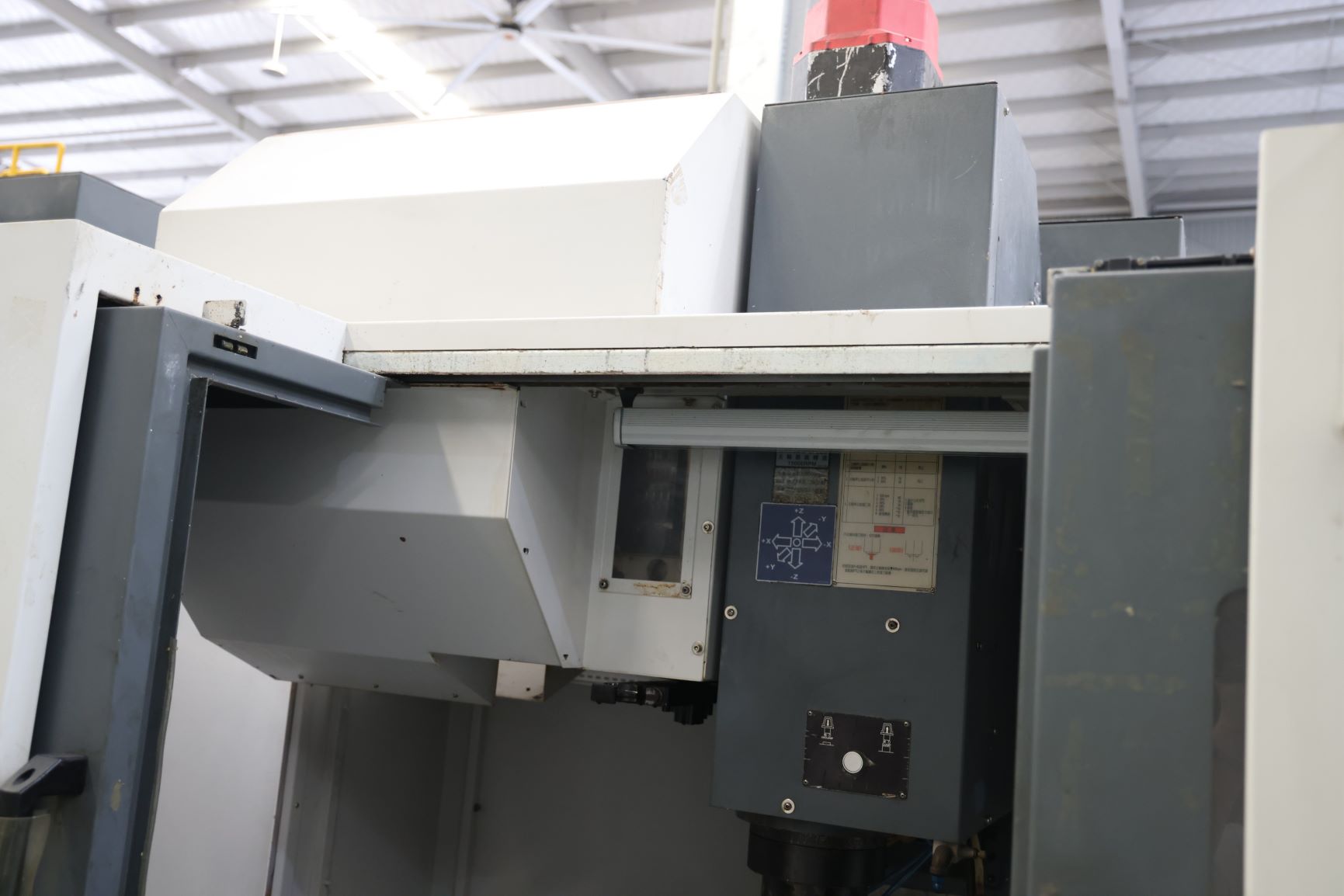

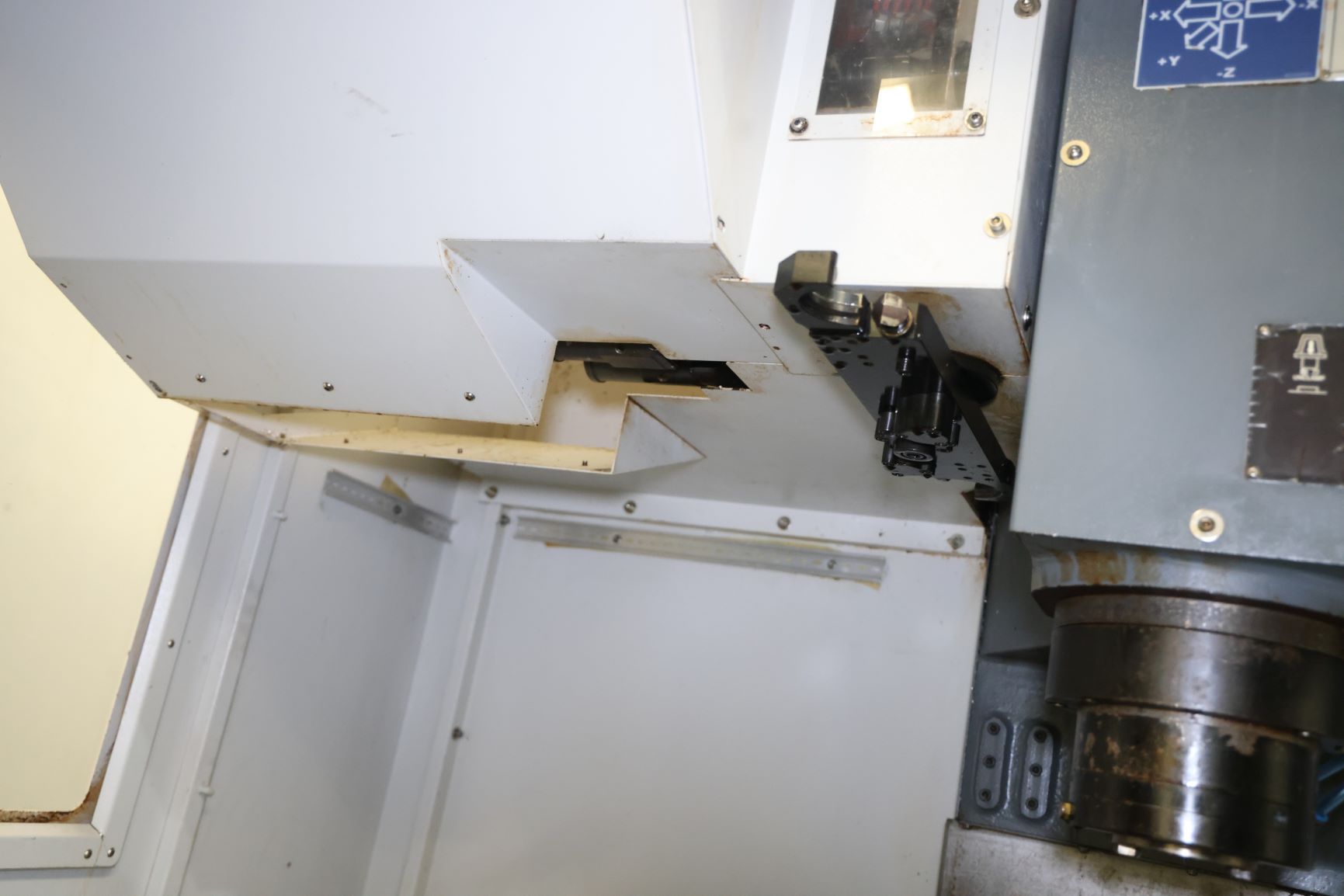

How many tools can the YCM FV85A hold?

This unit is equipped with a 24-tool arm-type automatic tool changer, allowing multiple cutting tools to be prepared for milling, drilling, tapping and related machining operations.
