Used YASDA YBM-640V Vertical Machining Center
Loading carousel...
Product Highlight
Original Japan-made YASDA YBM-640V vertical machining center in excellent condition.
Low usage, well maintained, equipped with Fanuc 31i control and BBT40 spindle.
Get true Japanese precision and reliability at the cost of a domestic machine. Ideal for high-precision and demanding industries.
Product Description
The used YASDA YBM-640V vertical machining center is widely used in high-precision and high-reliability manufacturing fields, including but not limited to:
- Aerospace & Aviation Components Ideal for precision structural parts, brackets, housings, and high-tolerance components.
- Precision Mold & Die Manufacturing Suitable for injection molds, stamping dies, progressive dies, motor molds, and precision mold bases.
- Automotive & Motor Parts Machining of motor housings, transmission parts, pump bodies, and high-accuracy mechanical components.
- Medical Device & Surgical Instrument Parts Perfect for machining medical-grade alloy parts requiring stable accuracy and surface finish.
- Semiconductor & Electronics Equipment Parts Used for precision fixtures, frames, and components in semiconductor and electronics manufacturing.
- Optical Equipment & Precision Instruments High rigidity and accuracy meet the requirements of optical and measuring equipment components.
- Powder Metallurgy & Hard Material Processing Suitable for machining hard alloys, powder metallurgy molds, and wear-resistant components.
- Automation Equipment & Industrial Fixtures Widely applied in jigs, fixtures, tooling, and customized automation parts.
- Energy, Battery & New Energy Equipment Parts Applicable for battery equipment components, energy-related precision parts, and supporting tooling.
| Item | Specification |
|---|---|
| Machine Type | Vertical Machining Center |
| Brand | YASDA |
| Model | YBM-640V |
| Condition | Used / Pre-owned |
| Origin | Japan |

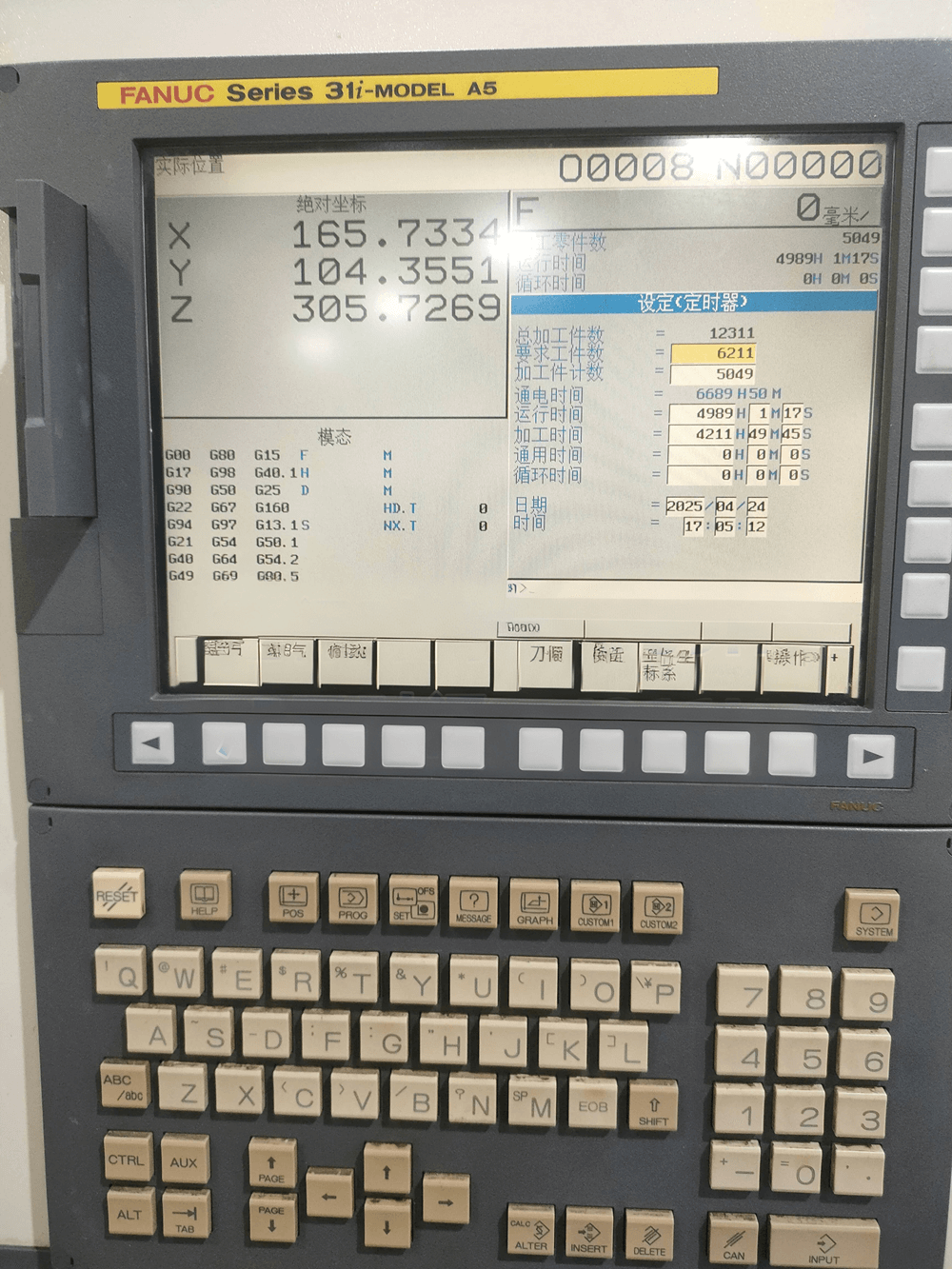

| CNC Control | Fanuc 31i |
| X-Axis Travel | 600 mm |
| Y-Axis Travel | 400 mm |
| Z-Axis Travel | 350 mm |

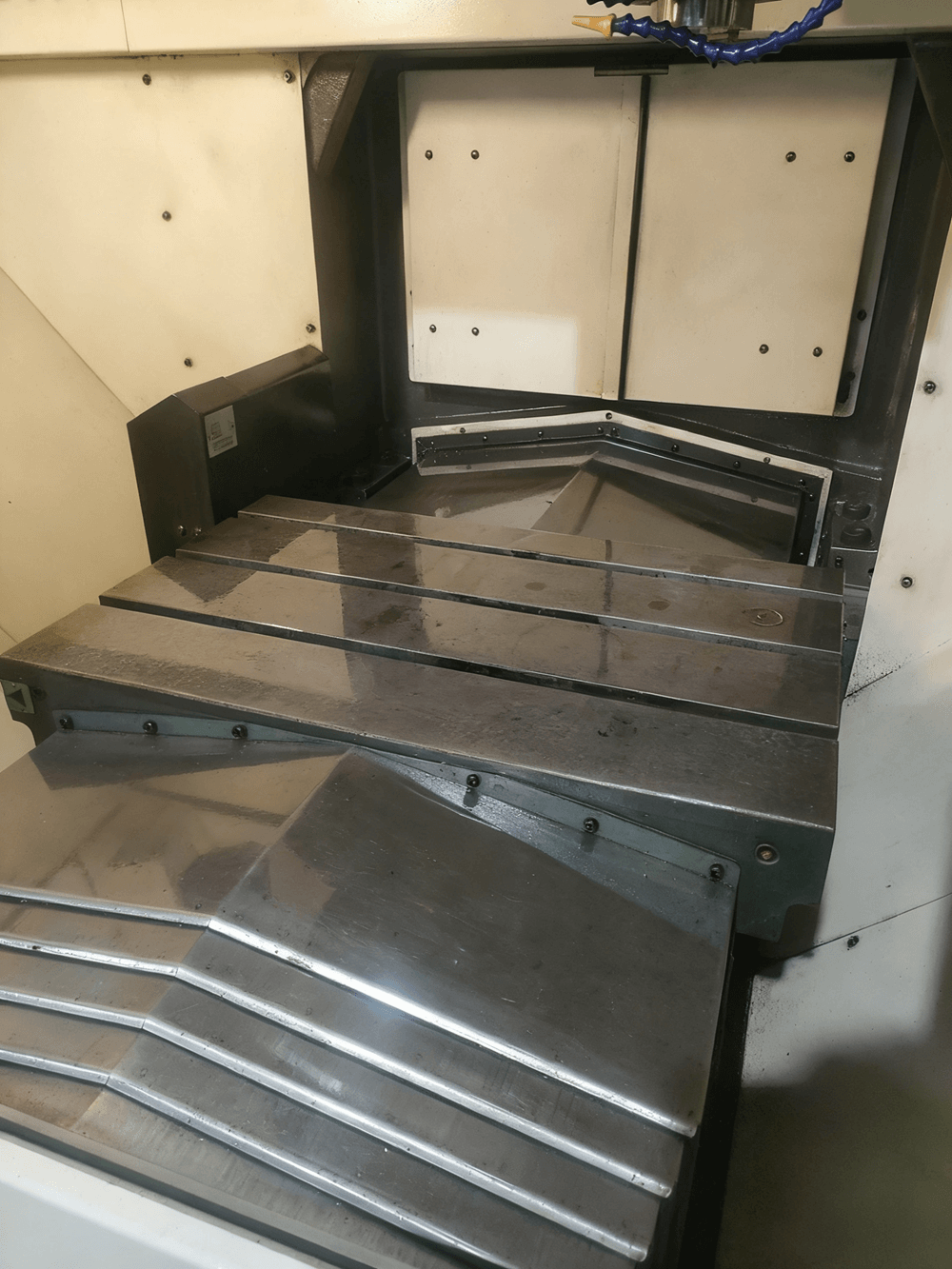

| Table Size | 700 × 450 mm |
| Max Table Load | 300 kg |
| Distance: Table to Spindle Nose | 200 – 550 mm |
| Spindle Speed | 100 – 20,000 rpm |
| Tapping Spindle Speed | Max. 6,000 rpm |

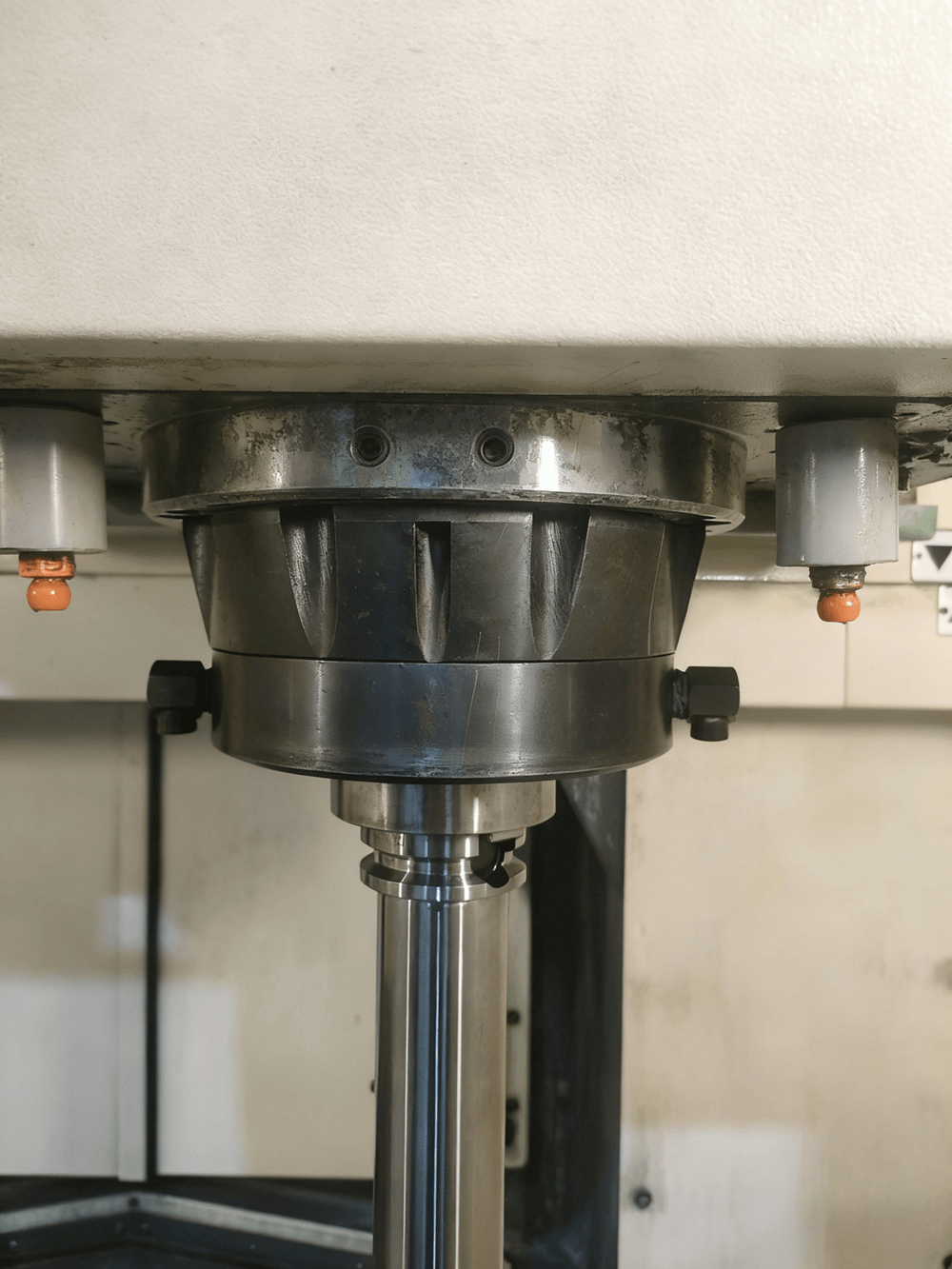

| Spindle Taper | 7/24 No.40 |
| Tool Holder Type | BBT40 |
| Rapid Traverse (X / Y / Z) | 20 / 20 / 20 m/min |
| Cutting Feed Rate (X, Y) | 1 – 12,000 mm/min |

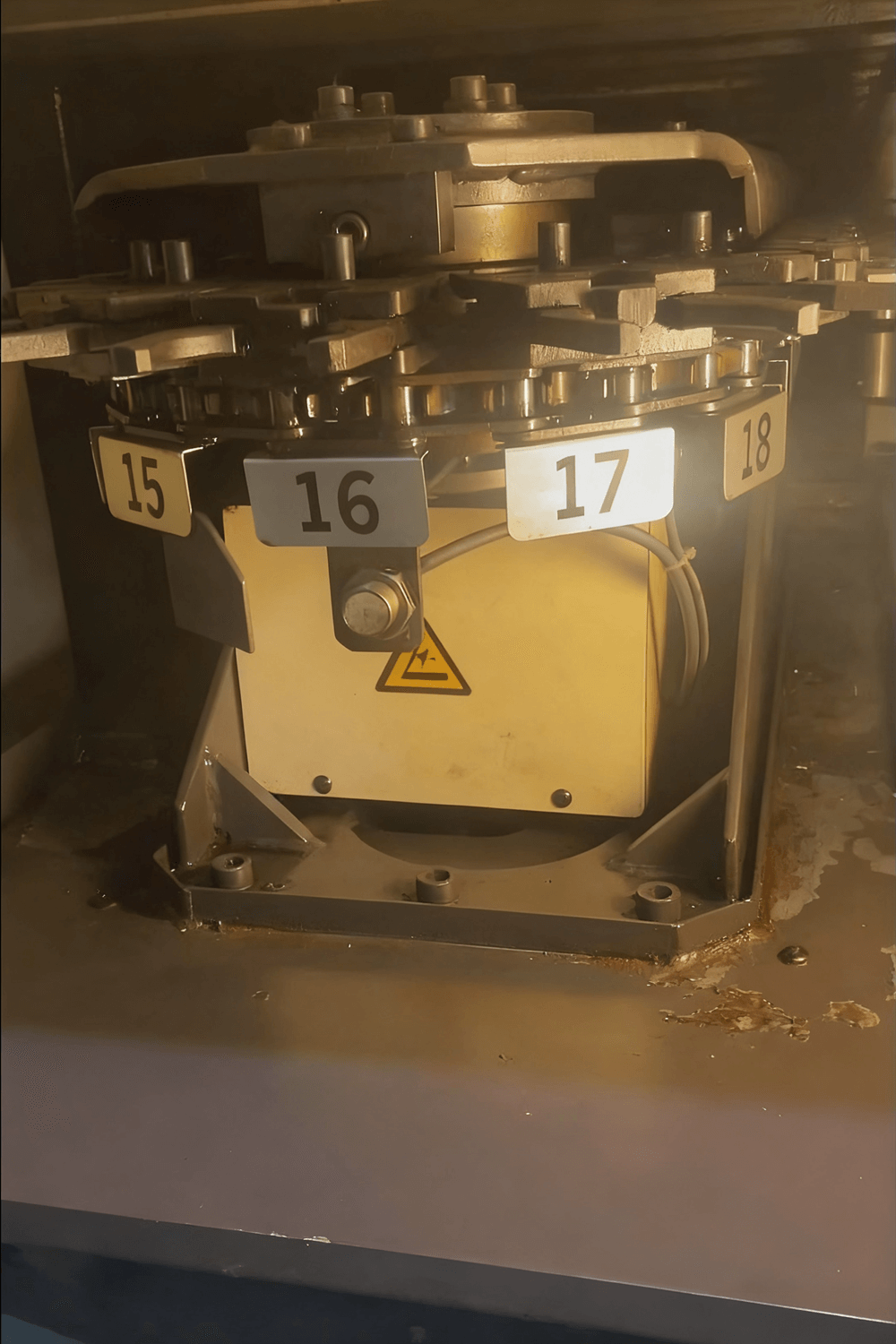

| Tool Magazine Capacity | 30 Tools |
| Max Tool Length | 250 mm |
| Max Tool Diameter | 100 mm |
| Drawbar Specification | JIS B 6339-40P |
| Spindle Motor Power | 7.5 kW |
| Servo Motor Power (3 Axes) | 3.7 kW |
| Positioning Accuracy | 0.005 mm |
| Machine Weight | Approx. 8,500 kg |
| Overall Dimensions (L×W×H) | 2100 × 2800 × 2600 mm |
$250000.00
Stock:1
Brand
YASDA
Model
YBM-640V
Origin
JP
Processing Time
1200h
CNC System
Fanuc 31i
Operating Time
2400H
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 15 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check

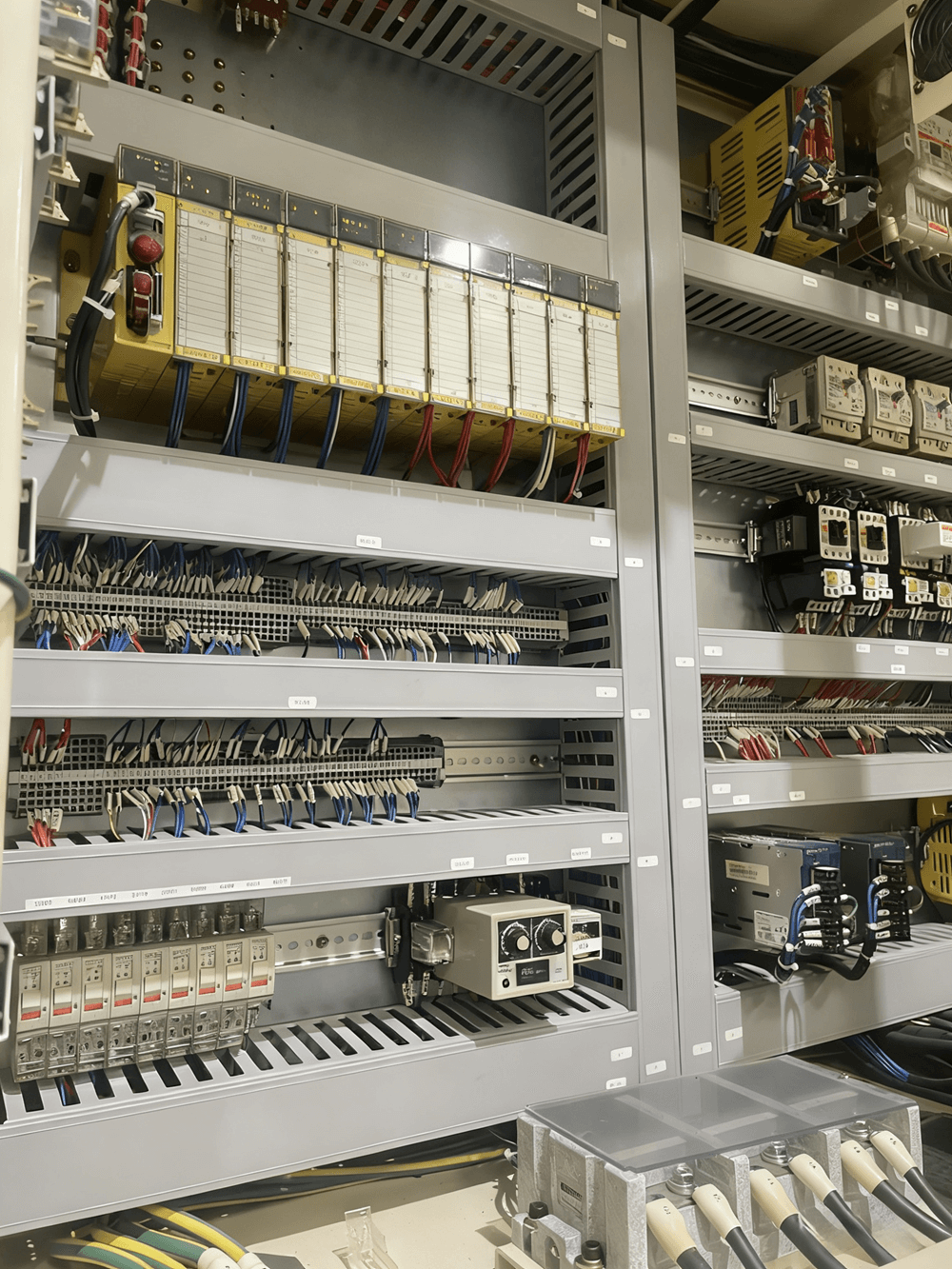

- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
