Used Japan YASDA YBM950V Ver Vertical Boring & Milling Machining Center
Product Description
Applicable products: machine tool accessories and fixtures, machine tool beds, manufacturing of optical equipment and measuring equipment, steel mechanical seals, battery equipment manufacturing, medical device alloy materials, automation equipment, drilling and mining equipment and parts, textile and sewing and knitting equipment and accessories, packaging equipment and parts manufacturing, stator parts such as aircraft engine casings, precision transmission: gear spline couplings, precision transmission: end gears and ratchet gears, mold manufacturing, progressive dies and motor dies, powder alloys: cemented carbide precision stamping dies.
| X-axis travel: | 1080mm |
| Y-axis travel: | 556mm |
| Z-axis travel: | 350mm |
| Distance from table surface to spindle end face: | 200-550mm |

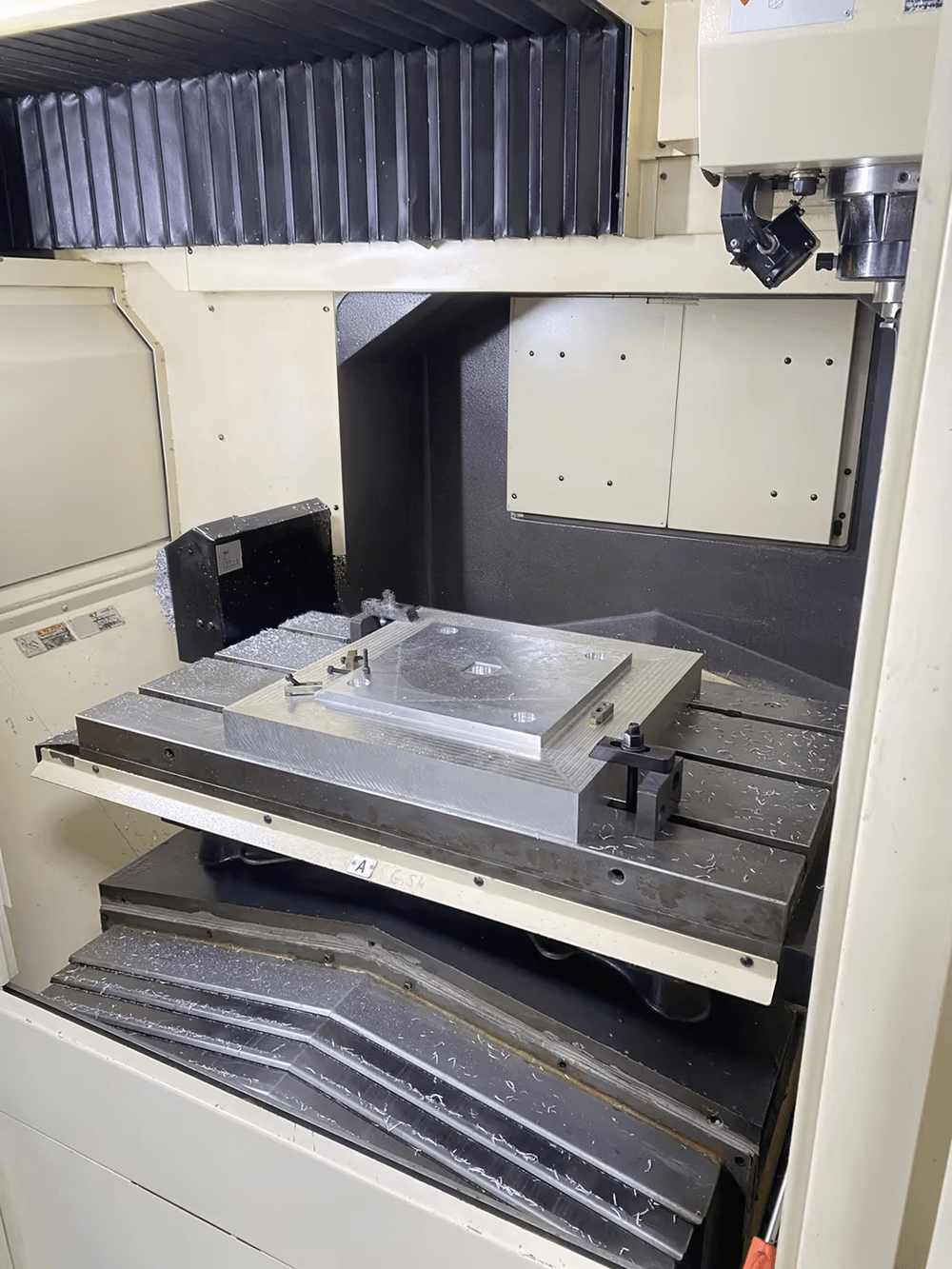

| Table size: | 900*500mm |
| Maximum table load capacity: | 800kg |
| Table surface shape: | 3 x 18mm T-slots, 150mm spacing |

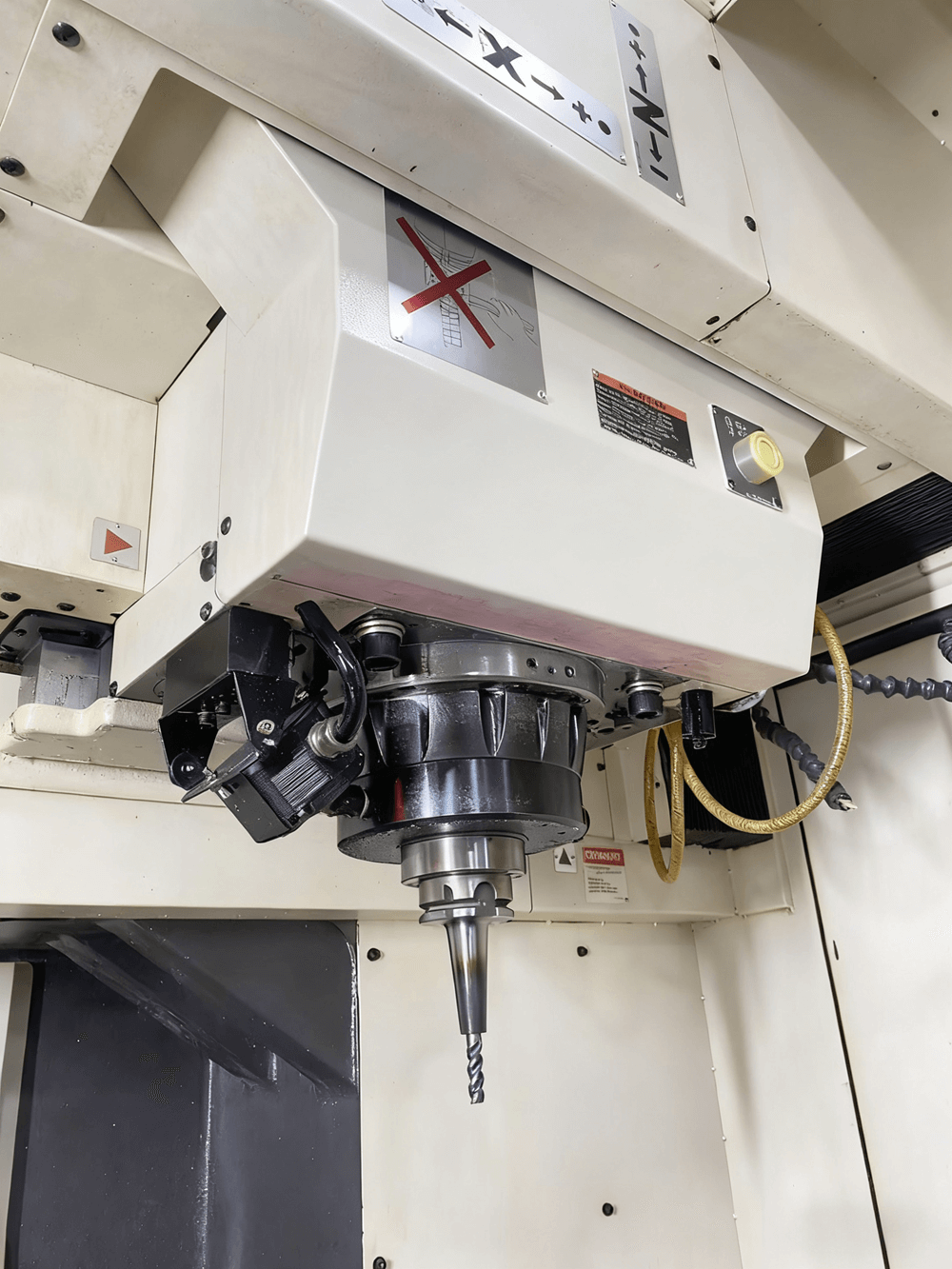

| Spindle speed: | 20000rpm |
| Spindle taper: | HSK-A63 |
| Rapid feed rate: | X-axis 20,000mm/min |
| Y-axis: | 20,000mm/min |
| Z-axis: | 20,000mm/min |
| Cutting feed rate: | 1-5000mm/min |
| Tool magazine capacity: | 100 tools (dual tool magazine) |
| Tool holder type: | HSK-A63 |
| Power supply: | 39kVA |
| Accessories: | Contact automatic tool setter, automatic centering probe, chip conveyor, dual tool magazine, dual table, oil cooler |
FAQ

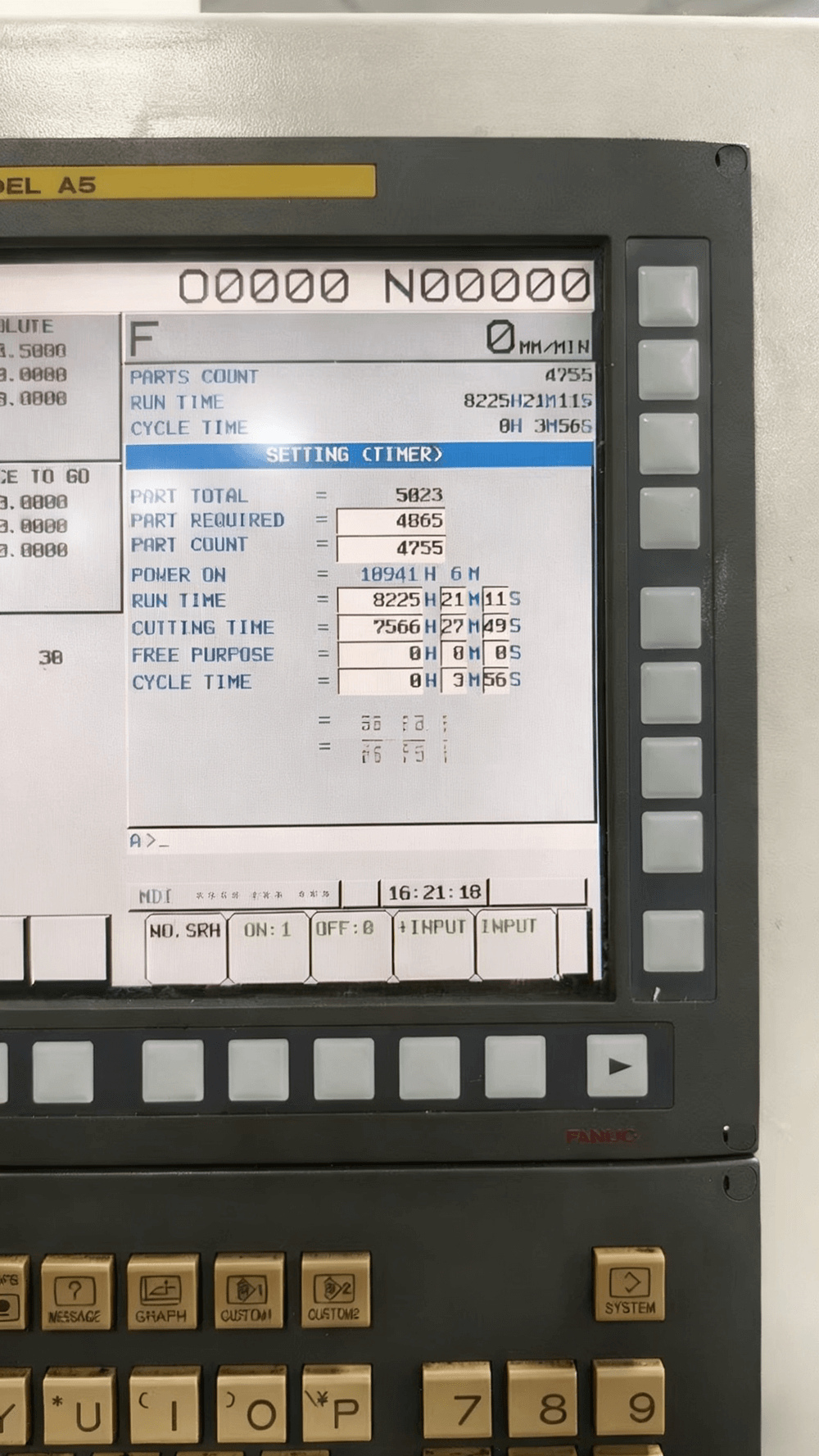

What are the actual operating hours on this YASDA YBM950V?
The machine has 8,225 total operating hours with 7,566 hours of machining (spindle-on) time. While manufactured over ten years ago, the relatively low running hours indicate excellent condition. Remote video inspection and optional third-party inspection are available for verification.
What was the original price, and what is the current asking price?
This configuration (dual pallet + dual ATC) had an original list price of approximately $800,000+. As a pre-owned machine, it is now offered at under 30% of the new price. Contact UsedUltra for specific pricing. All purchases include secure payment processing and after-sales protection.

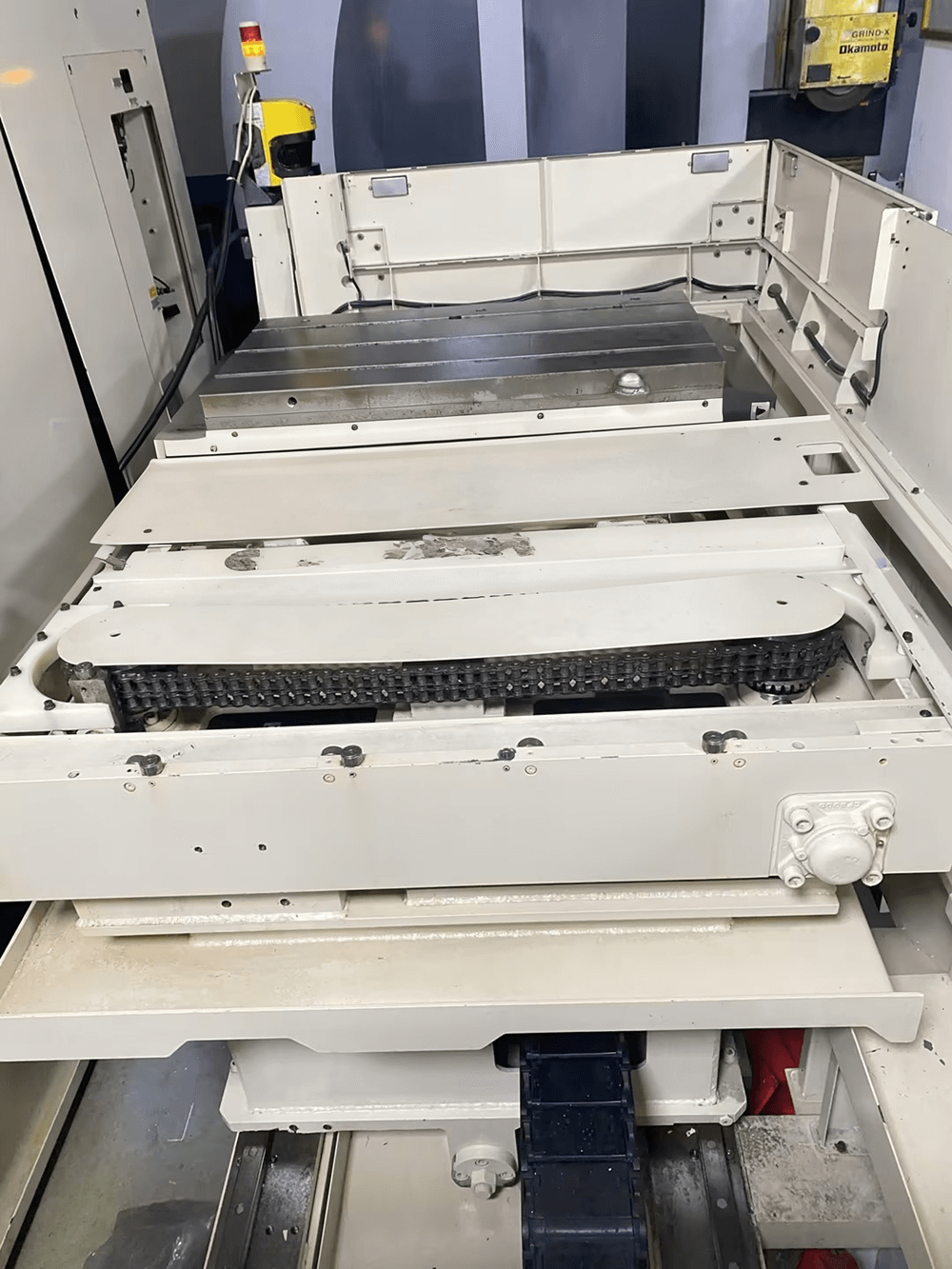

What are the practical benefits of the dual-pallet and dual-ATC configuration?
Dual pallets allow one workpiece to be machined while the other pallet is being loaded/unloaded, drastically reducing spindle downtime and boosting productivity. The dual ATC (100-tool capacity) means fewer tool changes and the ability to handle complex parts in a single setup. This configuration is ideal for production runs and extended unattended operation.
What inspection options are available?

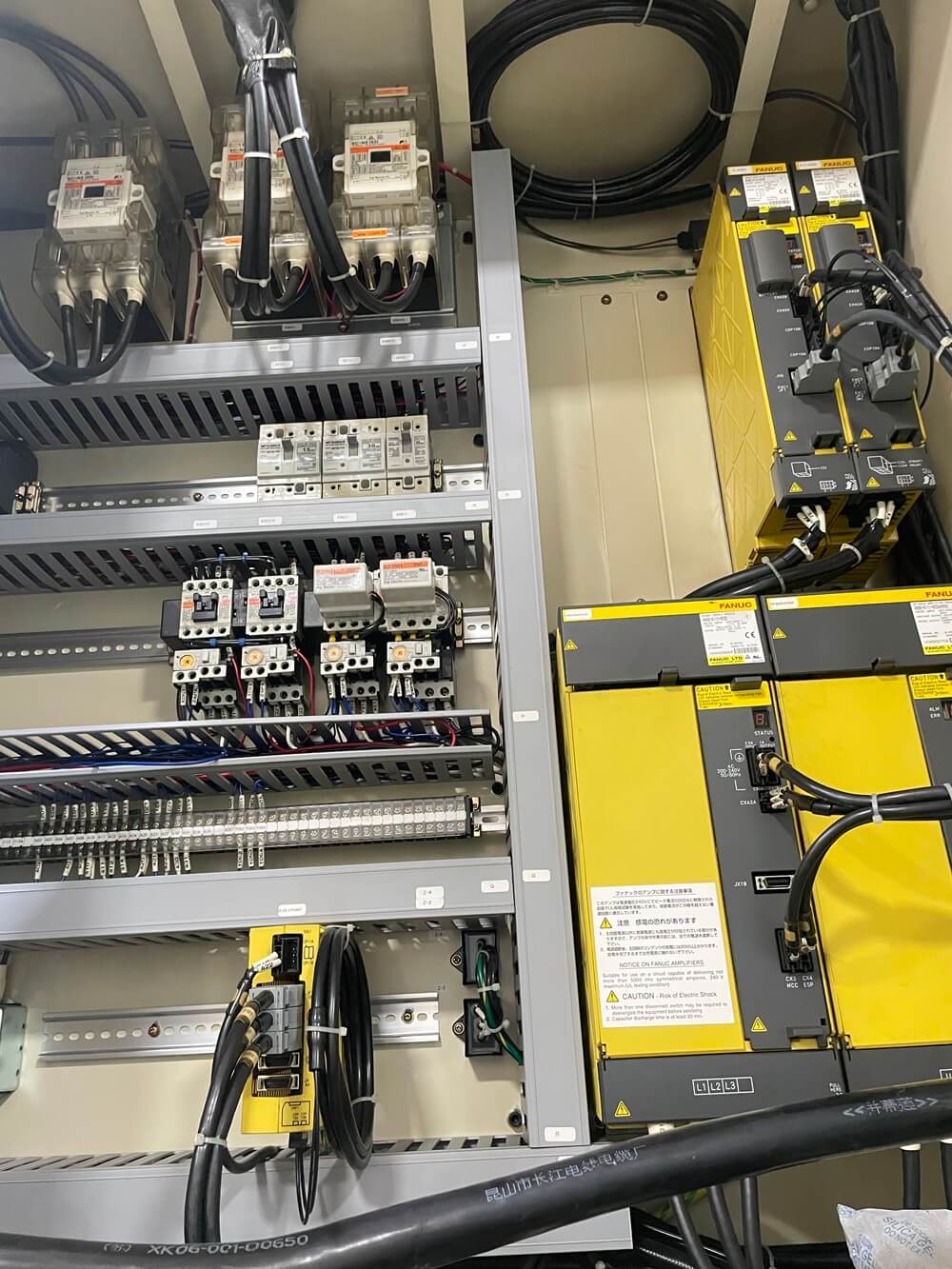

We offer multiple inspection methods: visual appearance check, control system power-on verification, spindle and axis motion test, machining area photos, electrical cabinet photos, nameplate verification, remote video inspection, and optional third-party inspection. The machine is in UsedUltra's own inventory with approximately 7-day delivery.
What industries and applications is this machine suitable for?
The YASDA YBM950V vertical boring & milling machining center serves a wide range of precision manufacturing sectors: mold & die (progressive dies, motor dies), medical device alloy components, optical and measurement equipment, aircraft engine casing and stator parts, automation equipment, battery manufacturing, and precision transmission gears. The 20,000rpm spindle and HSK-A63 taper make it especially well-suited for high-speed, high-precision machining.
$308824.00
Brand
YASDA
Model
YBM950Vver.llI
Origin
JP
Processing Time
7566h
CNC System

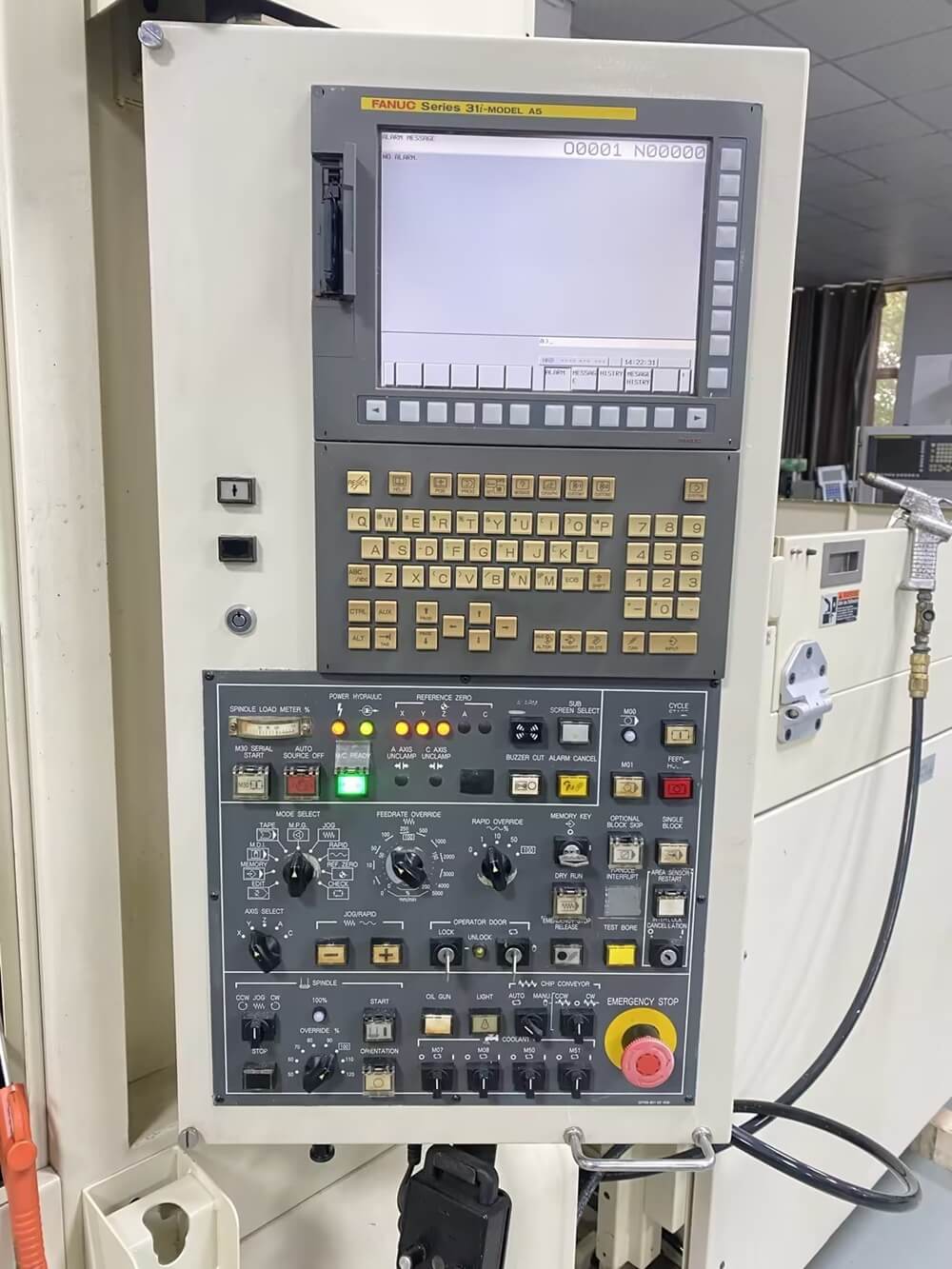

FANUC 31i
Operating Time
8225H
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 7 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
