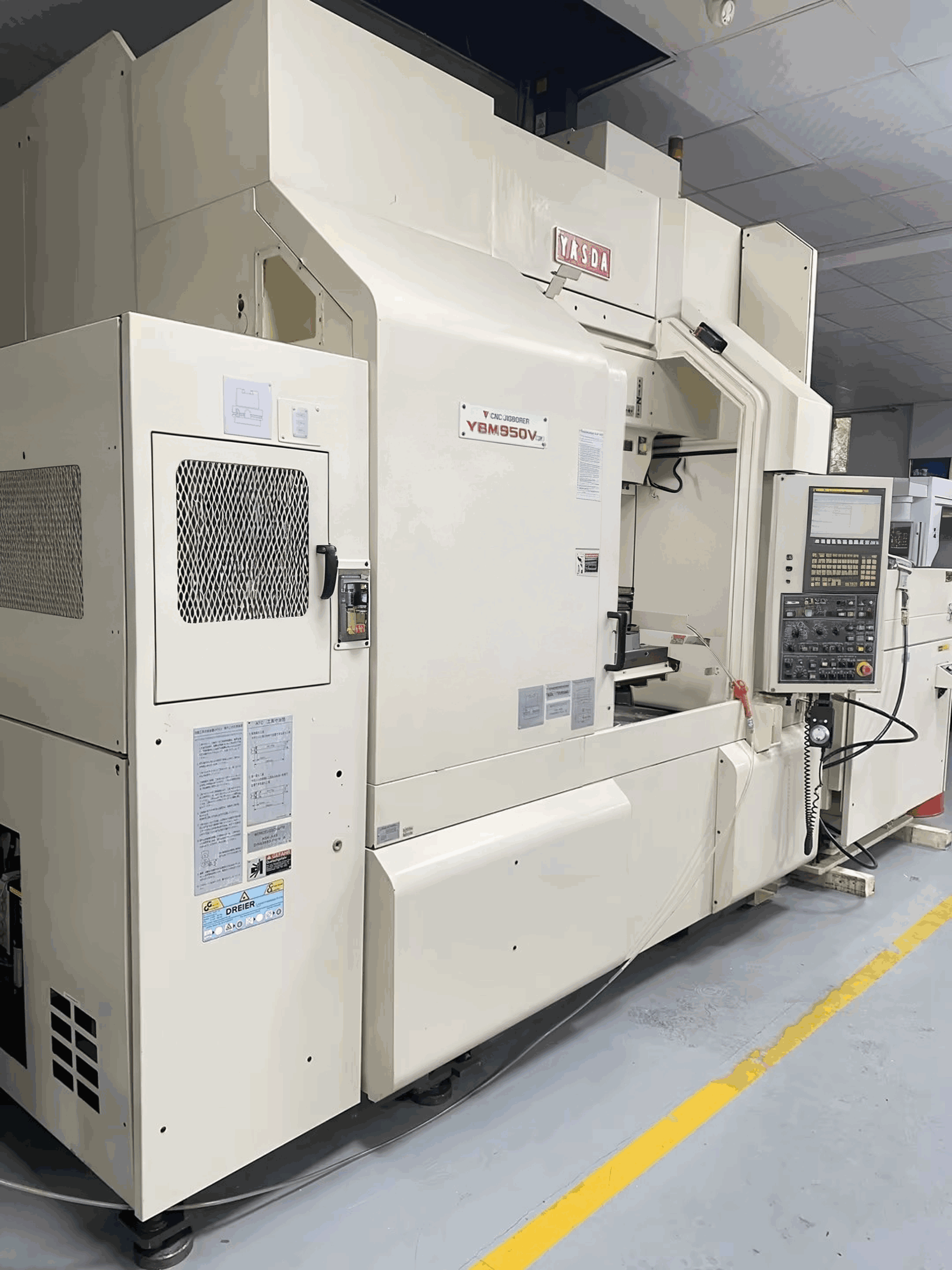

Used YASDA YBM950V CNC Jig Borer from Japan
Product Description
This used YASDA YBM950V Ver.III CNC jig borer machining center was made in Japan and equipped with a FANUC 31i control system, twin workstations, dual tool magazines, and a 100-tool ATC. Designed for high-precision milling, boring, drilling, and mold machining, it offers a cost-effective solution for buyers seeking Japanese machining accuracy without the lead time and investment of a new machine.

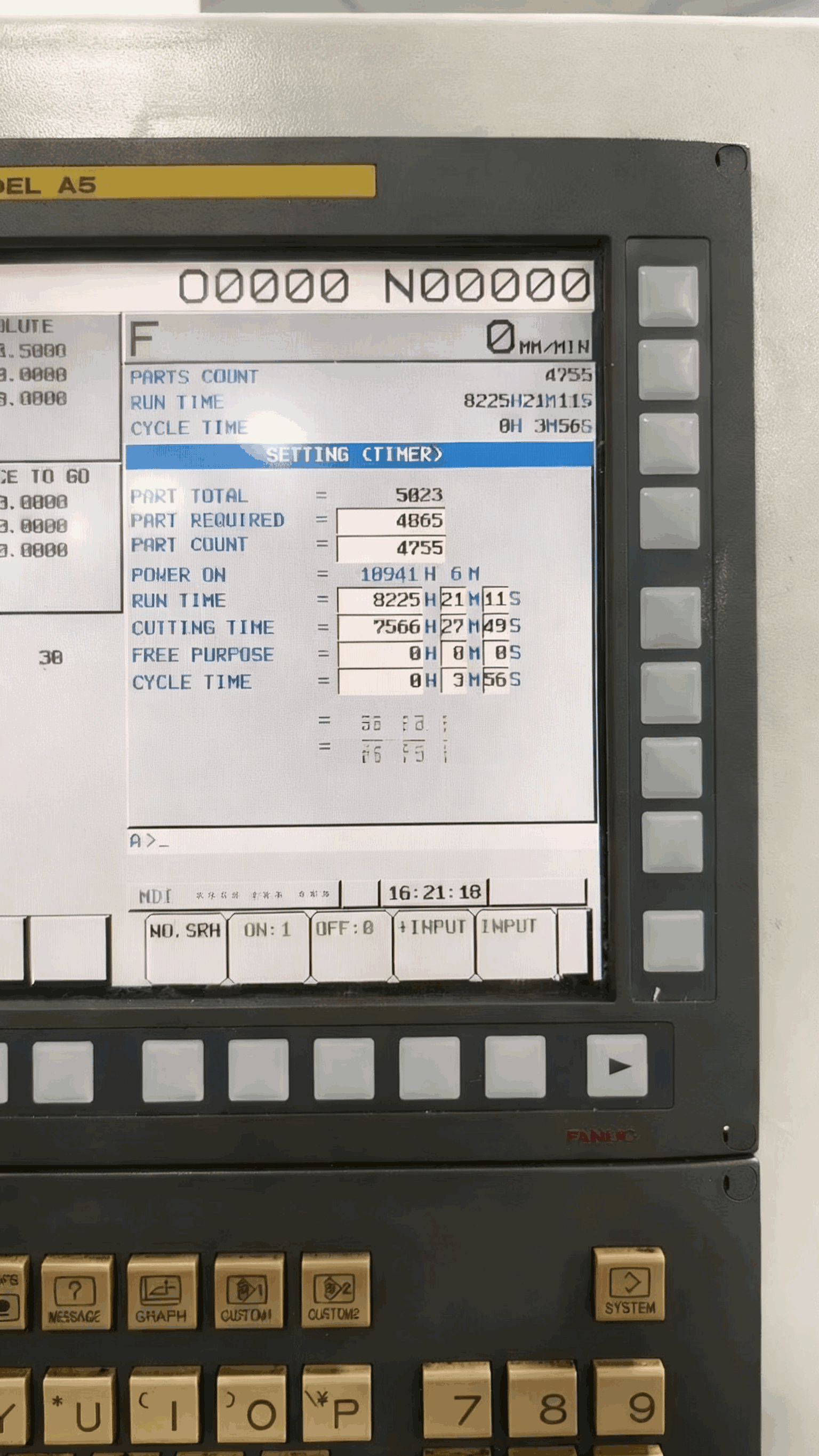

The machine is well maintained, with approximately 8,225 hours run time and 7,566 hours cutting time shown on the CNC screen. Inspection data shows excellent positioning and hole accuracy performance, making it suitable for precision parts, fixtures, molds, aerospace components, and high-end manufacturing applications.
Specification Table
| Item | Specification |
|---|---|
| Machine Condition | Used / Pre-owned |
| Brand | YASDA |
| Model | YBM950V Ver.III |
| Machine Type | CNC Jig Borer / Vertical Machining Center |
| Country of Origin | Japan |

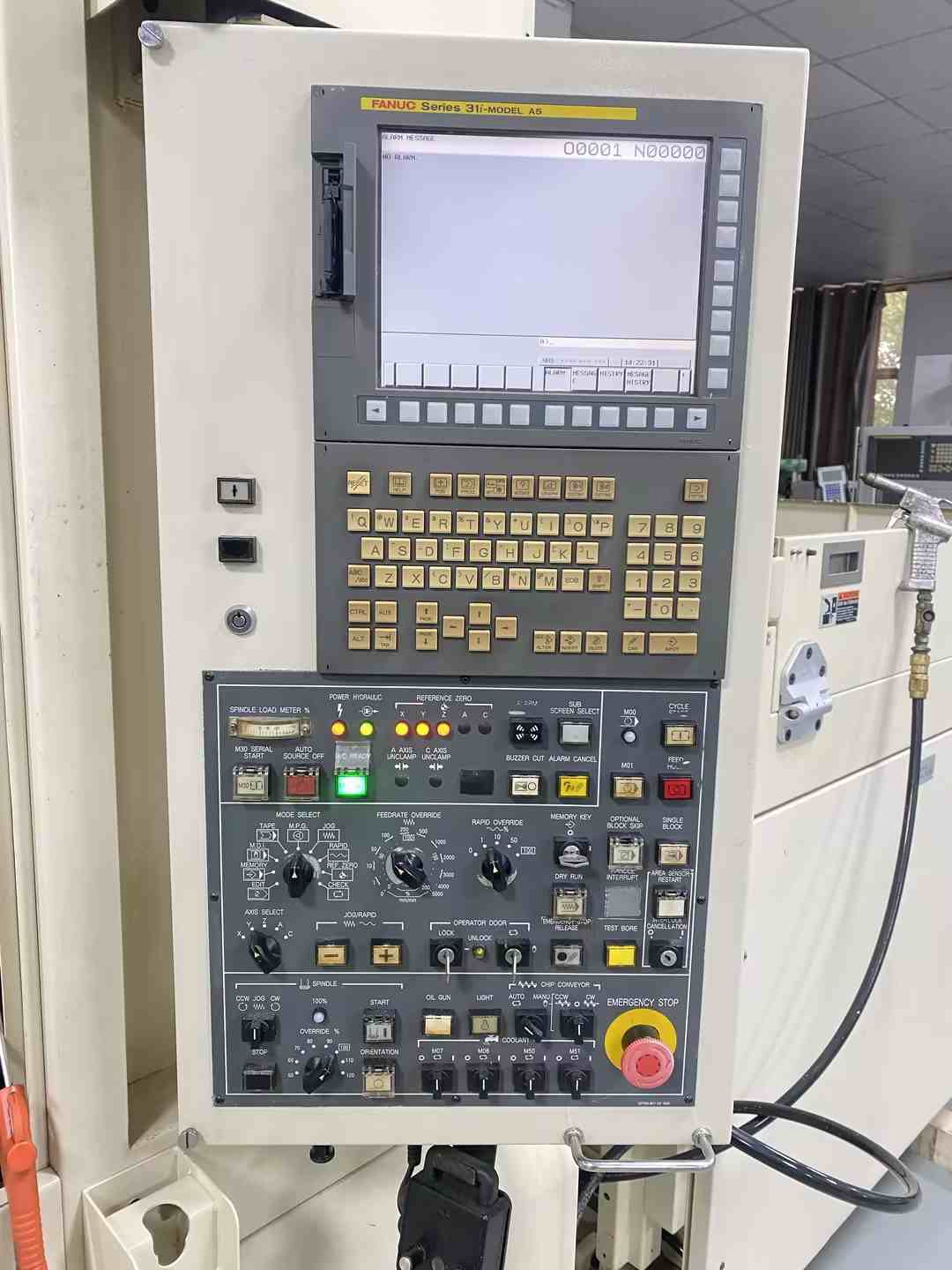

| CNC Control | FANUC 31i |
| X-Axis Travel | 1080 mm |
| Y-Axis Travel | 556 mm |
| Z-Axis Travel | 350 mm |
| Distance from Table Surface to Spindle End | 200–550 mm |

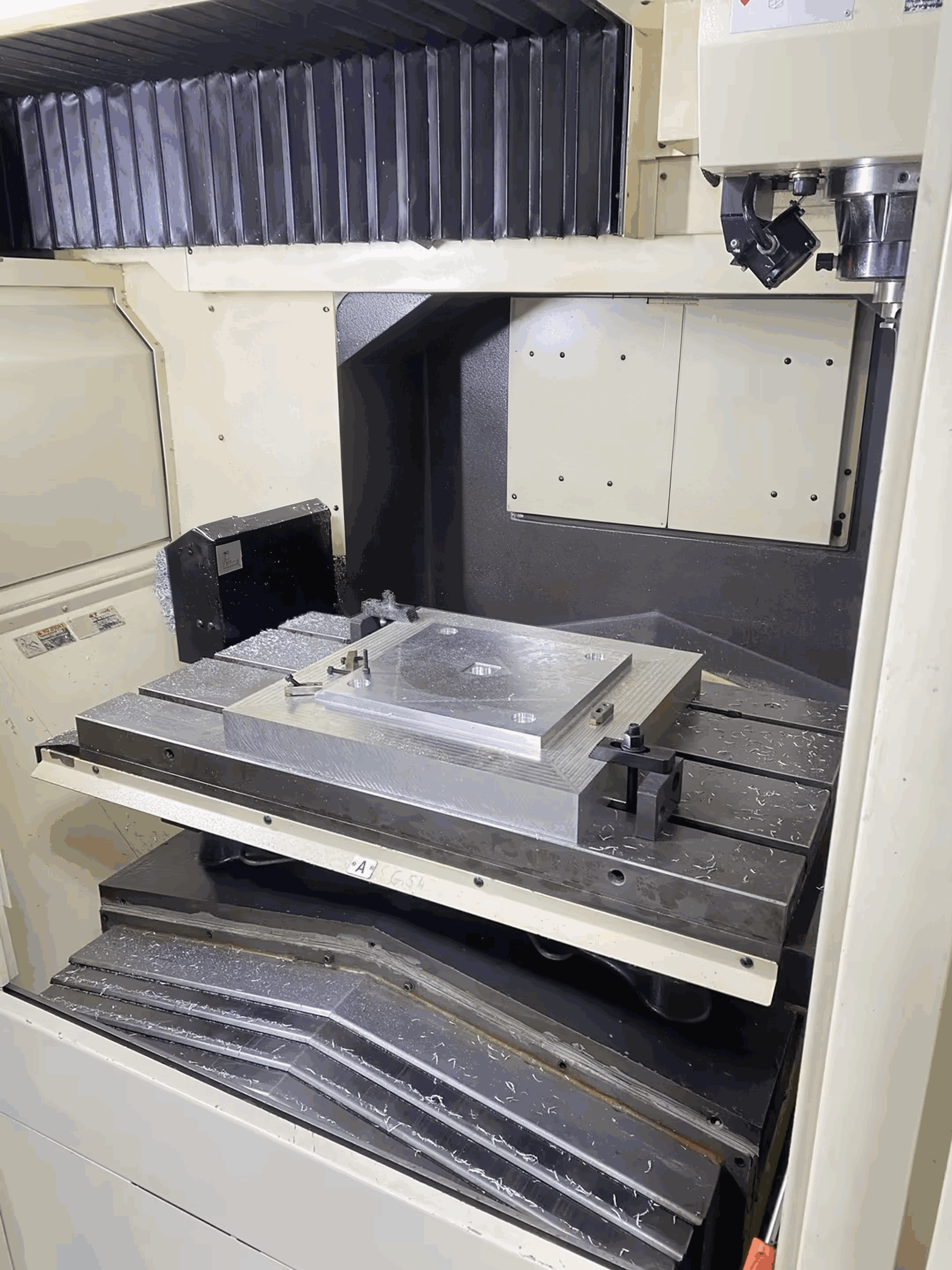

| Table Size | 900 × 500 mm |
| Max. Table Load | 800 kg |
| Table Surface | 18 mm T-slot, 3 slots, 150 mm pitch |

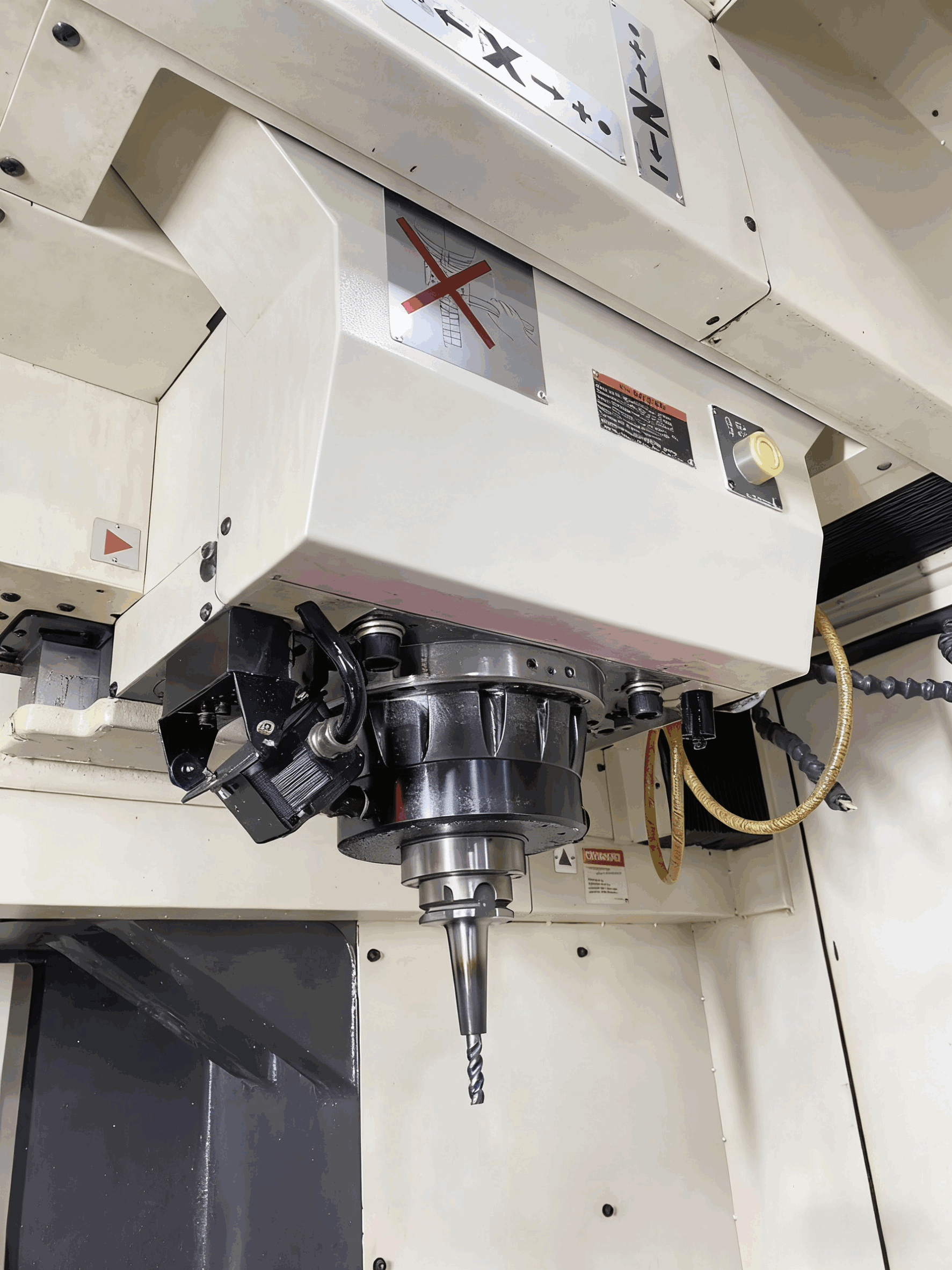

| Spindle Speed | 20,000 rpm |
| Spindle Taper / Tool Interface | HSK-A63 |
| Rapid Traverse X/Y/Z | 20,000 mm/min |
| Cutting Feed Rate | 1–5,000 mm/min |
| Tool Magazine Capacity | 100 tools |
| Tool Magazine Type | Dual Tool Magazine |

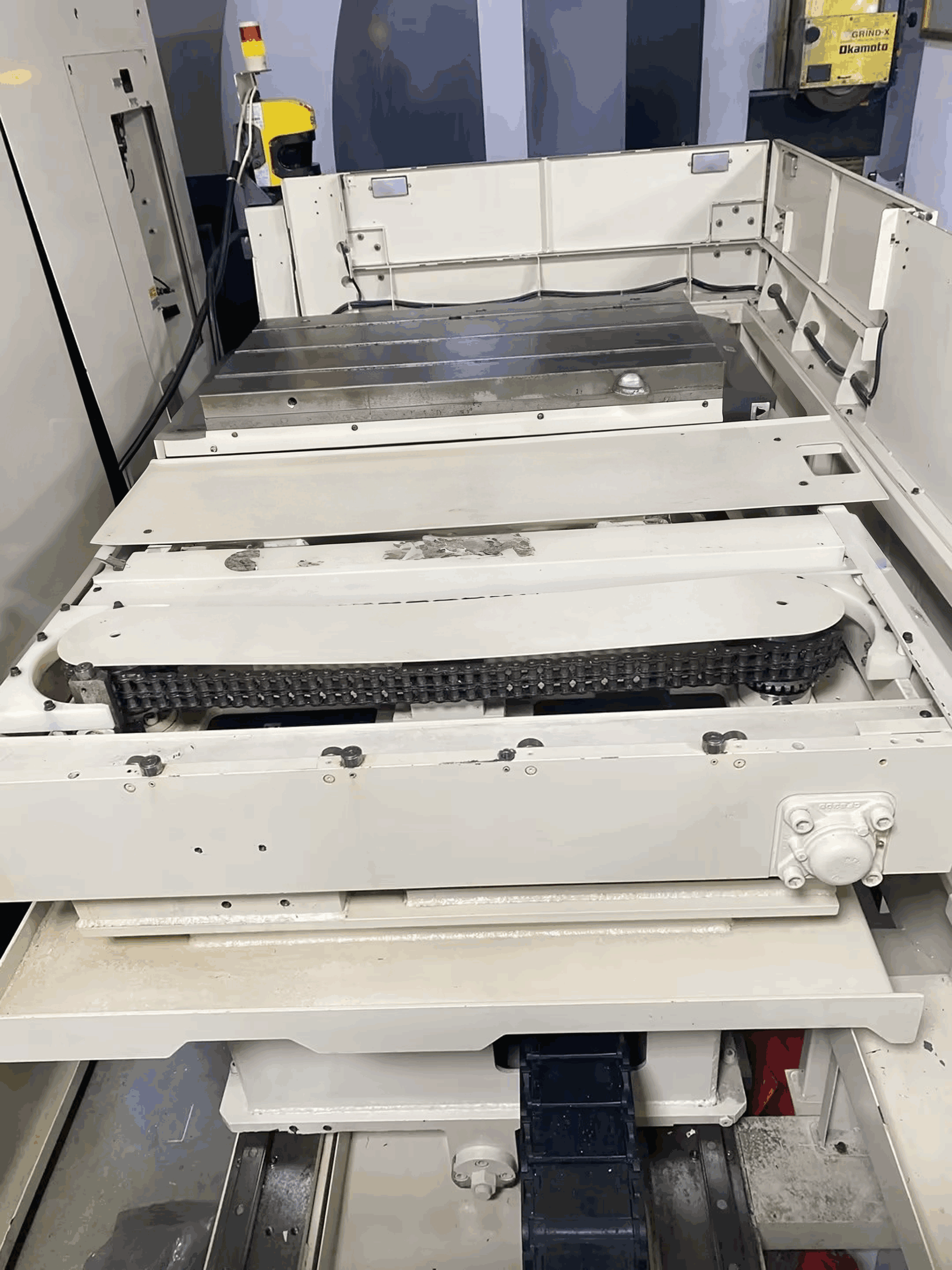

| Workstation / Pallet | Twin Workstation / Twin Pallet |
| Power Capacity | 39 kVA |
| Power-On Time | Approx. 10,941 hours |
| Run Time | Approx. 8,225 hours |
| Cutting Time | Approx. 7,566 hours |
| Guideway Structure | 3-Axis Box Guideway / Hard Rail |
| Z-Axis Feature | Raised Z-Axis Configuration |
| Spindle Cooling | Spindle Center Through Coolant |
| Spindle Air Function | Center Air Blow |
| Measuring System | Renishaw Receiver / Probe Support |
| Accessories | Automatic tool setter, automatic centering probe, chip conveyor, dual tool magazine, twin worktable, oil cooler |
Accuracy & Inspection Highlights
| Inspection Item | Reported Result |
|---|---|
| Roundness | Max. approx. 0.003 mm |
| Hole Diameter Consistency | Within approx. 0.0025 mm |
| Max. Position Deviation Based on Main Bore | Approx. 0.005 mm |
| Axial Position Deviation | Max. approx. 0.003 mm |
This inspection result helps support the machine’s positioning as a high-precision used Japanese CNC jig borer, suitable for buyers who need stable accuracy for demanding components.
Application Range
This second-hand YASDA YBM950V CNC machining center is suitable for high-precision machining of:
Machine tool fixtures, machine beds, optical equipment parts, measuring equipment components, mechanical seal parts, battery equipment parts, medical device alloy parts, automation equipment components, drilling equipment parts, textile and sewing machine accessories, packaging machinery parts, aerospace engine housing components, precision transmission parts, gear couplings, curvic coupling parts, mold components, progressive dies, motor stator dies, powder metallurgy parts, carbide parts, and precision mold manufacturing.
It is especially suitable for factories that require high-accuracy boring, drilling, milling, hole positioning, mold plate machining, and precision fixture manufacturing.
FAQ
Is this YASDA YBM950V a new machine or a used machine?
This is a used YASDA YBM950V Ver.III CNC jig borer machining center made in Japan. It is not a new machine. The machine is positioned for buyers who want Japanese precision at a lower investment cost than buying new equipment.
What makes this used YASDA YBM950V suitable for precision machining?
The machine is equipped with a FANUC 31i CNC system, 20,000 rpm spindle, box guideway structure, twin workstation, and 100-tool ATC. The supplied inspection report shows strong hole accuracy, roundness, and positioning performance.
Does this machine come with a twin pallet and dual tool magazine?
Yes. This used YASDA machining center is configured with twin workstations / twin pallet setup and a dual tool magazine with 100 tools, making it suitable for efficient batch machining and flexible production.
What industries can use this second-hand YASDA CNC jig borer?
It can be used for precision molds, fixtures, aerospace parts, medical components, optical equipment, automation parts, battery equipment, mechanical seal components, and other high-accuracy metalworking applications.
$308824.00
Brand
YASDA
Model
YBM950V
Origin
JP
Processing Time
6782h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 7 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
