Product Highlight

This used Sodick MC430L Linear high-speed CNC machining center is built for precision milling, mold machining and small high-accuracy components. It features 420 × 350 × 200 mm XYZ travel, a 40,000 rpm high-speed spindle, HSK-E25 spindle interface, 16-tool magazine, and Sodick LN2X CNC control.

Product Description

Used Sodick MC430L Linear high-speed CNC machining center is built for precision milling, mold machining and small high-accuracy components. It features 420 × 350 × 200 mm XYZ travel, a 40,000 rpm high-speed spindle, HSK-E25 spindle interface, 16-tool magazine, and Sodick LN2X CNC control.

With its compact machining area and high spindle speed, the pre-owned MC430L is a cost-effective option for manufacturers looking to add high-speed precision machining capacity without investing in a new machine.

Technical Specifications

Specification	Details
Brand	Sodick
Model	MC430L
Machine Type	High-Speed CNC Machining Center
Condition	Used / Pre-Owned
Brand Origin	Japan
CNC Control	Sodick LN2X
X-Axis Travel	420 mm
Y-Axis Travel	350 mm
Z-Axis Travel	200 mm
Maximum Workpiece Size	300 × 250 × 100 mm
Maximum Workpiece Weight	150 kg
Positioning / Machining Accuracy	±0.005 mm
Spindle Speed Range	6,000–40,000 rpm
Maximum Spindle Speed	40,000 rpm
Spindle Interface	HSK-E25
Tool Magazine Capacity	16 tools
Electrical Capacity	30 kVA
Power Supply	3 Phase
Frequency	50/60 Hz
Site Power Configuration Shown	400 V / 50 Hz
Standard Air Pressure	6 kg/cm²
Machine Length	Approx. 1,625 mm
Machine Width	Approx. 1,500 mm
Machine Height	Approx. 2,105 mm
Machine Weight	Approx. 5,800 kg
Equipment No. Shown	M03S03986

Applications and Suitable Machining Scenarios

The used Sodick MC430L CNC machining center is particularly suitable for applications requiring high spindle speed, small cutting tools and precision surface finishing.

Typical applications include:

Precision mold and die machining
Mold inserts and small mold components
High-speed milling and finishing
Precision mechanical components
Small complex parts
Copper and non-ferrous metal component machining
Aluminum precision machining
Small-tool and micro-tool milling applications
Automotive mold components
Electronics and precision manufacturing parts

Its 40,000 rpm spindle and HSK-E25 tooling system make the MC430L well suited to manufacturers that require high-speed machining of smaller workpieces while maintaining tight dimensional control and good surface quality.

Why Consider a Used Sodick MC430L?

For manufacturers who need high-speed precision machining but want to control capital investment, a pre-owned Sodick MC430L can provide a practical alternative to buying a new high-speed machining center.

The combination of 40,000 rpm spindle speed, compact XYZ travel, LN2X CNC control and 16-tool automatic tool changer makes this model suitable for mold shops, precision component manufacturers and production facilities that need additional machining capacity.

FAQ

Is this Sodick MC430L a new machine?

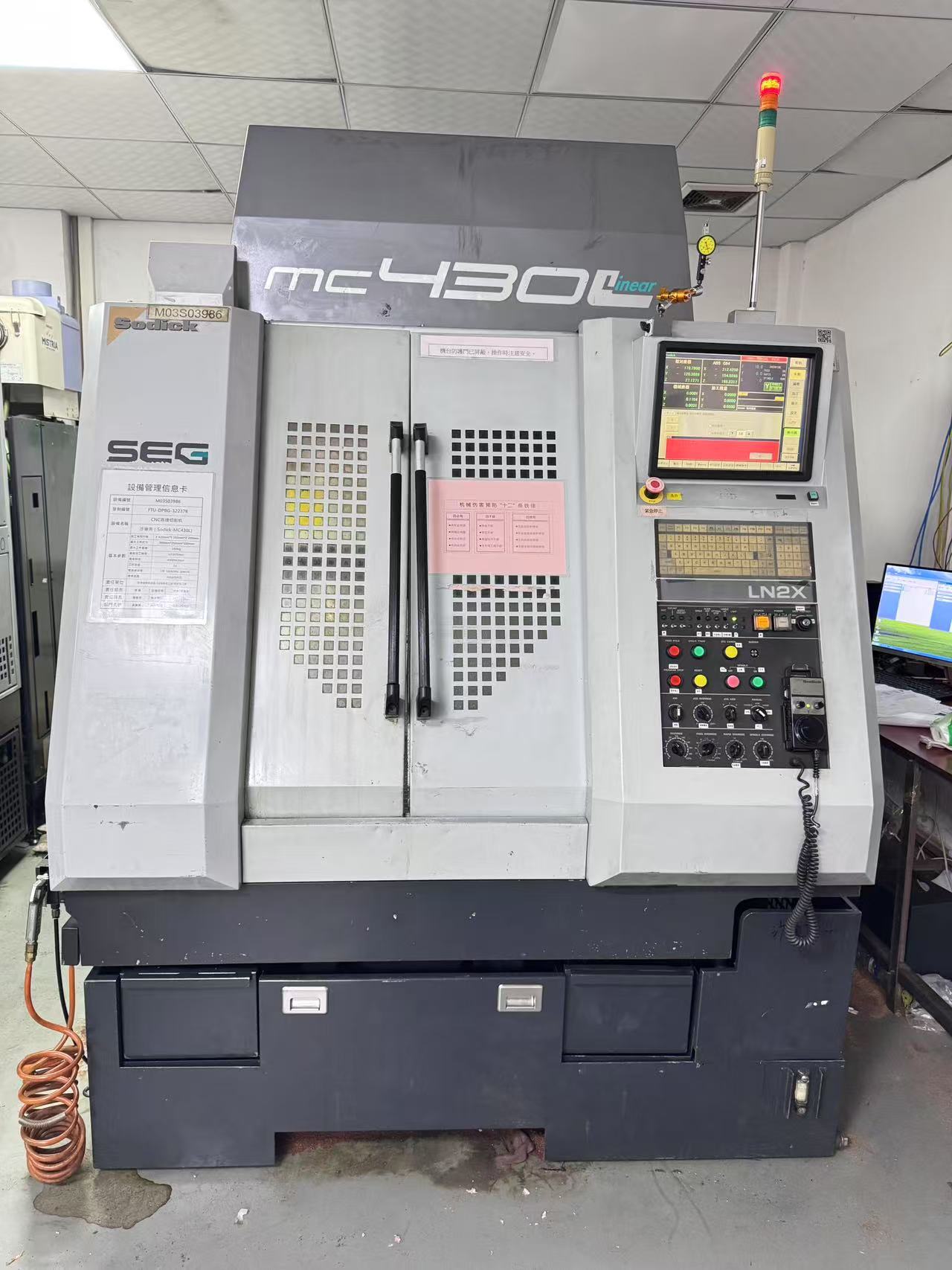

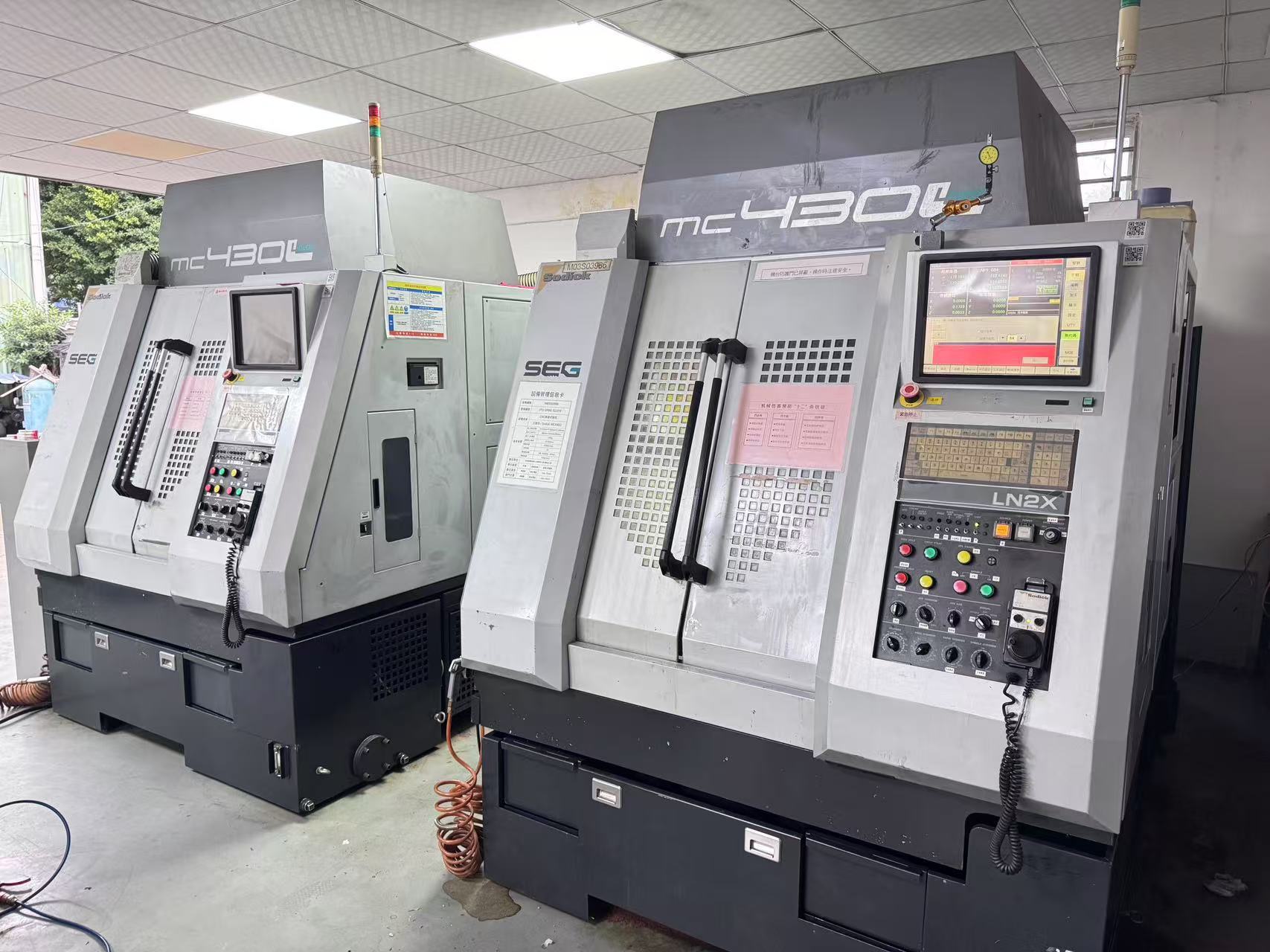

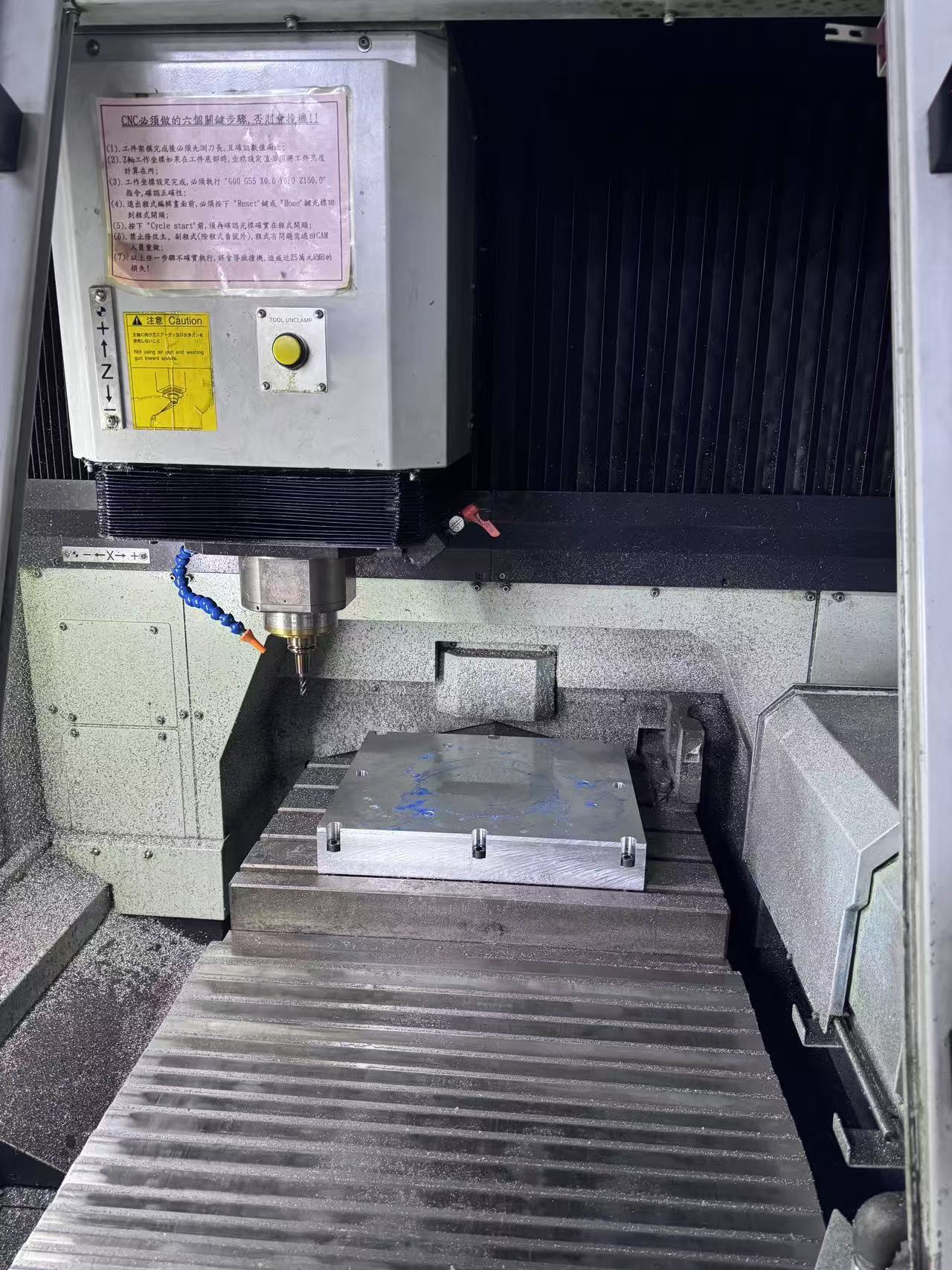

No. This is a used Sodick MC430L high-speed CNC machining center, not a new machine. The actual machine photos are provided so buyers can review its current appearance and configuration before making an inquiry.

What is the XYZ travel of the Sodick MC430L?

The machine has an X-axis travel of 420 mm, Y-axis travel of 350 mm and Z-axis travel of 200 mm. The listed maximum workpiece size is approximately 300 × 250 × 100 mm.

Does this used Sodick MC430L have a 40,000 rpm spindle?

Yes. The available machine information lists a spindle speed range of approximately 6,000 to 40,000 rpm, with a maximum spindle speed of 40,000 rpm. It uses an HSK-E25 spindle interface.

What CNC controller and tool magazine does the machine use?

This Sodick MC430L is equipped with a Sodick LN2X CNC control system and a 16-tool magazine, making it suitable for automated multi-process precision machining.

Can I request the current price, machine test details and shipping cost?

Yes. Please send us your destination country or port together with your required machine details. You can request the current used machine price, latest availability, machine inspection information, operating video and shipping quotation before placing an order.
