Used RLIIZE VMC866 CNC Machining Center | Siemens 828D
Product Description

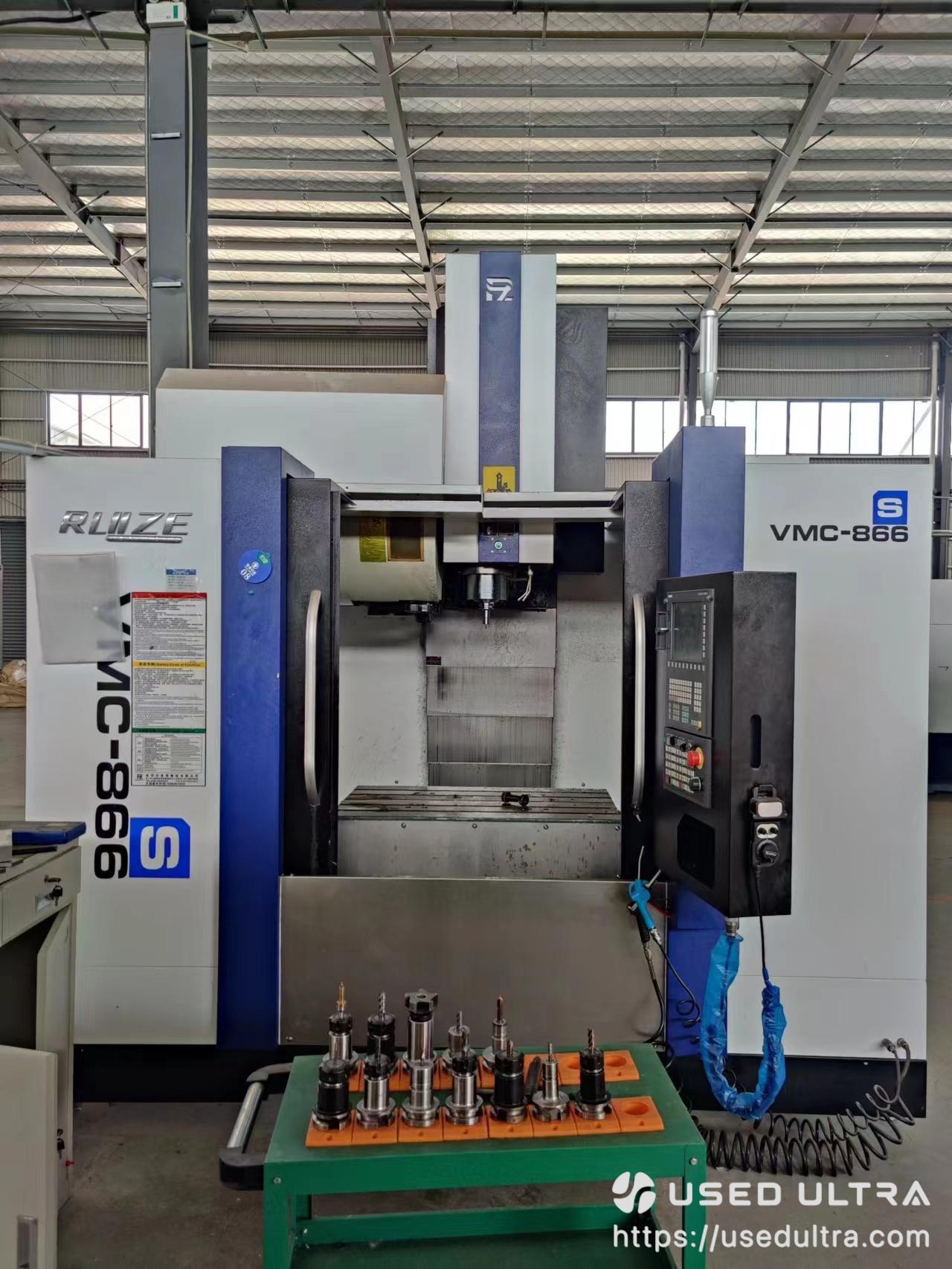

Used RLIIZE VMC866 CNC vertical machining center from China, equipped with a Siemens SINUMERIK 828D control, BT40 direct-drive spindle and maximum spindle speed of 12,000 rpm. With listed X/Y/Z travel of 800 × 600 × 600 mm, this machine is suitable for general milling, drilling, tapping and precision parts machining. A practical option for manufacturers seeking additional CNC machining capacity at a lower investment than new equipment.
Technical Specifications
| Specification | Details |
|---|---|
| Machine Type | Used CNC Vertical Machining Center |
| Manufacturer | Dongguan Ruize Machinery Co., Ltd. |
| Brand | RLIIZE |
| Model | VMC866 |
| Country of Origin | China |
| CNC Control | Siemens SINUMERIK 828D |
| X-Axis Travel | 800 mm |
| Y-Axis Travel | 600 mm |
| Z-Axis Travel | 600 mm |
| Spindle Taper | BT40 |
| Spindle Drive | Direct Drive |
| Maximum Spindle Speed | 12,000 rpm |
| Machining Axes | X / Y / Z |
| Typical Operations | Milling, Drilling, Tapping, Boring |
| Machine Enclosure | Fully Enclosed |
| Machine Condition | Used |
| Availability | Subject to Current Stock |
Applications & Suitable Industries
Used RLIIZE VMC866 vertical machining center is suitable for workshops and manufacturers requiring flexible CNC milling capability for general industrial production.
Typical applications include:
- Precision milling of steel, aluminum and non-ferrous materials
- Drilling and tapping
- General boring operations
- Machinery components
- Automotive parts
- Mold and tooling components
- Jigs and fixtures
- Hydraulic and mechanical components
- General engineering parts
- Small and medium batch production
- Contract machining and subcontract CNC work
The 800 × 600 × 600 mm listed travel, combined with a BT40 direct-drive spindle and 12,000 rpm maximum spindle speed, provides a useful balance between machining range and spindle performance for general-purpose CNC production.
FAQ

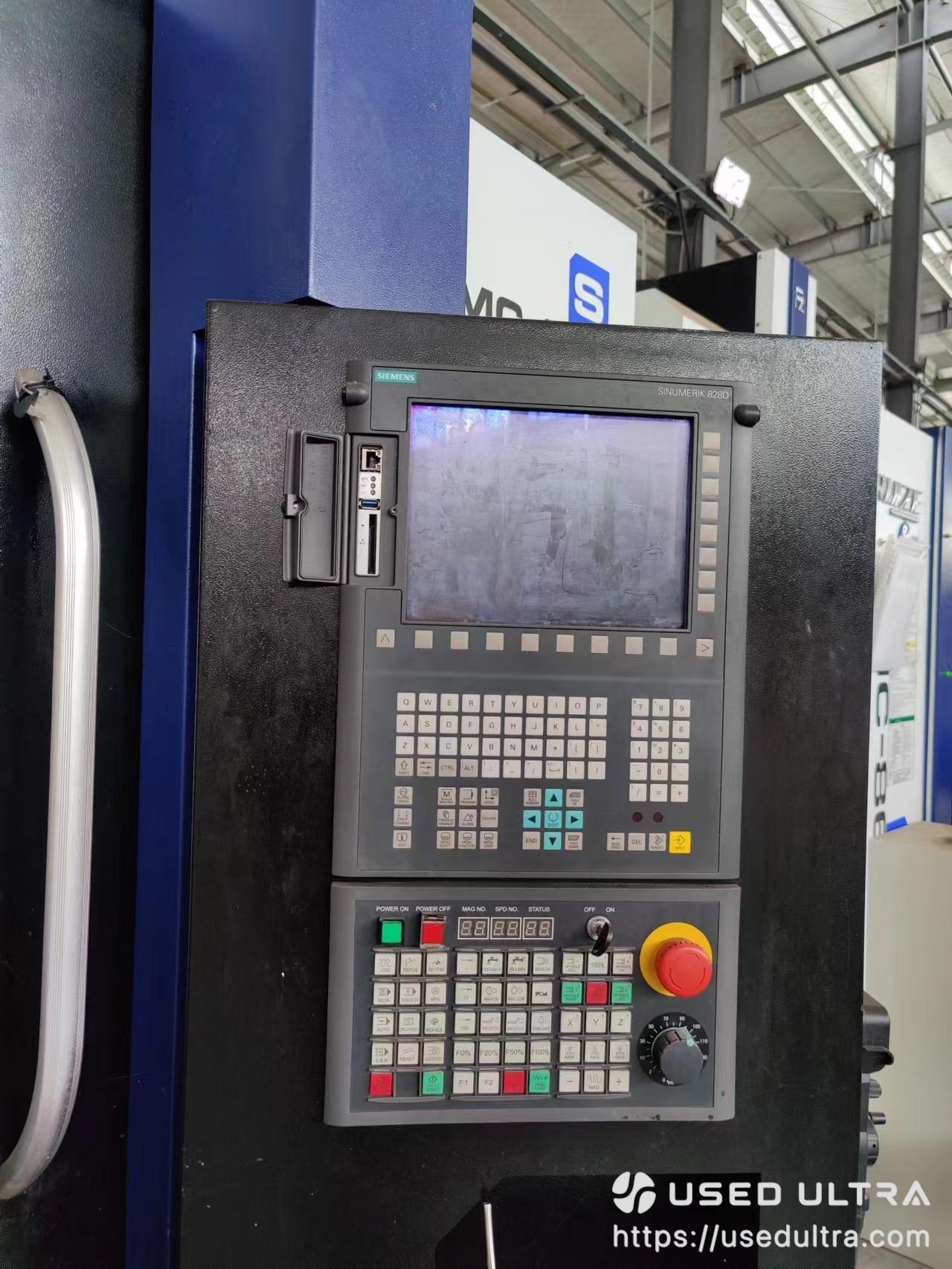

What CNC control system is installed on this machine?
The machine is equipped with a Siemens SINUMERIK 828D CNC control, suitable for machining-center operation and CNC milling applications.
What are the X, Y and Z axis travels?
The listed axis travels are 800 mm on the X-axis, 600 mm on the Y-axis and 600 mm on the Z-axis.

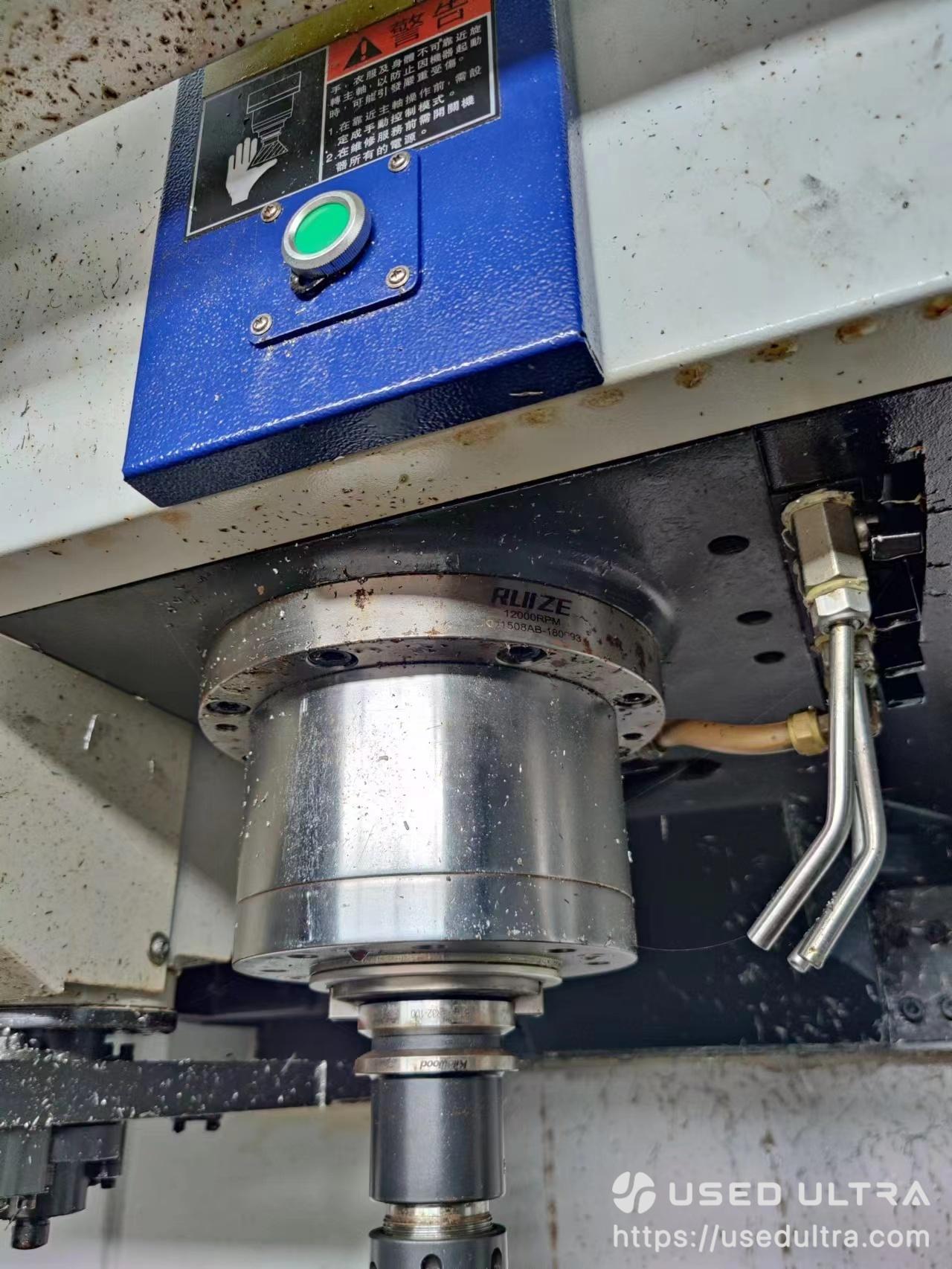

What spindle configuration does this RLIIZE VMC866 have?
This machine is equipped with a BT40 direct-drive spindle with a maximum spindle speed of 12,000 rpm.
$25000.00
Used machine prices fluctuate with the market — this price is for reference only and is not a real-time quote.
Brand
RLIIZE
Model
VMC866
Origin
CN
Processing Time
1422h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 9 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check

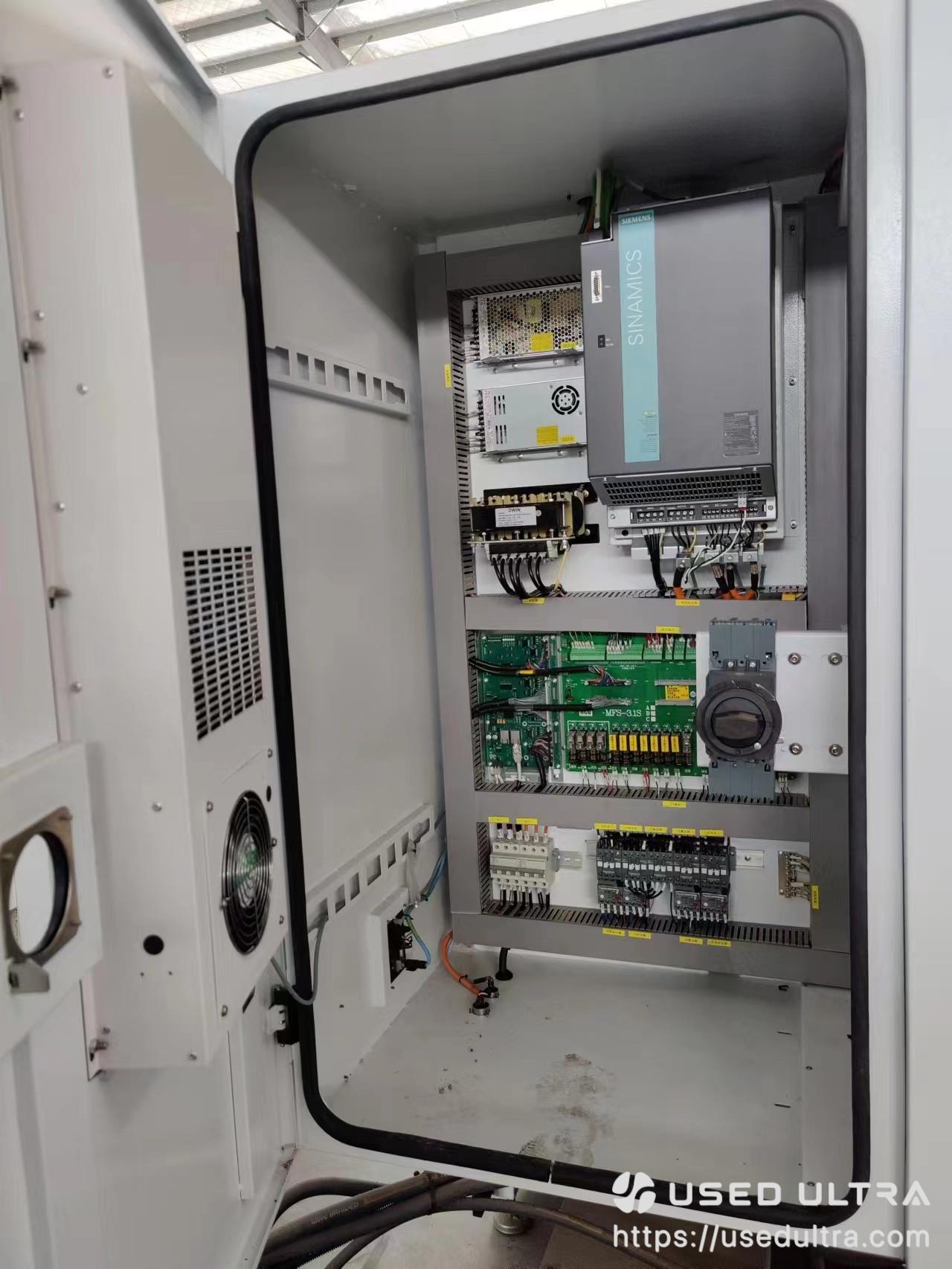

- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
