Product Highlight

Used RLIIZE VMC-1165 CNC vertical machining center combines a large 3-axis working range with a FANUC Series 0i-MF Plus control, BT40 tooling and a 12,000 rpm direct-drive spindle.It is suitable for mold machining, automotive components, machinery parts and general precision metalworking. With two units available, including one unit with a chip conveyor, this VMC-1165 offers a practical option for manufacturers looking to expand CNC machining capacity at a lower investment than purchasing new equipment.

Product Description

Used RLIIZE VMC-1165 CNC vertical machining center is equipped with a FANUC Series 0i-MF Plus CNC control, BT40 spindle and 12,000 rpm direct-drive spindle.

With a supplied XYZ travel specification of 1100 × 650 × 650 mm, this 3-axis machining center is suitable for mold making, precision mechanical parts, automotive components, fixtures and general metalworking applications.

Two units are currently available, with one unit equipped with a chip conveyor. It is a practical option for manufacturers looking to add machining capacity while reducing the investment required for a new CNC machining center.

Technical Specifications

Specification	Details
Machine Type	Used CNC Vertical Machining Center
Brand	RLIIZE
Model	VMC-1165
Country of Origin	China

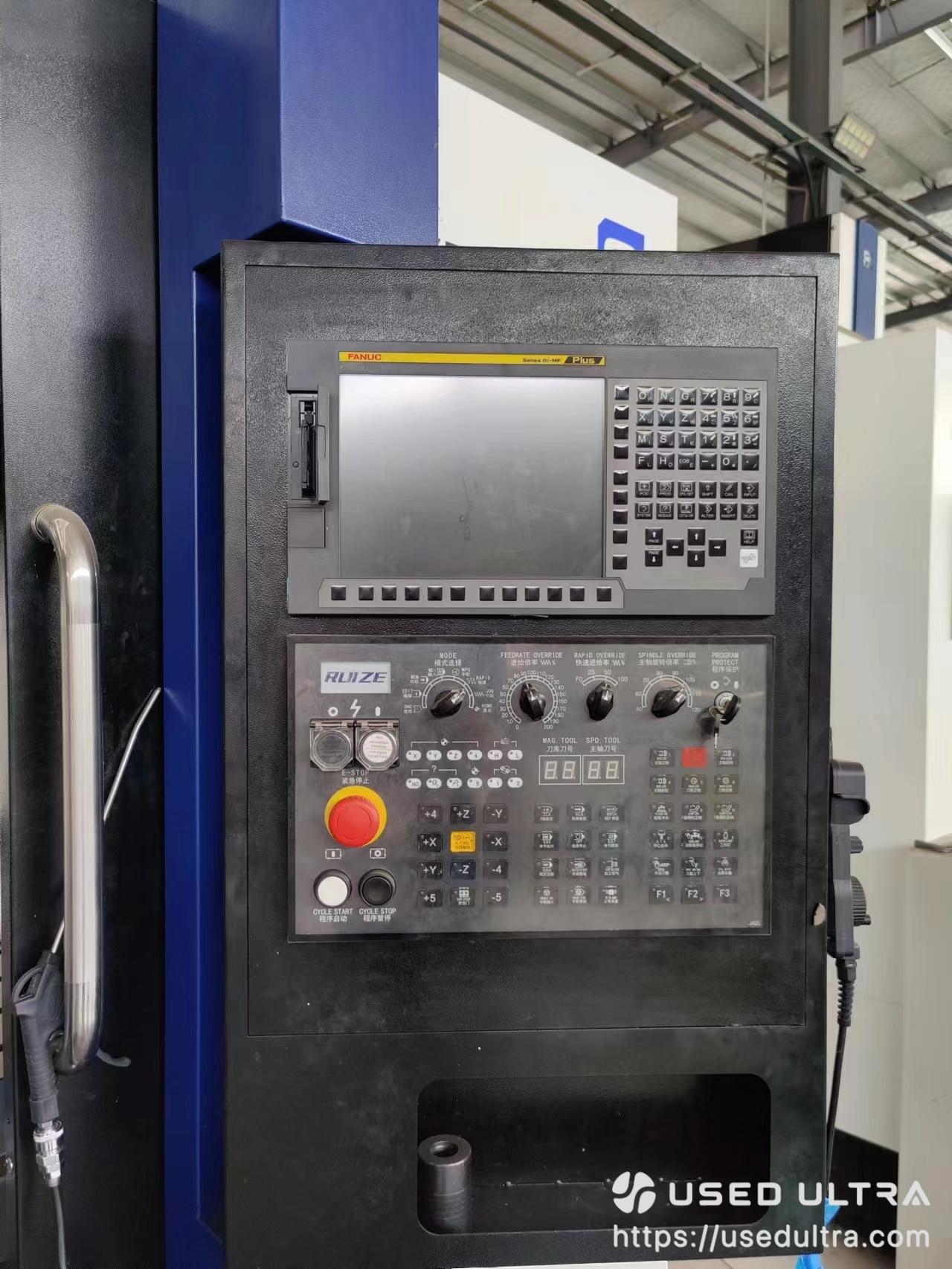

CNC Control	FANUC Series 0i-MF Plus
Axis Configuration	3 Axis
X-Axis Travel	1100 mm*
Y-Axis Travel	650 mm*
Z-Axis Travel	650 mm*
Spindle Taper	BT40

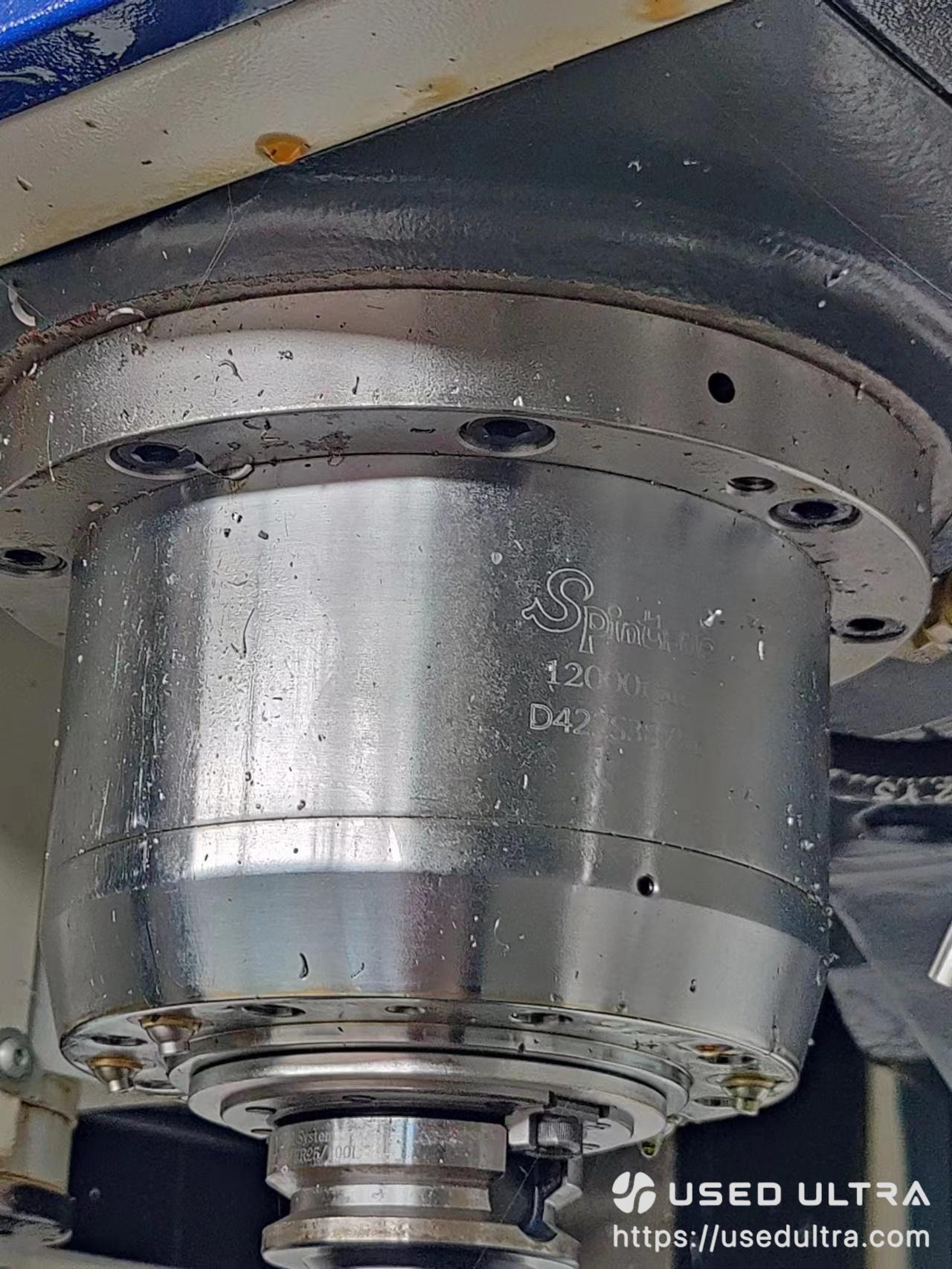

Spindle Drive	Direct Drive*
Maximum Spindle Speed	12,000 rpm*
Automatic Tool Changer	Equipped; capacity to be confirmed
Chip Conveyor	Available on one of the two units
Quantity Available	2 Units
Condition	Used
Inspection	Available upon request
Availability	Subject to current stock

*Specifications marked with an asterisk are based on the supplied information for these particular used machines. Final specifications should be verified before purchase.

Important Specification Note

The supplied specification for these machines states an XYZ travel of 1100 × 650 × 650 mm.

Some published RLIIZE VMC-1165 specifications may differ depending on production batch, configuration or optional equipment. Buyers should therefore verify the final machine parameters before placing an order.

Applications & Suitable Industries

Used RLIIZE VMC-1165 vertical machining center is designed for a wide range of milling, drilling, boring, tapping and contour machining operations.

It is suitable for machining medium-size components that require a larger working envelope than compact vertical machining centers.

Typical applications include:

Mold and die machining
Automotive components
Precision mechanical parts
Machinery components
Aluminum parts
Steel components
Fixtures and tooling
Plates and housings
General engineering components
Prototype production
Job-shop machining
Small and medium batch manufacturing

The combination of 1100 mm X-axis travel, 650 mm Y-axis travel, BT40 tooling and a 12,000 rpm direct-drive spindle makes this machine suitable for workshops handling both general metal cutting and precision machining work.

FAQ

What CNC control is installed on this RLIIZE VMC-1165?

This machine is equipped with a FANUC Series 0i-MF Plus CNC control.FANUC CNC systems are widely used on vertical machining centers and other industrial CNC equipment, making this configuration suitable for many professional machining environments.

What is the spindle specification of this used VMC-1165?

This particular machine is equipped with a BT40 direct-drive spindle with a maximum speed of 12,000 rpm.The configuration is suitable for general milling, drilling, tapping and precision machining applications.

What materials and parts can the RLIIZE VMC-1165 machine?

The VMC-1165 can be used for machining a wide variety of metal components, including aluminum parts, steel components, molds, fixtures, mechanical parts, housings and automotive components.Actual cutting performance depends on the material, cutting tools, spindle condition, tooling parameters and machining process.
