Used Jingdiao JDLVM400TD_A10H CNC Engraving Machine

▶

Loading carousel...

Product Highlight

Used Jingdiao JDLVM400TD_A10H is a compact high-speed CNC engraving and milling center designed for precision machining. This used machine offers 400 × 400 × 260 mm travel, a 32,000 rpm spindle, HSK-E32 tooling and a 20-tool magazine. It is suitable for precision parts, mold inserts, electrodes and other detailed milling or engraving applications.

Product Description

Used Jingdiao JDLVM400TD_A10H CNC engraving and milling center from China, featuring 400 × 400 × 260 mm X/Y/Z travel, a 32,000 rpm high-speed spindle, HSK-E32 tool interface and 20-tool magazine. A compact precision CNC machine suitable for detailed milling, engraving, mold inserts, electrodes and small precision components.

Technical Specifications

Specification	Details
Brand	Jingdiao (JD)
Model	JDLVM400TD_A10H
Machine Type	CNC Engraving & Milling Center
Condition	Used / Pre-owned
Country of Origin	China
X-Axis Travel	400 mm
Y-Axis Travel	400 mm
Z-Axis Travel	260 mm
Worktable Size	480 × 450 mm
Maximum Table Load	100 kg
Maximum Spindle Speed	32,000 rpm
Tool Interface	HSK-E32
Tool Magazine Capacity	20 tools
X/Y/Z Rapid Traverse	15 m/min
Maximum Cutting Feed Rate	10 m/min
Axis Drive	AC Servo
Nominal X/Y/Z Positioning Accuracy	0.008 / 0.008 / 0.006 mm
Nominal X/Y/Z Repeatability	0.006 / 0.006 / 0.005 mm
Power Supply	380V / 50Hz
Rated Power Capacity	14 kVA
CNC Control	Jingdiao CNC system, exact version to be confirmed

Specification Note:

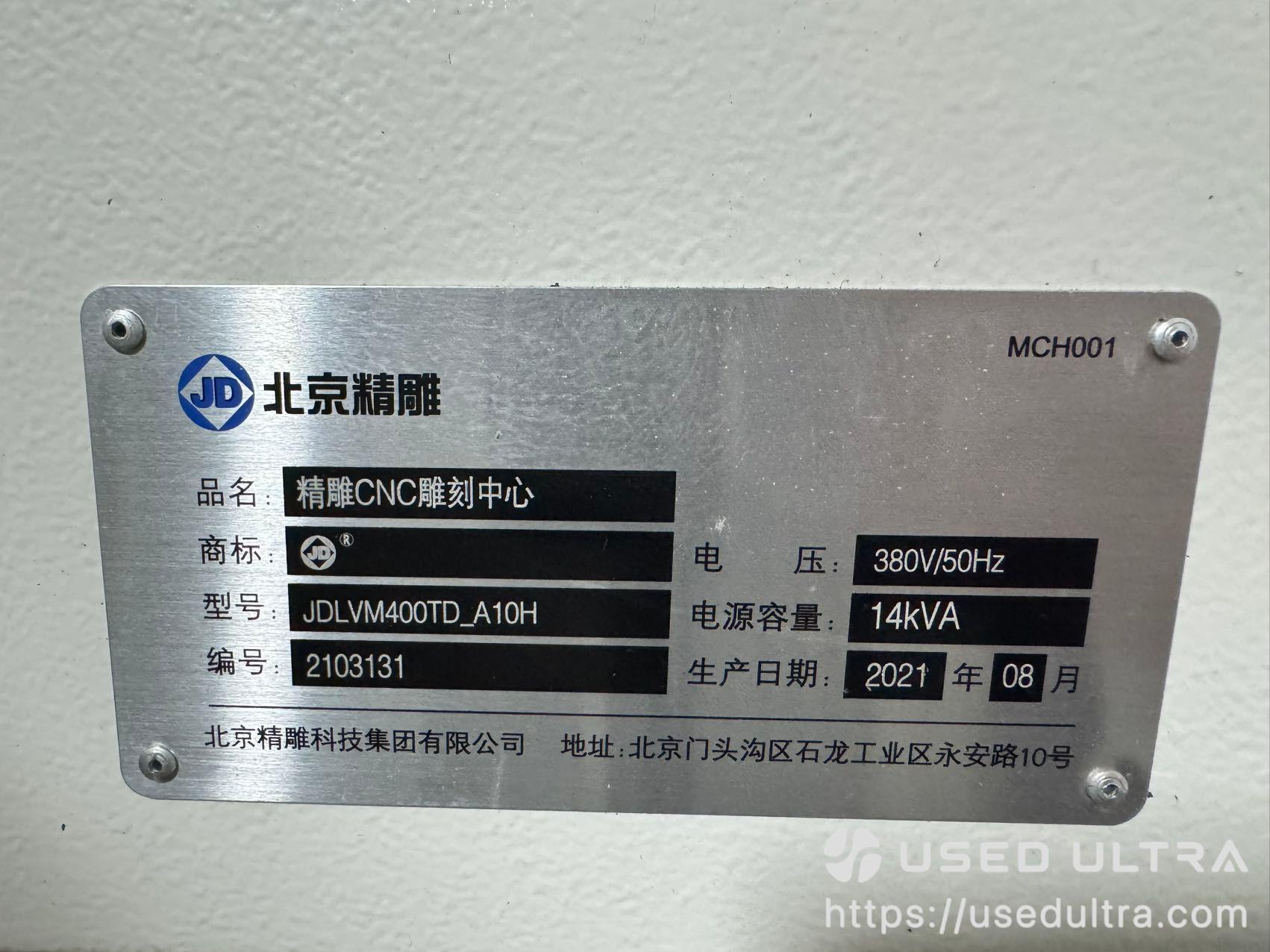

Specifications are based on the available machine information, nameplate data and reference specifications. Nominal positioning and repeatability values do not constitute a current accuracy inspection report. Actual machine condition, current accuracy, spindle condition and CNC control version should be confirmed before purchase.

Applications & Suitable Machining Work

Used Jingdiao JDLVM400TD_A10H CNC engraving and milling center is suitable for precision machining applications that require a compact working envelope and high spindle speed.

Typical applications include:

Precision metal components
Small molds and mold inserts
Copper or graphite electrodes
Precision cavities
Small tooling components
Detailed CNC engraving
High-speed milling and finishing
Small-batch precision parts
Drilling and contour milling

The 32,000 rpm spindle and HSK-E32 tooling configuration make this machine particularly suitable for smaller workpieces and detailed machining where high spindle speed is beneficial. The exact suitability for a specific part depends on material, tooling, tolerance requirements and machining process.

FAQ

What is the working travel of the Jingdiao JDLVM400TD_A10H?

The machine has 400 mm X-axis travel, 400 mm Y-axis travel and 260 mm Z-axis travel, with a 480 × 450 mm worktable.

What spindle speed does this Jingdiao CNC machine have?

The available specification lists a maximum spindle speed of 32,000 rpm. The machine uses an HSK-E32 tool interface, making it suitable for high-speed precision milling and engraving. The same core configuration is also found in publicly available listings for this model.

How many tools can the JDLVM400TD_A10H hold?

The machine is equipped with a 20-tool magazine, allowing multiple machining operations to be performed with automatic tool changes.

What parts can this used Jingdiao CNC machine process?

The machine can be considered for small precision metal parts, mold inserts, electrodes, cavities, tooling components and detailed milling or engraving work. Suitability should be evaluated according to workpiece size, material, tooling and required tolerance.
