Used HAUSER S55 CNC Jig Grinder | Swiss Machine

▶

Loading carousel...

Product Highlight

Used HAUSER S55 is a Swiss CNC jig grinding machine developed for large and demanding precision work. Its 1,300 × 800 mm working range, 970 mm column clearance, 635 mm W-axis travel and FANUC 16i control make it a strong choice for die and mold manufacturing, aerospace components, semiconductor tooling and other high-precision applications where both working capacity and accuracy matter.

Product Description

Used HAUSER S55 CNC jig grinding machine is a large-format Swiss precision grinder designed for demanding bore, contour and form grinding applications. With a 1,300 × 800 mm working range, 635 mm W-axis travel, 970 mm column clearance and FANUC 16i control, it offers the capacity required for large dies, mold plates, precision tooling and complex high-accuracy components.

Its generous working envelope and fine-feed capability make this pre-owned HAUSER jig grinder especially attractive for manufacturers that need high precision without investing in a new large-capacity coordinate grinding machine.

Technical Specifications

Specification	Details
Condition	Used / Pre-owned
Availability	Sold – inquire for similar used machines
Brand	HAUSER
Model	S55 / S55-400 Series
Machine Type	CNC Jig Grinding Machine / Coordinate Grinder
Country of Origin	Switzerland

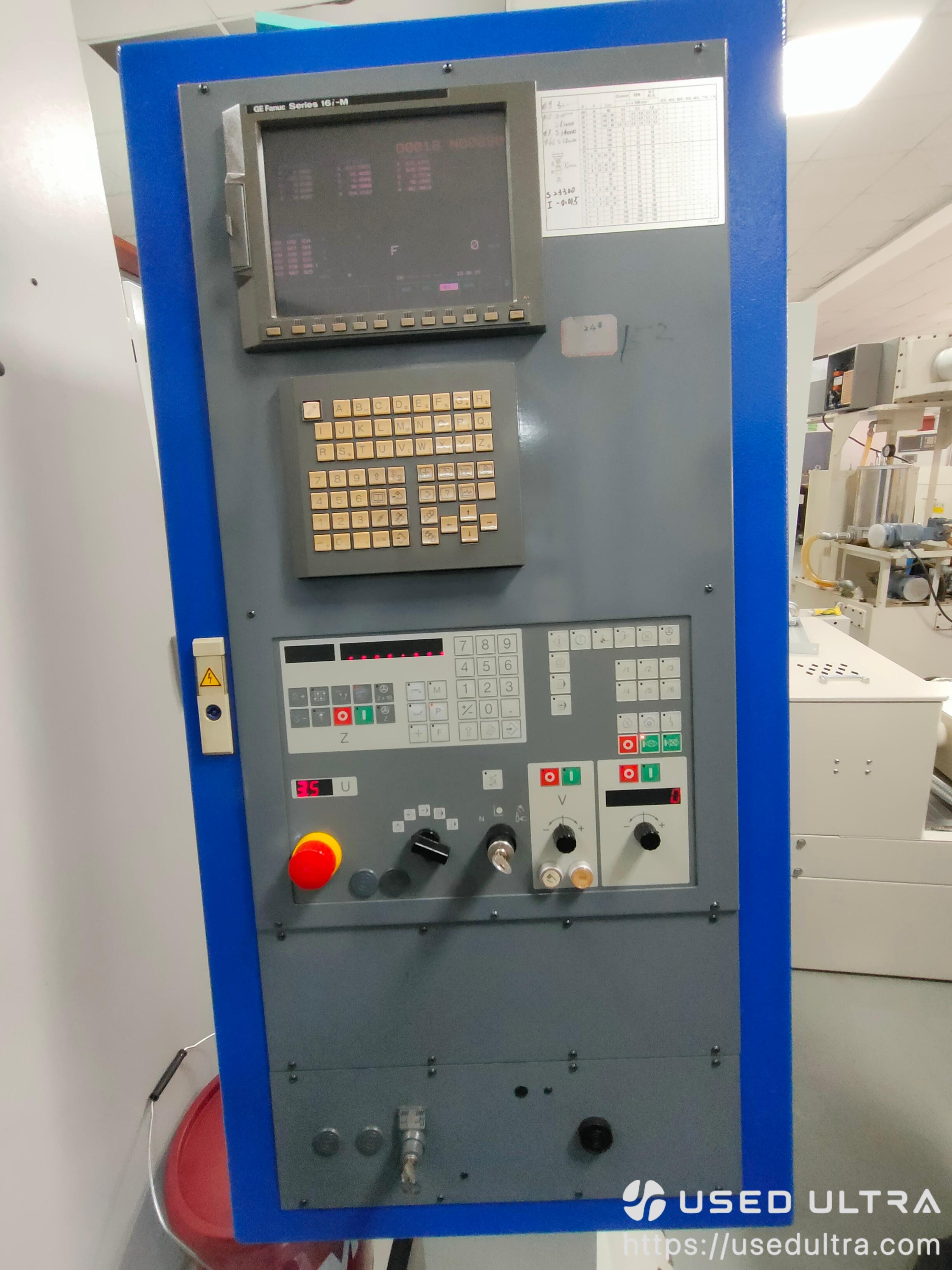

CNC Control	GE FANUC Series 16i-M / FANUC 16i
X-Axis Travel	1,300 mm
Y-Axis Travel	800 mm
Z-Axis Stroke	170 mm
W-Axis Travel	635 mm
Grinding Range	1,300 × 800 mm
Column Clearance	970 mm

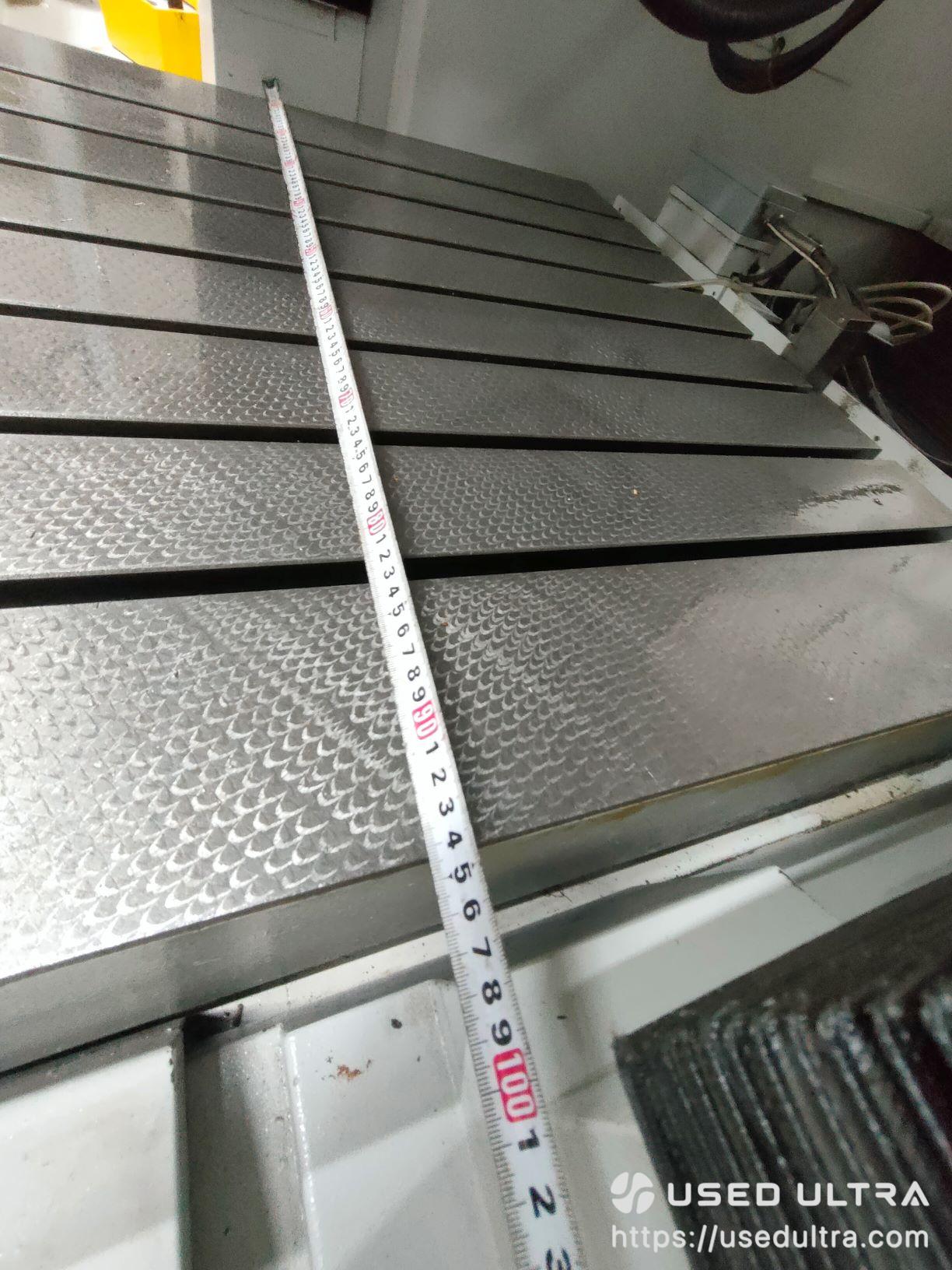

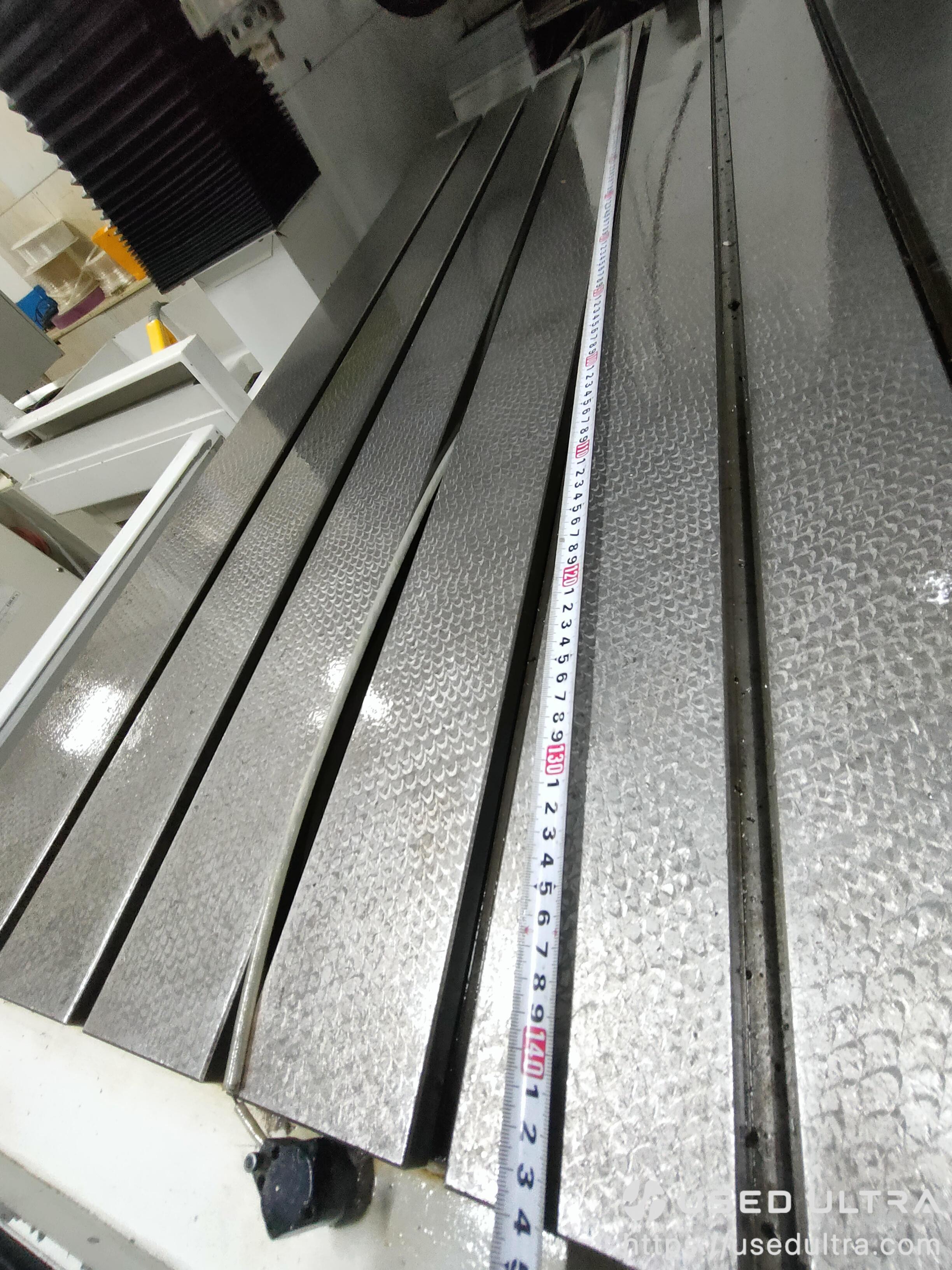

Worktable Size	Approx. 1,450 × 860 mm
Maximum Table Load	Up to 1,500 kg, according to supplied configuration
Distance from Table to Headstock	0–750 mm
Grinding Spindle Speed	Approx. 4,000–60,000 rpm
Minimum Feed Increment	0.1 μm

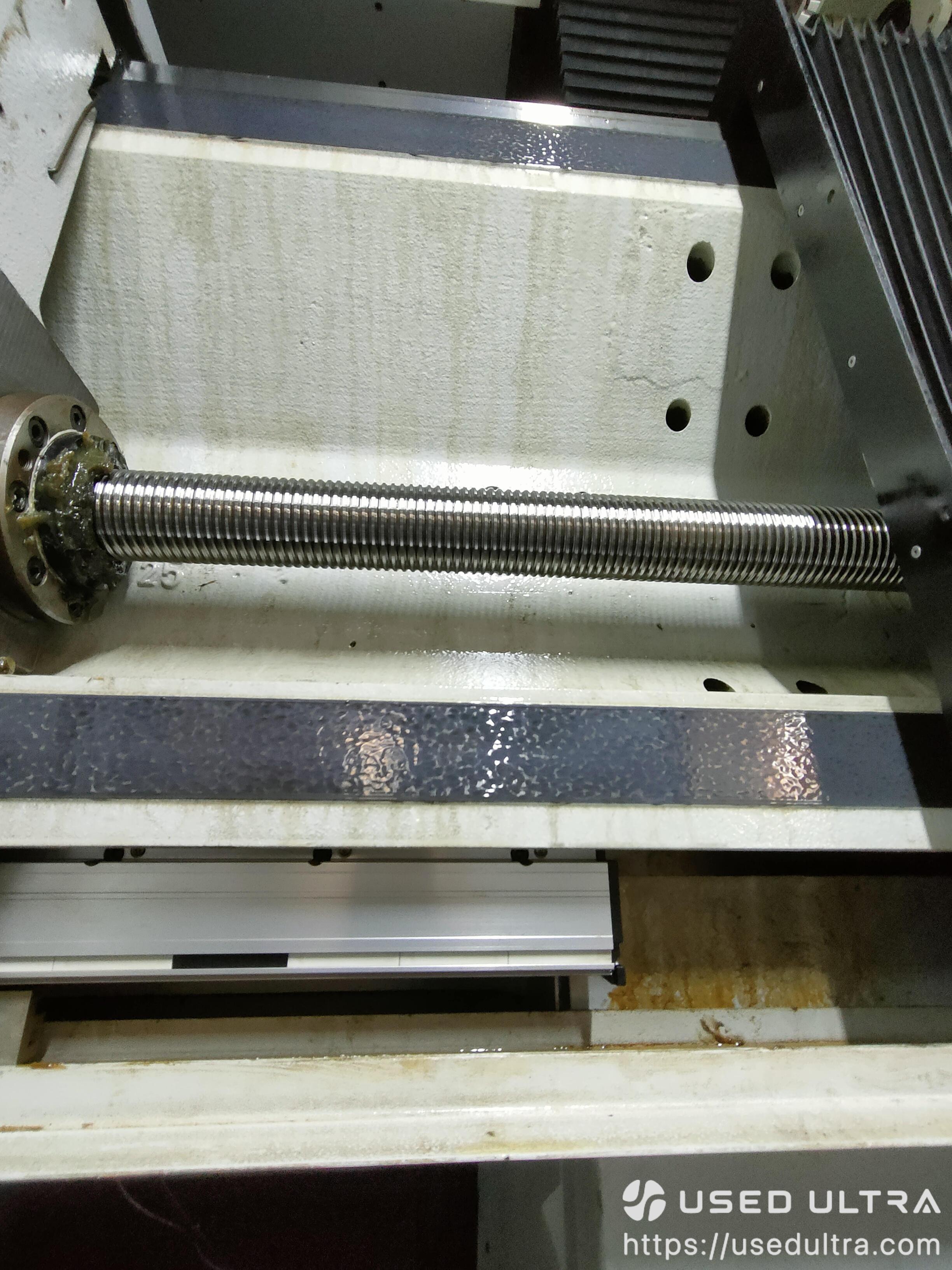

Axis Drive	Screw drive
Grinding Spindle	Motorized spindle
Guideway Description	Hydrostatic / precision guideway system according to supplied machine data

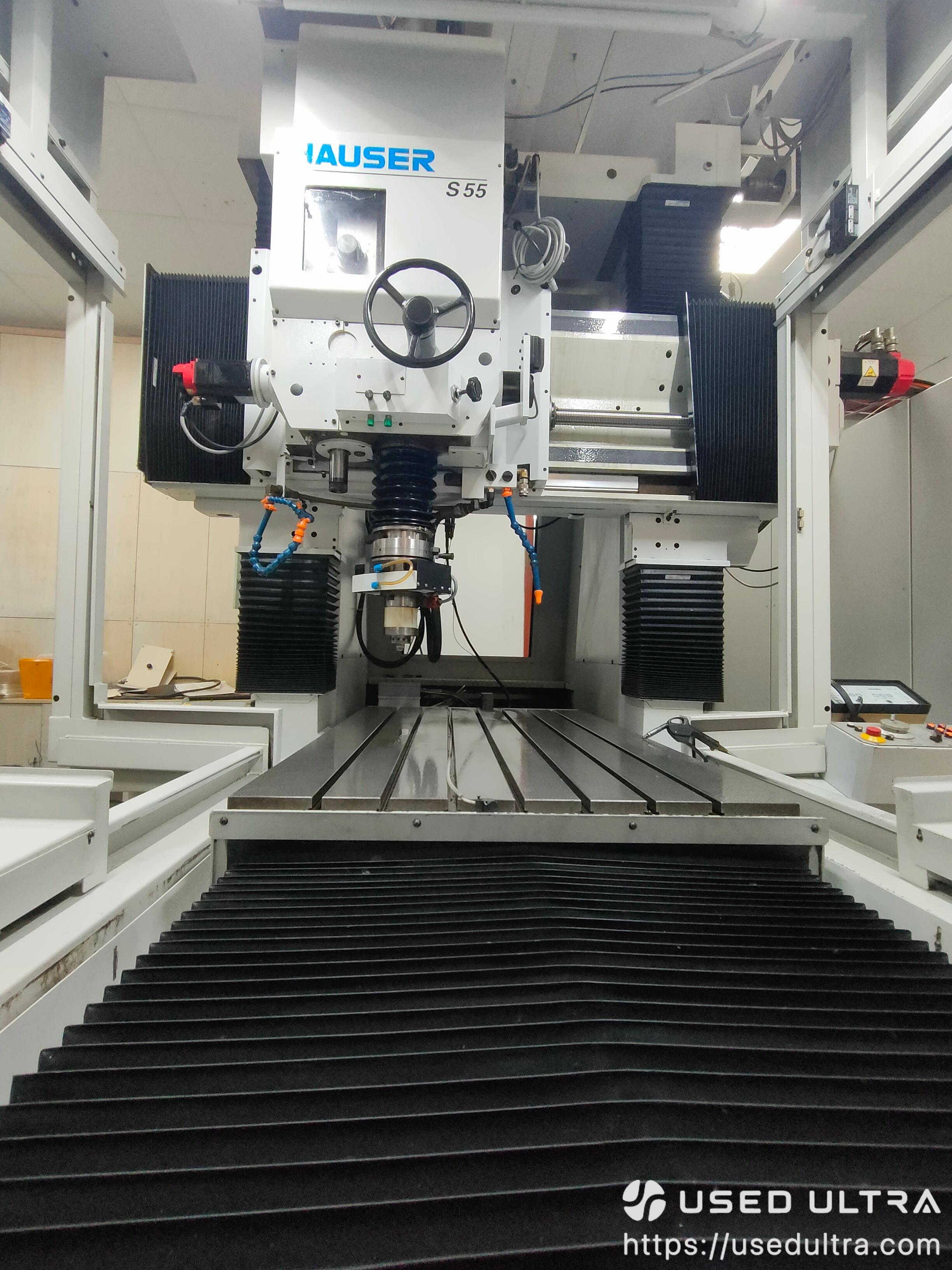

Machine Structure	Gantry / double-column design
Coolant / Sludge Removal	Coolant flushing
Overall Dimensions	Approx. 2,400 × 2,400 × 3,000 mm

Applications & Suitable Industries

Industry / Application	Typical Workpieces
Die & Mold Manufacturing	Injection molds, bottle preform molds, thin-wall molds, progressive dies and precision die plates
Precision Tooling	Jigs, fixtures, gauges, inspection tooling, punches and precision inserts
Aerospace Manufacturing	Engine casing components, precision bores, sealing components and complex high-accuracy parts
Semiconductor Equipment	Precision machine components, tooling plates, fixtures and equipment parts
Automotive & Motor Production	Motor tooling, lamination dies, precision stamping dies and component fixtures
Powder Metallurgy	Carbide tooling, sintered components, powder-metal dies and precision forming tooling
Hard & Brittle Material Processing	Ceramics, glass, carbide and other hard-material precision components
Optical & Measuring Equipment	Metrology tooling, measuring equipment parts and precision locating components
Medical Tooling	Medical-device tooling, precision plastic molds and high-accuracy fixtures
HVAC & Electrical Tooling	Fin dies, motor dies, progressive tooling and related precision mold components

For shops already using EDM, CNC milling and surface grinding, the HAUSER S55 can serve as a high-precision finishing machine for critical bores, contours, forms and positional relationships that are difficult to achieve consistently with conventional grinding equipment.

FAQ

How large is the working range of this HAUSER S55?

The machine offers approximately 1,300 mm X-axis travel and 800 mm Y-axis travel, together with 635 mm W-axis travel and approximately 970 mm clearance between the columns. This makes it suitable for substantially larger workpieces than many conventional jig grinders.

Can the HAUSER S55 handle large and heavy molds?

Yes, this configuration is listed with a table size of approximately 1,450 × 860 mm and a table capacity of up to 1,500 kg. Actual permissible loading should always be confirmed before machining particularly heavy workpieces.
