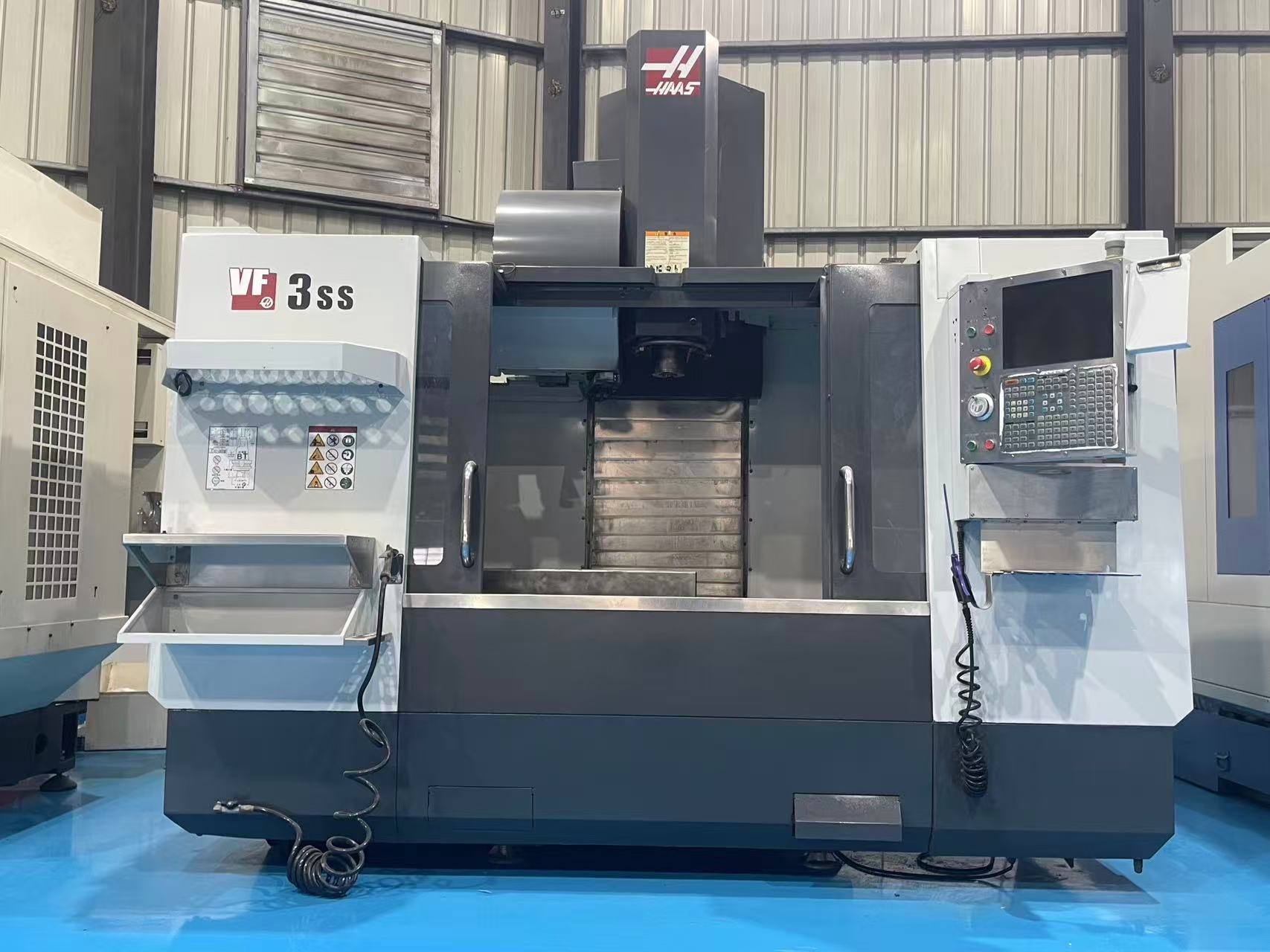

Used Haas VF-3SS CNC Machining Center | 12,000 RPM

Loading carousel...

Product Highlight

This used Haas VF-3SS CNC vertical machining center, originally manufactured in the USA, offers a 12,000 RPM high-speed spindle, 22.4 kW spindle power, BT40 taper and 1016 × 508 × 635 mm XYZ travel.

Product Description

Looking for a cost-effective alternative to buying a new Haas machining center? This used Haas VF-3SS CNC vertical machining center, originally manufactured in the USA, offers a 12,000 RPM high-speed spindle, 22.4 kW spindle power, BT40 taper and 1016 × 508 × 635 mm XYZ travel.

The machine has approximately 20,000 reported operating hours and is equipped with a 24-tool capacity according to the machine information provided. Its high spindle speed and practical working envelope make it suitable for precision machining, mold work, aluminum components and general metal parts production.

For manufacturers looking to reduce capital investment while retaining the productivity of a well-known CNC platform, this pre-owned Haas VF-3SS vertical machining center can be an attractive option.

Technical Specifications

Specification	Details
Brand	Haas
Model	VF-3SS
Machine Type	CNC Vertical Machining Center / CNC Vertical Mill
Condition	Used / Pre-Owned
Country of Origin	USA
Reported Operating Hours	Approx. 20,000 hours
Number of Axes	3 Axis
X-Axis Travel	1016 mm
Y-Axis Travel	508 mm
Z-Axis Travel	635 mm
Maximum Spindle Speed	12,000 RPM
Spindle Power	22.4 kW
Spindle Taper	BT40*
Tool Capacity	24 tools**
Drive Type	Hydraulic / machine configuration as supplied
Machine Layout	Vertical
Primary Workpiece Material	Metal
Reported Positioning Accuracy	0.001 mm***
Spindle Nose to Table, Max.	Approx. 742 mm
Spindle Nose to Table, Min.	Approx. 107 mm

Haas's official VF-3SS reference confirms 1016 mm X travel, 508 mm Y travel, 635 mm Z travel, 22.4 kW maximum spindle rating, 12,000 rpm maximum speed, and approximately 742/107 mm maximum/minimum spindle-nose-to-table distance.

BT40 is based on the supplied information for this machine. Haas lists several 40-taper configurations depending on market/configuration.24-tool capacity is the seller-provided configuration for this particular used machine; it should not be confused with the specification of a current-production VF-3SS.* Positioning accuracy is seller-provided data and should be confirmed by inspection or accuracy testing before purchase.

Applications & Suitable Industries

The used Haas VF-3SS vertical machining center is well suited to manufacturers that require high-speed 3-axis CNC machining without the investment required for a new machine.

Typical applications include:

Precision parts machining – suitable for milling, drilling, tapping and general CNC machining.
Aluminum component production – the 12,000 RPM spindle is useful for higher-speed machining of aluminum and other non-ferrous materials.
Mold and die machining – suitable for machining mold plates, inserts, cavities and related precision components.
Automotive parts manufacturing – suitable for brackets, housings, fixtures and medium-sized machined components.
Aerospace and general engineering parts – applicable to precision components within the machine's travel and process capabilities.
Job shops and contract machining – a practical option for workshops processing multiple part types and small-to-medium production batches.
Production line capacity expansion – useful for factories that need additional CNC capacity while controlling equipment investment.

Haas describes its SS-series machines as using a 12,000-rpm spindle, fast tool changing and high-speed axis movement to support reduced machining cycle times.

FAQ

Is this Haas VF-3SS new or used?

This is a used Haas VF-3SS CNC vertical machining center, not a new machine. The reported operating time is approximately 20,000 hours. Buyers can request additional machine photos, running videos and inspection information before making a purchase decision.

What is the spindle speed of this used Haas VF-3SS?

The machine is equipped with a 12,000 RPM spindle with a reported maximum spindle power of 22.4 kW. These figures are consistent with Haas's published VF-3SS model specifications.

What is the XYZ travel of the Haas VF-3SS?

The machining travel is 1016 mm on the X axis, 508 mm on the Y axis and 635 mm on the Z axis. This gives the VF-3SS a useful working envelope for molds, precision components and general CNC milling applications.

How many tools can this used Haas VF-3SS hold?

According to the information supplied for this particular machine, it is equipped with a 24-tool capacity. Because specifications can vary between machine years and configurations, buyers should confirm the actual tool changer configuration during inspection.

Why buy a used Haas VF-3SS instead of a new CNC machining center?

A used VF-3SS can be attractive to manufacturers that want to reduce initial equipment investment while adding CNC production capacity. The most important factors are the actual mechanical condition, spindle condition, accuracy, control condition and service history of the individual machine rather than age alone.
