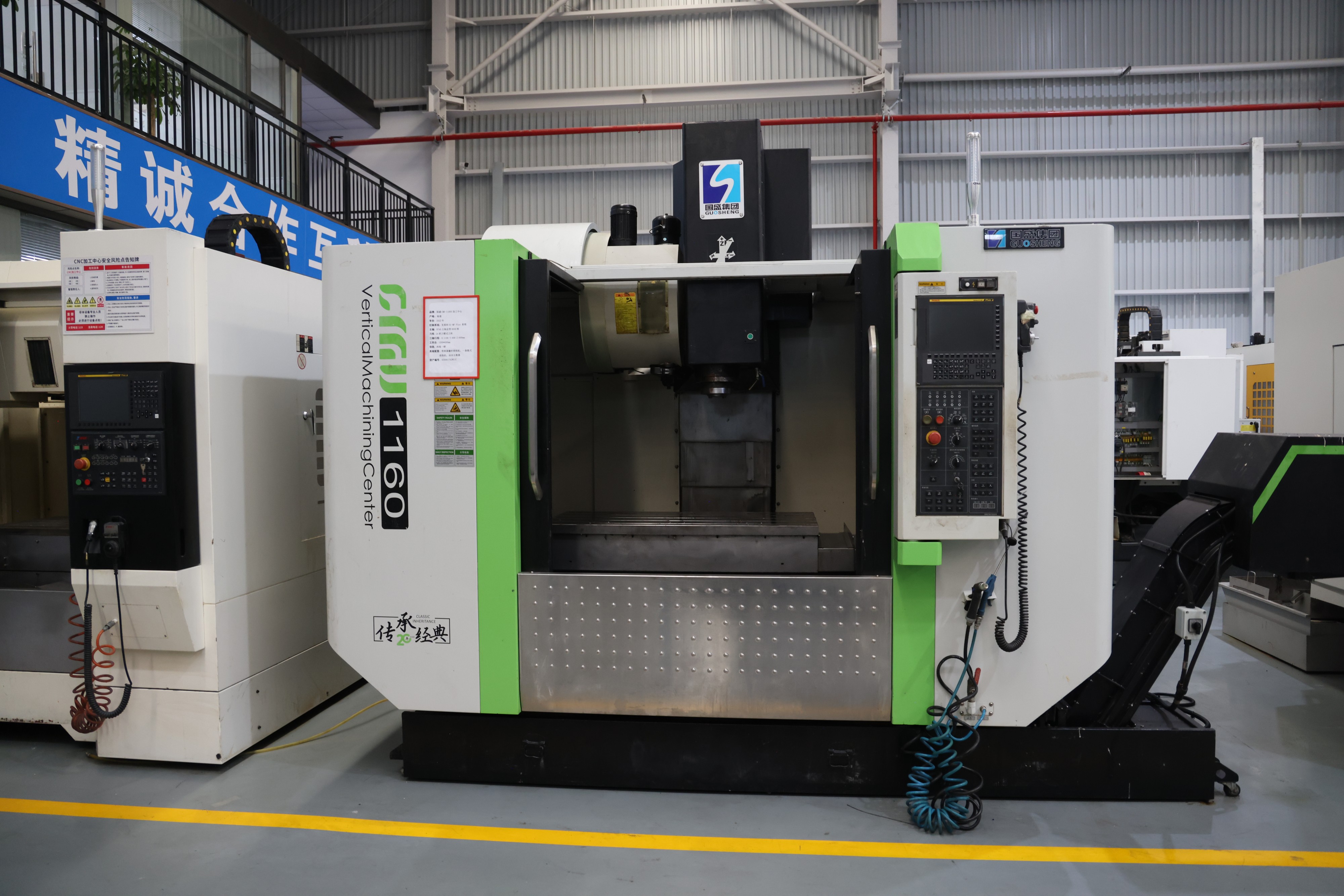

Used Guosheng CMV-1160S Vertical Machining Center

Loading carousel...

Product Highlight

Guosheng CMV-1160S is a pre-owned 3-axis vertical machining center designed for medium-size CNC machining work. Equipped with FANUC 0i-MF Plus control, 1100 × 600 × 600 mm axis travel, a 1200 × 600 mm table, BT40 8000 rpm spindle, and 24-tool arm ATC, it offers a practical combination of machining capacity, familiar CNC control, and automated chip management for general industrial production.

Product Description

Used Guosheng CMV-1160S vertical machining center is a practical mid-size CNC solution for metalworking shops looking to control equipment investment costs. It features 1100 × 600 × 600 mm XYZ travel, a 1200 × 600 mm worktable, FANUC 0i-MF Plus CNC control, a BT40 belt-driven 8000 rpm spindle, and a 24-tool arm-type automatic tool changer. Integrated chip-removal equipment also makes it suitable for continuous milling, drilling, tapping, and general machining operations.

Technical Specifications

Specification	Details
Condition	Used / Pre-owned
Brand	Guosheng
Model	CMV-1160S
Machine Type	3-Axis CNC Vertical Machining Center
Origin	Nantong, Jiangsu, China
Manufacture Year	2022
CNC Control	FANUC 0i-MF Plus
X-Axis Travel	1100 mm
Y-Axis Travel	600 mm
Z-Axis Travel	600 mm

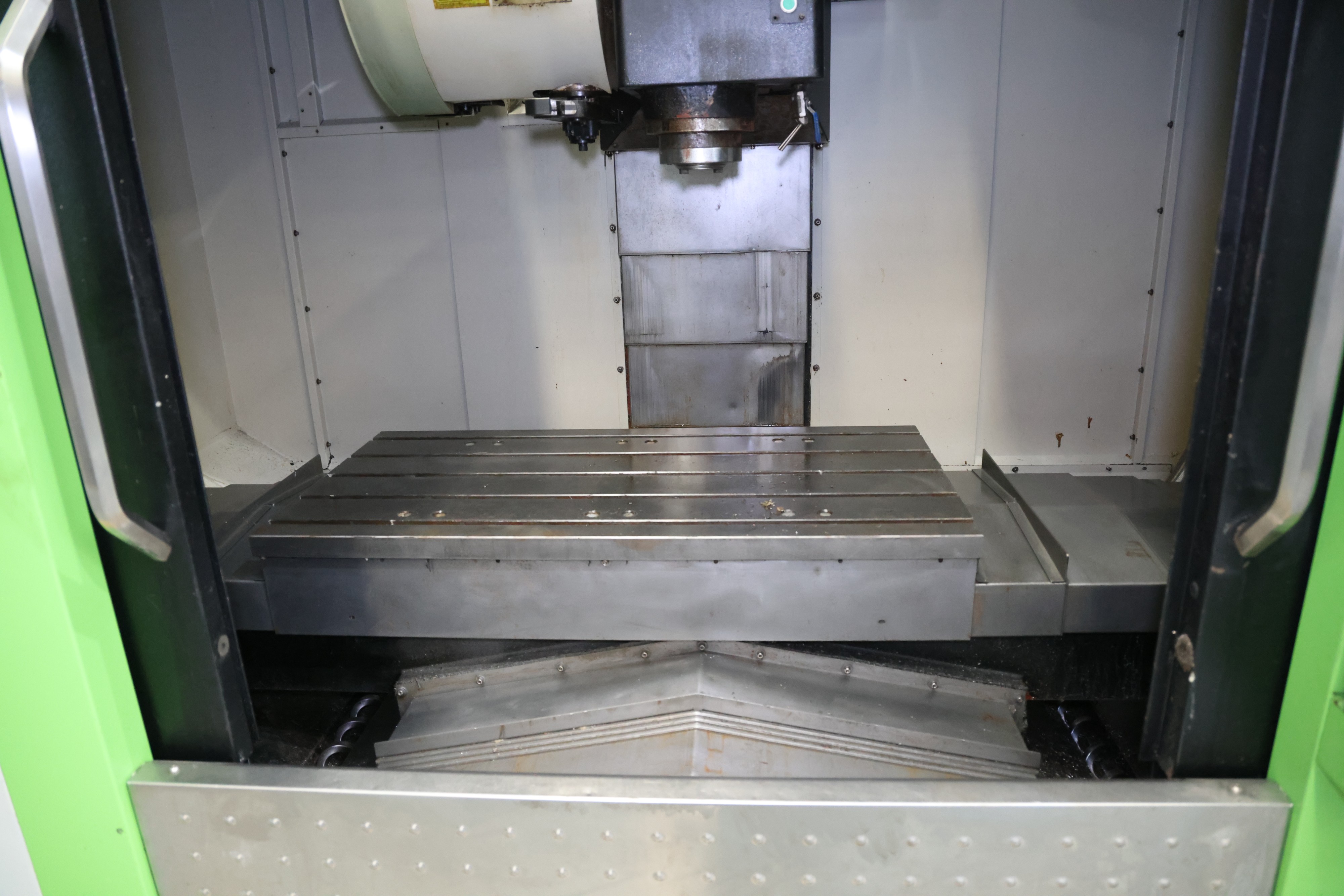

Worktable Size	1200 × 600 mm
Spindle Taper	BT40
Spindle Drive	Belt Driven
Maximum Spindle Speed	8000 rpm
Tool Magazine	24 Tools
Tool Changer	Arm-Type ATC
Guideway Configuration	Two linear-guide axes + one box-way axis

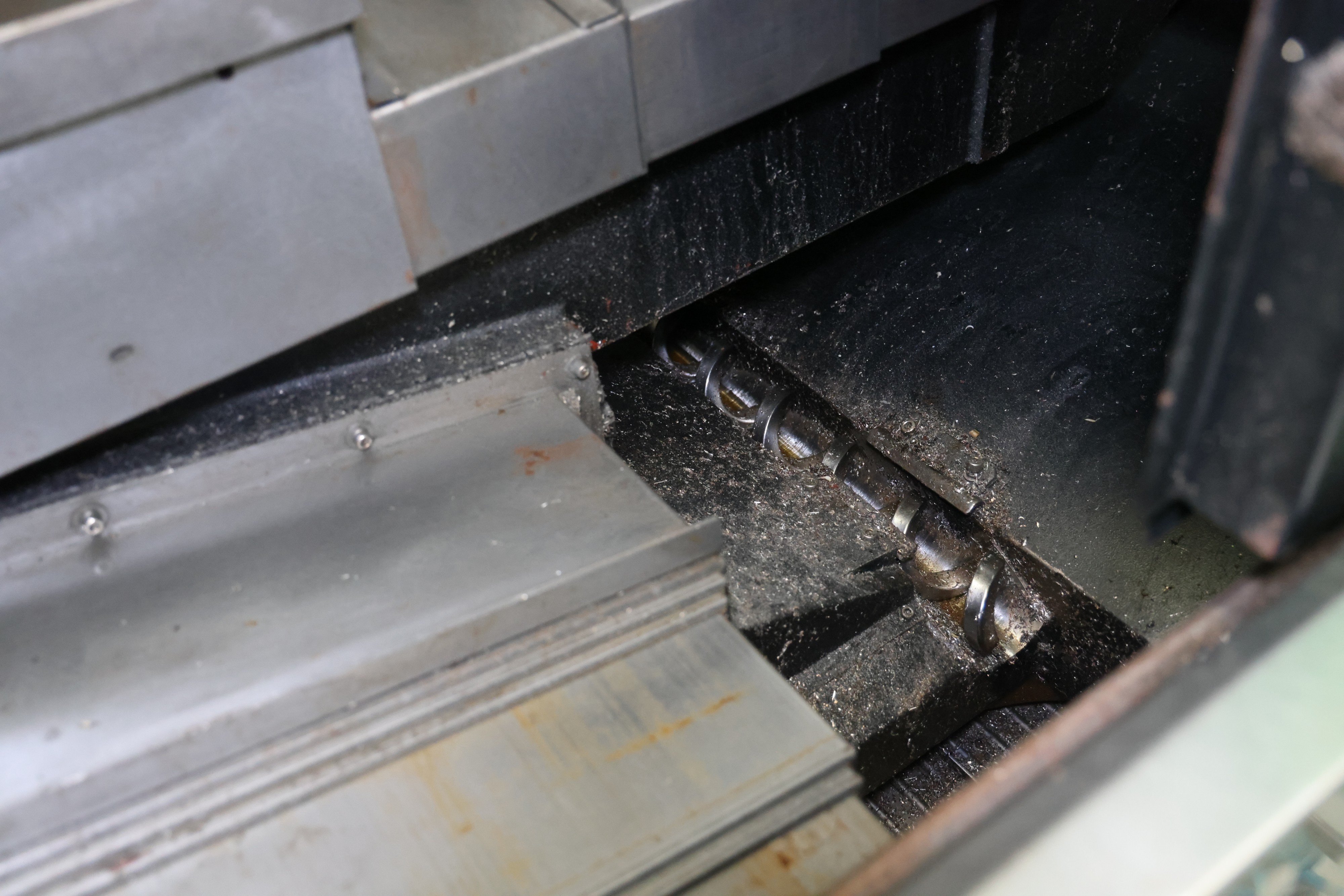

Chip Removal	2 screw chip augers + 1 chain-type chip conveyor
Coolant Treatment	Oil-water separator
Suitable Machine Class	Medium-size CNC machining center

For specifications such as spindle power, table load, positioning accuracy, overall dimensions, and machine weight, I recommend confirming the actual machine data before publishing them as guaranteed specifications. Current CMV1160 reference listings show specifications such as an 800 kg table load and 11/15 kW spindle motor, but these should not automatically be treated as confirmed values for this particular CMV-1160S unit.

Applications & Suitable Industries

The used Guosheng CMV-1160S CNC machining center is suitable for job shops, component manufacturers, mold workshops, and factories that need a flexible BT40 vertical machining platform without the investment required for a new machine.

Typical applications include mold and die components, machine plates and bases, housings, brackets, fixtures, automotive components, general mechanical parts, and medium-size production components. Its machining envelope supports common CNC milling, drilling, tapping, boring, pocket machining, contour machining, and hole-pattern machining on materials such as carbon steel, alloy steel, cast iron, aluminum, and other machinable metals.

FAQ

What is the machining travel of the Guosheng CMV-1160S?

The machine provides 1100 mm X-axis travel, 600 mm Y-axis travel, and 600 mm Z-axis travel, together with a 1200 × 600 mm worktable. This working range is suitable for many medium-size molds, plates, housings, and mechanical components.

What CNC control and spindle does this used machining center have?

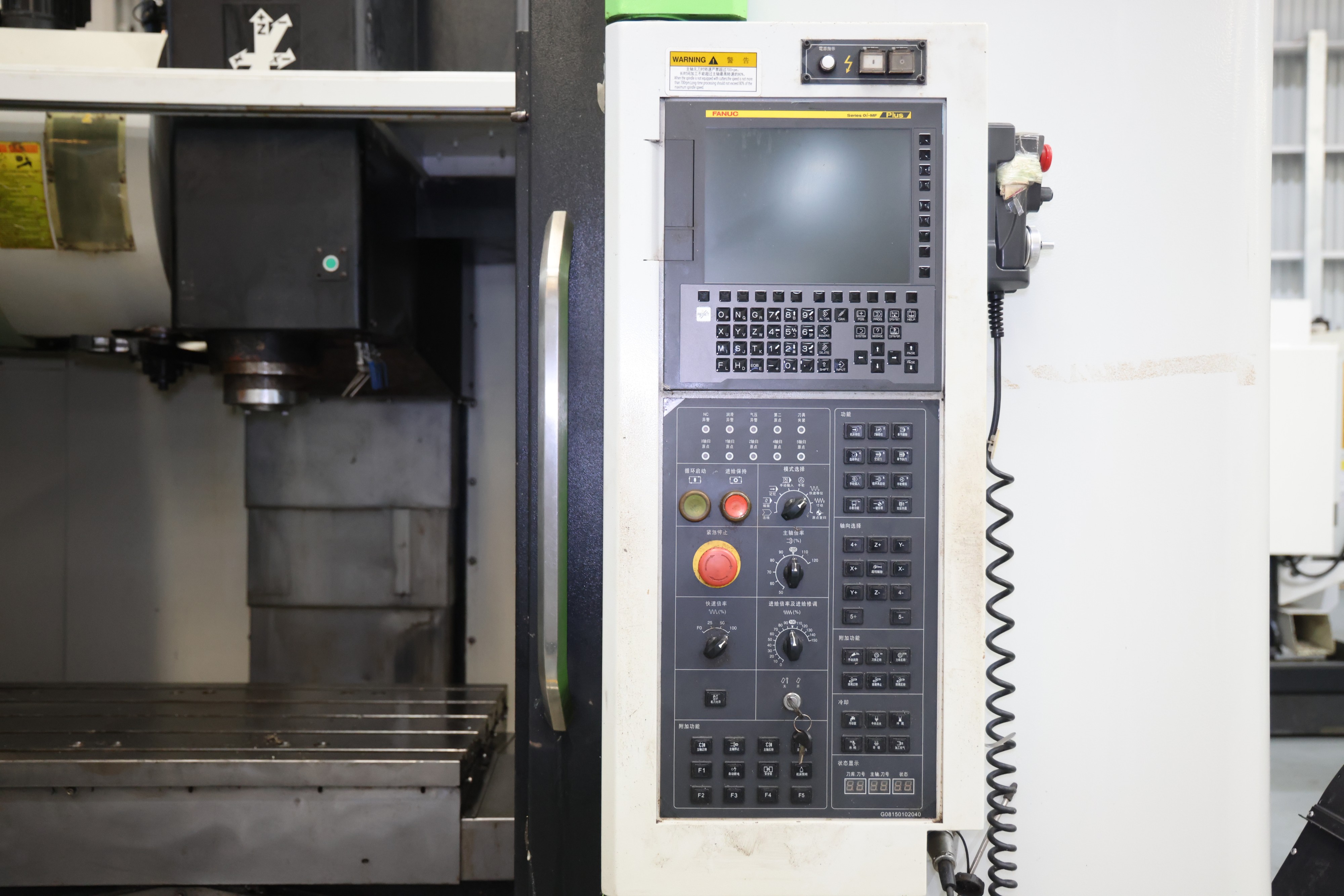

It is equipped with a FANUC 0i-MF Plus CNC control and a BT40 belt-driven spindle rated up to 8000 rpm. This combination is suitable for general-purpose CNC milling, drilling, and tapping applications.

Does this Guosheng CNC machine have an automatic tool changer?

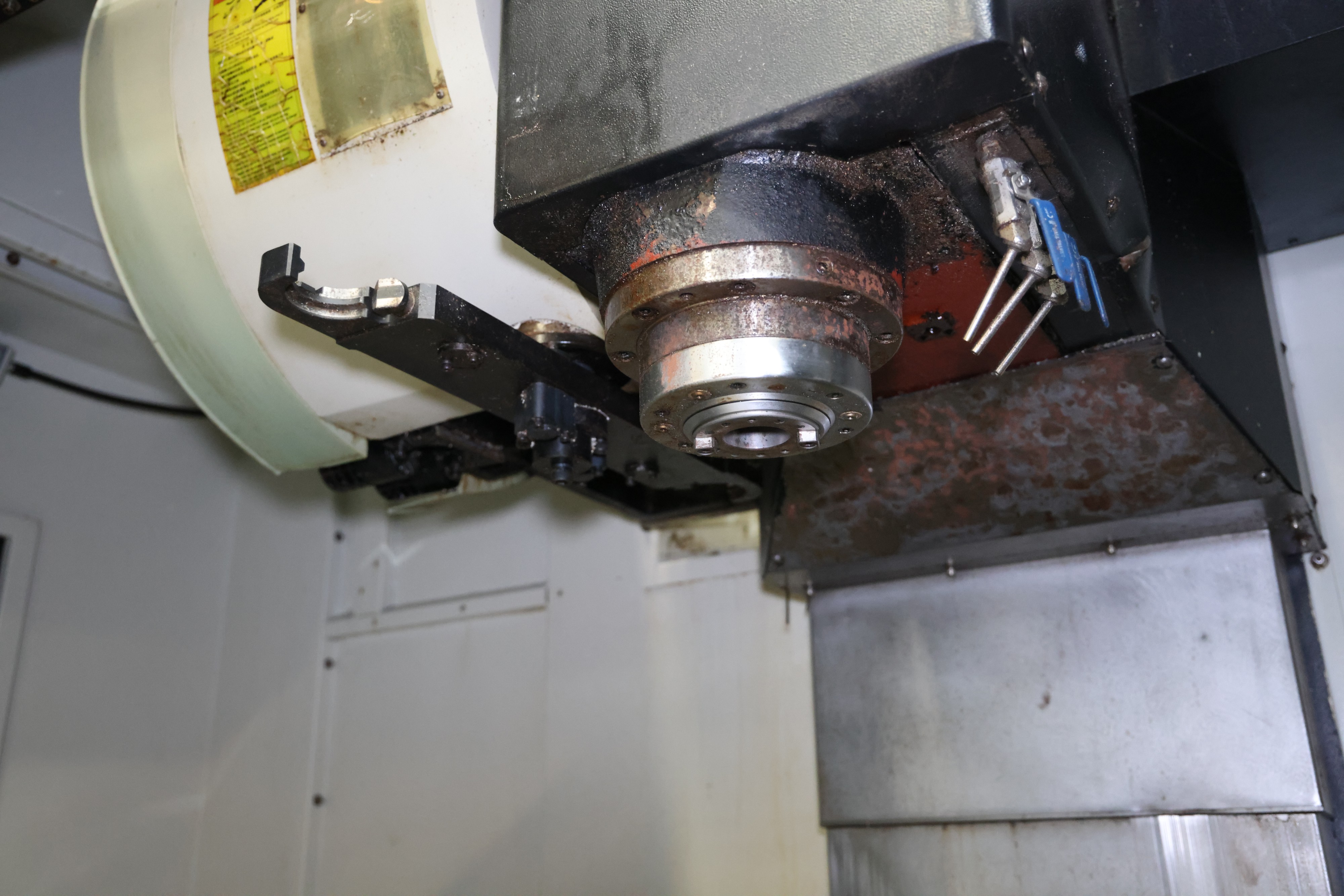

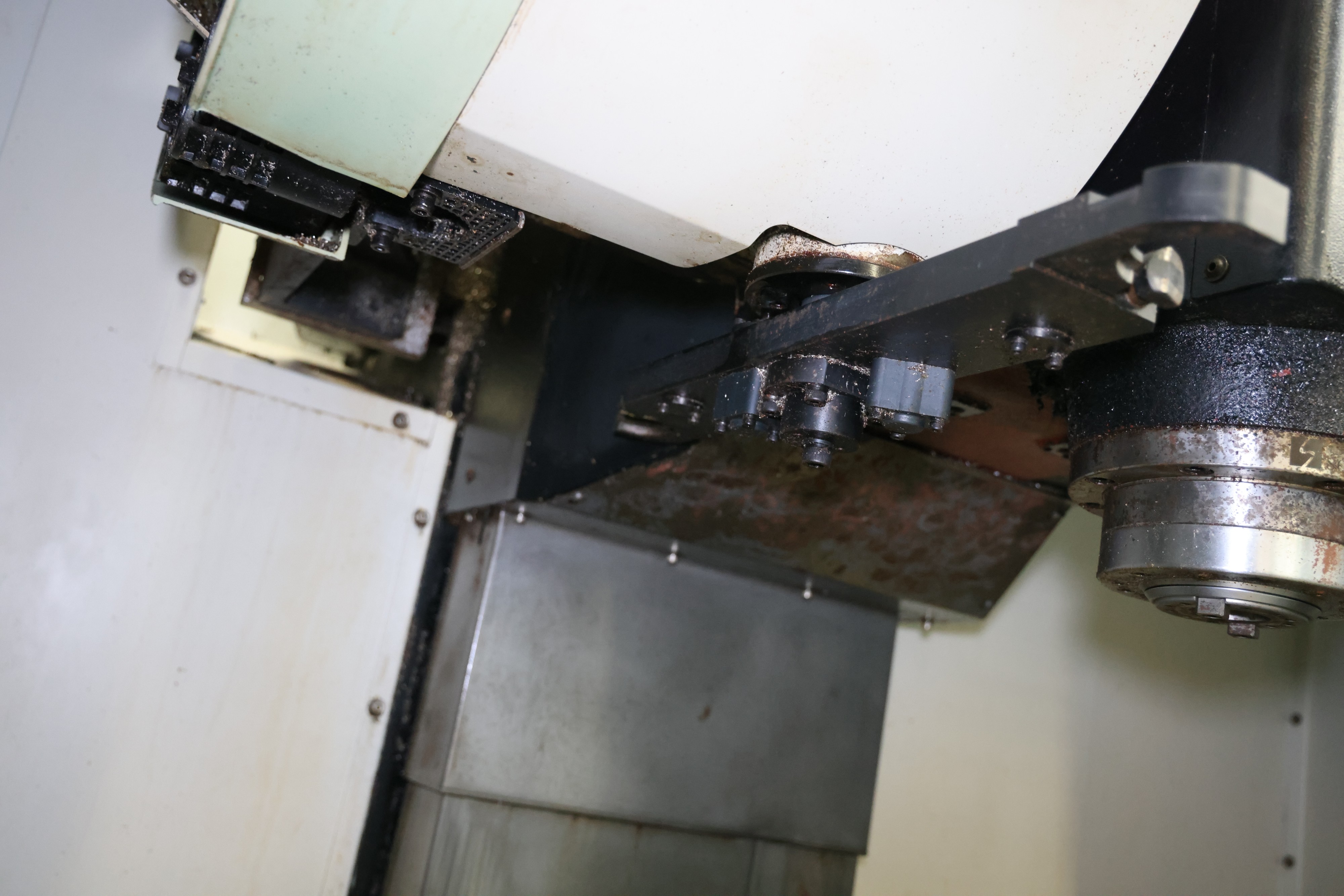

Yes. The machine is configured with a 24-tool arm-type automatic tool changer, allowing multiple machining operations to be completed with fewer manual tool changes.

What should I check before buying this used vertical machining center?

Before purchase, buyers should confirm spindle condition and runout, positioning and repeatability accuracy, guideway condition, ball-screw condition, CNC alarms, tool-change operation, chip conveyor operation, electrical requirements, included accessories, and machine performance under power. A cutting test can also help evaluate the machine before shipment.
