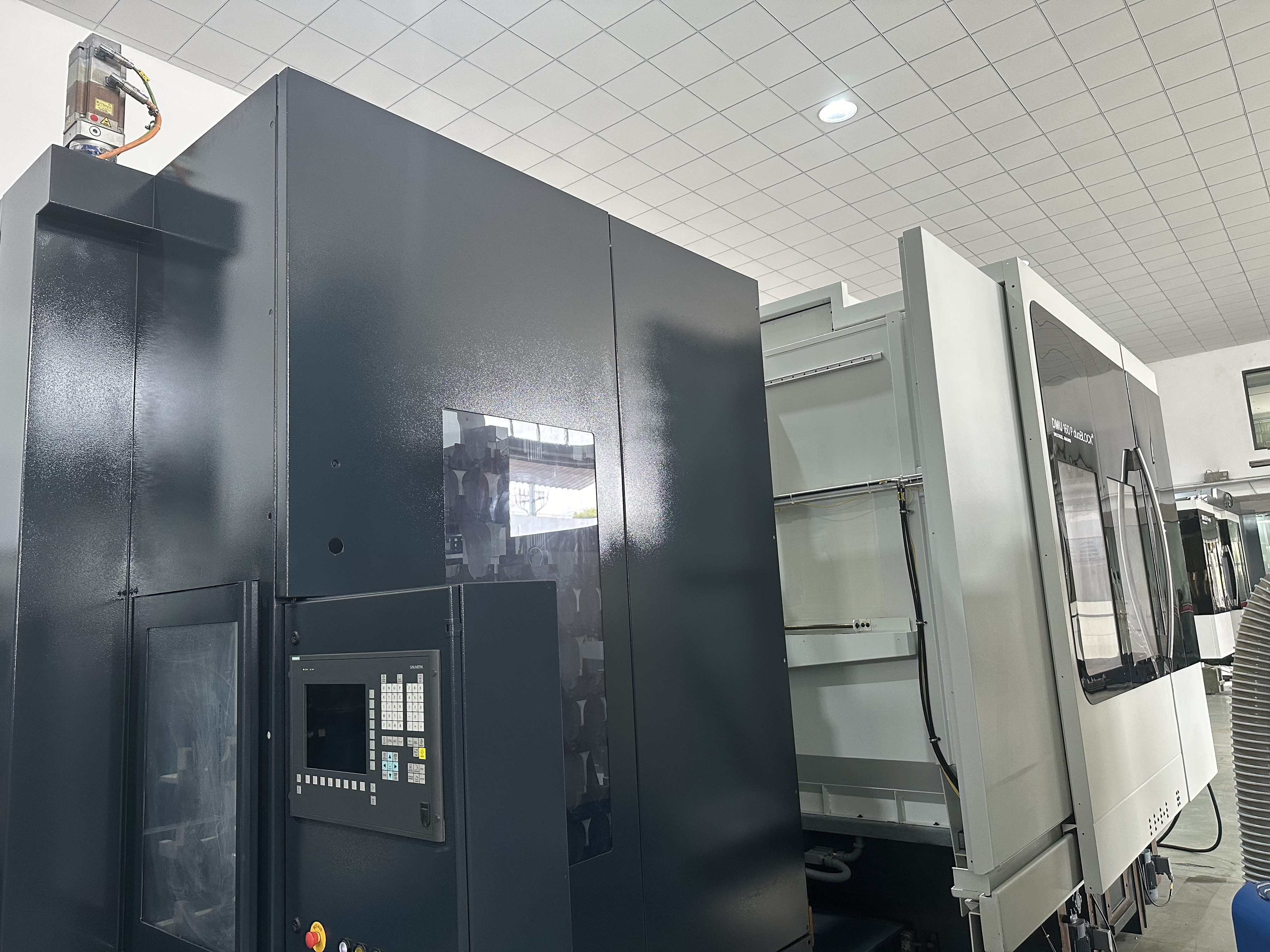

Used German DMG MORI DMU 160 P duoBLOCK 5-Axis CNC

Loading carousel...

Product Highlight

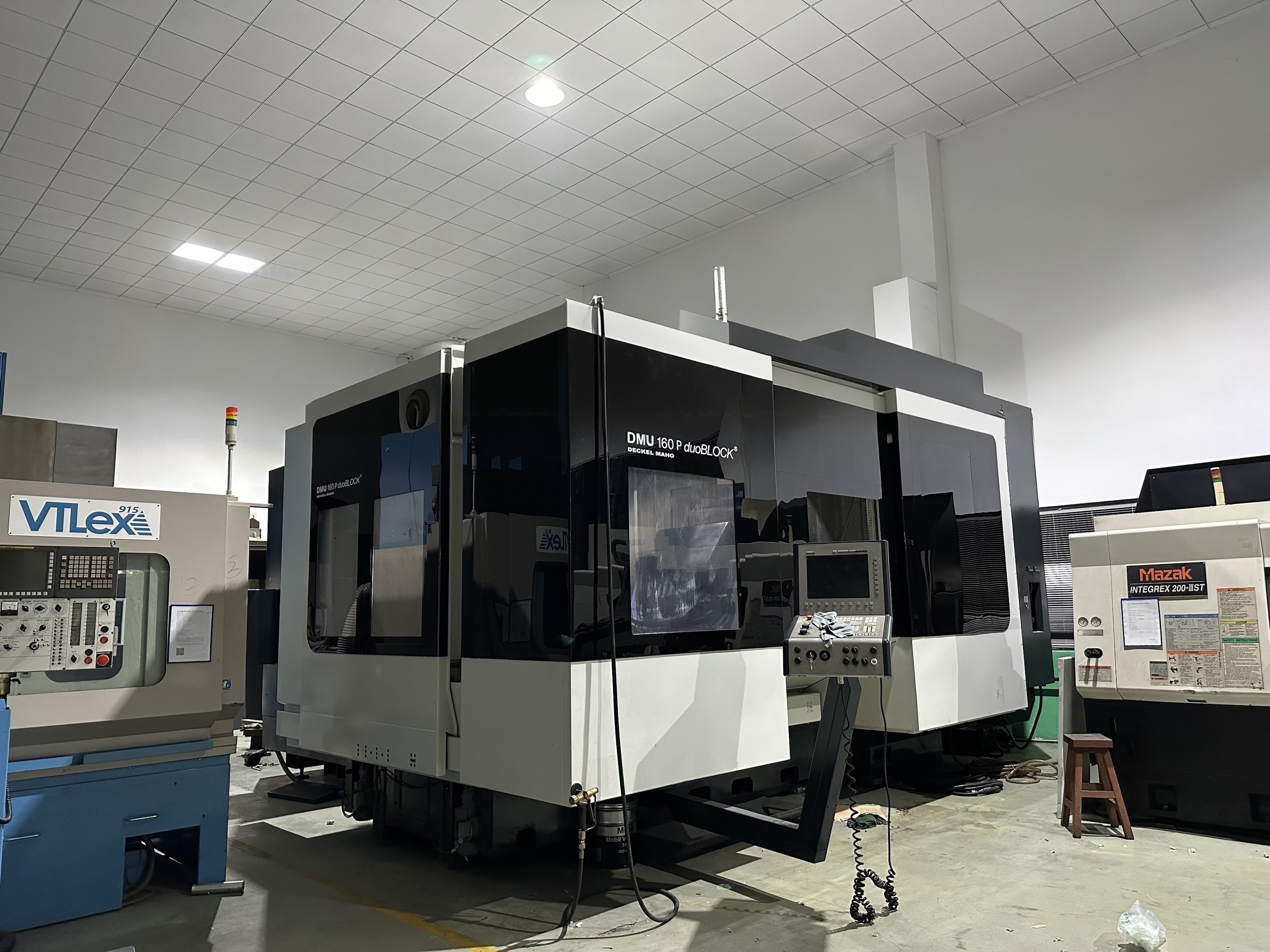

Used DMG MORI / DECKEL MAHO DMU 160 P duoBLOCK heavy-duty 5-axis CNC machining center from Germany. Featuring 1,600 × 1,600 × 1,100 mm travels, an SK50 12,000 rpm spindle, Siemens CNC architecture and documented Renishaw positioning measurements, it is an attractive solution for large aerospace, die and mold, energy and heavy precision components.

Product Description

The used DMG MORI / DECKEL MAHO DMU 160 P duoBLOCK is a heavy-duty 5-axis CNC machining center built for large, high-value and precision-critical components. With 1,600 mm X/Y travel, 1,100 mm Z travel, an SK50 spindle up to 12,000 rpm and Siemens control architecture, this machine combines a large machining envelope with the rigidity required for demanding 5-axis milling.

Documented Renishaw measurement results provide additional confidence for buyers evaluating positioning and rotary-axis accuracy before investing in a large used CNC machine.

The DMU 160 P duoBLOCK platform is designed for workpieces up to approximately 1,600 mm in diameter and 4,500 kg, making it especially suitable for aerospace, energy, die and mold, machinery and large precision component production.

Technical Specifications

Specification	Details
Condition	Used
Manufacturer	DMG MORI / DECKEL MAHO
Model	DMU 160 P duoBLOCK
Machine Type	5-Axis Universal CNC Machining Center
Origin	Germany

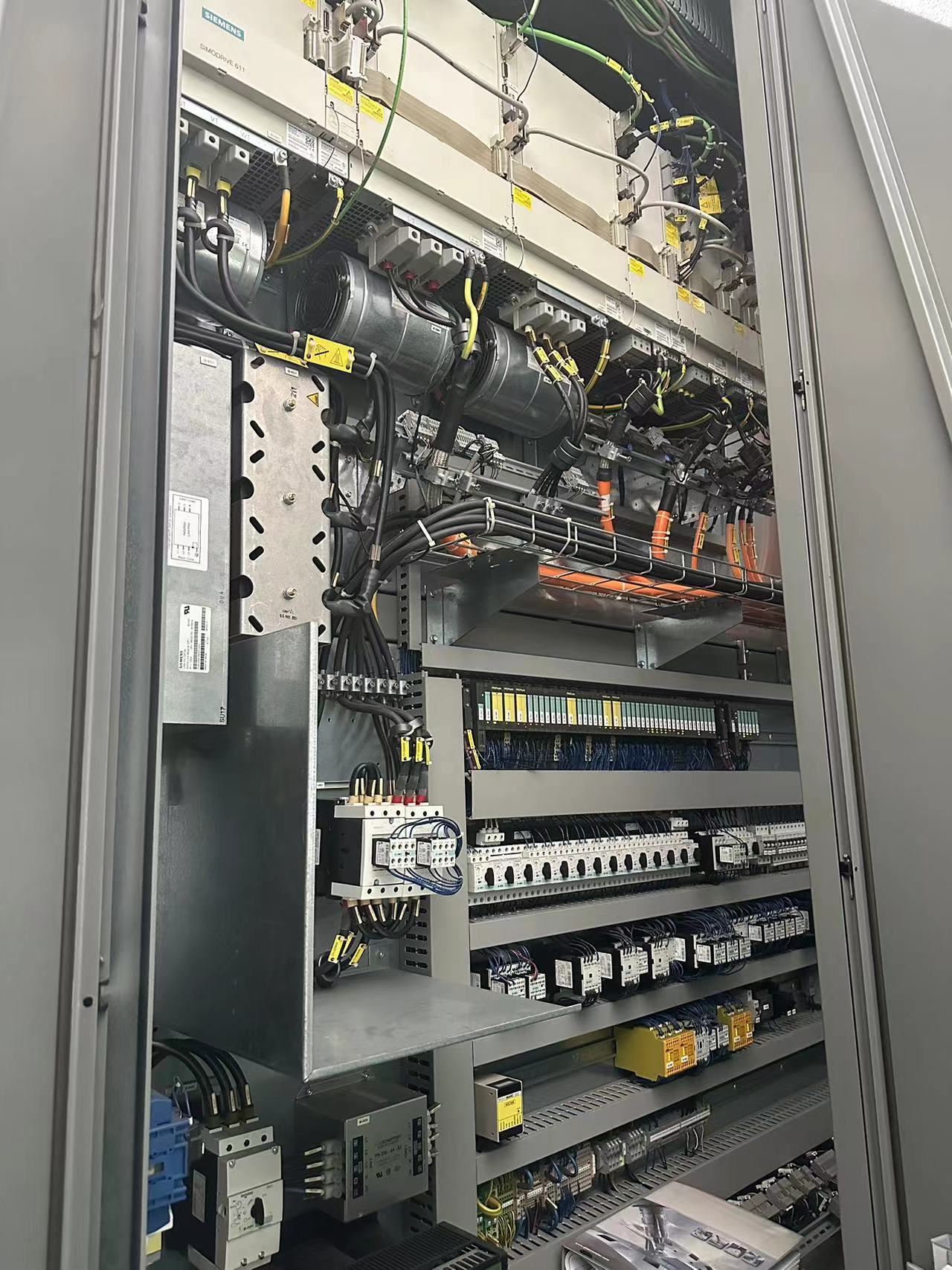

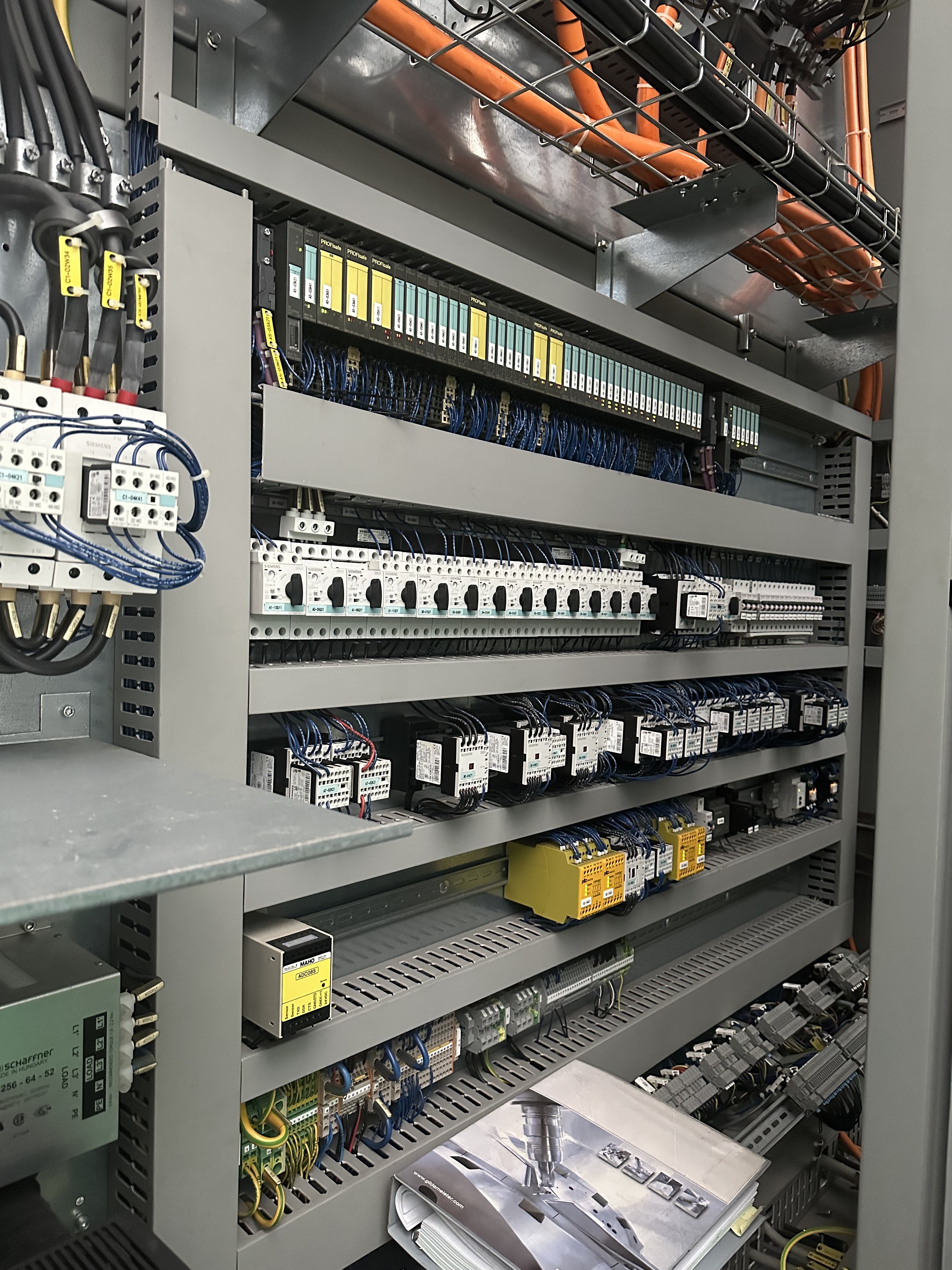

CNC / Control System	Siemens CNC system
Drive System	Siemens SIMODRIVE architecture
Number of Machining Axes	5-axis
X-Axis Travel	1,600 mm
Y-Axis Travel	1,600 mm
Z-Axis Travel	1,100 mm
Maximum Workpiece Diameter	1,600 mm
Maximum Workpiece Weight	4,500 kg
Maximum Workpiece Height	Approx. 1,675 mm for milling configuration
Table Diameter	Approx. Ø1,600 mm
Table Clamping Depth	Approx. 1,250 mm
Spindle Taper	SK50 / ISO 50
Maximum Spindle Speed	12,000 rpm

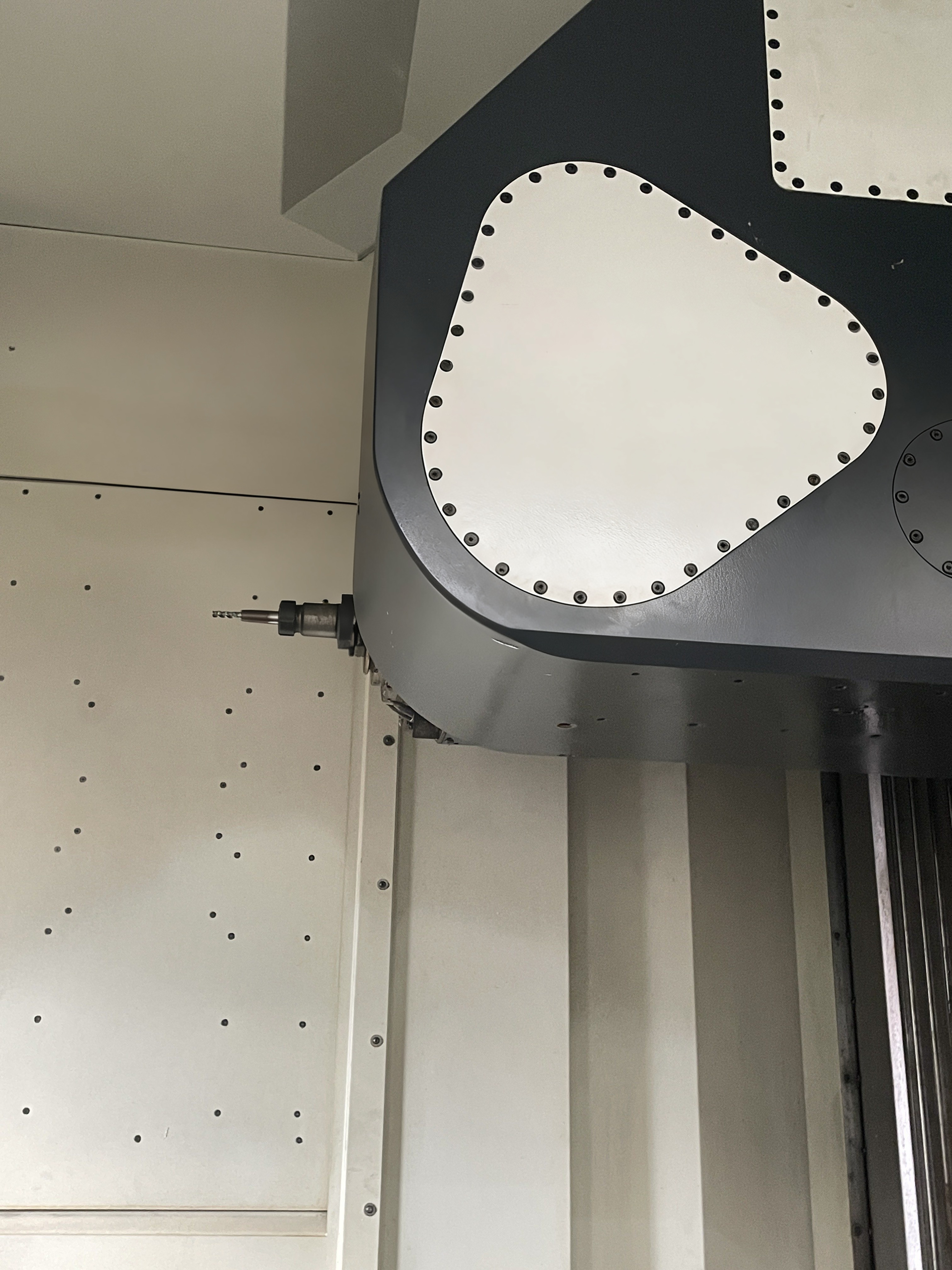

Spindle Head	Orthogonal / swiveling 5-axis head configuration
Reported Head Tilt	Up to approximately +30°
C-Axis	360° rotary machining
Rapid Traverse	Up to 60 m/min

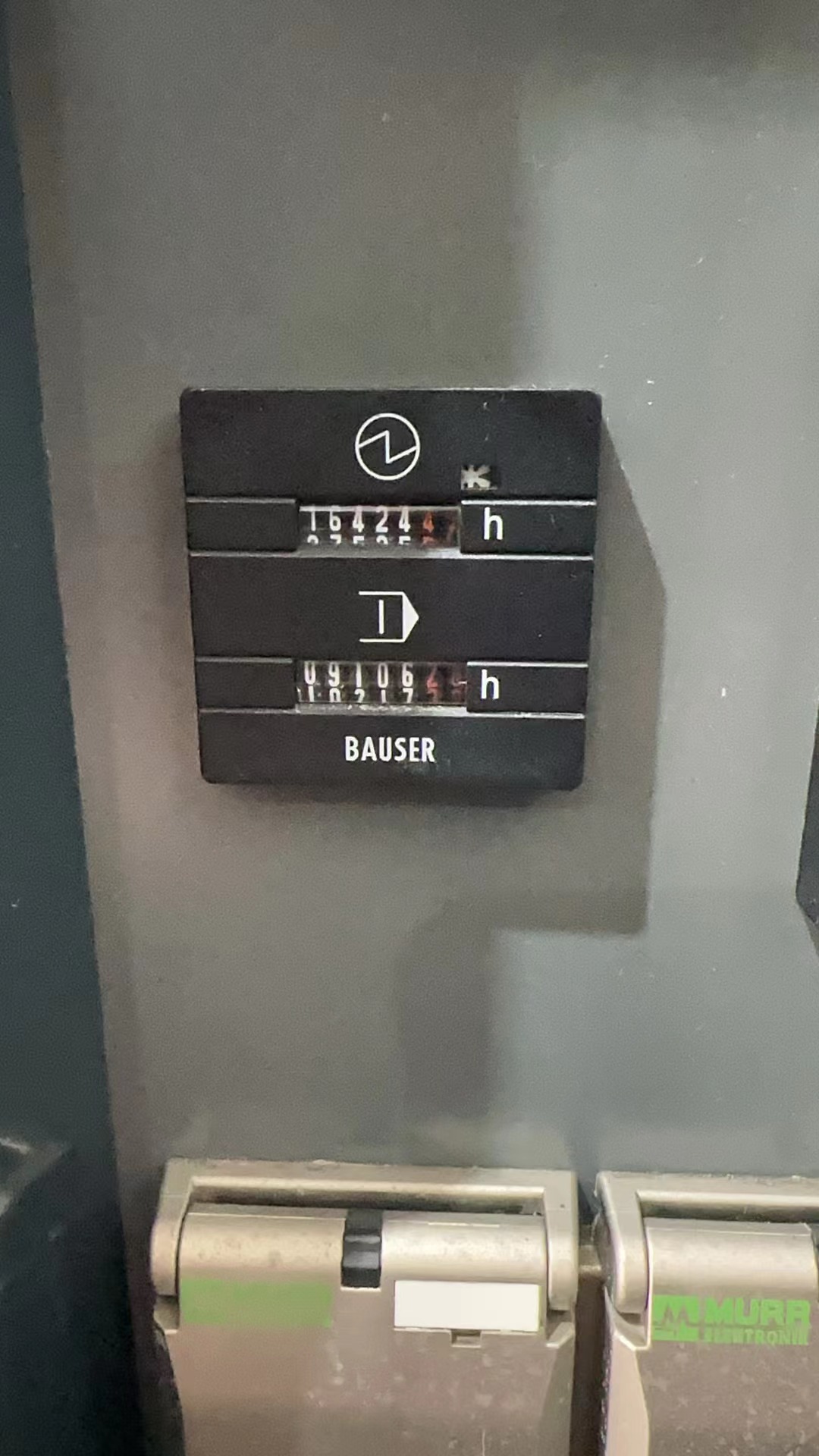

Approx. Operating Reference	Around 9,100 hours indicated on the relevant operating counter
Accuracy Verification	Renishaw CARTO measurement data available

The 1,600 × 1,600 × 1,100 mm working range and 4,500 kg workpiece capacity are also consistent with DMG MORI's published data for the DMU 160 P duoBLOCK platform.

A comparable DMU 160 P duoBLOCK configuration with a 12,000 rpm spindle, SK50 taper, 1,600 / 1,600 / 1,100 mm travels and 60 m/min rapid traverse is currently documented on the used-machine market.

Important Configuration Note

The machine is identified as DMU 160 P duoBLOCK, not necessarily the FD mill-turn version. DMG MORI lists approximately 1,675 mm maximum workpiece height for the milling version, while the 1,775 mm specification applies to the FD configuration.

Key Selling Points

Large 5-Axis Machining Capacity
The 1,600 × 1,600 × 1,100 mm machining envelope makes the DMU 160 P duoBLOCK suitable for components that are too large for conventional 800 mm or 1,000 mm class 5-axis machining centers.

Heavy-Duty SK50 Spindle
The SK50 spindle interface is particularly attractive for larger cutters, deeper cuts and applications requiring higher rigidity than smaller SK40 or HSK63 configurations.

12,000 rpm Spindle Speed
The spindle provides a practical balance between heavy machining capability and finishing performance.

High Workpiece Capacity
Up to approximately 4,500 kg workpiece capacity allows machining of large housings, dies, structural components and heavy precision parts.

duoBLOCK Machine Structure
DMG MORI developed the duoBLOCK concept around rigidity, thermal stability and demanding 5-axis machining. The manufacturer specifically positions this platform for difficult-to-machine materials and applications ranging from aerospace to tool and mold production.

Measured Accuracy Data Available
Renishaw axis and rotary-axis measurements help overseas buyers evaluate the actual working condition of a used machine before making a purchasing decision.

Applications & Suitable Industries

Aerospace Components

Suitable for machining large aluminum, titanium and high-temperature alloy components such as:

Aircraft structural components
Gearbox housings
Engine-related housings
Landing gear components
Large aerospace fixtures
Complex 5-axis structural parts

DMG MORI specifically identifies aerospace and difficult-to-machine materials such as titanium as important applications for the DMU 160 P duoBLOCK platform.

Die & Mold Manufacturing

The large working envelope and simultaneous 5-axis capability make the machine suitable for:

Automotive dies
Injection molds
Large mold inserts
Die-casting molds
Complex mold cavities
Precision finishing operations

Energy & Power Generation

Suitable for larger components including:

Turbine-related parts
Pump housings
Valve bodies
Energy equipment components
Large mechanical housings

Heavy Machinery Manufacturing

The SK50 spindle and heavy workpiece capacity are suitable for:

Gearbox housings
Machine tool components
Construction machinery components
Industrial equipment frames
Large precision fixtures

High-Mix Precision Manufacturing

Five-axis machining can reduce the number of setups required for complex components, making the machine suitable for manufacturers producing high-value parts in relatively low or medium production volumes.

FAQ

Is the used DMG MORI DMU 160 P duoBLOCK suitable for large aerospace parts?

Yes. With approximately 1,600 mm travel in both X and Y, 1,100 mm Z travel and 4,500 kg workpiece capacity, the machine is well suited to large aerospace structural parts, gearbox housings and other high-value components. DMG MORI also positions the duoBLOCK platform for aerospace and difficult-to-machine materials.

What spindle does this DMU 160 P duoBLOCK have?

This machine is equipped with a heavy-duty SK50 spindle with a maximum speed of 12,000 rpm. This configuration is particularly useful for larger cutting tools and applications requiring high spindle rigidity.

How can I evaluate the accuracy of this used 5-axis CNC machine?

The machine has documented Renishaw CARTO measurement results for the X, Y and Z linear axes as well as the A and C rotary axes. The measured bidirectional positioning values are in the micron range for the linear axes and only a few arcseconds for the rotary axes.

How large a workpiece can the DMU 160 P handle?

The platform supports workpieces up to approximately 1,600 mm in diameter and 4,500 kg in weight, making it suitable for large dies, aerospace structures, energy components and heavy industrial parts.

What should I check before buying this used DMG MORI 5-axis machine?

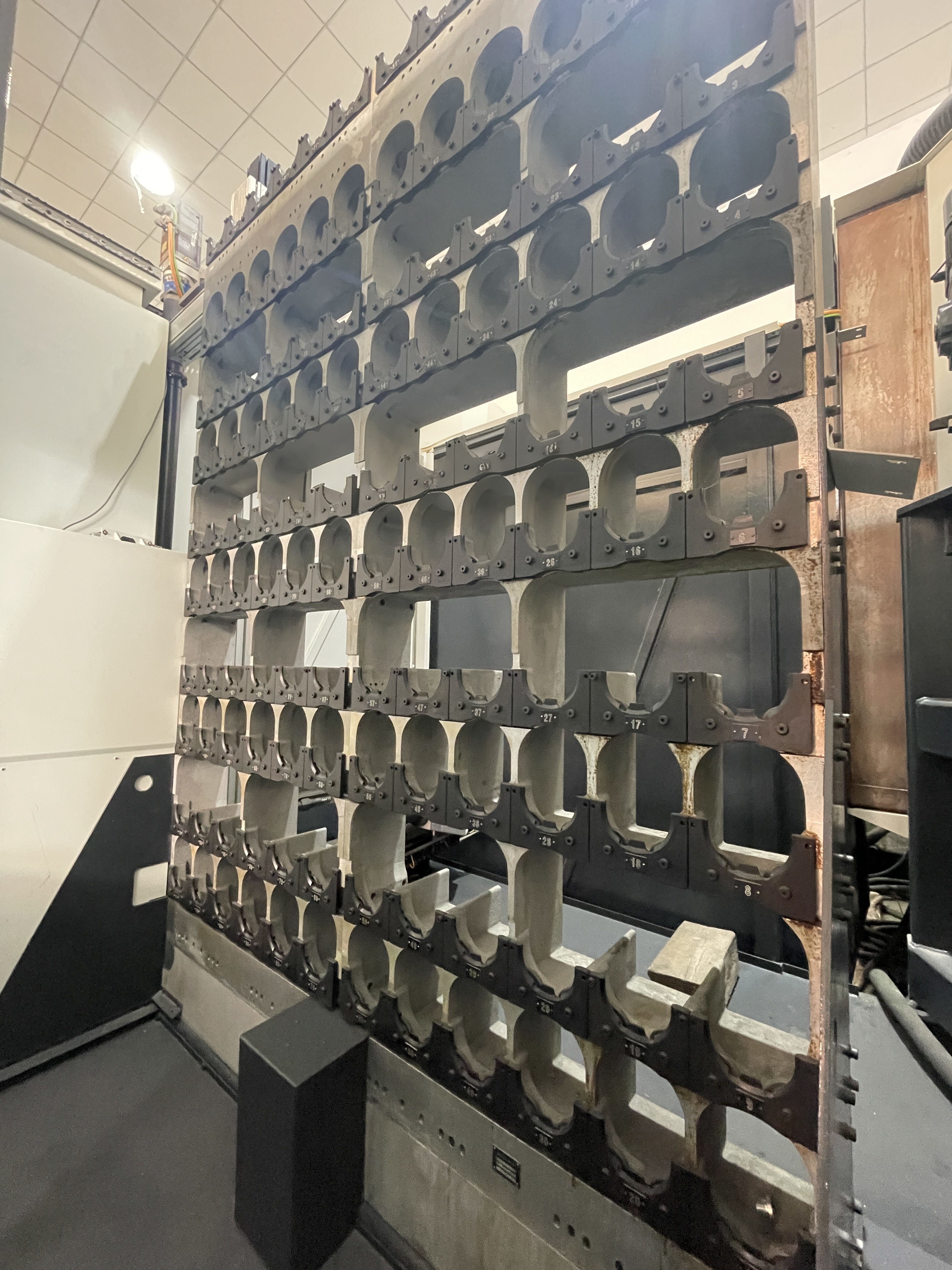

For a machine in this class, buyers should verify spindle condition, operating hours, linear-axis accuracy, A/C-axis positioning, tool changer operation, coolant system, Siemens control condition and test-cut performance. The available Renishaw measurement data gives buyers an additional reference when evaluating the machine.
