Used Gamma HV-800L CNC Vertical Machining Center for Sale
Product Description

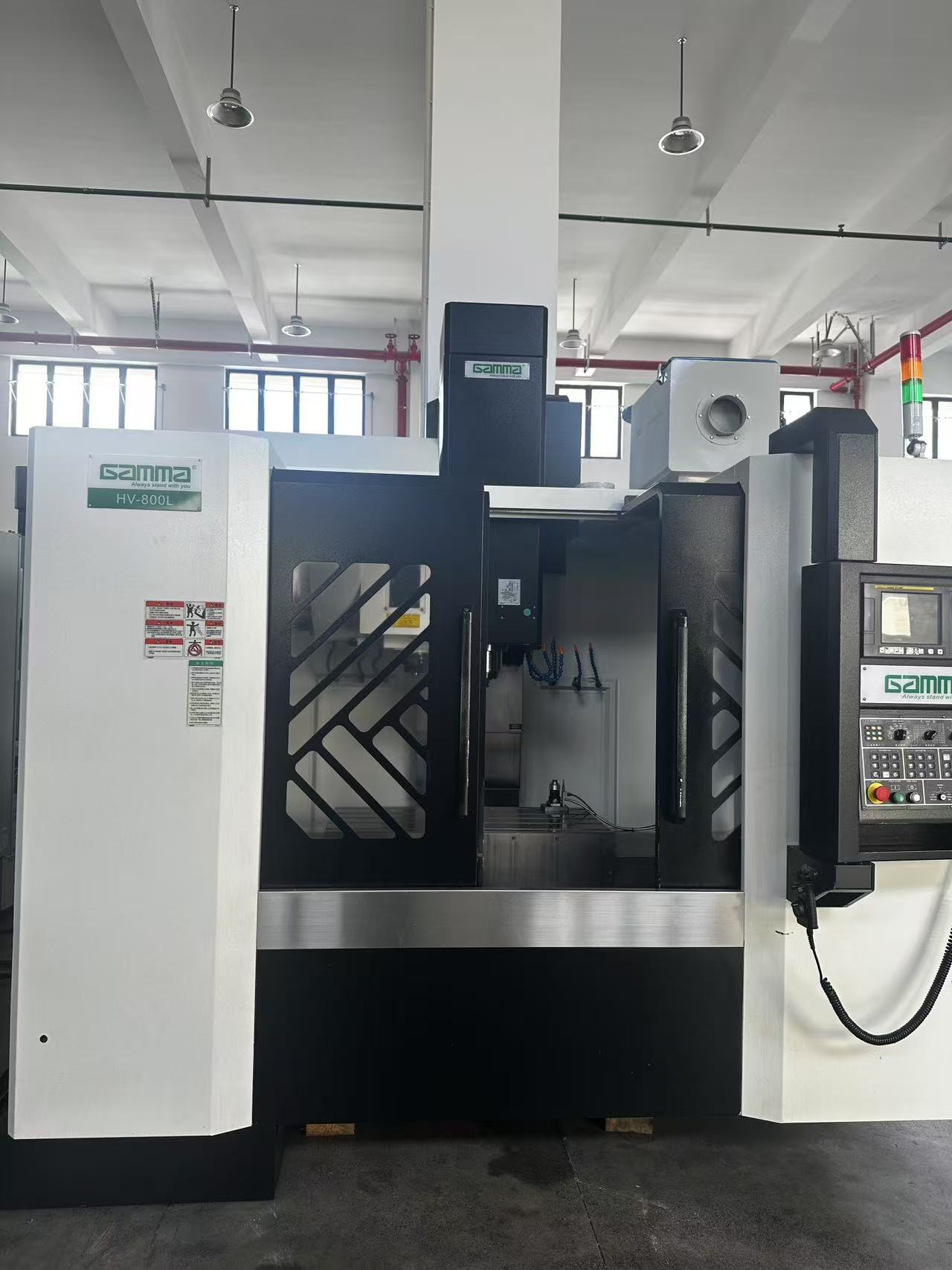

This pre-owned Gamma HV-800L CNC vertical machining center is a 2022 machine equipped with a FANUC Oi-MF CNC control system, 15000 RPM high-speed spindle, 800 mm X-axis travel, and a rigid 6200 kg machine body. Suitable for precision milling, drilling, tapping, and mold or metal parts machining. This is a used machine, not a new Gamma machine.
Technical Specifications
| Item | Specification |
|---|---|
| Machine Type | CNC Vertical Machining Center |
| Brand | Gamma |
| Model | HV-800L |
| Condition | Used / Pre-owned |
| Manufacturing Date | 2022-08-23 |
| Manufacturing No. | GM1508F02 |

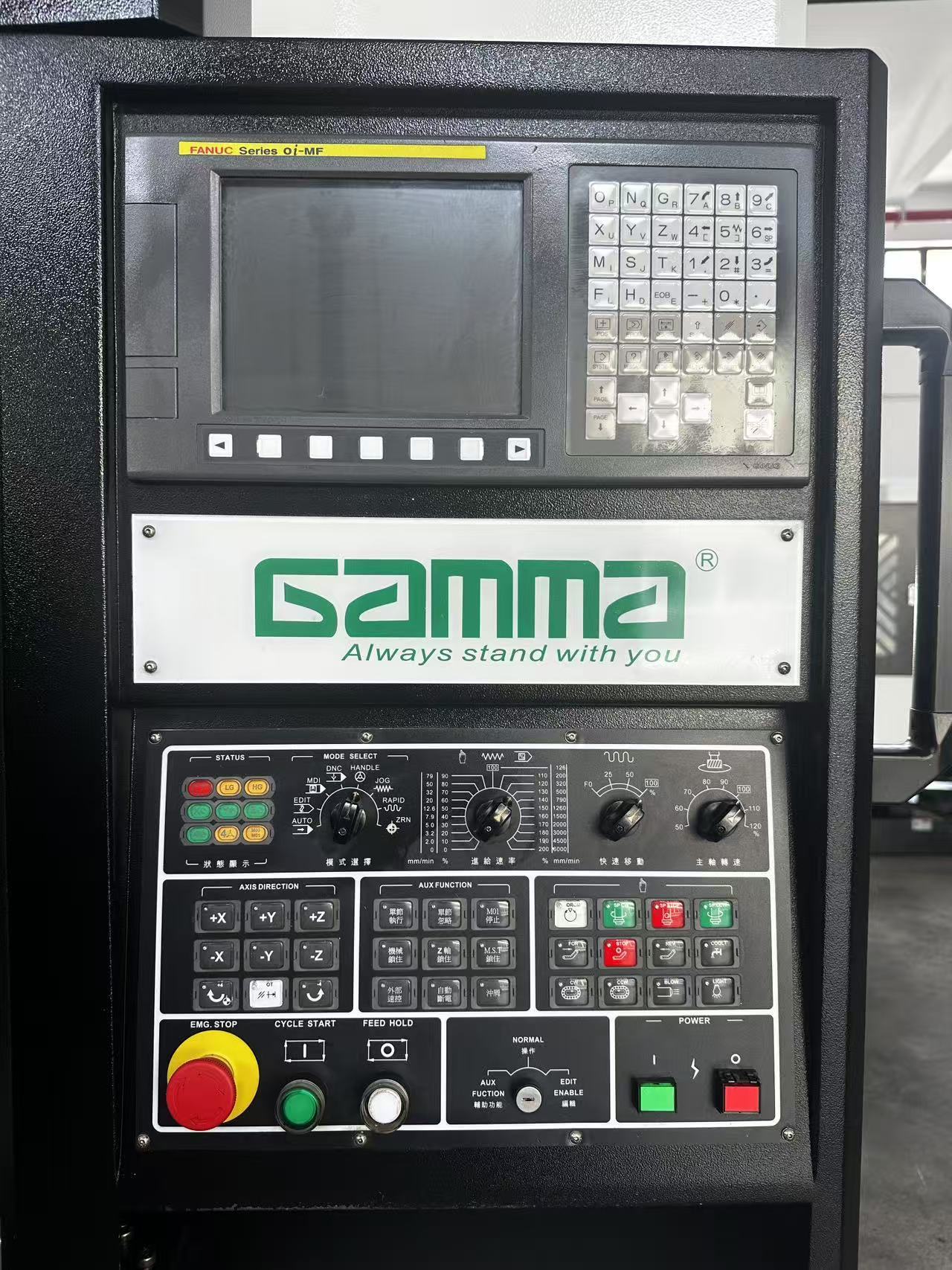

| CNC Control System | FANUC Series Oi-MF |
| X-Axis Travel | 800 mm |
| Y-Axis Travel | 500 mm |
| Z-Axis Travel | 500 mm |
| Spindle Nose to Table Distance | 120–620 mm |
| Spindle Type | αiIT8/15000, as shown on nameplate |
| Spindle Motor Power | 11.0 kW |
| Max. Spindle Speed | 15000 RPM |
| X-Axis Motor Power | 3.0 kW |
| Y-Axis Motor Power | 3.0 kW |
| Z-Axis Motor Power | 4.0 kW |
| X/Y/Z Axis Max. Motor Speed | 3000 RPM |
| Net Weight | 6200 kg |
| Main Voltage | AC220V |
| Phase | 3 Phase |
| Frequency | 50 Hz |
| Control Voltage | DC24V |

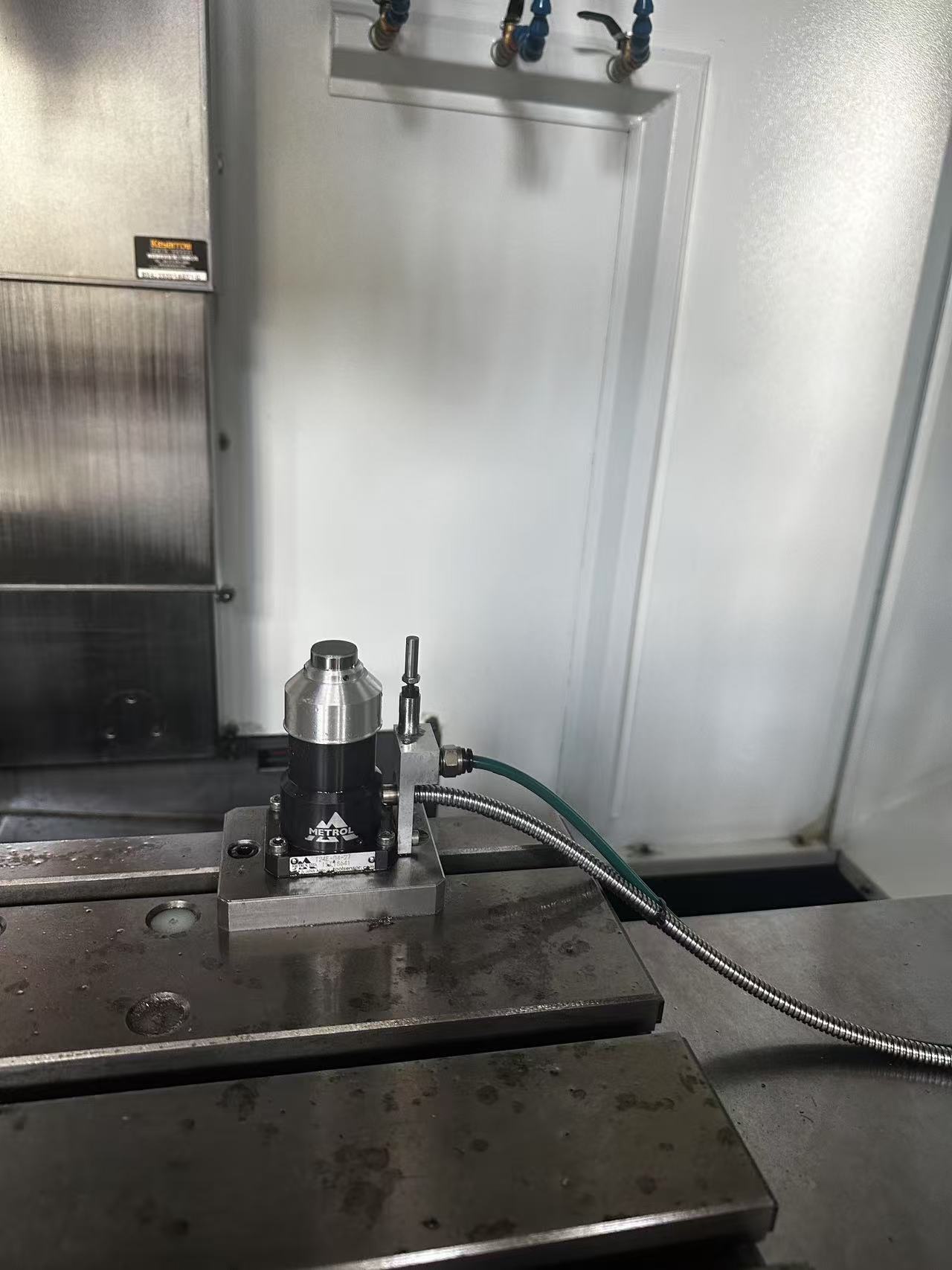

| Visible Accessories | Mist collector, tool setting device, coolant nozzles |
| Brand Origin / Manufacturing | Taiwan Gamma brand, nameplate shows Made in China |
Applications & Suitable Working Scenarios
The used Gamma HV-800L CNC machining center is suitable for workshops looking for a cost-effective vertical machining solution without buying a new machine. With its 800 × 500 × 500 mm travel, 15000 RPM spindle, and FANUC control, it can be used for precision machining of medium-sized metal parts.
Typical applications include:
- CNC milling, drilling, boring, tapping, and contour machining
- Aluminum, steel, stainless steel, copper, and non-ferrous metal parts
- Mold components, fixture plates, mechanical parts, and precision tooling
- Automotive parts, machinery components, automation parts, and general engineering work
- Job shops and factories needing a reliable second-hand CNC vertical machining center
FAQ
Is this Gamma HV-800L a new machine or a used CNC machine?
This is a used Gamma HV-800L CNC vertical machining center. It is not a new machine. The machine was manufactured in 2022 and is listed as pre-owned equipment.
What CNC control system does this used Gamma HV-800L have?
The machine is equipped with a FANUC Series Oi-MF CNC control system, which is widely used in CNC machining centers and is familiar to many operators.
What is the travel range of this CNC vertical machining center?
The machine has X 800 mm, Y 500 mm, and Z 500 mm travel, making it suitable for medium-sized milling, drilling, and precision machining jobs.
What is the maximum spindle speed of this Gamma HV-800L?
The maximum spindle speed is 15000 RPM, which is suitable for high-speed machining, aluminum cutting, finishing, and precision part processing.
$76765.00
Brand
Gamma
Model
HV-800L
Origin
TW
Processing Time
6854h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 7 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
