Used Balong VMC-856 CNC Machining Center | Mitsubishi M80
Product Description

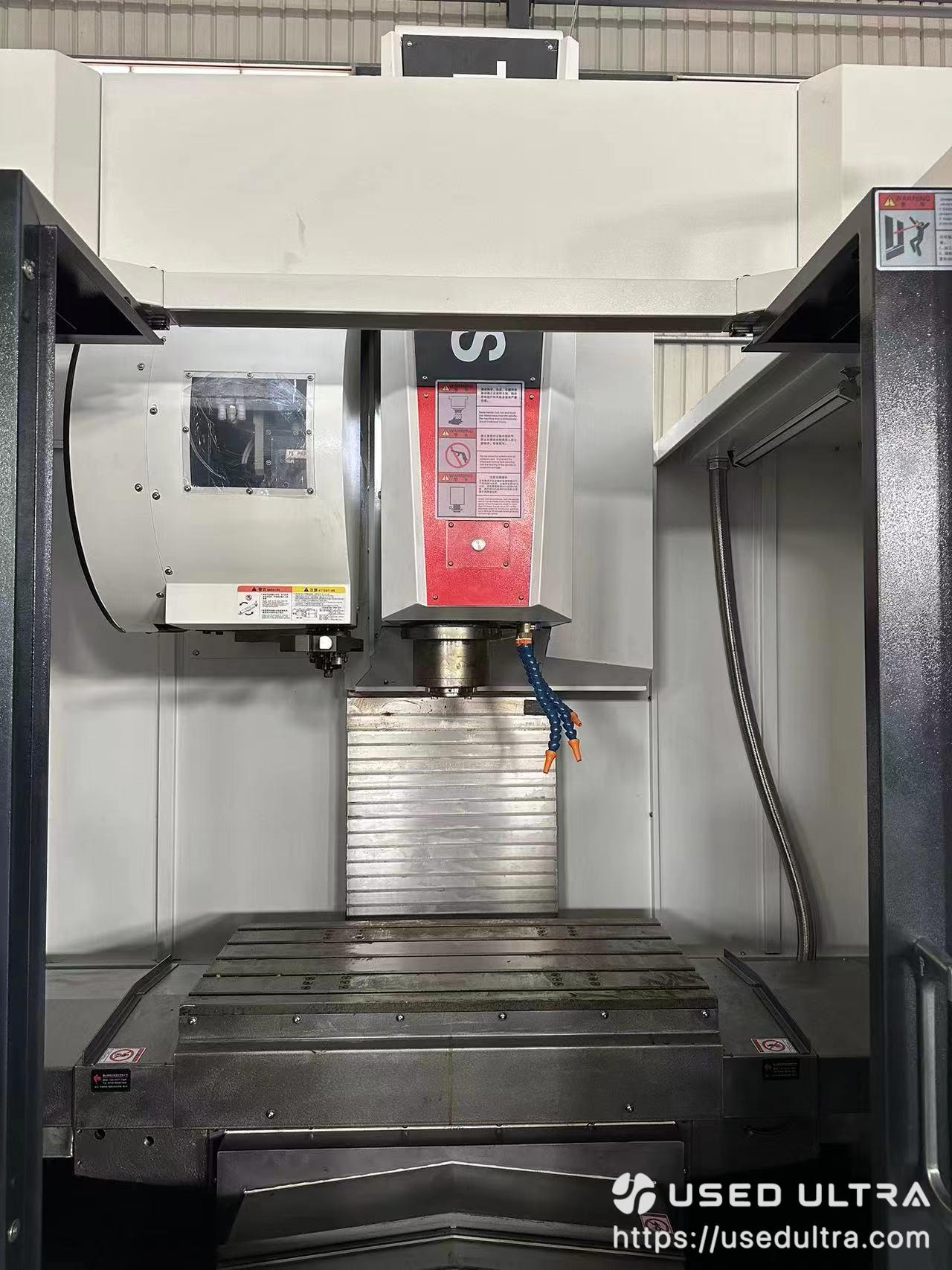

Used Balong VMC-856 CNC Vertical Machining Center from China, equipped with a Mitsubishi M80 CNC control, BT40 spindle, 12,000 rpm maximum spindle speed and 24-tool magazine. The machine offers 800 × 550 × 600 mm X/Y/Z travel, a 1000 × 500 mm worktable and 48 m/min rapid traverse on all three axes. A practical pre-owned CNC machining center for milling, drilling, tapping and general precision parts production.
Technical Specifications
| Specification | Details |
|---|---|
| Machine Type | CNC Vertical Machining Center |
| Condition | Used / Pre-Owned |
| Brand | Balong Precision Machinery |
| Model | VMC-856 |

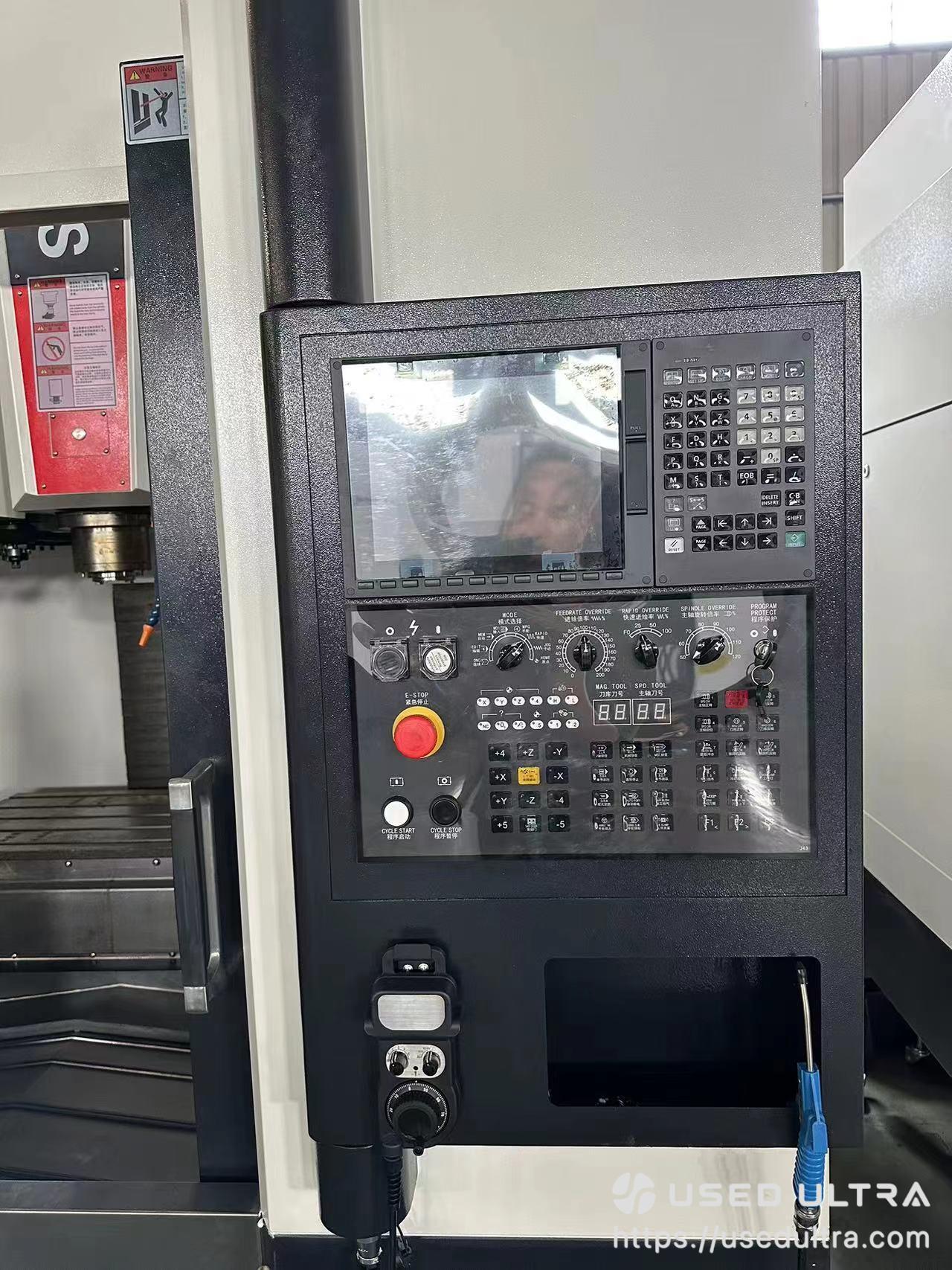

| CNC Control | Mitsubishi M80 |
| Axis Configuration | 3-Axis |
| X-Axis Travel | 800 mm |
| Y-Axis Travel | 550 mm |
| Z-Axis Travel | 600 mm |
| Worktable Size | 1000 × 500 mm |
| Maximum Table Load | 450 kg |

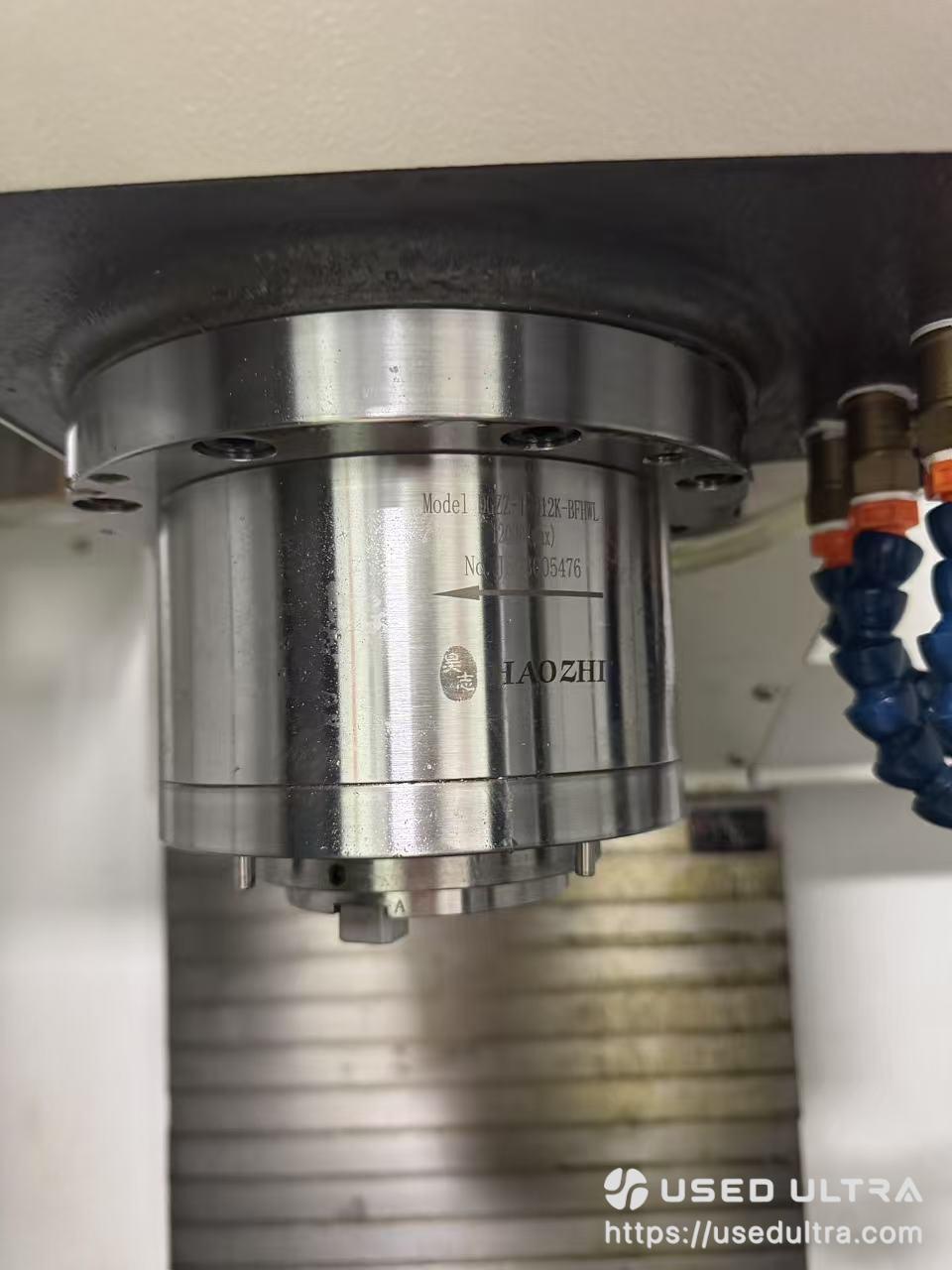

| Spindle Taper | BT40 |
| Maximum Spindle Speed | 12,000 rpm |
| Spindle Motor Power | 7.5 / 11 kW |
| Spindle Nose to Table Distance | 125–725 mm |
| X-Axis Rapid Traverse | 48 m/min |
| Y-Axis Rapid Traverse | 48 m/min |
| Z-Axis Rapid Traverse | 48 m/min |
| Tool Magazine Capacity | 24 Tools |
| Power Supply | AC 380V, 50Hz |
| Rated Capacity | 30 kVA |
| Full Load Current | 60 A |
| Protection Rating | IP54 |
| Machine Dimensions | Approx. 2240 × 3121 × 3026 mm |
| Machine Weight | To Be Confirmed |
Data note

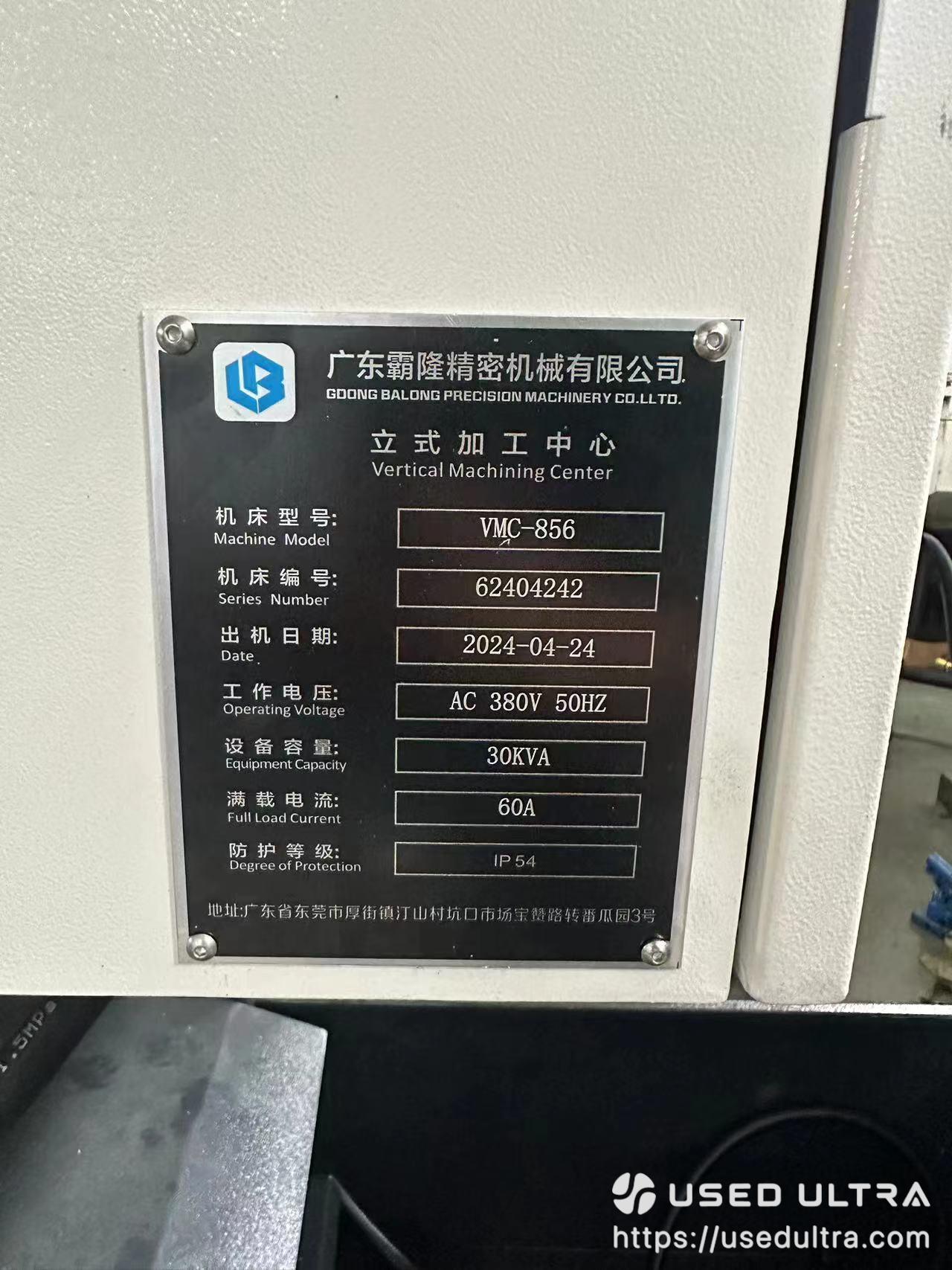

The machine model, electrical specifications and protection rating are taken from the machine nameplate. Machining specifications are based on the supplied machine information and should be reconfirmed before final purchase.
Applications & Suitable Uses
Used Balong VMC-856 vertical machining center is suitable for general CNC milling, drilling, tapping and related machining operations on small and medium-sized components.
Typical applications include:
- General mechanical parts
- Mold and die components
- Aluminum components
- Steel components
- Machine parts and brackets
- Fixtures and tooling
- Plates and structural components
- Automotive-related components
- Automation equipment parts
- Job-shop and subcontract machining
- Small-batch production
- Medium-volume parts production
With 800 × 550 × 600 mm axis travel, BT40 tooling and a 12,000 rpm spindle, the machine provides a useful balance between work envelope and spindle speed for general industrial machining.
FAQ
What CNC control does this used VMC-856 have?
This machine is equipped with a Mitsubishi M80 CNC control, according to the supplied machine information.
What is the travel of the Balong VMC-856?
The machine has approximately 800 mm X-axis travel, 550 mm Y-axis travel and 600 mm Z-axis travel.
What spindle does this vertical machining center use?
The supplied specification indicates a BT40 spindle with a maximum spindle speed of 12,000 rpm and spindle motor power of 7.5 / 11 kW.
$25000.00
Used machine prices fluctuate with the market — this price is for reference only and is not a real-time quote.
Brand
Balong
Model
VMC-856
Origin
CN
Processing Time
1391h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 9 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check

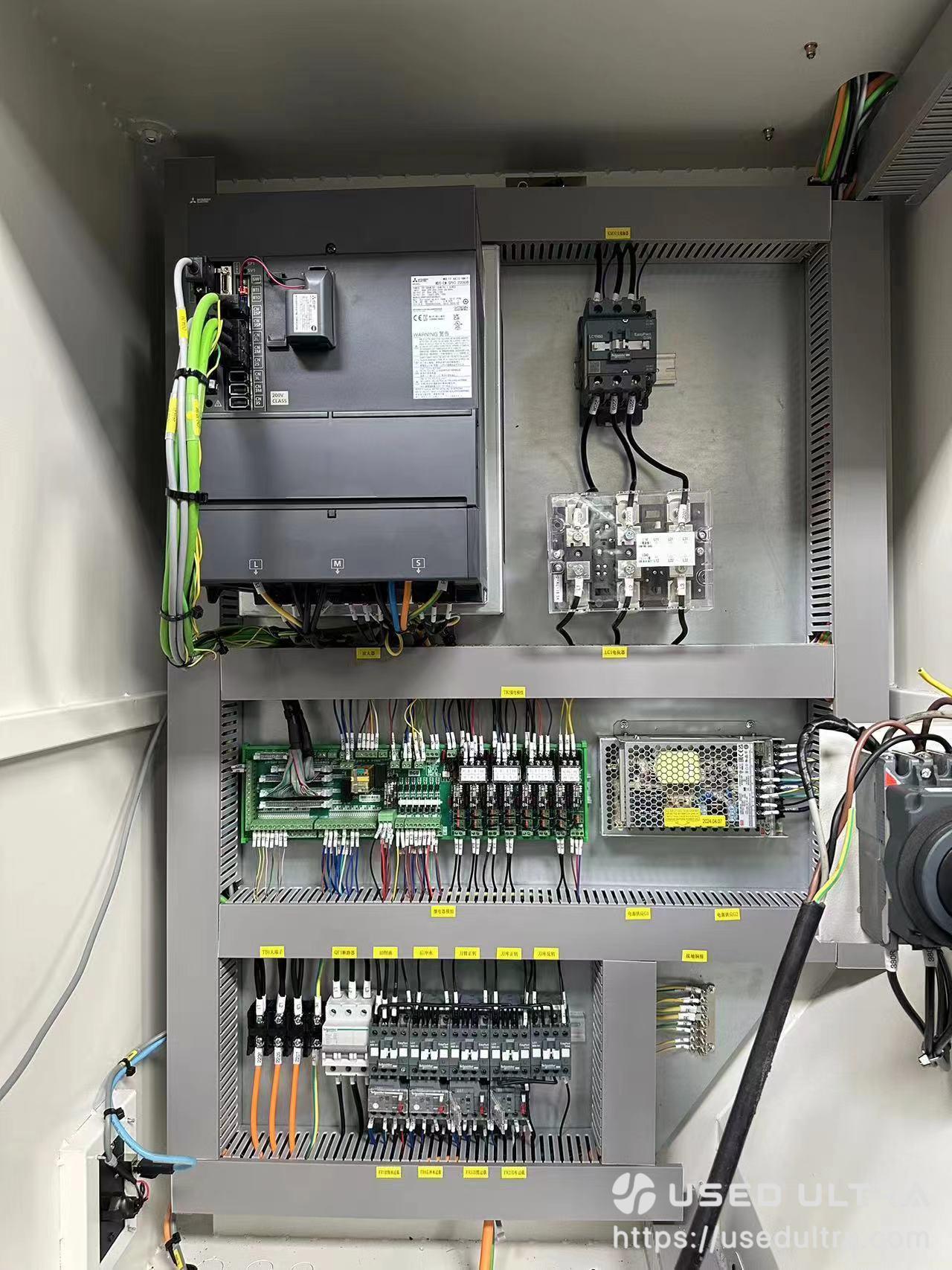

- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
