Used Taiwan CTG-540GCB CNC Internal Gear Grinding Machine
Product Description

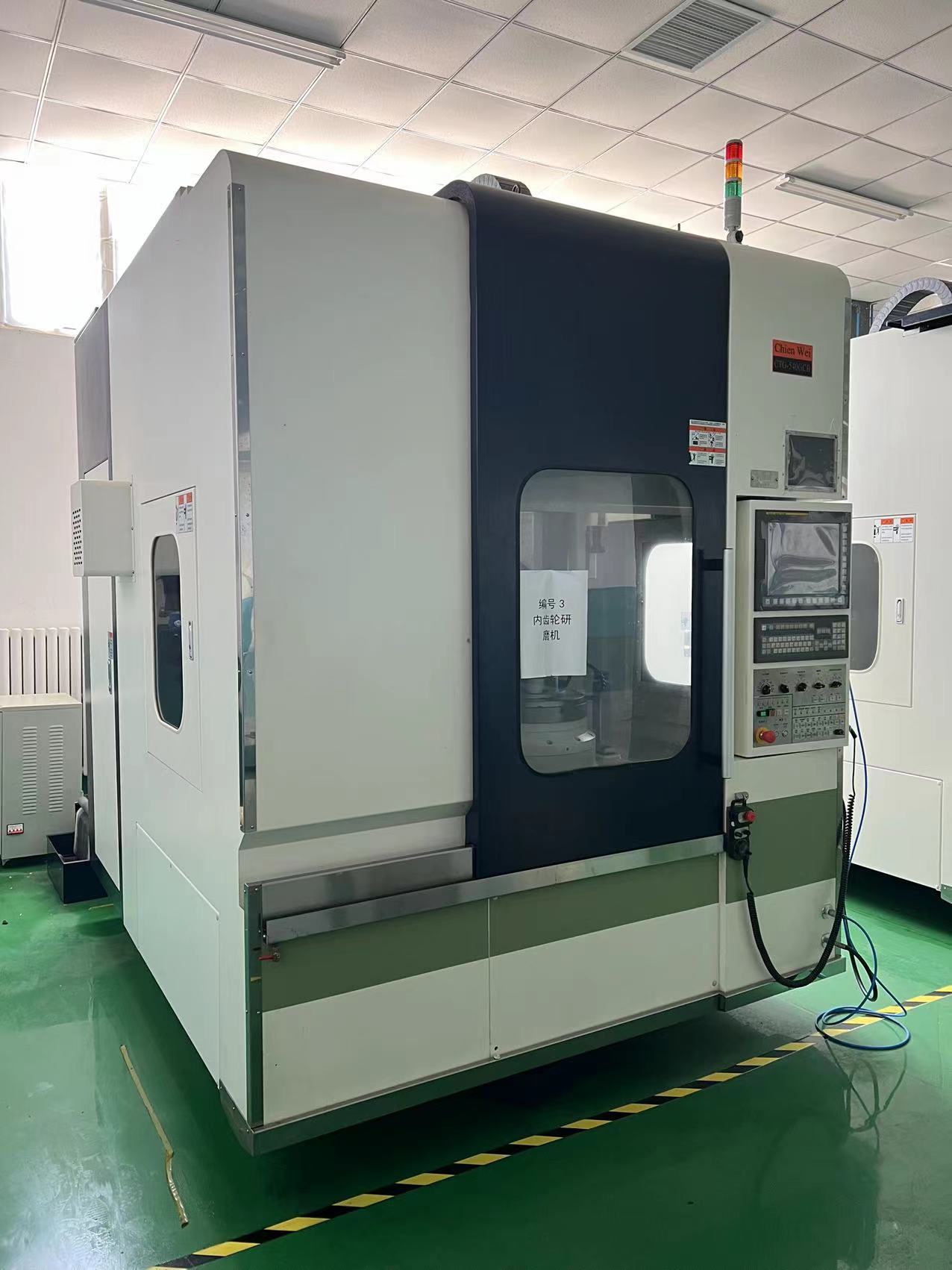

This used CTG-540GCB CNC internal gear grinding machine from ChinaTaiwan is equipped with FANUC 0i-MF control system, delivering ultra-precision gear finishing for demanding industrial applications. With only minimal usage and nearly new condition (99.9%), it is a cost-effective solution for manufacturers seeking high-end gear grinding capability at a lower investment. Ideal for internal gears, bevel gears, and straight gear finishing with micron-level accuracy.
Technical Specifications
| Item | Specification |
|---|---|
| Model | CTG-540GCB |
| Machine Type | CNC Internal Gear Grinding Machine |
| Control System | FANUC Series 0i-MF |
| Worktable Size | 400 mm |
| Travel (X/Y/Z/W) | 850 × 600 × 100 × 400 mm |
| Spindle Speed | 12,000 RPM |
| Measuring System | Automatic probe / measurement system |
| CNC Feeding | Automatic CNC infeed grinding |
| Correction System | Auto compensation & correction |
| Power Supply | 3 Phase, 220V, 50/60Hz |

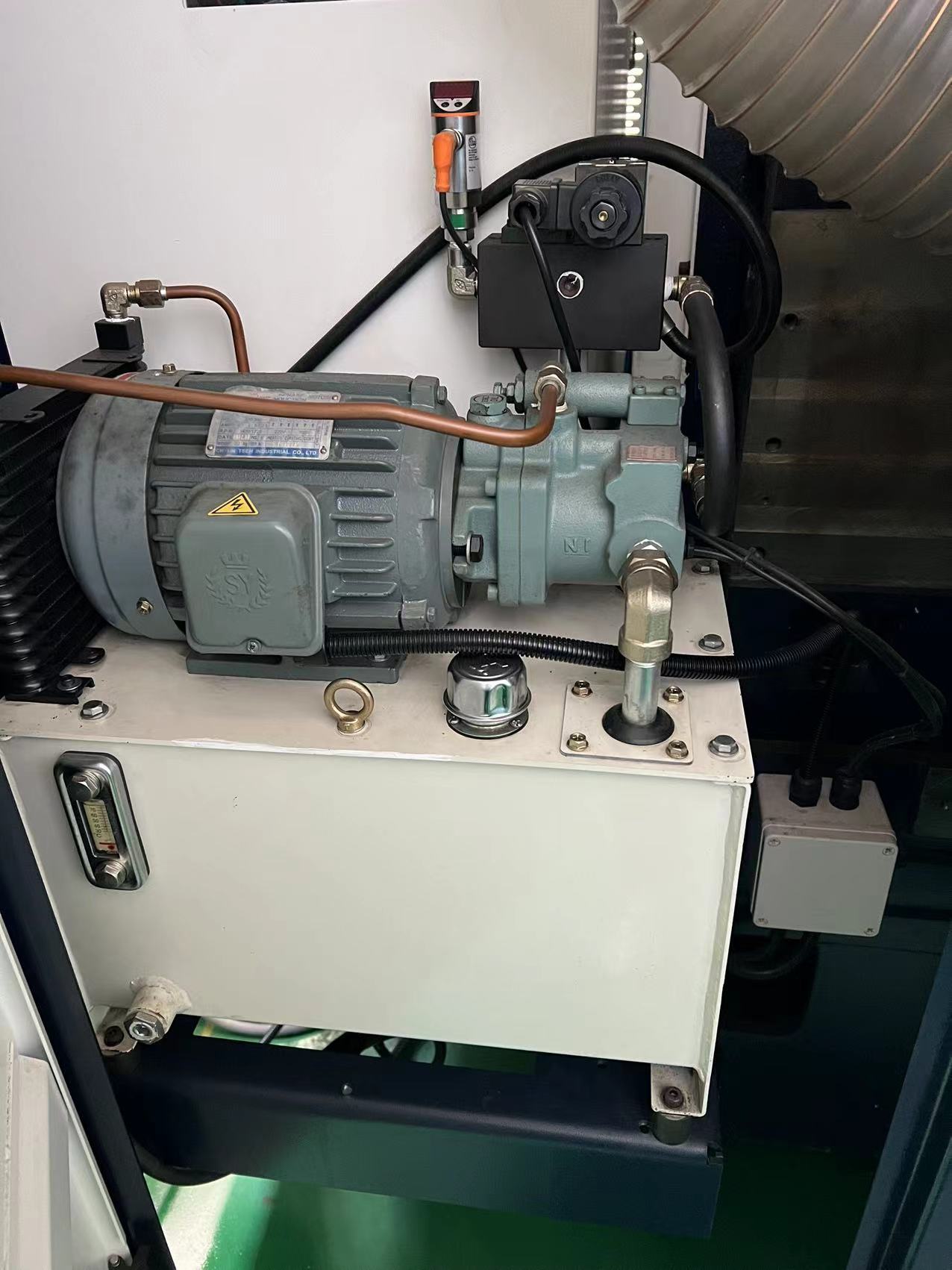

| Cooling System | KAUKAN Industrial Chiller (R-410A, 0.7kg refrigerant) |
| Power Consumption | 1900W |
| Machine Weight | ~100 kg (auxiliary unit / chiller system) |
| Manufacturing Year | 2018 |
| Condition | Lightly used / 99.9% like new |
| Origin | Taiwan |
Application & Use Cases
This CNC internal gear grinding machine is widely used in high-precision manufacturing industries, including:
- Automotive transmission gear production
- Motor reducer and gearbox manufacturing
- Aerospace precision gear finishing
- Robotics joint and harmonic drive components
- High-precision internal gear processing
- Bevel gear and straight gear finishing applications
It is especially suitable for manufacturers requiring high surface finish, tight tolerance (within 0.0015mm), and stable batch production capability.
FAQ
Is this CTG-540GCB CNC gear grinder fully operational?
Yes, the machine is fully operational and has been lightly used only a few times, maintaining almost new condition.
What CNC system does this machine use?
It is equipped with a FANUC Series 0i-MF CNC controller, known for stability and precision in industrial machining.
What types of gears can it process?
It can process internal gears, straight gears, bevel gears, and precision transmission components.
Is this machine suitable for high-volume production?
Yes, its automatic CNC infeed system and measurement compensation make it ideal for both batch production and precision machining.
Where is the machine originally made?
The machine is manufactured in Taiwan, using high-quality components from trusted industrial suppliers.
$438235.00
Brand
Chien Wei
Model
CTG-540GCB
Origin
TW
Processing Time
428h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 7 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
