Used MODUL H 130 CDT Gear Hobbing Machine Germany
Product Description
This used German MODUL H 130 CDT CNC gear hobbing machine is designed for high-precision small and medium gear production. Made in Germany in 2014, the machine features a Siemens SINUMERIK 840D SL CNC system, 9-axis configuration, automatic loading/unloading, and a maximum gear machining diameter of 130mm. A solid choice for gear manufacturers looking for German-built performance at a lower investment cost than new equipment.
Technical Specifications
| Item | Specification |
|---|---|
| Machine Name | CNC Gear Hobbing Machine |
| Brand | MODUL |

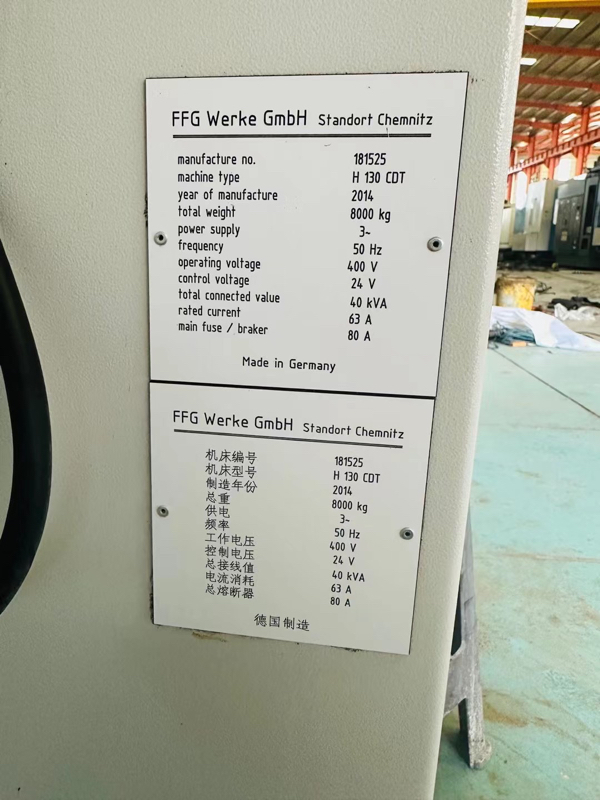

| Manufacturer | FFG Werke GmbH, Standort Chemnitz |
| Model | H 130 CDT |
| Machine Type | CNC Gear Hobbing Machine |
| Year of Manufacture | 2014 |
| Country of Origin | Germany |
| Machine No. | 181525 |

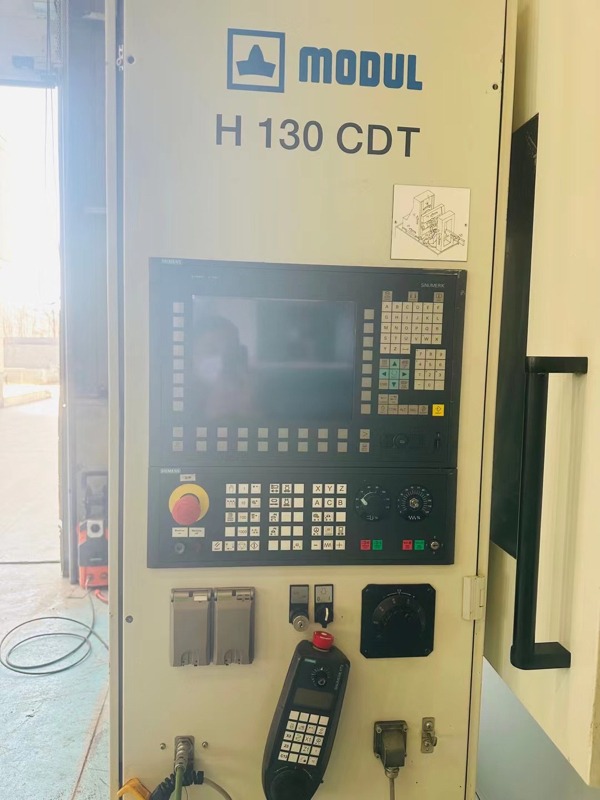

| CNC System | Siemens SINUMERIK 840D SL |
| Number of Axes | 9-Axis |
| Max. Gear Machining Diameter | 130 mm |

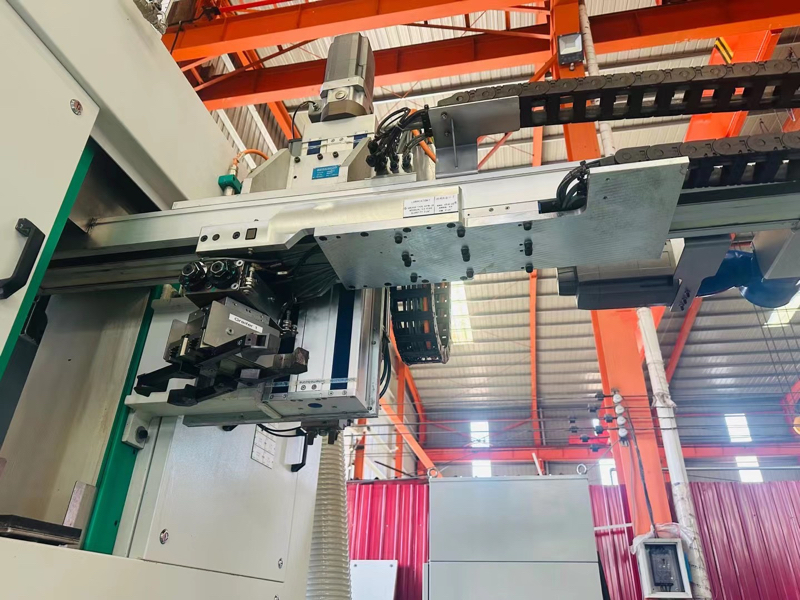

| Loading System | Automatic loading and unloading |
| Power Supply | 3 Phase |
| Frequency | 50 Hz |
| Operating Voltage | 400 V |
| Control Voltage | 24 V |
| Total Connected Power | 40 kVA |
| Rated Current | 63 A |
| Main Fuse / Breaker | 80 A |
| Machine Weight | Approx. 8000 kg |
| Condition | Used / Pre-owned |
| Reference Note | Specifications are for reference only; final details should be confirmed by inspection. |
Applications & Suitable Scenarios
The used MODUL H 130 CDT gear hobbing machine is suitable for precision gear manufacturing, especially for companies producing small and medium-sized gears with stable batch requirements.
It can be used in:
Automotive gear production
Suitable for transmission gears, shaft gears, small precision gears, and related drivetrain components.
Electric motor and reducer manufacturing
Ideal for machining high-accuracy gears used in gearboxes, reducers, servo systems, and industrial drives.
Hydraulic and machinery component production
Applicable for gear parts used in pumps, hydraulic units, construction machinery, and general mechanical transmission systems.
Batch production workshops
With automatic loading and unloading, this machine is well-suited for factories that require higher production efficiency and reduced manual operation.
Used equipment investment projects
A good option for buyers who want German MODUL gear hobbing technology but prefer a more cost-effective second-hand CNC machine instead of purchasing a new one.
FAQ
Is this MODUL H 130 CDT gear hobbing machine new or used?
This is a used MODUL H 130 CDT CNC gear hobbing machine. It is not a new machine. The machine is currently located in a workshop in Hebei, China, and inspection can be arranged before purchase.
What CNC control system does this machine use?
The machine is equipped with a Siemens SINUMERIK 840D SL CNC system, which is widely used in high-end CNC gear machining equipment.
What is the maximum gear diameter this machine can process?
According to the provided information, the machine is suitable for gear machining with a maximum diameter of 130mm.
Where was this gear hobbing machine manufactured?
The machine was manufactured in Germany by FFG Werke GmbH, Standort Chemnitz, under the MODUL brand.
Can this used machine support automatic production?
Yes. The machine is equipped with an automatic loading and unloading system, making it suitable for batch gear production and reducing manual handling during machining.
$352941.00
Brand
MODUL
Model
H 130
Origin
DE
Processing Time
4235h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 7 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
