Used South Korean Doosan PUMA 800XLM Heavy-Duty CNC Mill-Turn Center

Looking for a cost-effective alternative to a new heavy-duty CNC lathe? This used 2019 Doosan PUMA 800XLM CNC mill-turn center provides a maximum turning diameter of 900 mm and a turning length of up to 5,050 mm.

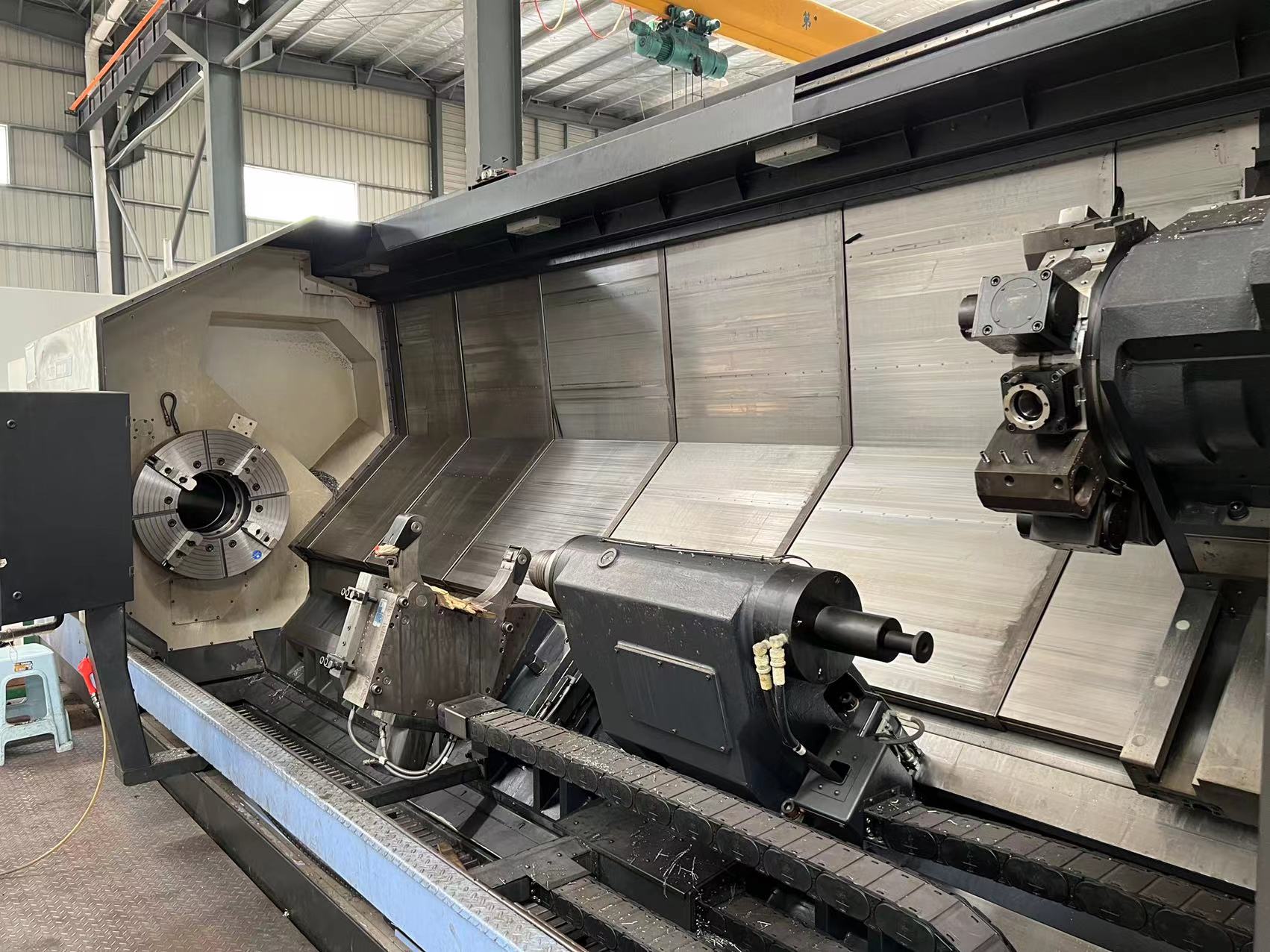

Powered by a 60 kW spindle delivering up to 11,004 N·m of torque, the machine is designed for long, large-diameter and heavy workpieces. The visible configuration includes a FANUC Series 32i-Model B CNC control, 32-inch chuck, 12-station turret, tailstock and SMW AUTOBLOK hydraulic steady rest.

It is a practical option for manufacturers seeking a large-capacity used CNC turning center without the investment and lead time of a new machine.

Technical Specifications

Visible Equipment and Features

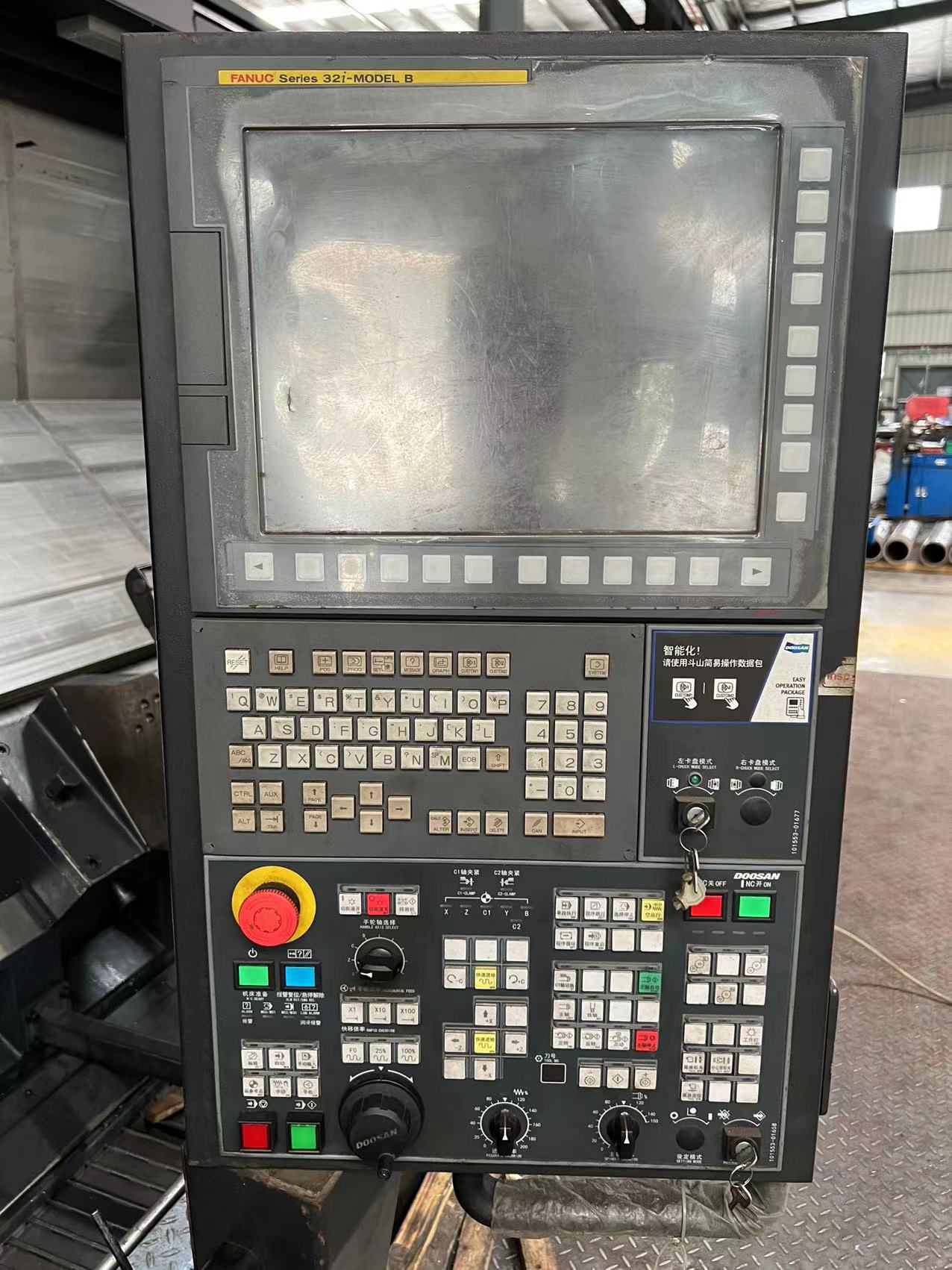

• FANUC Series 32i-Model B CNC control

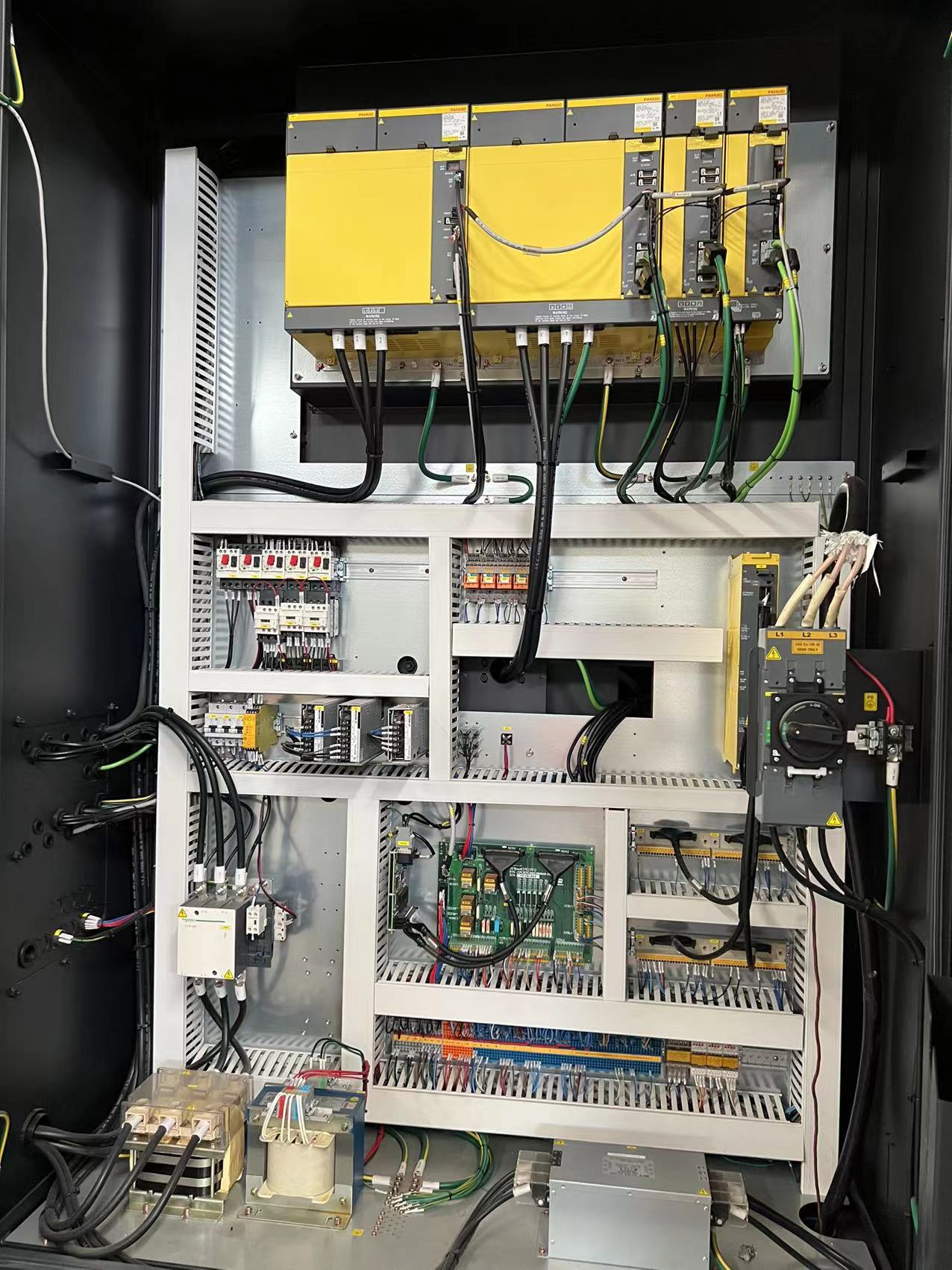

• FANUC drive and electrical system
• 32-inch power chuck
• 12-station tool turret
• Heavy-duty programmable tailstock

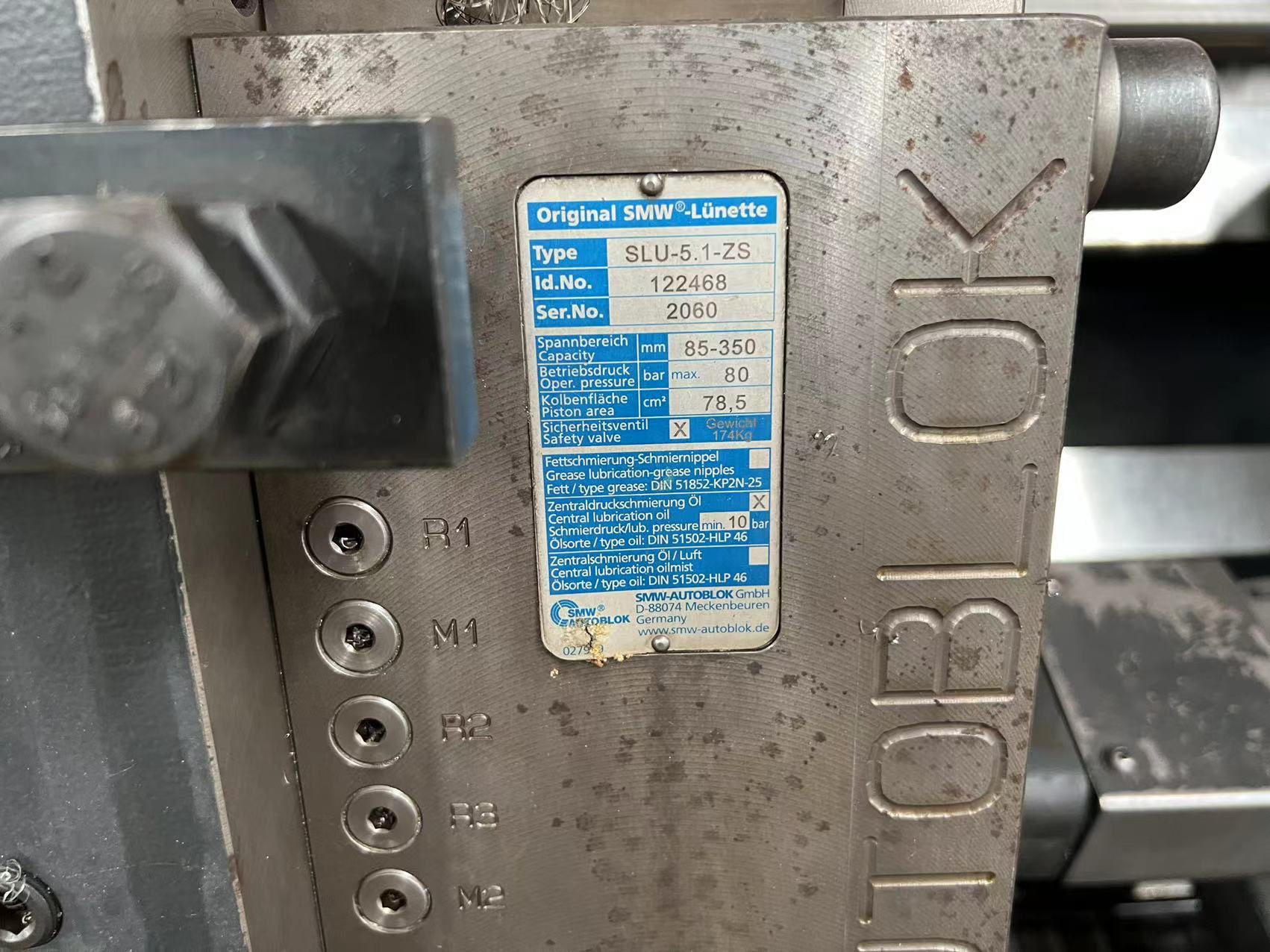

• SMW AUTOBLOK hydraulic steady rest
• Fully enclosed machining area
• Long-bed design for workpieces up to 5,050 mm
• High-torque spindle for demanding cutting operations

Final machine configuration and included accessories should be confirmed before purchase.

Applications and Suitable Industries

The used Doosan PUMA 800XLM is suitable for machining large, long and heavy cylindrical components that require stable support and high spindle torque.

Typical applications include:

• Large transmission shafts and drive shafts
• Oilfield pipes, drill collars and coupling components
• Marine shafts and shipbuilding components
• Steel mill rollers and industrial rolls
• Mining machinery shafts and sleeves
• Hydraulic cylinder barrels and piston rods
• Power-generation components
• Large flanges, hubs and rings
• Heavy equipment and construction machinery parts
• General heavy-duty turning, boring, drilling and milling

With the appropriate tooling and process setup, the machine can help reduce multiple setups by combining turning with secondary machining operations.
