Used SHARP 1760K Gap Bed Lathe | 17" x 60" USA

Loading carousel...

Product Highlight

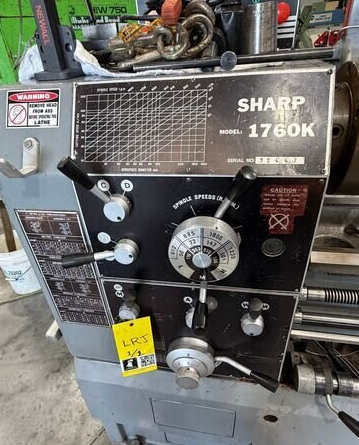

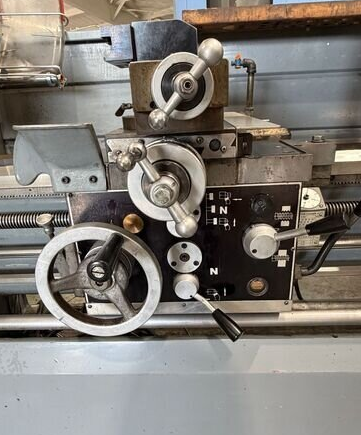

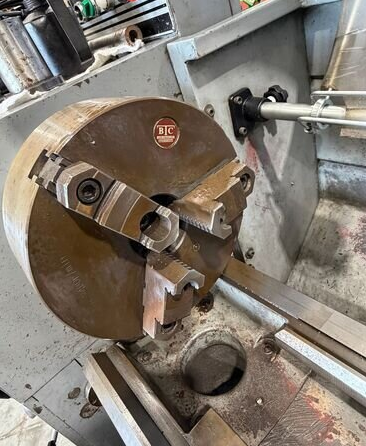

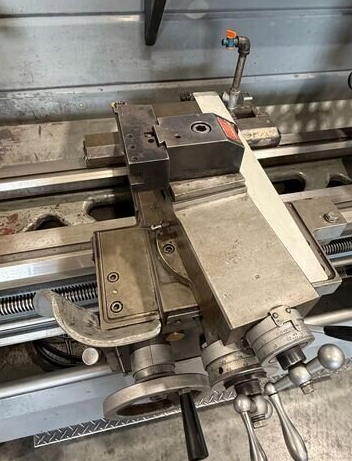

This pre-owned SHARP 1760K gap bed engine lathe provides a 17-inch swing and 60 inches between centers, giving workshops the capacity to handle a wide range of medium-sized components. The headstock offers spindle speeds up to 1,800 RPM, while the gearbox chart indicates support for inch, metric, module and diametral pitch thread settings. Photographs also show a digital readout, 3-jaw chuck, tailstock, compound slide and manual feed controls.

Product Description

This used SHARP 1760K manual gap bed engine lathe offers a 17-inch swing, 60 inches between centers, and spindle speeds up to 1,800 RPM. The machine is equipped with a digital readout, 3-jaw chuck, tailstock, quick-change threading gearbox, and manual carriage controls.

Machine Specifications

Specification	Details
Machine Type	Manual Gap Bed Engine Lathe
Brand	SHARP
Model	1760K
Condition	Used
Listing ID	742354
Stock Number	LRJ
Serial Number	724477
Swing Over Bed	17 in
Distance Between Centers	60 in
Maximum Spindle Speed	1,800 RPM
Threading Capability	Inch, metric, module and diametral pitch settings shown on gearbox chart
Chuck	3-jaw chuck, as pictured
Digital Readout	Equipped, as pictured
Tailstock	Included, as pictured
Main Machine Dimensions	Approximately 9 ft 2 in L × 3 ft 2 in W × 5 ft 6 in H

Applications and Suitable Industries

The used SHARP 1760K lathe is suitable for general-purpose metal turning and maintenance work, including:

Turning shafts, pins, bushings, sleeves and rollers
Facing, external turning and internal boring
Drilling, reaming and center-drilling with suitable tooling
Cutting inch and metric threads
Repairing industrial and agricultural machine components
Producing one-off parts and small production batches
Maintenance departments, job shops, fabrication shops and toolrooms
Technical schools and operator training facilities

Its 60-inch center distance makes it particularly useful for machining medium-length shafts and cylindrical components.

FAQ

Is this SHARP 1760K lathe new or used?

This is a used SHARP 1760K manual engine lathe. It is being offered as pre-owned industrial equipment, not as a new machine.

What size parts can the SHARP 1760K lathe handle?

The listed capacity is a 17-inch swing over the bed and 60 inches between centers. Actual usable capacity may vary depending on the chuck, tooling, workholding method and required machining operation.

Can this lathe cut both inch and metric threads?

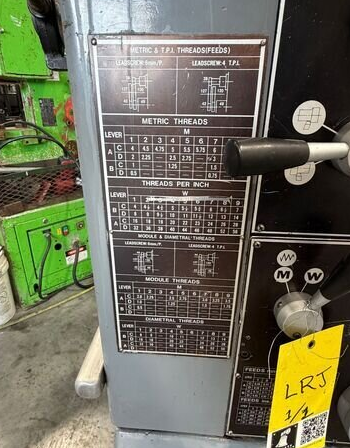

The threading chart visible on the machine shows settings for threads per inch, metric threads, module threads and diametral pitch threads. Buyers should confirm the installed gears and test the required thread range before purchase.

What accessories are included with the machine?

The supplied photographs show a digital readout, 3-jaw chuck, tailstock and standard carriage assembly. Please confirm the final accessory and tooling list before placing an order, as loose tooling shown near the machine may not be included.
