Used SCHIESS CNC Vertical Turning Milling Machine Germany | 5 Axis Heavy Duty
Product Description
High-performance used SCHIESS vertical turning and milling machine from Germany, equipped with large working area, powerful spindle torque and multi-axis machining capability. Ideal for precision machining of large and heavy industrial components at a lower investment cost compared with new equipment.
Machine Specifications
| Item | Specification |
|---|---|
| Machine Type | Used CNC Vertical Turning & Milling Machine |
| Brand | SCHIESS (Germany) |
| Model / Series | SCHIESS ASGAR RAPID (according to nameplate) |
| Machine Condition | Used Second-hand Machine |

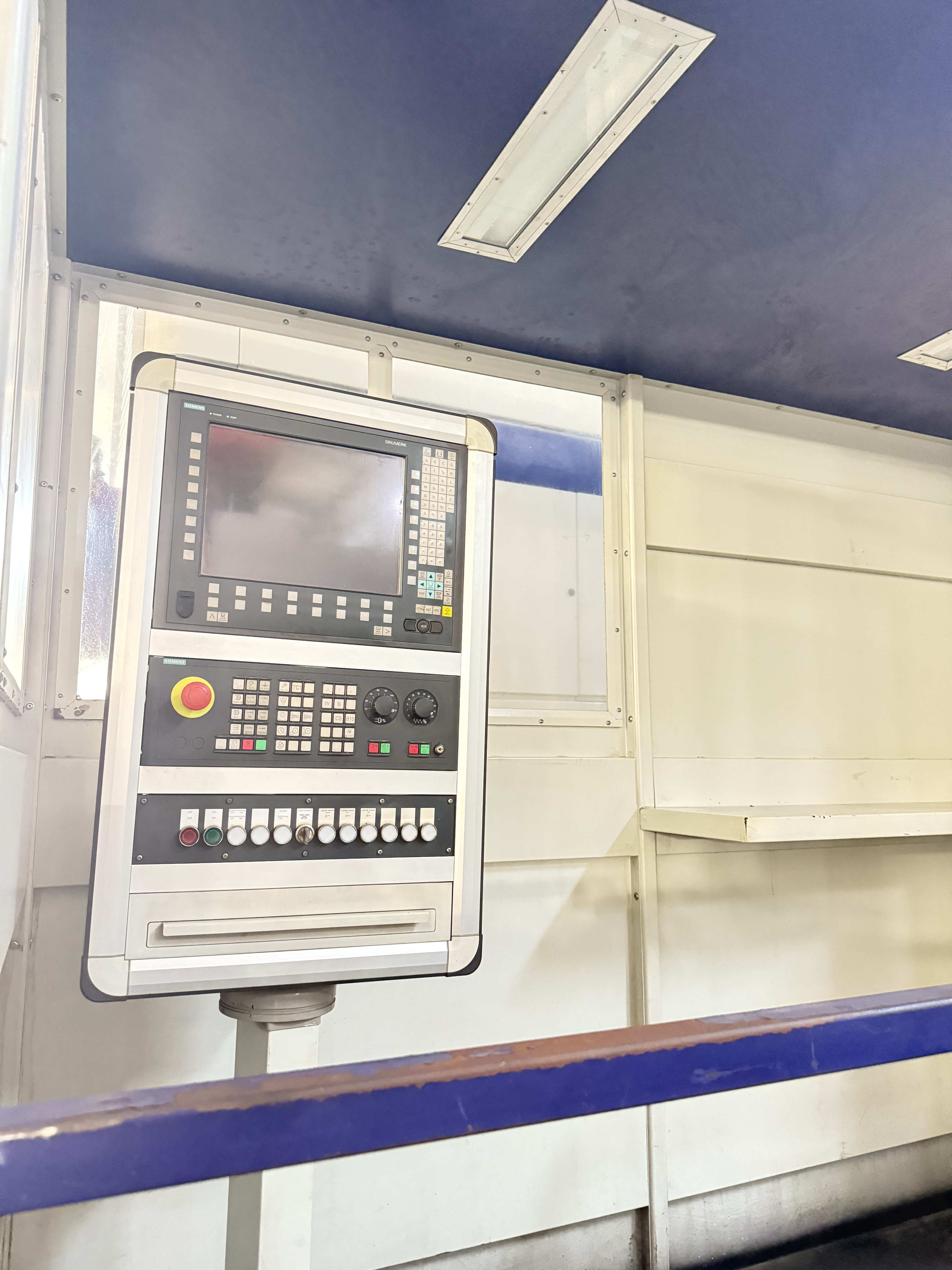

| CNC Control | Siemens SINUMERIK (shown in photos) |
| Machine Structure | Vertical Turning & Milling Center |
| Number of Axes | X / Y / Z / W / B Axis |
| X-axis Travel | 2600 mm |
| Y-axis Travel | 3000 mm |
| Z-axis Travel | 1600 mm |
| W-axis Travel | 1000 mm |
| B-axis Rotation | ±360° |

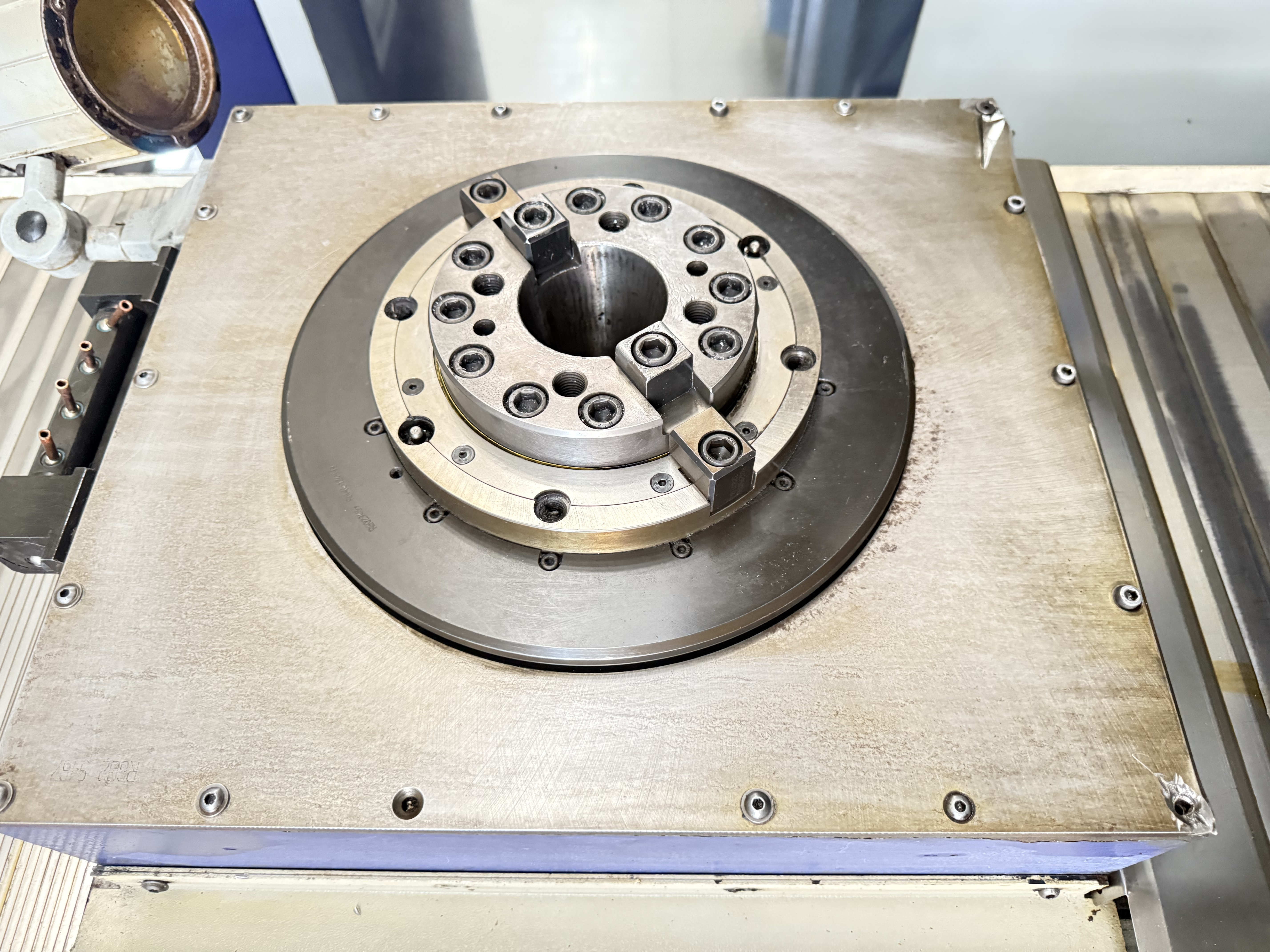

| Rotary Table Size | 1600 × 1600 mm |
| Maximum Workpiece Diameter | 2000 mm |
| Maximum Table Load | 25,000 kg |
| B-axis Drive Torque | 40,000 Nm |
| Spindle Motor Power | 57 kW (100% duty cycle) |
| Maximum Spindle Speed | 3200 rpm |
| Maximum Spindle Torque | 4000 Nm |
| Spindle Diameter | 155 mm |
| Tool Holder Standard | DIN 69871, AD type |
| Pull Stud Standard | DIN 69872 |
| W-axis Feed Force | 25,000 N |
| Rapid Traverse Speed | X/Y/Z/W: 0-10000 mm/min |
| B-axis Rapid Speed | 0-3.5 rpm |
| Machine Weight / Size | Approx. 8350 mm × 7850 mm × 6060 mm |
| Country of Origin | Germany |
Product Description
This used SCHIESS CNC vertical turning and milling machine is originally manufactured in Germany and designed for high-precision machining of large and heavy industrial components.
Featuring a large 1600 × 1600 mm rotary table, a maximum machining diameter of 2000 mm, and a heavy-duty table load capacity of 25 tons, this machine is suitable for demanding industries requiring high rigidity and accuracy.
The machine is equipped with X, Y, Z, W and B-axis simultaneous machining capability, allowing complex turning, milling, drilling and multi-face machining operations in a single setup.
The powerful spindle system provides:
- 57 kW spindle motor power
- 4000 Nm spindle torque
- 3200 rpm maximum spindle speed
The B-axis rotary system offers ±360° positioning and high torque performance up to 40,000 Nm, making it suitable for machining large molds, energy equipment parts, aerospace structures and heavy mechanical components.
As a second-hand SCHIESS machine, it provides an economical alternative for manufacturers who need German engineering quality without the cost of purchasing a new machine.
Applications & Industries
Suitable Applications:
Heavy Mechanical Parts Machining
- Large gear components
- Industrial shafts
- Heavy flanges
- Large housings
Energy Industry
- Wind turbine components
- Hydraulic turbine parts
- Power generation equipment
Aerospace Manufacturing
- Large structural components
- Precision aluminum and alloy parts
Mold & Die Industry
- Large molds
- Complex curved surfaces
- Precision machining projects
Heavy Equipment Manufacturing
- Mining machinery parts
- Construction equipment components
- Railway equipment parts
FAQ
Is this SCHIESS CNC machine new or used?
This is a used SCHIESS CNC vertical turning and milling machine originally manufactured in Germany. The machine has been inspected and is available for customers looking for a cost-effective alternative to a new machine.
What size workpieces can this used SCHIESS machine handle?
The machine can handle large workpieces with a maximum diameter of approximately 2000 mm and a maximum table loading capacity of 25,000 kg, making it suitable for heavy industrial machining.
What CNC system does this SCHIESS vertical milling machine use?
The machine is equipped with a Siemens SINUMERIK CNC control system, providing reliable operation for multi-axis machining applications.
Can this machine perform both turning and milling operations?
Yes. This SCHIESS vertical machining center combines turning and milling functions with X, Y, Z, W and B axes, allowing manufacturers to complete complex machining processes in one setup.
Why choose a used SCHIESS machine instead of buying a new CNC machine?
A used SCHIESS machine offers German engineering quality, large machining capacity and powerful performance at a significantly lower investment cost, making it a practical choice for companies expanding production while controlling capital expenses.
Similar Products of This Type
$243121.00
Brand
SCHIESS
Model
ASGAR RAPID
Origin
DE
Processing Time
2431h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 9 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
