Used Okamoto PSG104CA2 4-Axis CNC Profile Grinding Machine from Japan with FANUC 32i-B Control and AC Rotary Axis
Product Description

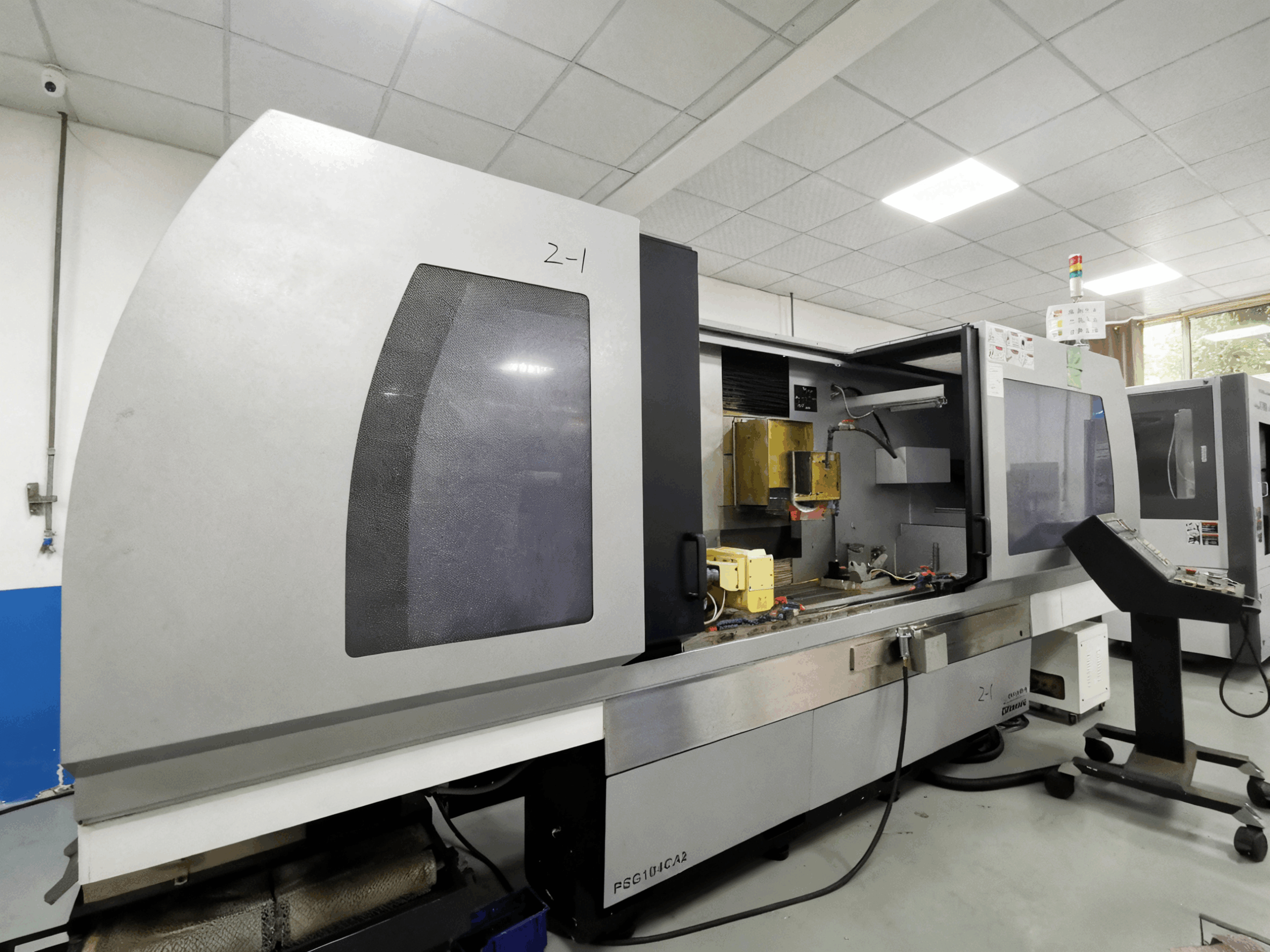

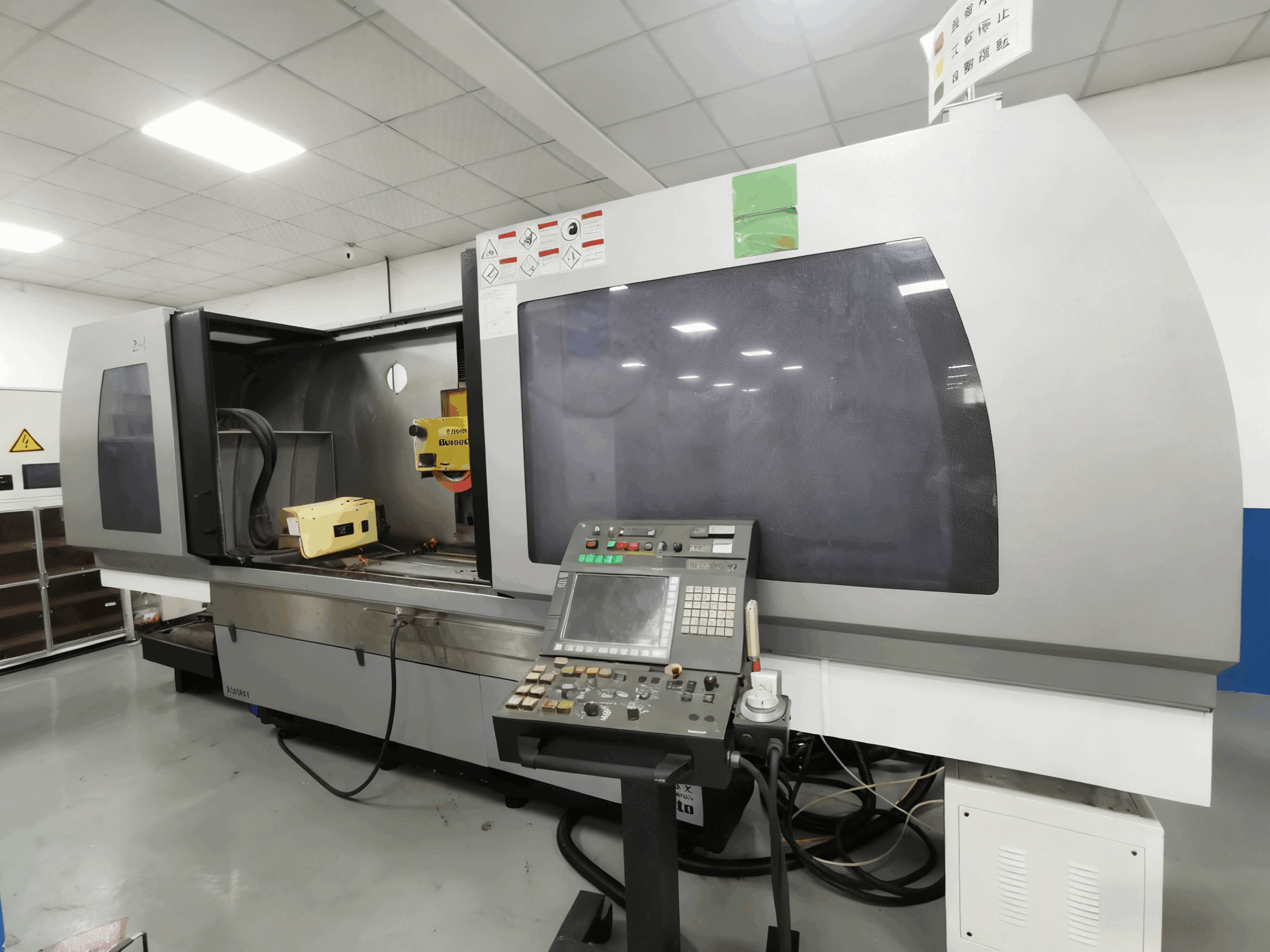

This used Okamoto PSG104CA2 CNC profile grinding machine was originally operated in Japan and is in excellent overall condition, with very low usage hours. Equipped with FANUC Series 32i-B control, XYZC servo drive, and an AC rotary axis for grinding circular wheel profiles, it is suitable for high-precision form grinding, gear-related parts, mold components, and complex precision workpieces. The machine is almost like new after installation and has been used very little.
Technical Specifications
| Item | Specification |
|---|---|
| Machine Type | CNC Profile Grinding Machine / CNC Form Grinder |
| Brand | Okamoto |
| Model | PSG104CA2 |
| Country of Origin | Japan |

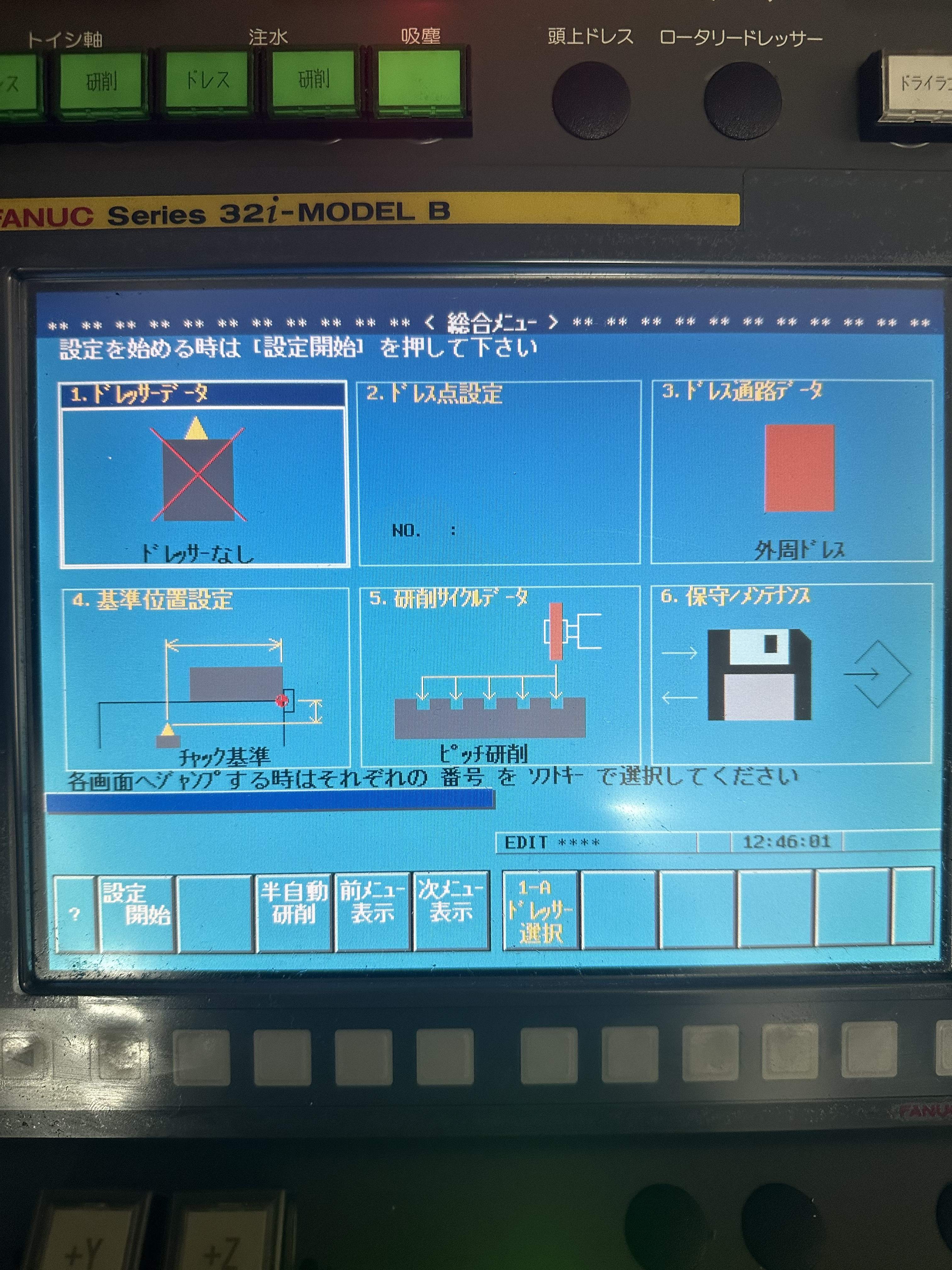

| CNC System | FANUC Series 32i-B / 32i-MB |
| Axis Configuration | XYZC 4-Axis Servo Control |
| Drive Type | XYZC Servo Drive |
| X/Y/Z Axis Travel | 1200 × 440 × 400 mm |
| A Axis | 360° |
| Worktable Size | 1400 × 300 mm |
| Max. Table Load | 700 kg |
| Grinding Wheel Size | Ø305 × 50 × Ø127 mm |
| Wheel Spindle Speed | 2500 rpm |
| Main Spindle Drive | Motor Spindle |
| Grinding Wheel Feed Speed | 20000 mm/min |
| Guideway Type | Linear Guideway |

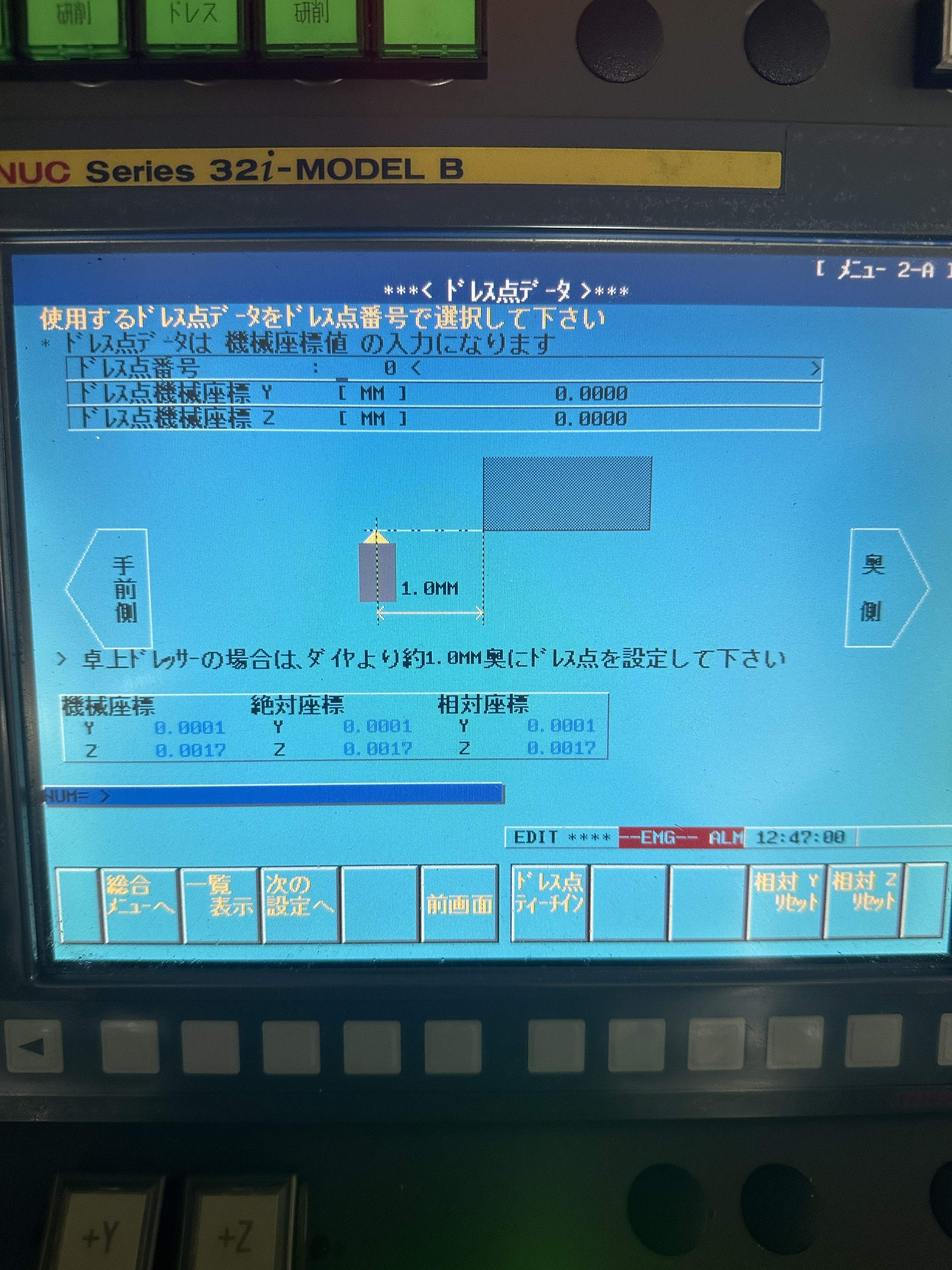

| Dresser Type | AC Axis Dresser / Rotary Dresser |
| Minimum Increment | 0.0001 mm |
| Machine Structure | Horizontal CNC Grinding Machine |
| Machine Dimensions | 4700 × 3275 × 2166 mm |
| Machine Weight | Approx. 5600 kg |
| Dust Collection | Magnetic Dust Collection |
| Included Accessories | AC-axis dresser, two coolant tanks |
| Operating Hours | Approx. 6989 hours |
| Condition | Used, Japanese domestic machine, very lightly used after installation |
Applications & Working Scenarios
The used Okamoto PSG104CA2 CNC grinder is ideal for high-precision grinding applications that require stable accuracy, fine surface finish, and complex contour machining.
It can be used for:
| Application | Description |
|---|---|
| Gear and Circular Profile Grinding | Suitable for grinding circular wheel profiles, gear-like components, ring parts, and precision toothed profiles. |
| Precision Mold Components | Ideal for plastic mold inserts, punching dies, die plates, and precision tooling parts. |
| Connector and Terminal Die Grinding | Suitable for high-accuracy grinding of connector molds and electronic component tooling. |
| Irregular Shape Grinding | Capable of grinding complex contours and non-standard precision parts. |
| Powder Metallurgy Tooling | Suitable for precision forming dies and tooling parts used in powder metallurgy production. |
| Automotive Precision Parts | Applicable for rings, discs, thin-wall components, and high-precision mechanical parts. |
| Small Batch High-Precision Production | Good choice for factories needing Japanese accuracy without buying a new machine. |
FAQ
What is the Okamoto PSG104CA2 CNC profile grinding machine used for?
The Okamoto PSG104CA2 CNC profile grinding machine is used for high-precision form grinding, circular profile grinding, mold components, gear-related parts, connector dies, and complex precision workpieces. With XYZC 4-axis servo control and an AC rotary axis, it is suitable for factories that require stable accuracy and fine surface finish.
Is this used Okamoto PSG104CA2 CNC form grinder originally from Japan?
Yes. This used Okamoto PSG104CA2 CNC form grinder is a Japanese domestic machine originally operated in Japan. It has low usage hours, excellent overall condition, and is almost like new after installation, making it a reliable option for buyers seeking Japanese precision grinding equipment.
What CNC system does the used Okamoto PSG104CA2 grinder use?
This used Okamoto PSG104CA2 CNC grinder is equipped with a FANUC Series 32i-B / 32i-MB control system. The FANUC control provides stable operation, precise axis control, and reliable performance for high-accuracy CNC profile grinding applications.
What are the main specifications of the Okamoto PSG104CA2 4-axis CNC grinder?
The Okamoto PSG104CA2 4-axis CNC grinder features XYZC servo control, 1200 × 440 × 400 mm axis travel, a 1400 × 300 mm worktable, 700 kg table load, Ø305 mm grinding wheel, 2500 rpm spindle speed, 0.0001 mm minimum increment, and approx. 6989 operating hours.
Why choose a used Okamoto PSG104CA2 CNC profile grinder instead of a new machine?
A used Okamoto PSG104CA2 CNC profile grinder offers Japanese grinding accuracy at a lower investment cost than a new machine. It is a strong choice for small-batch high-precision production, mold factories, precision tooling manufacturers, and buyers who need reliable CNC form grinding capability without long new-machine delivery times.
$462432.00
Brand
Okamoto
Model
PSG104CA2
Origin
JP
Processing Time
6989h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 7 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
