Used NAGASE SHS-80 Profile Grinding Machine Japan
Product Description
Available from Japan, this used NAGASE SHS-80 high precision profile grinding machine is designed for ultra-precision micro grinding applications. With stable accuracy, electromagnetic chuck, and CNC-controlled operation, it is an ideal choice for mold, tool, and precision component manufacturers looking for reliable used grinding equipment at a competitive cost.
Machine Specifications
| Item | Specification |
|---|---|
| Machine Type | Used High Precision Profile Grinding Machine |
| Brand | NAGASE (Nagase Integrex / NAGASE Japan) |
| Model | SHS-80 |
| Country of Origin | Japan |
| Machine Condition | Used Second-Hand Equipment |
| Grinding Type | Optical Profile Grinding Machine |

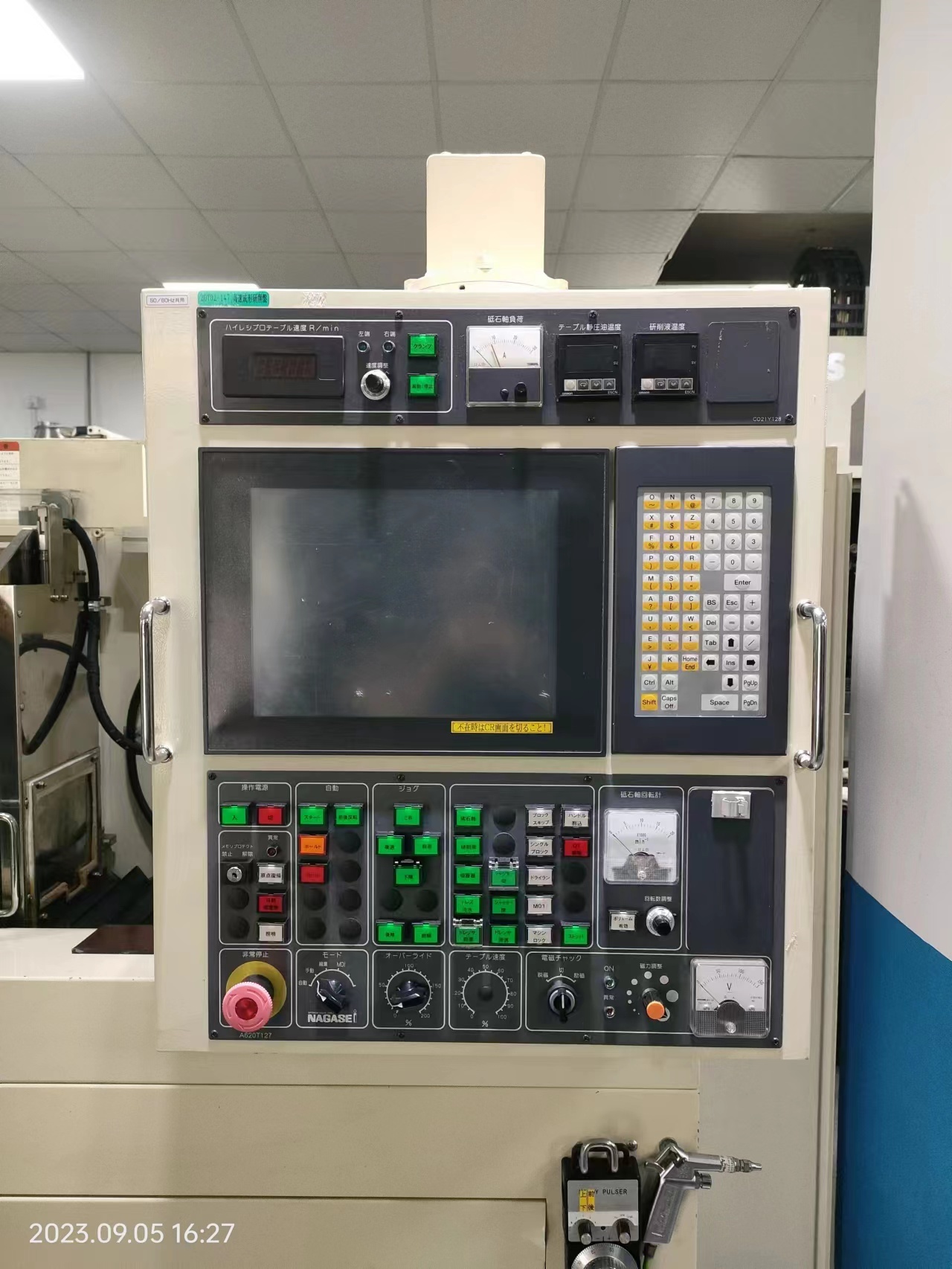

| Control System | NAGASE CNC Control |
| Grinding Spindle Speed | 20,000 rpm |
| Grinding Stroke | 80 × 100 mm |
| Table Size | 100 × 150 mm |
| Maximum Table Load | 13 kg |
| 3-Axis Travel | 500 × 160 × 265 mm |
| A Axis Rotation | ±90° |

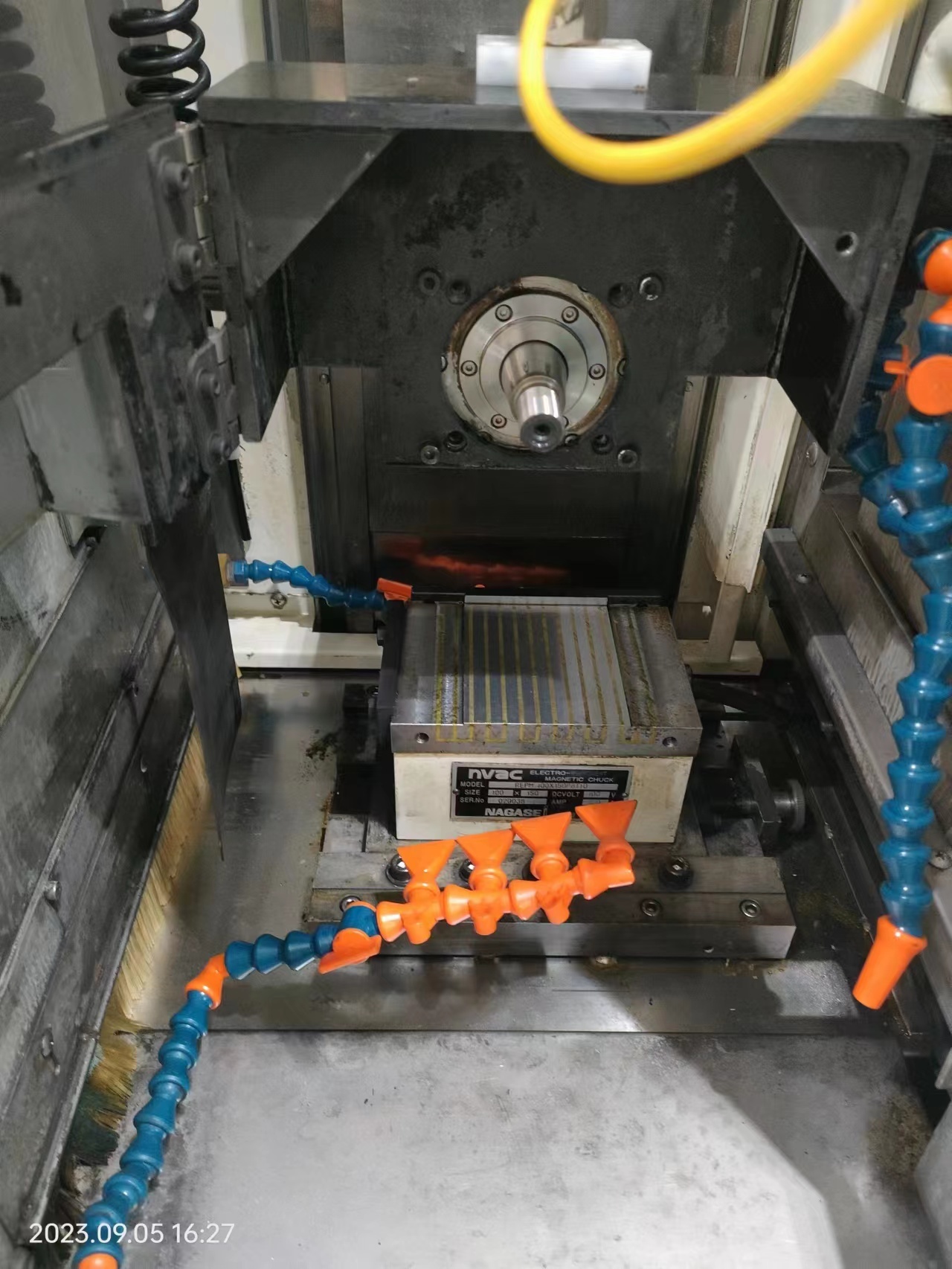

| Magnetic Chuck Size | 80 × 100 mm |
| Grinding Wheel Size | Outer Diameter φ180 mm |
| Grinding Wheel Inner Diameter | φ10 mm |
| Grinding Wheel Width | 40 mm |
| Smallest Grinding Diameter | φ75–100 × 10 × φ40 mm |
| Minimum Increment | 0.0001 mm |
| Spindle Center Height | 370 mm |
| Front/Rear Minimum Unit | 0.0001 mm |
| Vertical Minimum Unit | 0.0001 mm |
| Grinding Wheel Rotation Angle | ±5° |
| Guide System | Precision Linear Guide |
| Axis Drive Method | Ball Screw |
| Spindle Transmission | Direct Drive |
| Spindle Bearing | Magnetic Bearing |
| Machine Structure | Vertical Grinding Structure |
| External Dimensions | Approx. 2300 × 1400 × 1900 mm |
Product Advantages & Application Fields
Application Fields
The used NAGASE SHS-80 precision profile grinder is suitable for:
- Precision mold manufacturing
- Semiconductor component machining
- Optical component grinding
- Die and tooling production
- Punch and die manufacturing
- Precision mechanical parts
- Medical component processing
- Aerospace precision parts
- Electronic component manufacturing
Machine Advantages
Ultra Precision Grinding Capability
The SHS-80 is designed for micro-level grinding operations, capable of achieving 0.0001 mm minimum positioning resolution, making it suitable for high accuracy machining requirements.
Japanese Engineering Quality
Manufactured by NAGASE Japan, this used optical profile grinding machine provides excellent stability and durability for precision production environments.
Cost-Effective Alternative
Purchasing a used NAGASE SHS-80 allows manufacturers to obtain premium Japanese precision grinding technology at a significantly lower investment compared with buying a new machine.
Suitable for Small Precision Components
With a compact worktable and high-speed grinding spindle, it is ideal for small molds, precision tools, and micro components.
FAQ
Is this NAGASE SHS-80 profile grinding machine new or used?
This is a used second-hand NAGASE SHS-80 profile grinding machine originally manufactured in Japan. The machine has been inspected before sale and is available for precision grinding applications.
Why choose a used NAGASE SHS-80 instead of a new grinding machine?
A used NAGASE SHS-80 provides access to Japanese high precision grinding technology at a lower purchase cost. It is a practical solution for companies needing accuracy without the high investment of a new machine.
What materials can the NAGASE SHS-80 grind?
This precision profile grinder can process various materials commonly used in mold making, tooling, semiconductor parts, and precision mechanical components.
What is the accuracy capability of this used optical profile grinding machine?
The machine features a minimum positioning unit of 0.0001 mm, making it suitable for ultra-precision grinding and micro machining applications.
Similar Products of This Type
$425731.00
Brand
Nagase
Model
SHS-80
Origin
JP
Processing Time
1523h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 9 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
