Used MAKINO V99 Vertical Machining Center for Sale

Loading carousel...

Product Highlight

The large 1,800 × 1,000 mm table and 1,500 × 1,000 × 800 mm XYZ travel make this V99 especially attractive to companies that have outgrown smaller vertical machining centers but do not want the significantly higher cost and lead time of purchasing a new large-capacity CNC machine.

Product Description

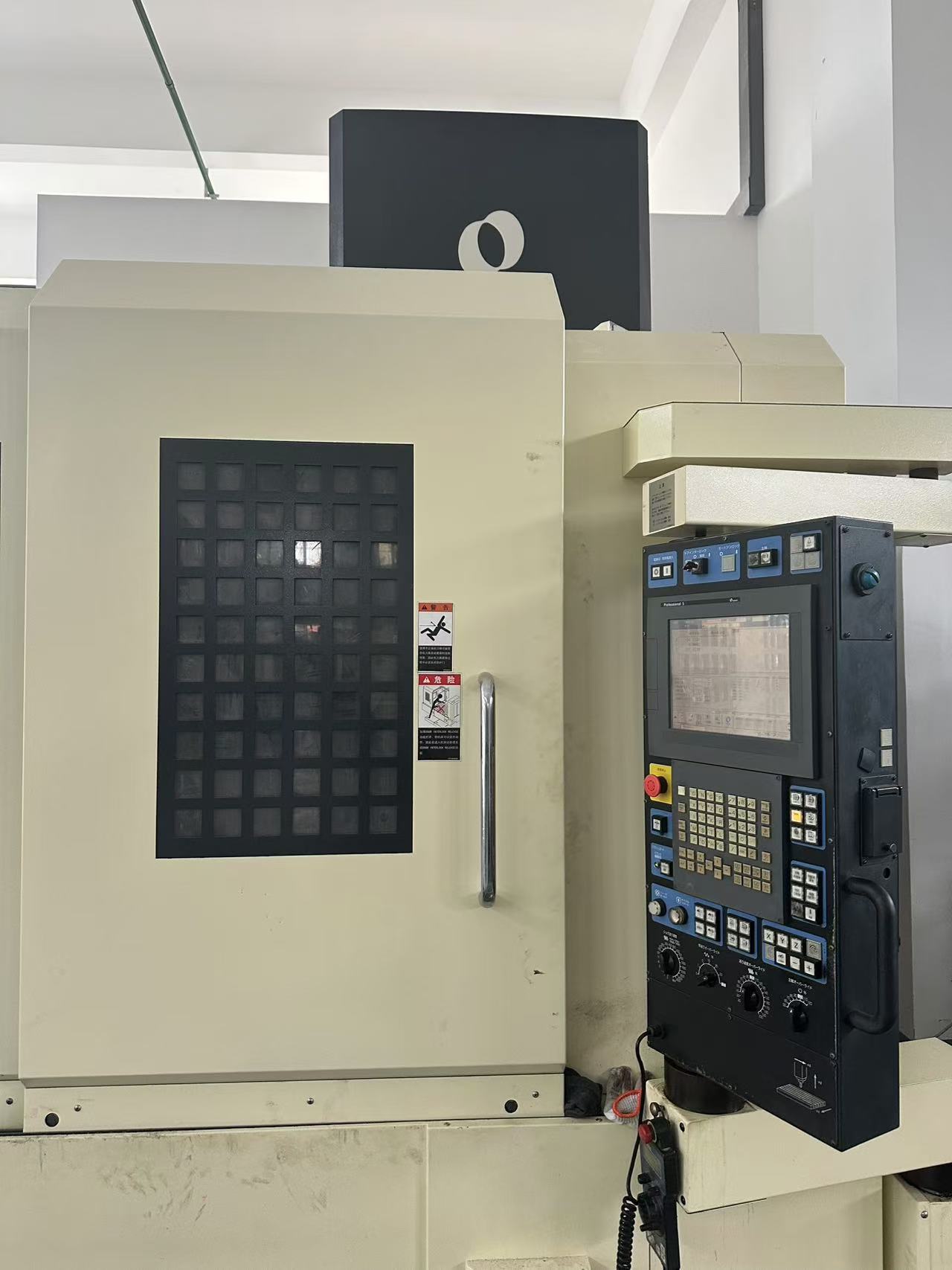

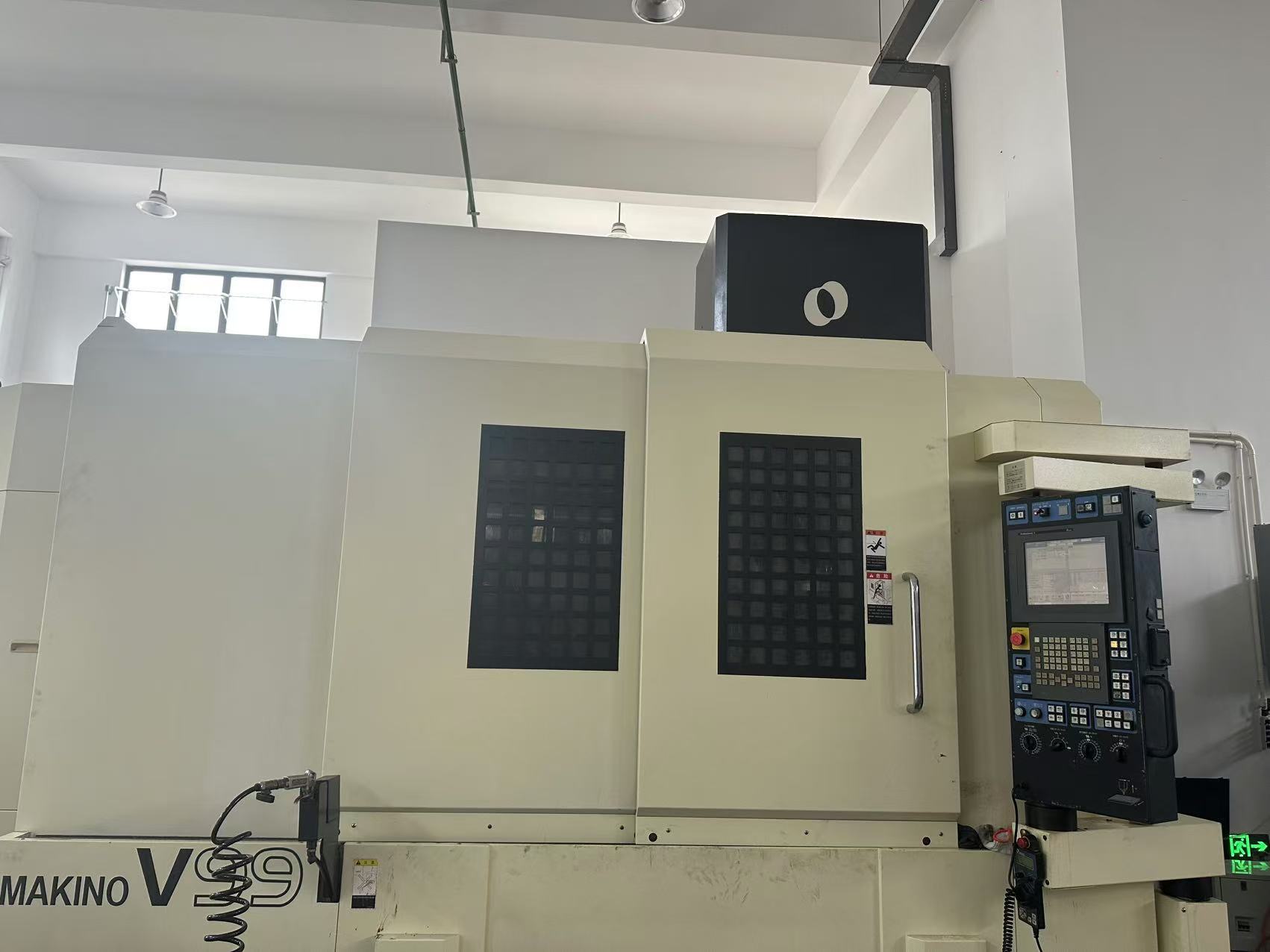

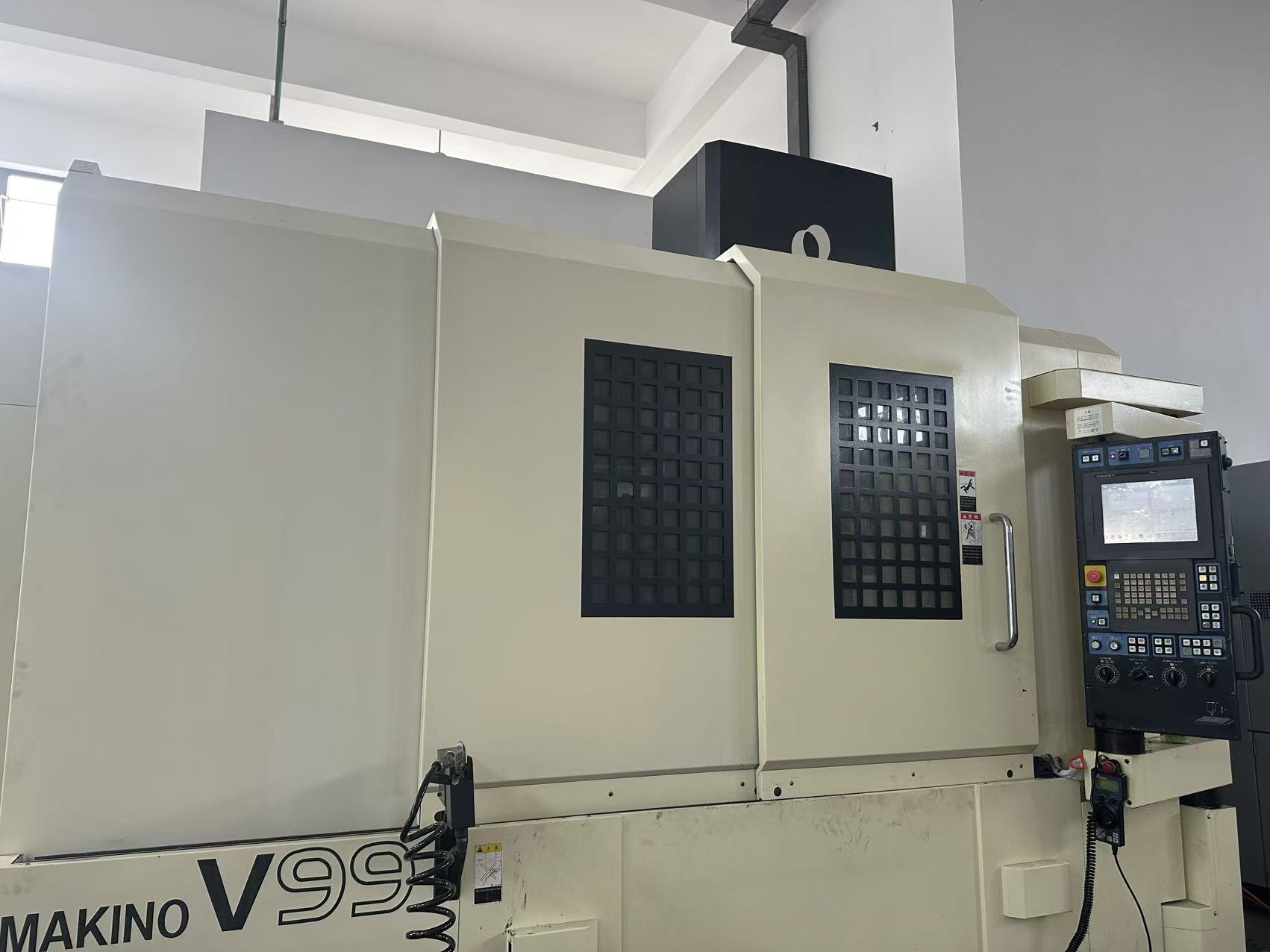

Used MAKINO V99 vertical machining center, originally manufactured in Japan. Equipped with a Makino Professional 5 CNC control, HSK-A100 spindle, 20,000 rpm maximum spindle speed, 1,500 × 1,000 × 800 mm travels and a large 1,800 × 1,000 mm worktable. A strong option for buyers looking for a large, high-speed Japanese CNC machining center without the investment required for a new machine.

The machine is also equipped with through-spindle coolant, automatic chip conveyor, laser tool setter, 3-axis linear scales and an oil mist separator, making it suitable for demanding precision machining applications.

Technical Specifications

Specification	Details
Brand	MAKINO
Model	V99
Machine Type	Used Vertical Machining Center
Country of Origin	Japan

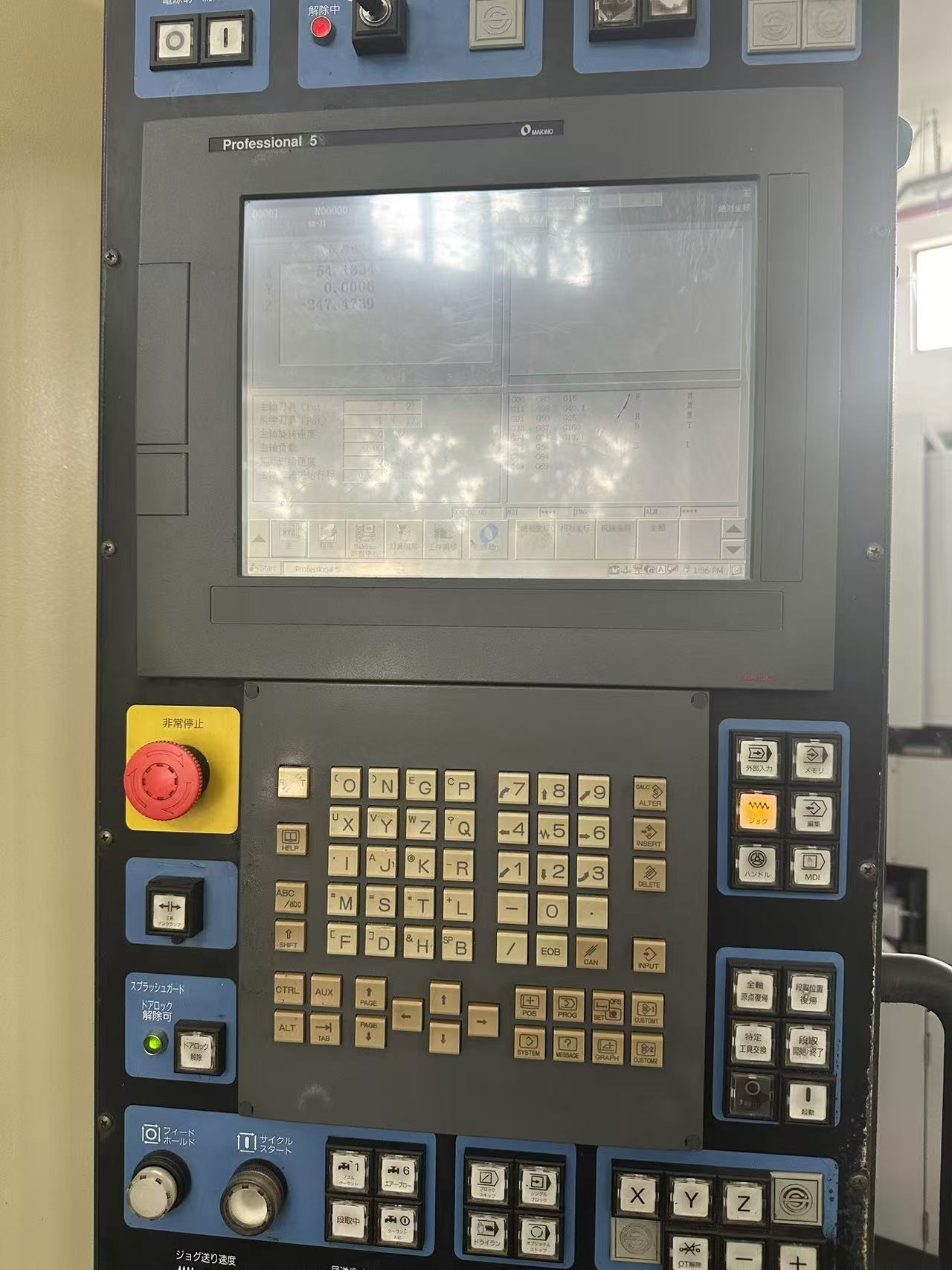

CNC Control	Makino Professional 5
Table Size	1,800 × 1,000 mm
X-Axis Travel	1,500 mm
Y-Axis Travel	1,000 mm
Z-Axis Travel	800 mm
Spindle Interface	HSK-A100
Maximum Spindle Speed	20,000 rpm
Tool Magazine Capacity	30 tools
Rapid Traverse	20,000 mm/min
Cutting Feed Rate	20,000 mm/min
Rapid Traverse X/Y/Z	20 / 20 / 20 m/min
Maximum Workpiece Size	1,800 × 1,000 × 650 mm
Spindle Motor	22 / 18.5 kW
Machine Dimensions	5,345 × 4,535 × 3,500 mm
Machine Weight	Approx. 23,000 kg
Through-Spindle Coolant	Included
Automatic Chip Conveyor	Included
Laser Tool Setter	Included
3-Axis Linear Scales	Included
Oil Mist Separator	Included
Availability	1 Used Unit

Note: Specifications are based on the currently available machine information and should be confirmed before purchase.

Applications & Suitable Machining Scenarios

The used MAKINO V99 CNC vertical machining center is particularly suitable for manufacturers that require a combination of large machining capacity, high spindle speed, rigidity and precision.

Typical applications include mold and die machining, especially medium-to-large molds requiring accurate contour machining and good surface finish. Its 20,000 rpm spindle can also support high-speed finishing operations where reducing secondary polishing work is important.

It can also be considered for automotive tooling, aerospace components, precision mechanical parts, large aluminum components, steel parts, industrial tooling, fixture manufacturing and general high-precision CNC machining.

The large 1,800 × 1,000 mm table and 1,500 × 1,000 × 800 mm XYZ travel make this V99 especially attractive to companies that have outgrown smaller vertical machining centers but do not want the significantly higher cost and lead time of purchasing a new large-capacity CNC machine.

Particularly Suitable For

Mold and die manufacturing
Large precision mold machining
Automotive tooling
Aerospace component machining
Precision mechanical parts
Aluminum and steel machining
High-speed surface finishing
Large workpiece CNC milling
Tool and fixture manufacturing
Production shops upgrading machining capacity

Why Consider This Used MAKINO V99?

For buyers searching for a used Makino V99 for sale, the main value of this machine is not simply its brand name. It combines a large machining envelope, HSK-A100 spindle, 20,000 rpm spindle speed and 23-ton machine structure in one platform.

Buying a pre-owned Japanese machining center can also be a practical option for manufacturers who need to expand machining capacity while controlling capital expenditure.

Its installed equipment—including linear scales, laser tool setter, through-spindle coolant and automatic chip removal system—can also be valuable for shops intending to put the machine back into production quickly after inspection, installation and commissioning.

FAQ

Is this MAKINO V99 a new or used machine?

This is a used MAKINO V99 vertical machining center, not a new machine. It was manufactured in Japan and is currently available in Kunshan, China. Buyers can contact us for current photos, operating videos, inspection arrangements and machine condition details before purchase.

What is the spindle speed of this used MAKINO V99?

The MAKINO V99 has a maximum spindle speed of 20,000 rpm and uses an HSK-A100 spindle interface. This configuration is suitable for applications requiring both machining rigidity and high-speed finishing capability.

What are the XYZ travels of the MAKINO V99?

The machine provides 1,500 mm X-axis travel, 1,000 mm Y-axis travel and 800 mm Z-axis travel. Its worktable measures 1,800 × 1,000 mm, making it suitable for relatively large molds, tooling and precision components.

What accessories are included with this used MAKINO V99?

According to the available machine information, this unit includes through-spindle coolant, an automatic chip conveyor, laser tool setter, 3-axis linear scales and an oil mist separator. Final configuration should be confirmed during inspection or before purchase.
