Used Makino V77 CNC Machining Center for Sale | Japan

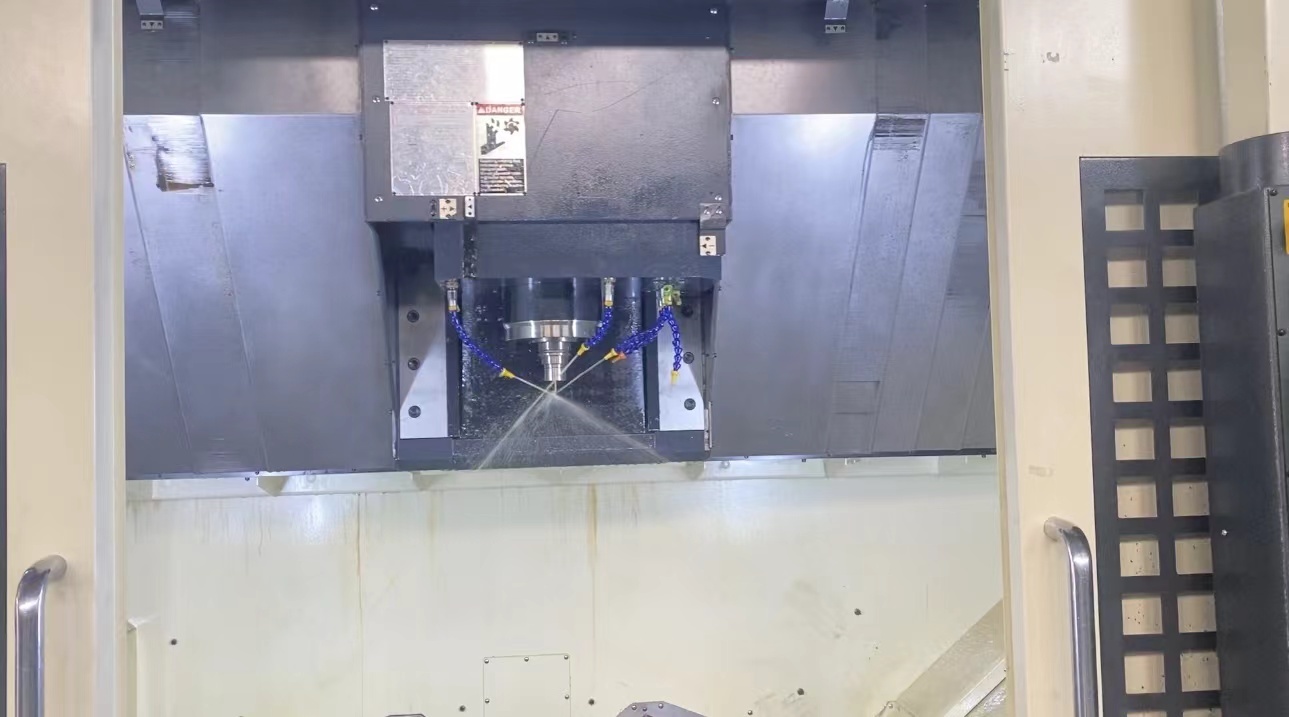

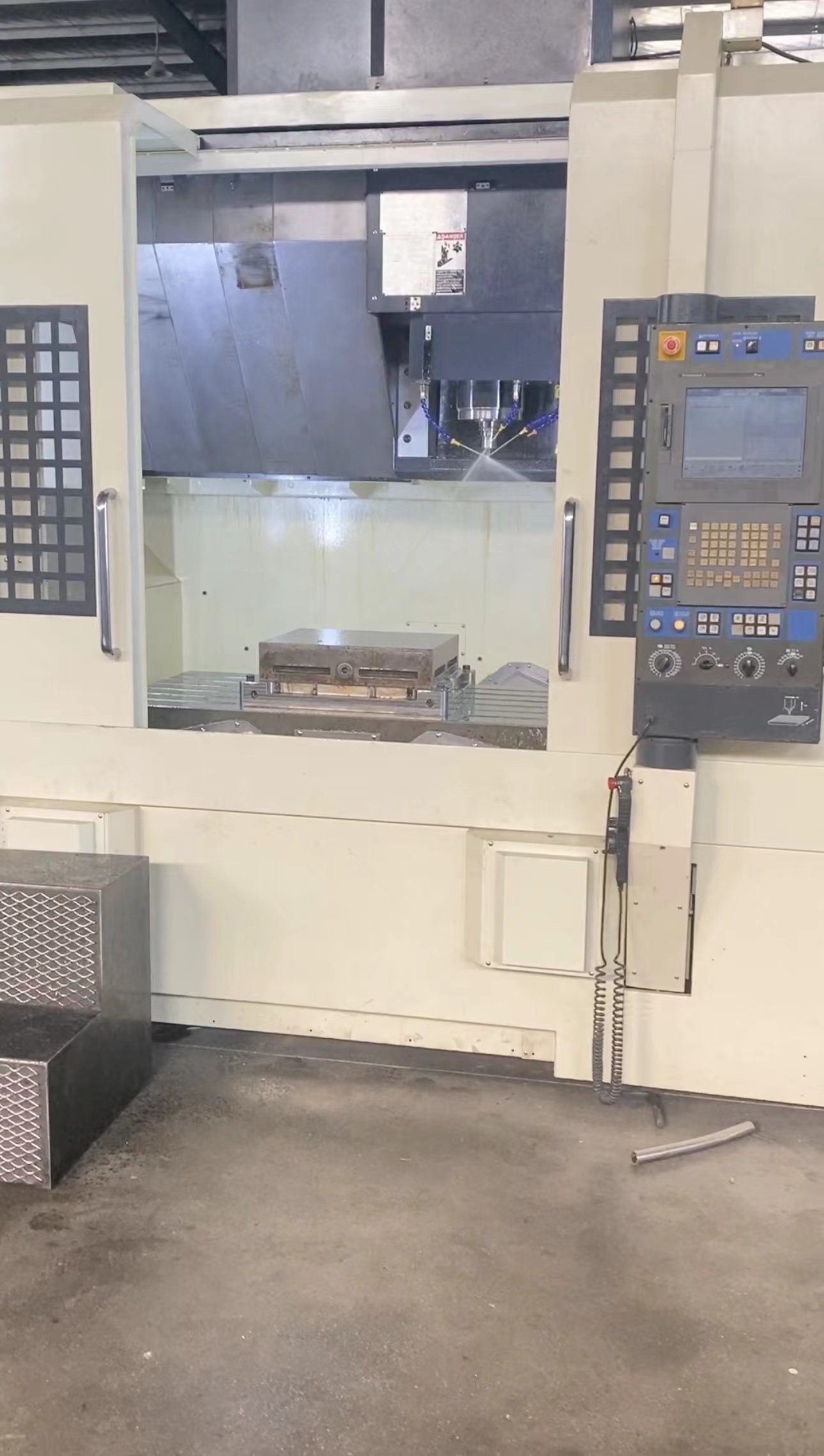

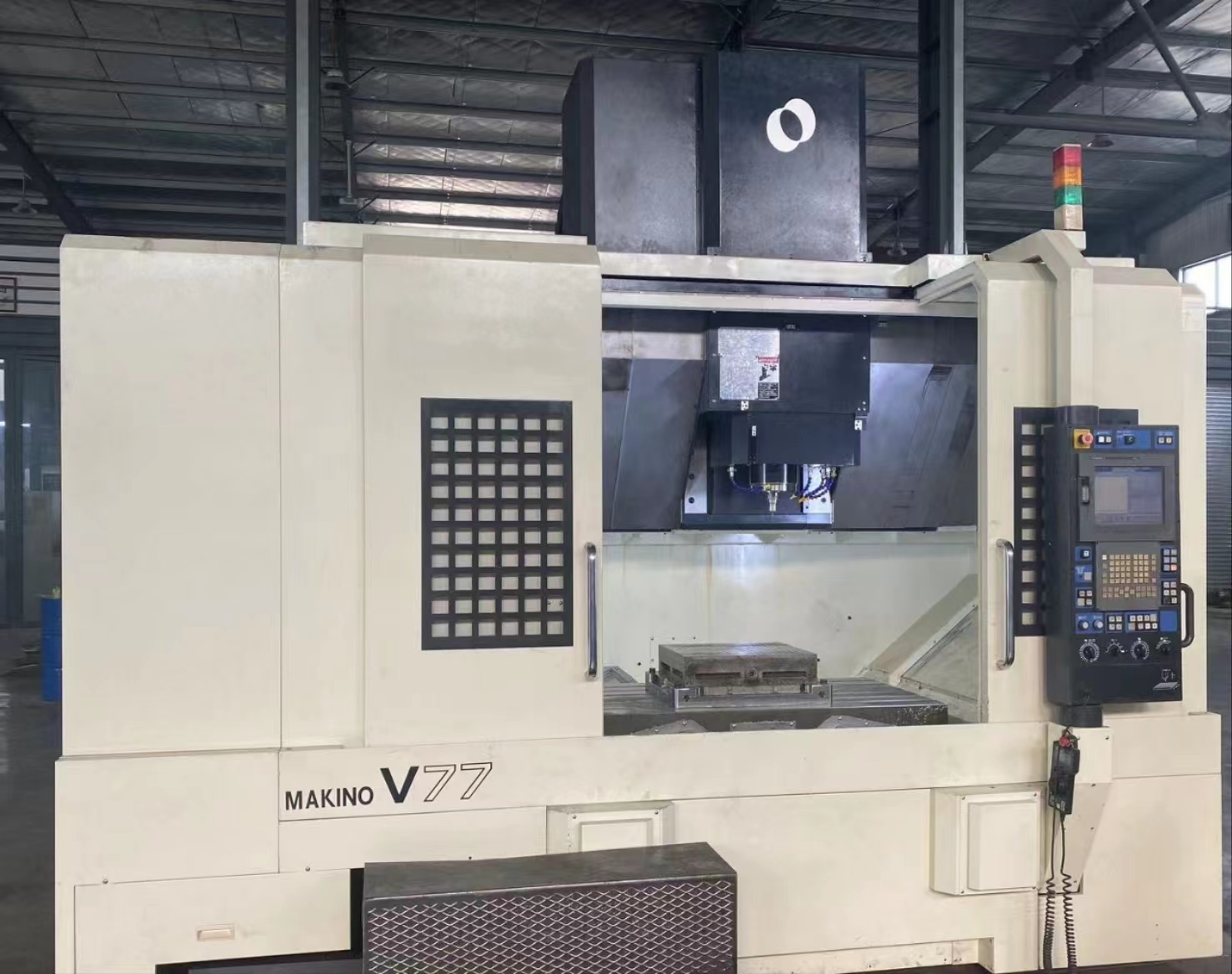

Used Makino V77 CNC vertical machining center, originally manufactured in Japan, is designed for high-precision machining of molds, dies, and medium-to-large components. Equipped with a 20,000 rpm spindle, HSK-A63 spindle interface, 1200 × 700 × 650 mm travel, and 20-tool magazine, it offers a strong combination of machining capacity, rigidity, and high-speed performance.

For manufacturers looking for a used Makino machining center for sale without the investment required for a new machine, this V77 is a practical option for expanding CNC production capacity.

Technical Specifications

*Specifications and accessories are based on the seller-provided machine information. Final configuration should be confirmed during inspection before purchase.

Applications & Suitable Machining Scenarios

The used Makino V77 vertical machining center is especially suitable for companies requiring precision machining together with relatively large workpiece capacity.

Typical applications include:

• Mold and die machining – suitable for large mold bases, precision cavities, cores, and die components.
• Automotive component machining – for precision plates, tooling components, fixtures, and production parts.
• Aerospace component machining – suitable for precision components where machining accuracy and surface quality are important.
• General precision engineering – for medium and large components requiring multi-process CNC milling, drilling, and finishing.
• Tooling and fixture production – suitable for manufacturers producing jigs, fixtures, dies, and high-accuracy tooling.
• High-speed finishing operations – the 20,000 rpm spindle is well suited to applications requiring smaller cutting tools and improved surface finish.

With a 1,400 × 700 mm table and 2,500 kg maximum table load, the machine can also accommodate relatively large and heavy workpieces compared with smaller vertical machining centers.
