Used Italian Bragonzi Creusa 80/140U Jig Boring Machine
Product Description
This used Bragonzi Creusa 80/140 Type U jig boring machine features an 80 mm spindle, 1,500 mm X-axis travel and a large 1,120 × 1,000 mm worktable.
With an approximate machine weight of 10 tonnes, an MK5 spindle taper and 14 kW total power requirement, it provides a rigid platform for precision boring, hole positioning, milling and machining of large components.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bragonzi |
| Model | Creusa 80/140 Type U |
| Alternative Model Format | Creusa 80/140U |
| Machine Type | Jig Boring / Boring and Milling Machine |
| Condition | Used |
| Year of Manufacture | Not specified |
| Brand Origin | Italy |
| Current Location | India |
| Spindle Diameter | 80 mm |
| X-Axis Travel | 1,500 mm |
| T-Axis / Table Travel | 1,250 mm, as listed |
| Z-Axis Travel | 1,500 mm |
| Spindle Taper | MK5 / Morse Taper No. 5 |
| Table Size | 1,120 × 1,000 mm |
| Total Power Requirement | 14 kW |
| Approximate Machine Weight | 10,000 kg |
| Overall Dimensions | Approx. 5,000 × 5,000 × 3,200 mm |

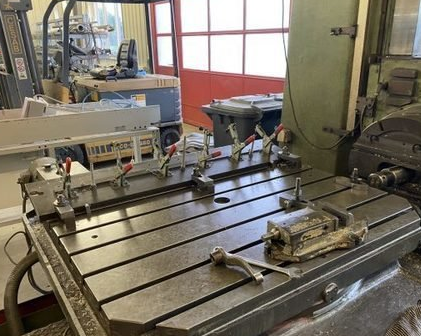

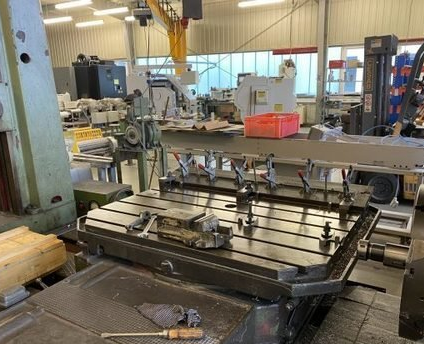

Visible Features
- Large T-slotted worktable
- Horizontal 80 mm boring spindle
- Heavy cast-iron column and machine base
- Adjustable workholding clamps
- Long alignment or drilling fixture mounted on the table
- Pendant-style machine controls
- Large-axis travel for oversized workpieces
- Conventional industrial machine construction
Applications and Suitable Industries
The used Bragonzi Creusa 80/140U is suitable for precision machining and accurate hole-positioning work on medium and large components.
Typical applications include:
- Precision jig boring
- Boring and reaming of aligned holes
- Drilling and counterboring
- Face milling and light milling
- Machining of gearbox housings
- Engine block and cylinder-component machining
- Mold base and die-set machining
- Hydraulic manifold production
- Pump and valve body machining
- General repair and toolroom work
- Aerospace and automotive fixture machining
- Heavy machinery component maintenance
The machine may be especially useful for toolrooms, maintenance workshops and manufacturers that need a rigid conventional boring machine without the cost of a new CNC machining center.
FAQ
Is this Bragonzi Creusa 80/140U a CNC machine?
The supplied listing does not identify a CNC control. Based on the available information, it should be marketed as a used conventional jig boring or boring and milling machine unless a CNC or digital readout system is confirmed during inspection.
What is the spindle size of this machine?
The machine is listed with an 80 mm spindle diameter and an MK5 spindle taper. Buyers should confirm the spindle condition, taper wear, runout and available tooling before purchase.
What size workpieces can the machine accommodate?
It has a listed X-axis travel of 1,500 mm, another listed travel of 1,250 mm and a 1,120 × 1,000 mm table. Actual workpiece capacity also depends on component height, fixture size, table load and spindle clearance.
