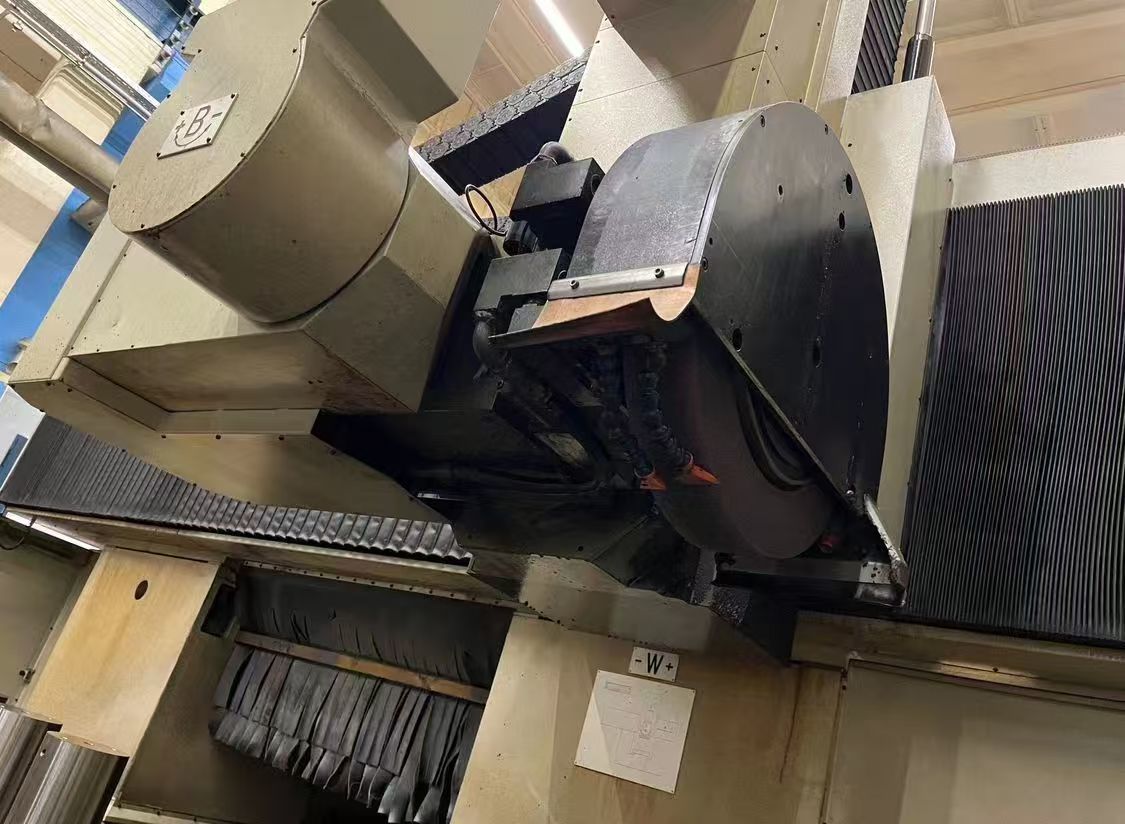

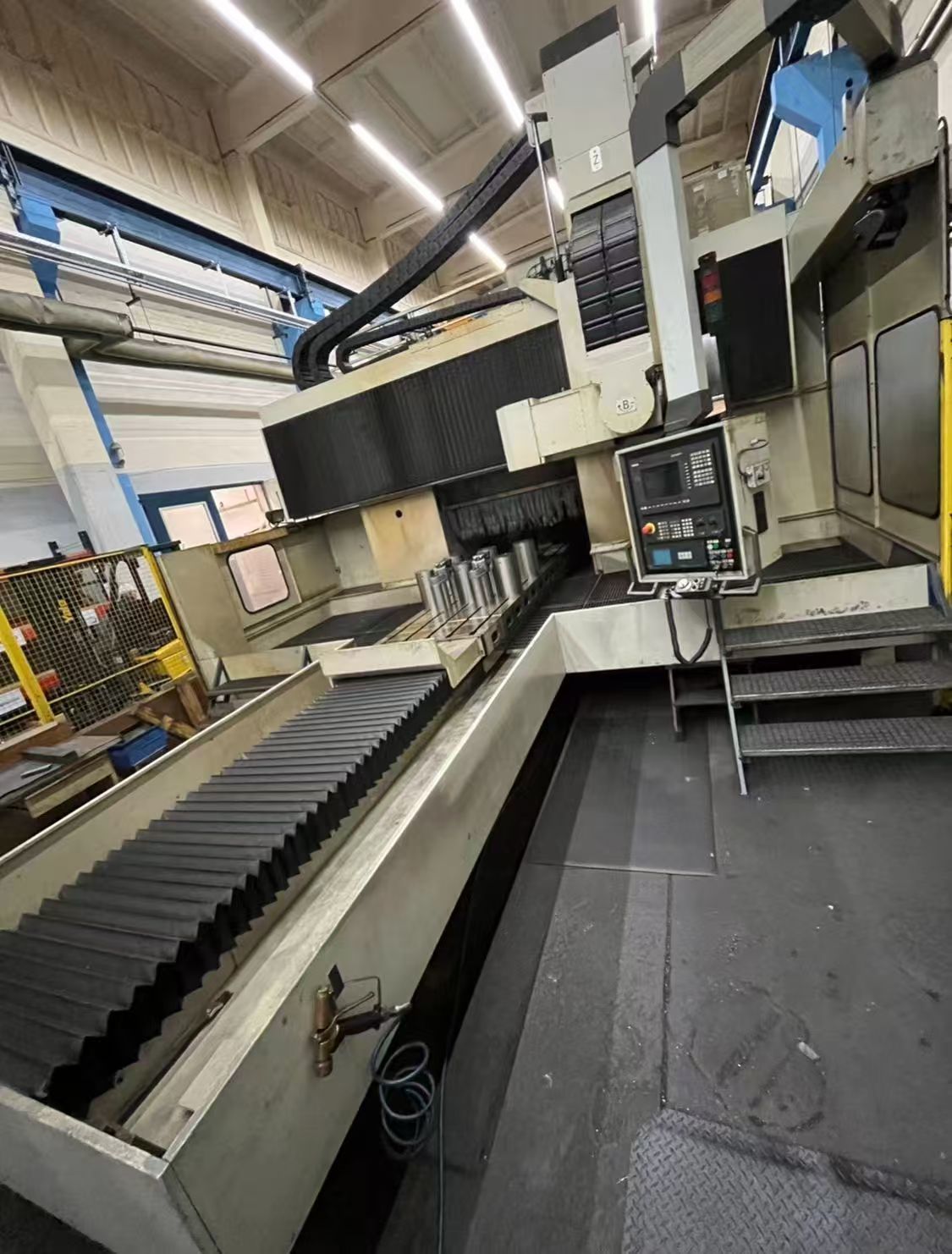

Used Favretto ME/U200 CNC Slideway Grinder from Italy
Product Description
This used Favretto ME/U200 CNC slideway grinding machine was imported from Europe and is designed for high-precision grinding of machine tool guideways, flat surfaces, angled surfaces and complex rail profiles. Equipped with a programmable grinding head, B-axis circular scale, linear scales and CNC forming capability, it is a strong choice for workshops looking for European heavy-duty grinding performance at a lower investment cost than a new machine.
Technical Specifications
| Item | Specification |
|---|---|
| Machine Type | CNC Slideway Grinding Machine / Guide Rail Grinder |
| Brand | Favretto |
| Model | ME/U200 |
| Origin | Italy / Europe |
| Condition | Used Machine |
| Max. Grinding Length | 4000 mm |
| Max. Grinding Width | 1000 mm |
| Max. Grinding Height | 700 mm |
| Grinding Head Power | 30 HP / 22 kW |
| Grinding Head Angle Swivel | ±30° / 22° |
| Grinding Wheel Size | 508 × 203.2 × 100 mm |
| Grinding Wheel Speed | 1200 / 2800 rpm |
| Table Feed | 1–40 m/min |
| Max. Table Load | 1500 kg, without magnetic chuck |
| Working Table Size | 4000 × 1000 mm |
| Total Table Travel | 4000 mm |
| Cross Axis Y Rapid Feed | 10 m/min |
| Cross Axis Y Adjustable Feed | 3–75 mm |
| Cross Axis Y Stepless Feed | 0–2000 mm/min |
| Cross Axis Y Minimum Feed | 0.001 mm |
| Vertical Axis Z Rapid Feed | 10 m/min |
| Vertical Axis Z Minimum Feed | 0.001 mm |
| Vertical Axis Z Effective Travel | 700 mm |
| Vertical Axis Z Total Travel | 750 mm |
| B Axis | With circular scale / encoder feedback |
| Linear Scale | Equipped, suitable for precision guideway grinding |
| CNC Function | CNC forming of various guideway shapes and angles |
| Machine Footprint | 10700 × 5500 × 4500 mm |
| Approx. Machine Weight | 31500 kg |
| Approx. Installed Power | 70 kW |
Applications & Suitable Working Scenarios
This used Favretto ME/U200 guide rail grinding machine is suitable for precision grinding of large and heavy machine tool components, especially where guideway geometry, straightness and surface accuracy are important.
It can be used for:
| Application | Typical Workpieces |
|---|---|
| Machine tool rebuilding | Lathe beds, milling machine beds, planer beds |
| Guideway grinding | V-type guideways, flat guideways, angled rails |
| Heavy-duty surface grinding | Large cast iron and steel components |
| CNC forming grinding | Multiple rail shapes and angle surfaces in one setup |
| Maintenance and repair workshops | Refurbishing worn guide rails and precision sliding surfaces |
| Machinery manufacturing | Bed plates, columns, cross rails, machine bases |
This machine is especially attractive for buyers who need a European used CNC slideway grinder for large workpieces but want to reduce the cost compared with purchasing a new guideway grinding machine.
FAQ
Is this Favretto ME/U200 slideway grinder a new machine?
No. This is a used Favretto ME/U200 CNC slideway grinding machine. It is clearly sold as second-hand equipment, suitable for buyers looking for European grinding capacity at a more practical investment cost.
What kind of workpieces can this used Favretto grinder process?
It is suitable for grinding machine tool beds, guide rails, V-type slideways, flat guideways, angled surfaces, large castings and heavy precision components.
Can the grinding head process different guideway angles?
Yes. The grinding head can swivel to different angles, and the machine is equipped with CNC forming capability, making it suitable for various guide rail shapes and angle surfaces.
Does this machine have linear scales?
Yes. According to the provided information, the machine is equipped with precision linear scales and a B-axis circular scale, which helps support accurate guideway grinding.
Why choose a used Favretto ME/U200 instead of a new slideway grinder?
A used Favretto ME/U200 offers European heavy-duty machine structure, large grinding capacity and precision guideway grinding capability at a significantly lower cost than a new machine.
$650000.00
Brand
FAVRETTO
Model
ME/U200
Origin
FR
Processing Time
6425h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 7 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
