Used Doosan DBC 130 CNC Horizontal Boring Mill | Korea
Product Description

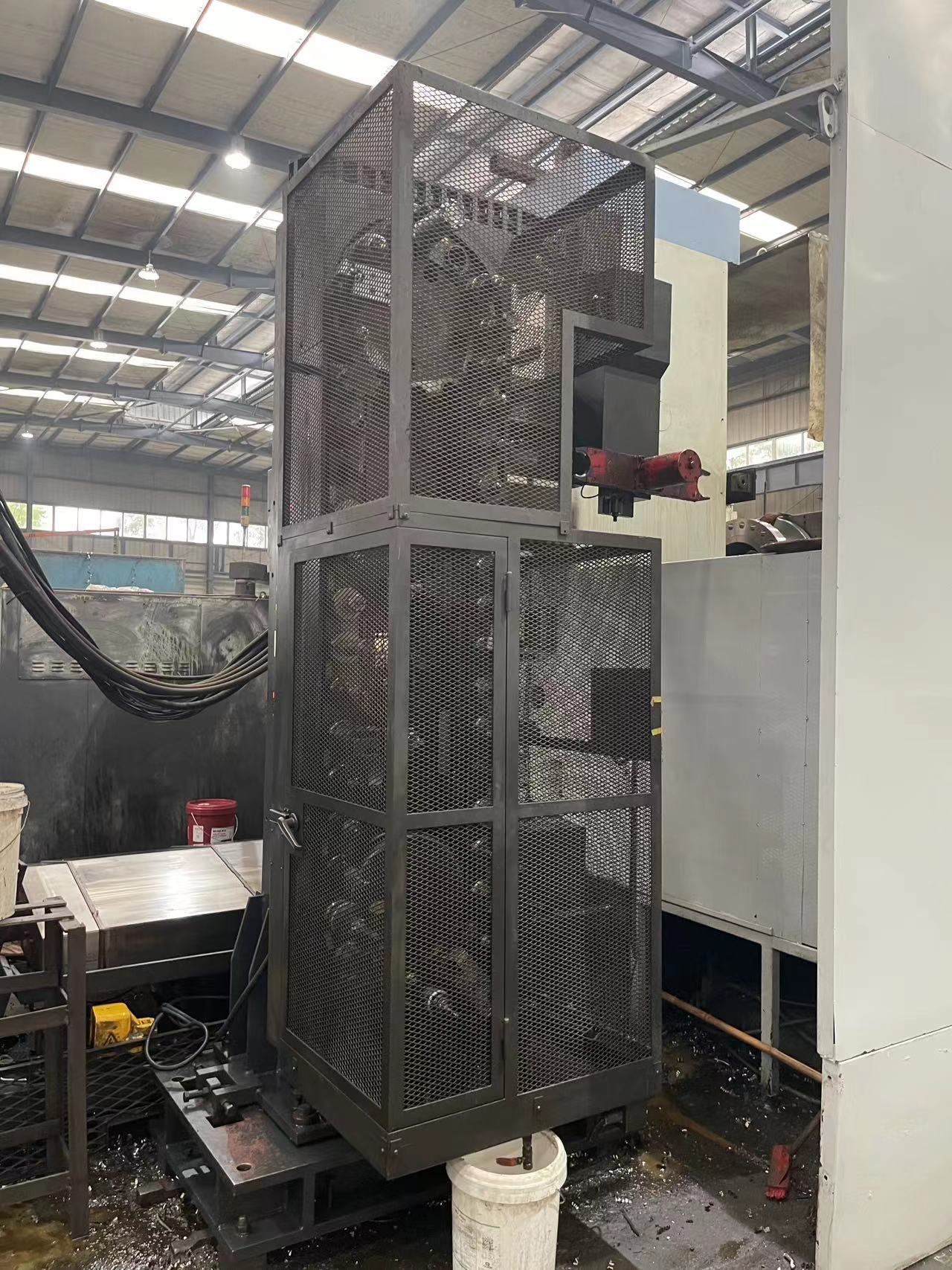

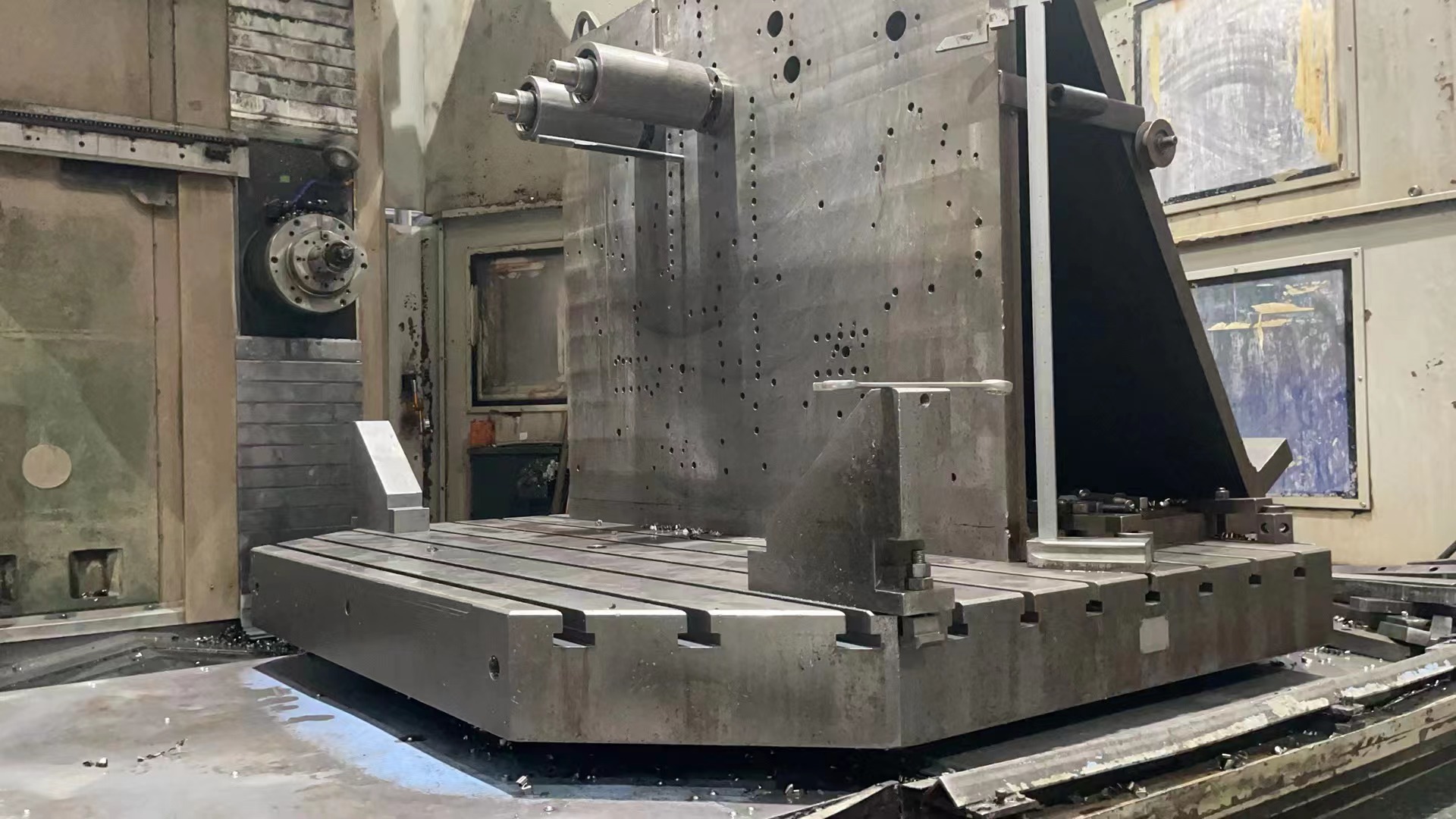

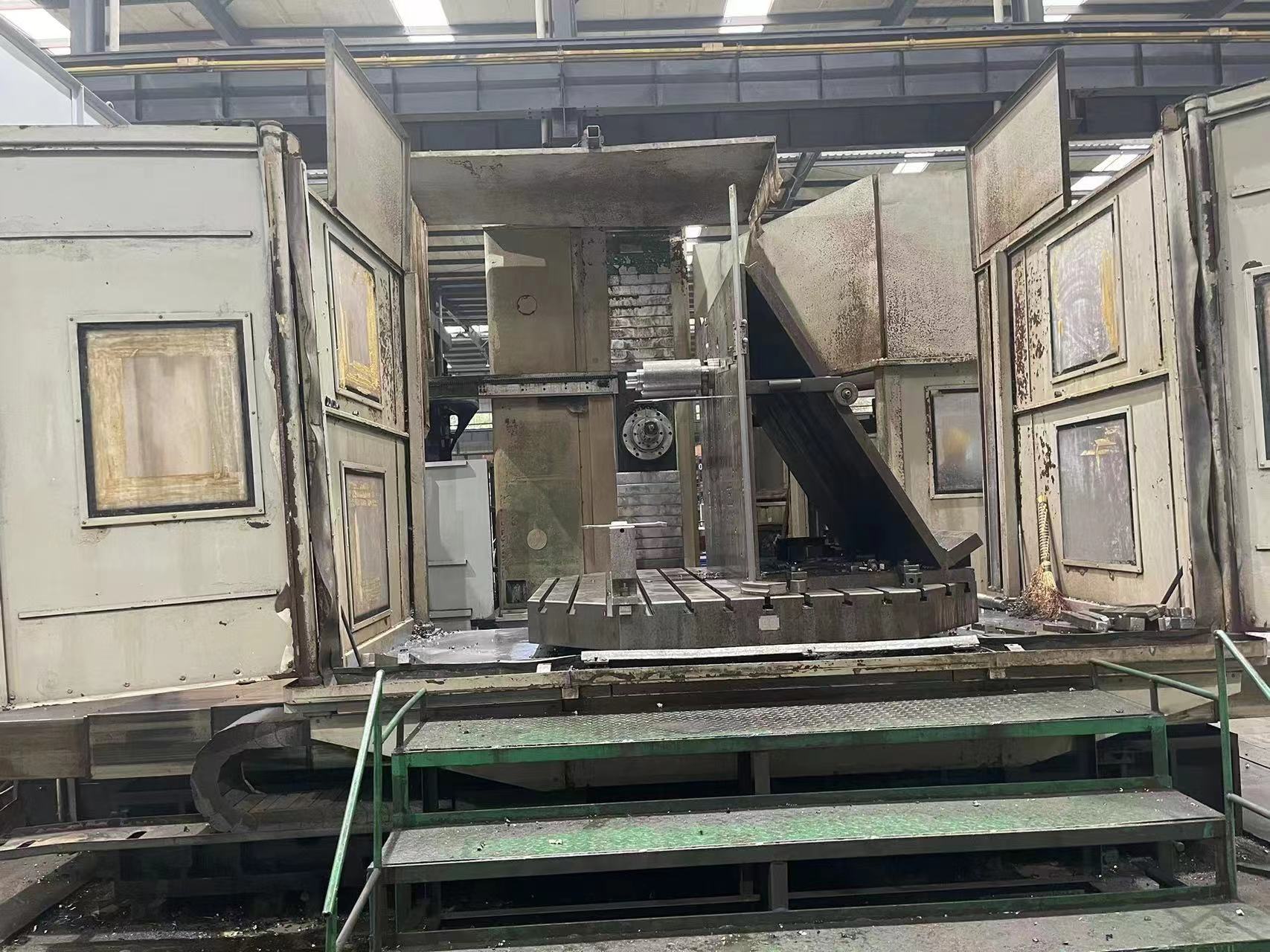

This pre-owned Doosan DBC 130 CNC horizontal boring and milling machine was manufactured in Korea and is equipped with a FANUC 31i CNC control, a 130 mm boring spindle and a heavy-duty rotary table.
With 3,000 mm X-axis travel, 2,000 mm Y-axis travel and a maximum table load of 13,000 kg, this used horizontal boring mill is suitable for machining large and heavy components requiring boring, milling, drilling and accurate multi-side positioning.
Technical Specifications
| Specification | Details |
|---|---|
| Machine condition | Used / Pre-owned |
| Manufacturer | Doosan |
| Model | DBC 130 |
| Machine type | CNC horizontal boring and milling machine |
| Country of origin | South Korea |
| CNC control | FANUC 31i |
| X-axis travel | 3,000 mm |
| Y-axis travel | 2,000 mm |
| Z-axis travel | 1,600 mm |
| W-axis travel | 700 mm |
| Table working surface | 2,200 × 2,000 mm |
| Maximum table load | 13,000 kg |
| Table indexing increment | 0.001° |
| Spindle centerline to table surface | 0–2,000 mm |
| Spindle nose to table center | 750–2,350 mm |
| X/Y/Z rapid traverse | 10 m/min |
| X/Y/Z cutting feed rate | 4 m/min |
| Spindle motor power | 22/26 kW, continuous/30 min |
| Spindle diameter | 130 mm |
| Maximum spindle speed | 2,500 rpm |
| Maximum spindle torque | 3,354 Nm |
| Tool taper | BT50 |
| Automatic tool changer | 40 tools |
| Maximum tool diameter | Ø130 mm |
| Maximum tool diameter without adjacent tools | Ø250 mm |
| Maximum tool length | 600 mm |
| Maximum tool weight | 25 kg |
| Through-spindle coolant pressure | 20 bar |
| Required compressed air pressure | 0.54 MPa |
| Power supply | 3-phase AC 220 V, 60 Hz |
| Electrical capacity | 70 kVA |
| Overall machine dimensions | Approx. 7,500 × 8,200 × 4,950 mm |
| Machine weight | Approx. 43,000 kg |
Technical data is based on the supplied machine information and should be reconfirmed during final inspection.
Applications and Suitable Industries
The used Doosan DBC 130 is designed for heavy-duty machining of large box-type, plate-type and structural components. Its large travel range, 13-ton table capacity and 130 mm boring spindle make it suitable for:
- Large gearbox and reducer housings
- Machine tool beds, columns and structural frames
- Pump bodies, valve bodies and compressor housings
- Construction and mining machinery components
- Power generation and energy equipment
- Marine and shipbuilding components
- Large molds, base plates and industrial fixtures
Typical machining operations include precision boring, face milling, drilling, tapping, contour milling and multi-side machining using the indexed rotary table.
FAQ
Is this Doosan DBC 130 a new machine?
No. This is a used Doosan DBC 130 CNC horizontal boring mill manufactured in South Korea. Its current condition, included accessories and operating status should be confirmed before purchase.
What size workpieces can this machine handle?
The machine has a 2,200 × 2,000 mm working table with a maximum load capacity of 13,000 kg. It is suitable for large and heavy industrial workpieces such as gearbox housings, machine frames and equipment bases.
Which CNC control is installed on the machine?
According to the supplied specifications, the machine is equipped with a FANUC 31i CNC control, commonly used for reliable and precise industrial machining applications.
Does the machine have an automatic tool changer?
Yes. The listed configuration includes a 40-position automatic tool changer with BT50 tooling. The maximum standard tool diameter is 130 mm, increasing to 250 mm when adjacent tool positions are left empty.
Similar Products of This Type
$296541.00
Brand
DOOSAN
Model
DBC 130
Origin
KR
Processing Time
3265h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 9 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
