Used Chien Wei CTG-540GCA CNC Gear Grinder from Taiwan
Product Description
This used Chien Wei CTG-540GCA CNC external gear grinding machine, made in China Taiwan, is equipped with a FANUC Series 0i-MF CNC system, automatic measurement, CNC automatic grinding, and automatic dressing compensation. The machine is in excellent condition, nearly new, and suitable for precision grinding of helical gears, spur gears, robot joint gears, and other high-accuracy gear components.
Technical Specifications
| Item | Specification |
|---|---|
| Machine Type | CNC External Gear Grinding Machine |
| Brand | Chien Wei / Chen Wei Precise Technology |
| Model | CTG-540GCA |
| Country of Origin | Taiwan |
| Condition | Used / Pre-owned, nearly new |
| Year of Manufacture | 2019.12 |
| Serial No. | 1912A |
| CNC Control System | FANUC Series 0i-MF |
| Worktable Diameter | 400 mm |
| Travel / Stroke | X/Y/Z/W: 850 × 600 × 100 × 400 mm |
| Spindle Speed | 12,000 rpm |
| Power Supply | 220 V |
| Rated Current | 60 A |
| Power Capacity | 23 kW |
| Measuring System | Automatic measuring system |
| Grinding Function | CNC automatic grinding |
| Dressing Function | Automatic wheel dressing and compensation |
| Machining Accuracy | Up to 0.0015 mm |
| Main Applications | External gear grinding, helical gear grinding, spur gear grinding, precision gear finishing |
| Machine Status | Trial-cut only a few samples, 99% new condition |
Applications & Suitable Machining Scenarios
The used Chien Wei CTG-540GCA CNC gear grinder is designed for high-precision external gear grinding and finishing. It is suitable for manufacturers who need accurate, stable, and repeatable grinding performance without investing in a brand-new machine.
It can be used for:
Precision grinding of helical gears, spur gears, straight gears, robot joint gears, and other transmission components. It is especially suitable for industries such as robotics, gear manufacturing, precision machinery, automation equipment, reducers, electric vehicle components, and high-accuracy mechanical transmission parts.
With the FANUC 0i-MF control system, automatic measurement, and automatic compensation functions, this machine helps improve grinding consistency, reduce manual adjustment, and support stable production for precision gear parts.
FAQ
Is this Chien Wei CTG-540GCA gear grinding machine new or used?
This is a used Chien Wei CTG-540GCA CNC gear grinding machine. It has only been used for a few sample trials and is in nearly new condition.

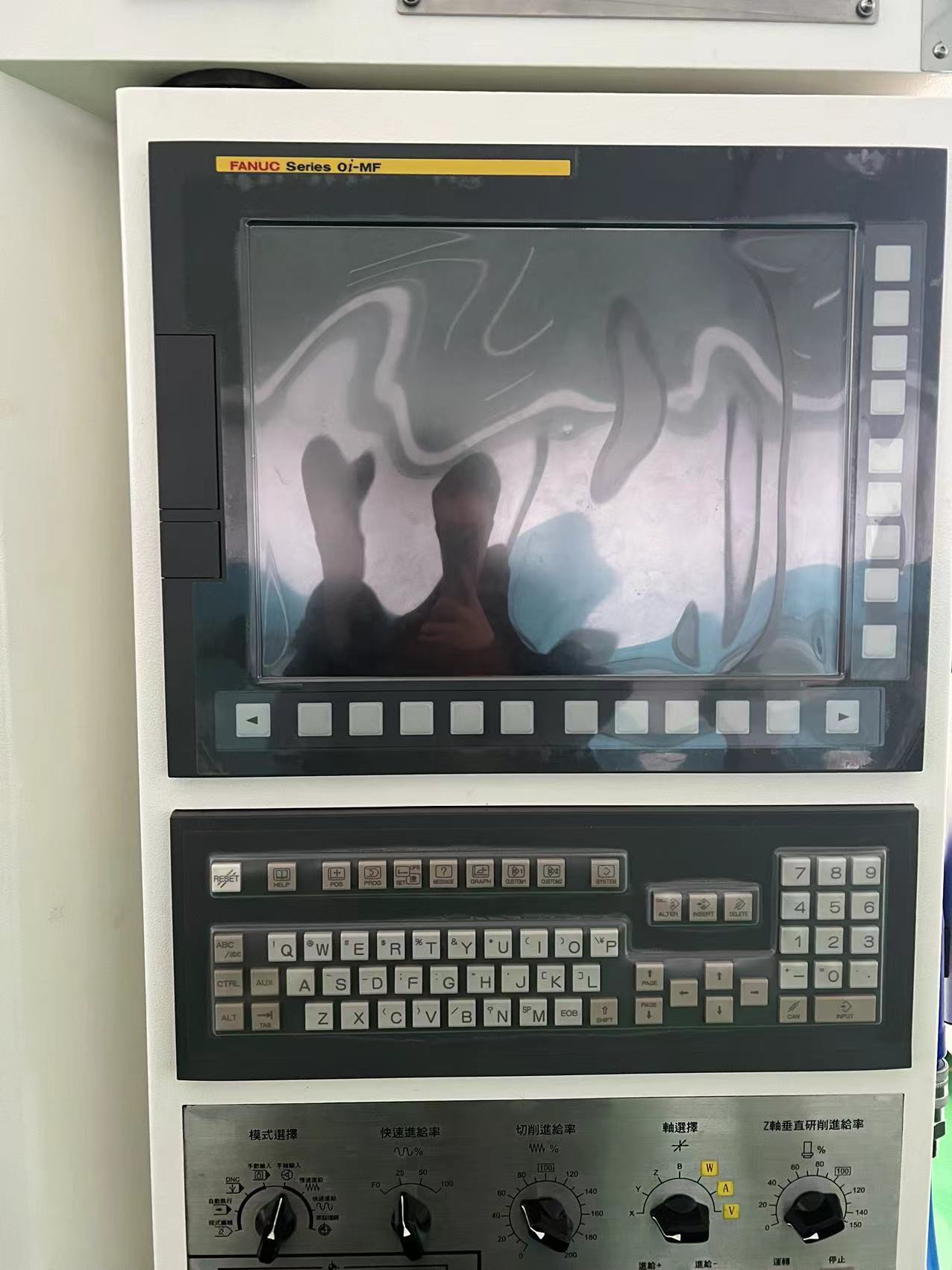

What CNC system does this used gear grinder use?
The machine is equipped with a FANUC Series 0i-MF CNC control system, which is widely used for stable and precise CNC machining operations.
What types of gears can this machine grind?
This machine is suitable for grinding external gears, helical gears, spur gears, straight gears, robot joint gears, and other precision gear components.
What is the machining accuracy of this CNC gear grinding machine?
According to the available machine information, the grinding accuracy can reach 0.0015 mm, making it suitable for high-precision gear finishing.
Why choose a used Chien Wei CTG-540GCA instead of a new gear grinder?
A used Taiwan-made Chien Wei CTG-540GCA gear grinder can help reduce investment cost while still offering strong precision, automatic measurement, CNC grinding, and dressing compensation functions.
$622353.00
Brand
Chien Wei
Model
CTG-540GCA
Origin
TW
Processing Time
258h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 7 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
