Product Highlight

High-precision used YASDA H40i vertical machining center imported from Japan, equipped with FANUC 16i control, dual worktables, and verified Renishaw ball bar accuracy testing. Ideal for mold, aerospace, and ultra-precision component machining at a competitive cost compared with new machines.

Product Description

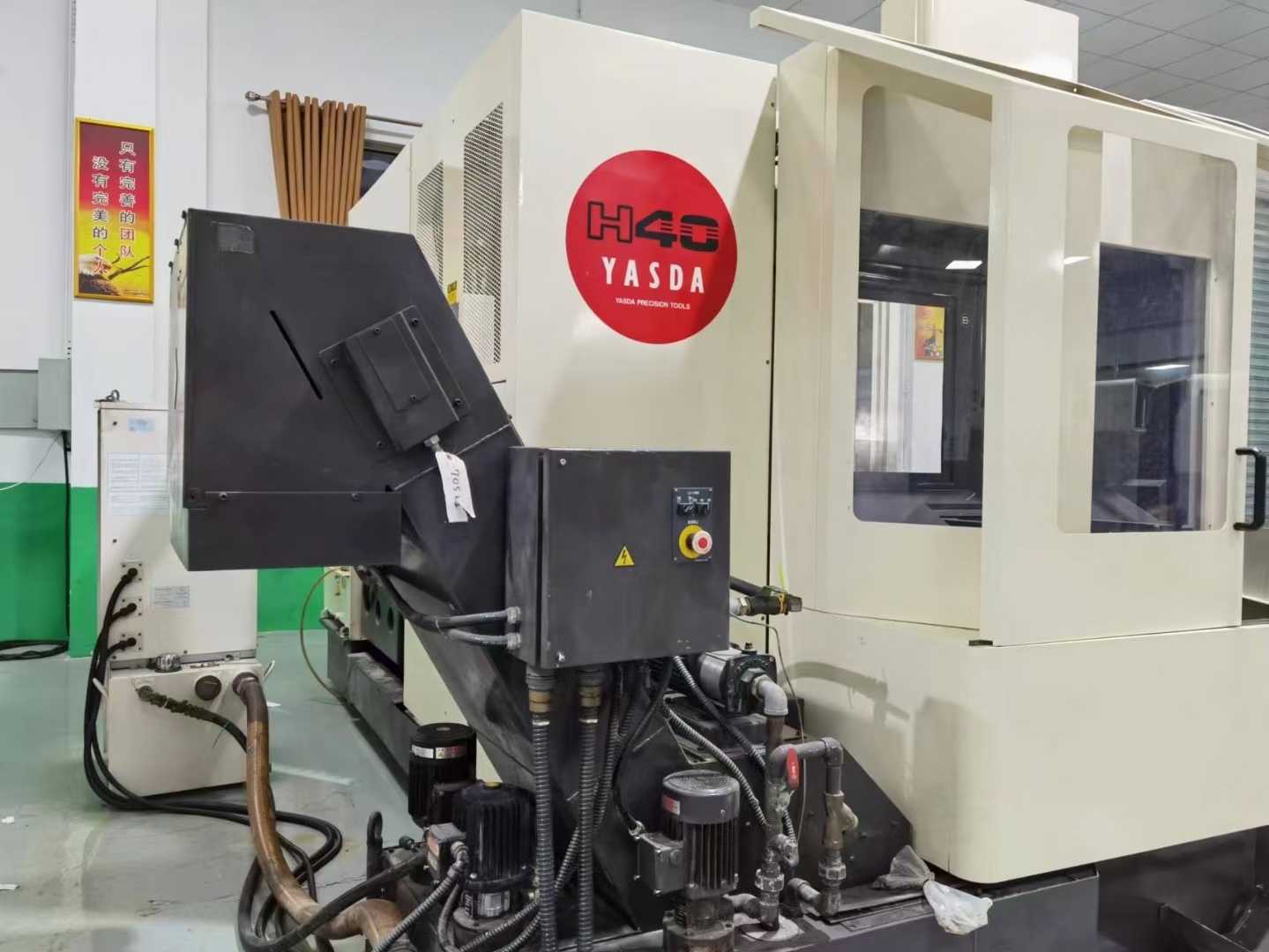

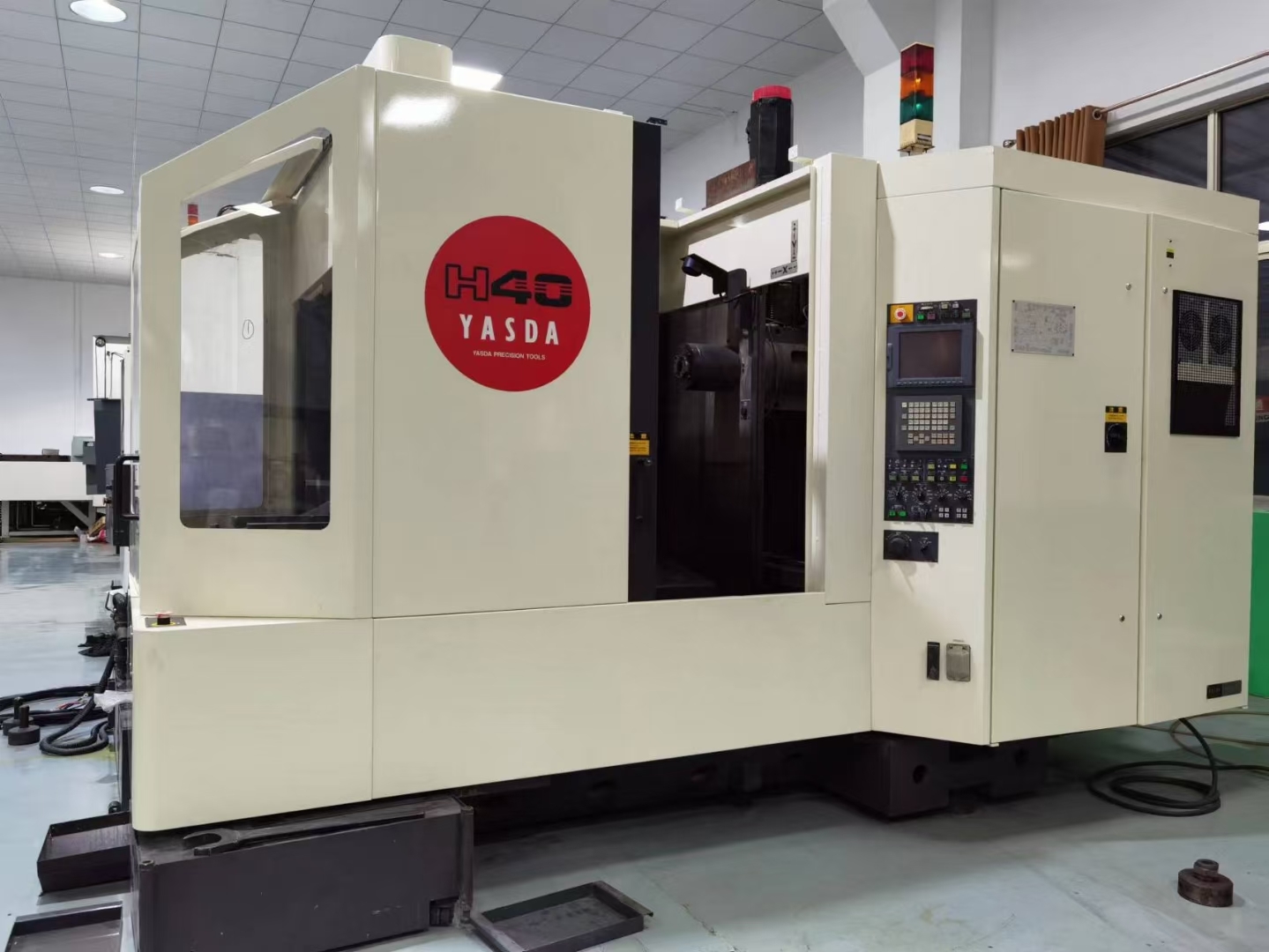

This is a used YASDA H40i 5-axis vertical machining center originally manufactured in Japan. YASDA is well known worldwide for ultra-high precision machining solutions, especially in mold making, aerospace, optical components, and precision parts industries.

The machine is equipped with a FANUC 16i CNC controller, B-axis rotary table, dual worktable configuration, and high-speed spindle. According to the Renishaw ball bar diagnostic reports provided, the machine maintains excellent geometric accuracy and positioning performance.

The equipment has been professionally inspected and tested before sale. It is a cost-effective alternative for manufacturers looking for Japanese precision machining capability without the investment cost of a new machine.

Technical Specifications

Item	Specification
Machine Type	Used 5-Axis Vertical Machining Center
Brand	YASDA
Model	H40i
Country of Origin	Japan
Machine Condition	Used / Pre-owned
CNC Controller	FANUC 16i
Axis Configuration	X / Y / Z + B Rotary Axis
X Axis Travel	650 mm
Y Axis Travel	560 mm
Z Axis Travel	560 mm
B Axis Rotation	360°
Worktable Size	400 × 400 mm
Number of Worktables	2 pcs
Maximum Workpiece Weight	400 kg
Distance from Spindle Nose to Table	90 - 650 mm
Spindle Type	Electric Spindle
Maximum Spindle Speed	12,000 rpm
Tool Holder	BBT40
Tool Magazine Capacity	60 tools
Tool Magazine Type	Chain Type
Maximum Tool Length	300 mm
Maximum Tool Weight	7 kg
Rapid Traverse Speed	40,000 mm/min
Minimum Resolution	0.001 mm
Machine Weight	Approx. 10,000 kg
Machine Dimensions	3000 × 4500 × 2500 mm
Through Spindle Coolant	Available

Accuracy Inspection Report

Renishaw Ball Bar Test Results

Test Equipment: RENISHAW Ballbar System
Machine Tested: YASDA H40i
Test Diameter: 200 mm
Sampling Rate: 40 Hz

Accuracy Performance

Test Item	Result
X/Y/Z Axis Servo Performance	Verified

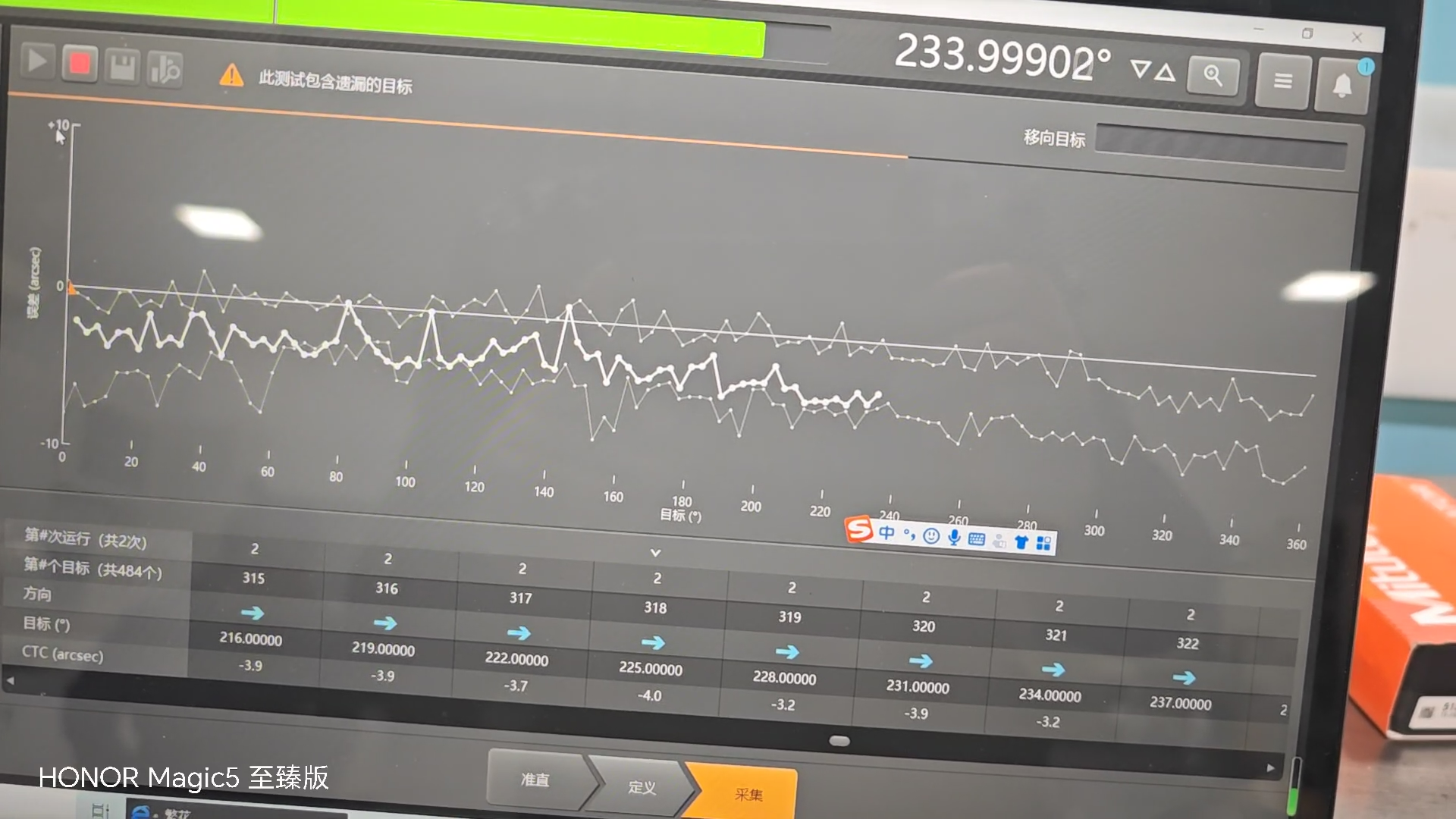

Rotary Axis Accuracy	Verified
Circular Interpolation Accuracy	Excellent
Maximum Overall Roundness Error	Approx. 6.1 - 9.2 μm
Axis Positioning Error	Within μm Level
Machine Geometric Accuracy	Verified by measurement report

The provided inspection data demonstrates that this used YASDA H40i maintains excellent machining accuracy suitable for precision manufacturing applications.

Application Areas

This used YASDA H40i 5-axis machining center is suitable for:

Precision Mold Manufacturing

Plastic injection molds
Die casting molds
High precision mold inserts
Complex cavity machining

Aerospace Industry

Aluminum alloy aerospace components
Structural precision parts
Complex 5-axis machining applications

Automotive Industry

Engine components
Transmission parts
Prototype manufacturing

Precision Engineering

Optical equipment parts
Semiconductor equipment components
Medical device components

High-End Manufacturing

Precision fixtures
Custom tooling
Complex curved surface machining

Why Choose This Used YASDA H40i?

✅ Japanese ultra-precision machining technology
YASDA machines are recognized for high rigidity and long-term accuracy retention.

✅ Lower investment compared with a new machine
Acquire high-end 5-axis machining capability at a significantly reduced cost.

✅ Verified accuracy performance
Includes Renishaw ball bar inspection data to provide confidence before purchase.

✅ FANUC CNC reliability
FANUC 16i control system provides stable operation and global maintenance support.

✅ Ready for precision production
Suitable for manufacturers requiring micron-level machining performance.

FAQ

Is this YASDA H40i machining center new or used?

This YASDA H40i is a used/pre-owned machine originally manufactured in Japan. It has been inspected and tested before sale, including Renishaw ball bar accuracy verification.

What makes the YASDA H40i different from other used machining centers?

The YASDA H40i is designed for high-precision 5-axis machining. Compared with standard machining centers, it offers higher rigidity, better thermal stability, and excellent accuracy retention for mold and precision component production.

Can this used YASDA H40i machine aerospace and mold parts?

Yes. The machine is suitable for aerospace components, injection molds, precision fixtures, optical parts, and other complex 5-axis machining applications requiring high accuracy.

Has the accuracy of this used machine been tested before shipment?

Yes. The machine includes Renishaw ball bar diagnostic reports showing geometric accuracy and motion performance measurements at micron-level precision.

Why should I buy a used YASDA H40i instead of a new 5-axis machining center?

A used YASDA H40i allows manufacturers to access Japanese high-precision machining technology at a lower investment cost while still achieving excellent machining performance when the machine is properly maintained.
