Used VOUMARD VM150 CNC Grinding Machine

Loading carousel...

Product Highlight

Used VOUMARD VM150 CNC Internal & External Cylindrical Grinding Machine is a Swiss-made high precision grinding machine designed for complex internal and external cylindrical grinding applications. Equipped with FANUC CNC control, this machine provides excellent accuracy, flexibility and reliability for precision component manufacturing. It is widely used in mold, aerospace, automotive, medical and high-end mechanical parts machining industries.

Product Description

Used VOUMARD VM150 CNC internal and external cylindrical grinding machine, made in Switzerland and equipped with FANUC Series 32i Model A CNC system. This high-precision grinder is suitable for mold, aerospace, medical and precision component machining applications.

Machine Specifications

Item	Specification
Machine Type	Used CNC Internal & External Cylindrical Grinding Machine
Brand	VOUMARD
Model	VM150
Country of Origin	Switzerland

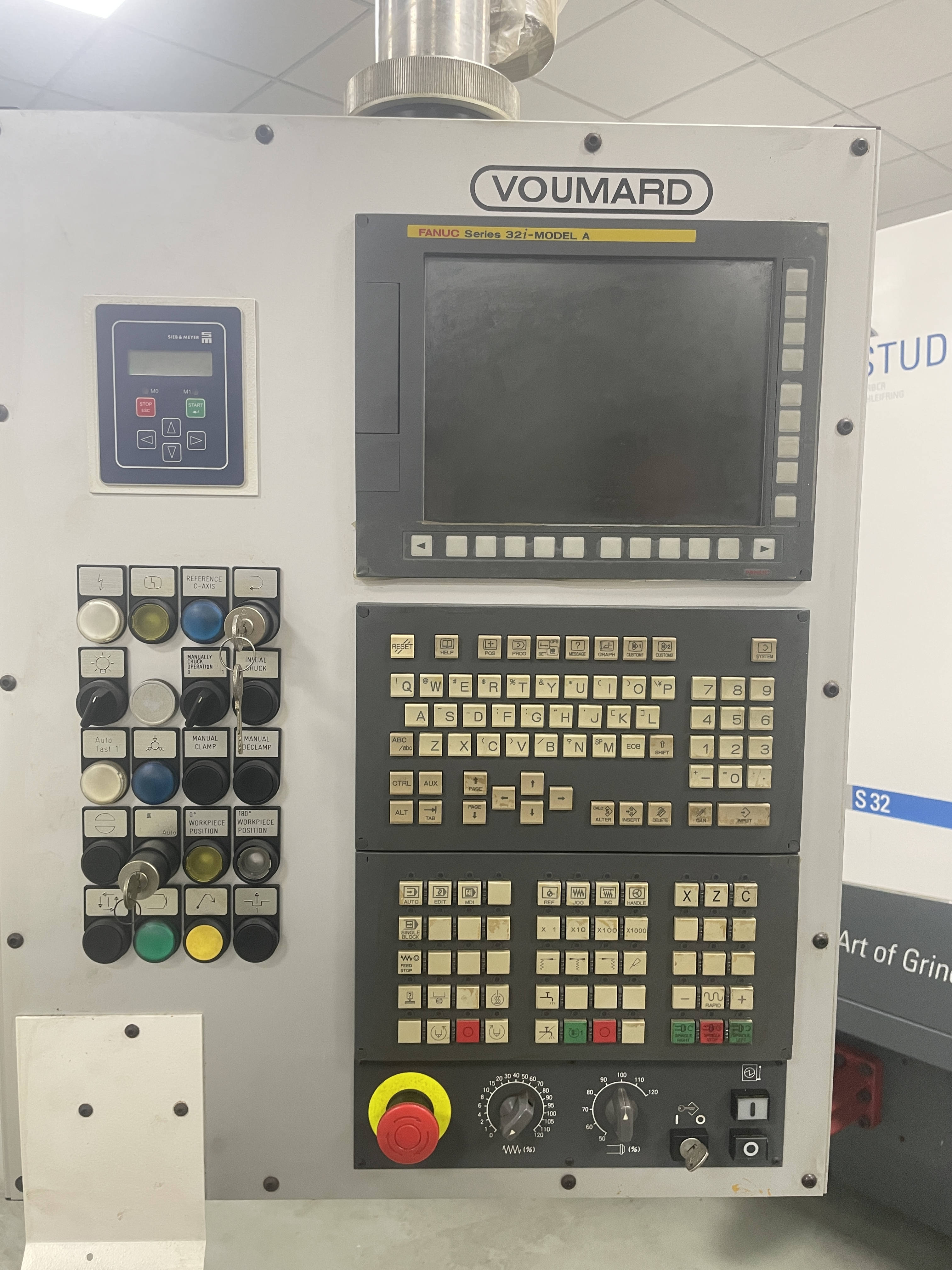

CNC Control	FANUC Series 32i Model A
Machine Condition	Used Second-hand Machine
Grinding Capability	Internal diameter grinding up to Ø200 mm
External Grinding Diameter	Up to Ø260 mm
Maximum Grinding Depth	Up to 250 mm
Chuck Diameter	Max. Ø380 mm
Workpiece Diameter on Table	Approx. Ø350 mm
Distance Between Centers	Approx. 500 mm
Spindle Speed	Programmable up to 8,500 rpm / 5,600 rpm
X Axis Travel	230 mm
Z Axis Travel	500 mm
Resolution	0.1 μm
Maximum X Feed Speed	10 m/min
Maximum Z Feed Speed	20 m/min
Machine Weight	Approx. 5,000 - 6,000 kg
Control System	FANUC CNC
Grinding Type	Internal / External Cylindrical Grinding

Product Description

Used VOUMARD VM150 CNC Internal External Cylindrical Grinding Machine – Swiss Precision Grinding Solution

The used VOUMARD VM150 CNC grinding machine is a high-precision internal and external cylindrical grinding machine manufactured in Switzerland. Known for its accuracy and flexibility, the VM150 series is designed for demanding precision grinding applications where excellent surface finish and tight tolerances are required.

This second-hand VOUMARD VM150 is equipped with a FANUC Series 32i Model A CNC control system, providing reliable operation, stable machining performance and convenient programming for complex grinding processes.

The machine supports internal grinding up to 200 mm diameter, external grinding up to 260 mm diameter, and grinding depths up to 250 mm. With programmable spindle speed and high-resolution positioning capability, it is suitable for precision machining of complex components.

VOUMARD grinding machines are widely recognized in industries requiring ultra-precision manufacturing. This used VM150 offers an economical alternative for companies looking to obtain Swiss grinding technology at a lower investment cost.

Applications & Industries

Suitable Applications:

Precision Mold Manufacturing

Precision mold inserts
Plastic injection molds
Die components
Optical molds

Aerospace Industry

Turbine components
Aircraft precision parts
High-accuracy mechanical components

Medical Equipment Manufacturing

Surgical instrument parts
Medical device components
High precision alloy machining

Automotive Industry

Engine components
Transmission parts
Precision shafts and rotating components

General Precision Machining

Hydraulic valve parts
Precision tooling
Bearing components
Custom engineering parts

FAQ

Is this VOUMARD VM150 grinding machine new or used?

This VOUMARD VM150 is a used second-hand CNC grinding machine. The machine has been inspected and its actual condition can be confirmed through photos, videos and testing reports before purchase.

What type of grinding operations can the VOUMARD VM150 perform?

The VOUMARD VM150 can perform both internal and external cylindrical grinding operations, making it suitable for precision machining of complex components requiring high accuracy.

What CNC system is installed on this used VOUMARD VM150?

This machine is equipped with FANUC Series 32i Model A CNC control system, which provides reliable operation and convenient programming for precision grinding applications.

What industries use VOUMARD CNC grinding machines?

VOUMARD precision grinding machines are commonly used in aerospace, medical, automotive, mold manufacturing and other industries requiring high-precision machining.

Why choose a used VOUMARD VM150 instead of a new grinding machine?

Used VOUMARD VM150 allows manufacturers to access Swiss precision grinding technology with a lower investment cost while maintaining excellent machining capability for demanding applications.
