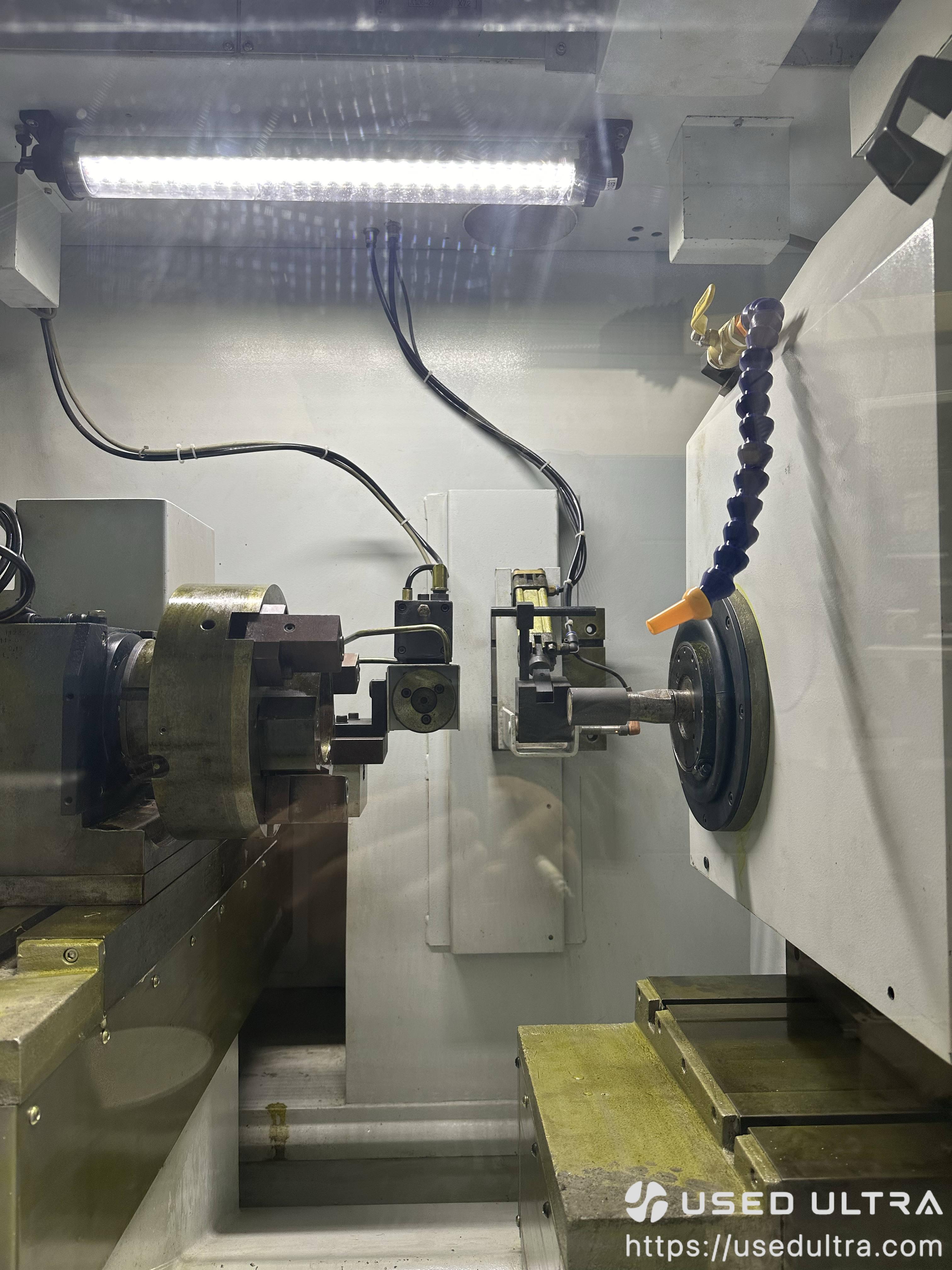

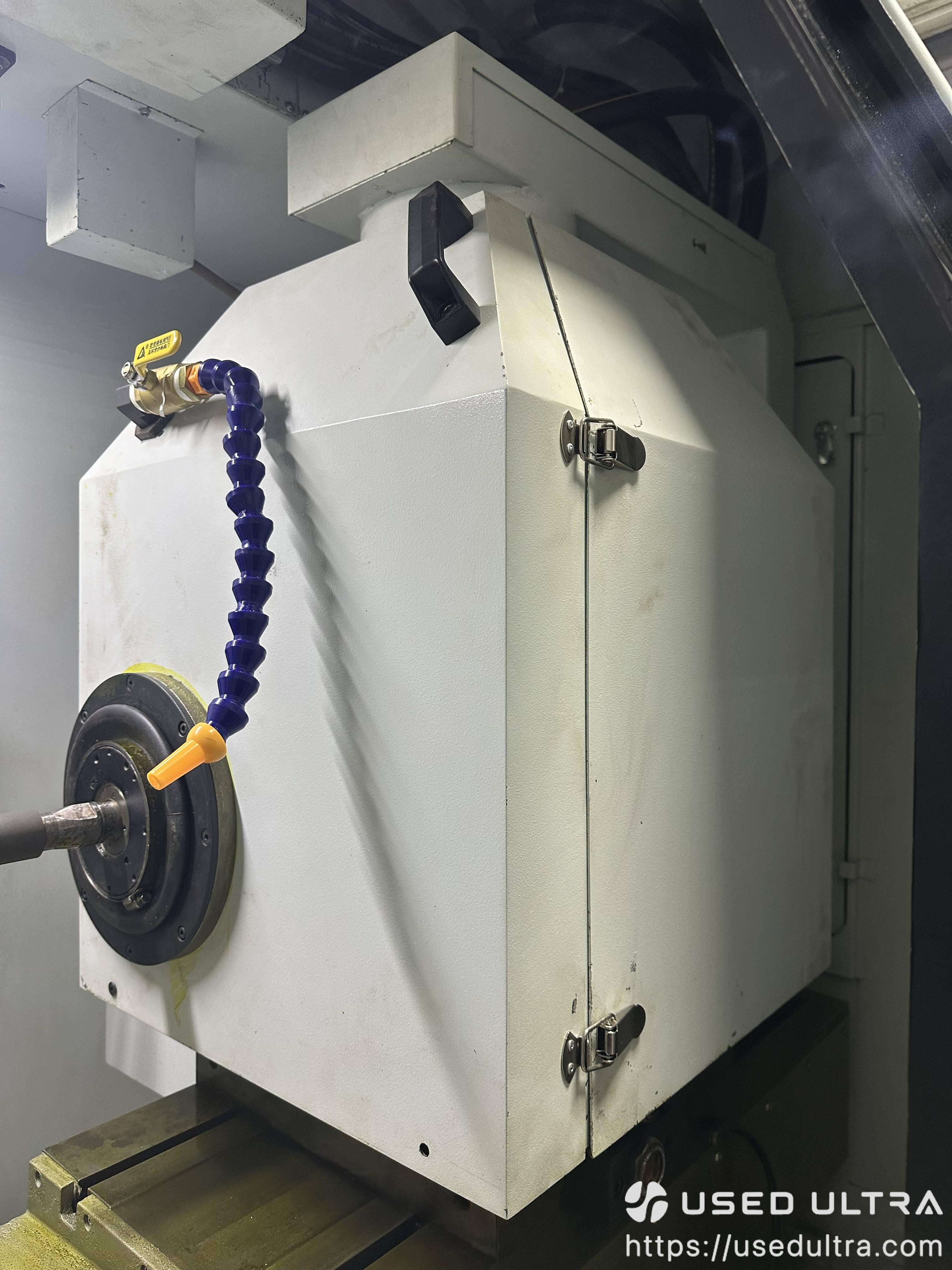

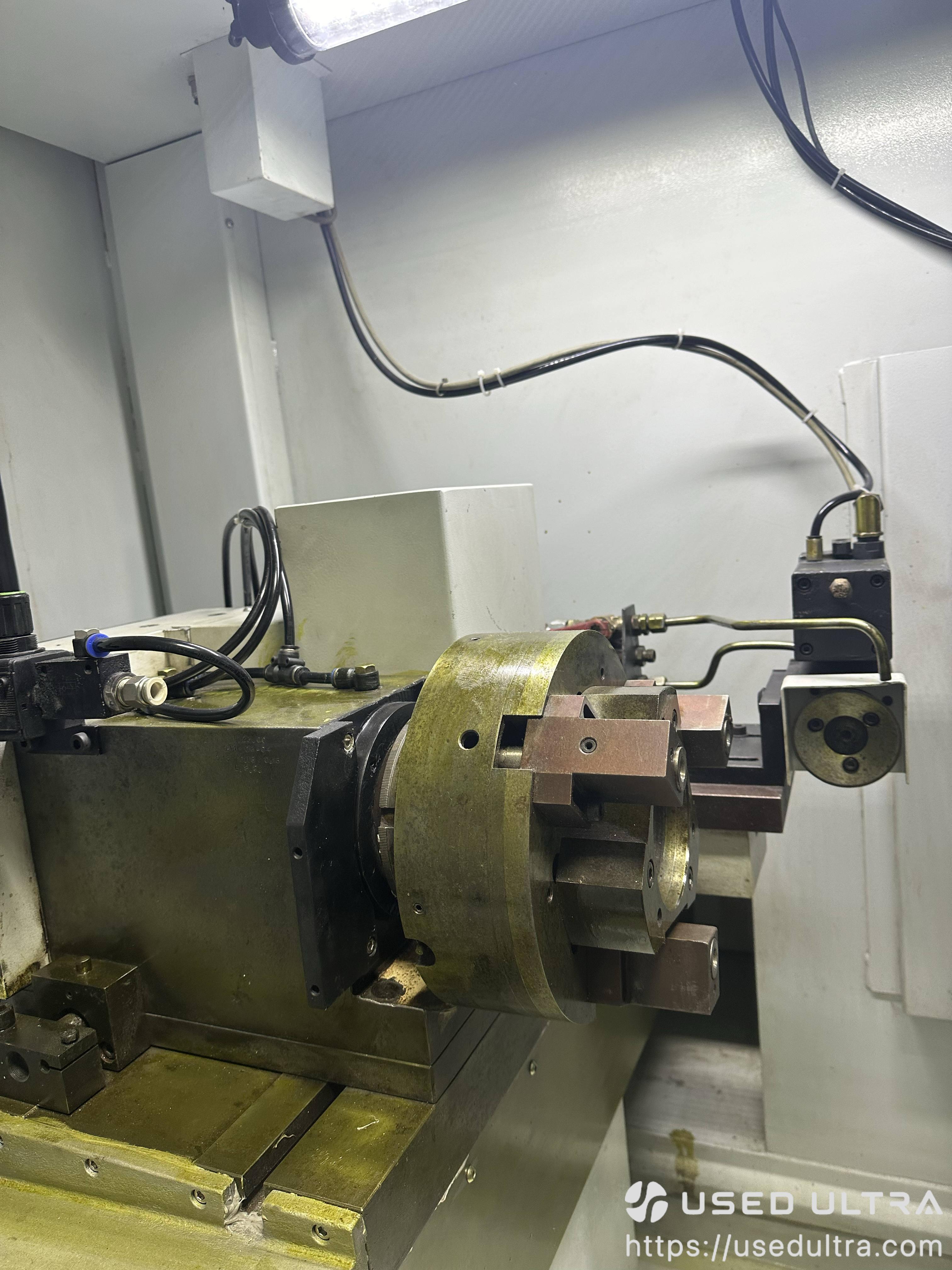

Used Voumard 110 CNC Grinding Machine | Swiss Precision Grinder

Loading carousel...

Product Highlight

Used Voumard 110 CNC grinding machine is a Swiss-made precision grinding system designed for complex internal, external and non-circular grinding operations. Equipped with FANUC 160i-TB CNC control, multiple grinding spindle options and micron-level accuracy capability, it is suitable for manufacturers requiring reliable precision machining for automotive, aerospace, hydraulic and mold components.

Product Description

Used Voumard 110 CNC grinding machine from Switzerland, equipped with Fanuc 160i-TB CNC control and non-circular grinding software. This precision grinder supports internal, external and polygon grinding applications with approximately 1 μm accuracy, ideal for high-precision automotive, aerospace and mold component machining.

Technical Specifications

Specification	Details
Machine Type	Used CNC Internal & External Grinding Machine
Brand	Voumard
Model	110
Origin	Switzerland
CNC System	FANUC 160i-TB
Grinding Capability	Internal grinding, external grinding, non-circular grinding, polygon grinding
Grinding Spindles	2 grinding spindles (expandable up to 4)
X Axis Travel	220 mm
X Axis Resolution	0.0002 mm
X Axis Maximum Speed	20,000 mm/min
Z Axis Travel	300 mm
Z Axis Resolution	0.0002 mm
Z Axis Maximum Speed	20,000 mm/min
Main Spindle Speed	1,500 RPM
Chuck Diameter	Approx. 400 mm
Chuck Positioning	-10° to +30°, increment 2°
Maximum Workpiece Size	Chuck mounting workpiece
Manual Loading Diameter	Approx. 150 mm internal diameter / 80 mm length
Drive Motor	AC Servo Motor
Grinding Wheel Diameter	80 + 150 mm
Maximum Power	7.5 kW
Frequency Converter	10 kVA (0 - 3000 Hz)
Programmable Spindle Angle	2-position programmable spindle angle
Lubrication System	Oil mist lubrication system
Grinding Spindle Speeds	15,000 / 30,000 / 65,000 / 90,000 RPM
Precision Level	Approx. 1 μm accuracy
Control Features	CNC controlled precision grinding operations

Application & Industry Solutions

Used Voumard 110 CNC grinding machine is designed for manufacturers requiring high-precision grinding of complex components.

Typical applications include:

Automotive precision parts
Aerospace manufacturing
Tool and mold industries
Hydraulic and pneumatic industries
Mechanical engineering

The machine is suitable for companies looking for Swiss precision grinding performance at a lower investment cost compared with purchasing a new CNC grinding system.

FAQ

What type of grinding operations can this machine perform?

The Voumard 110 supports internal grinding, external grinding, non-circular grinding and polygon grinding operations, making it suitable for complex precision components.
