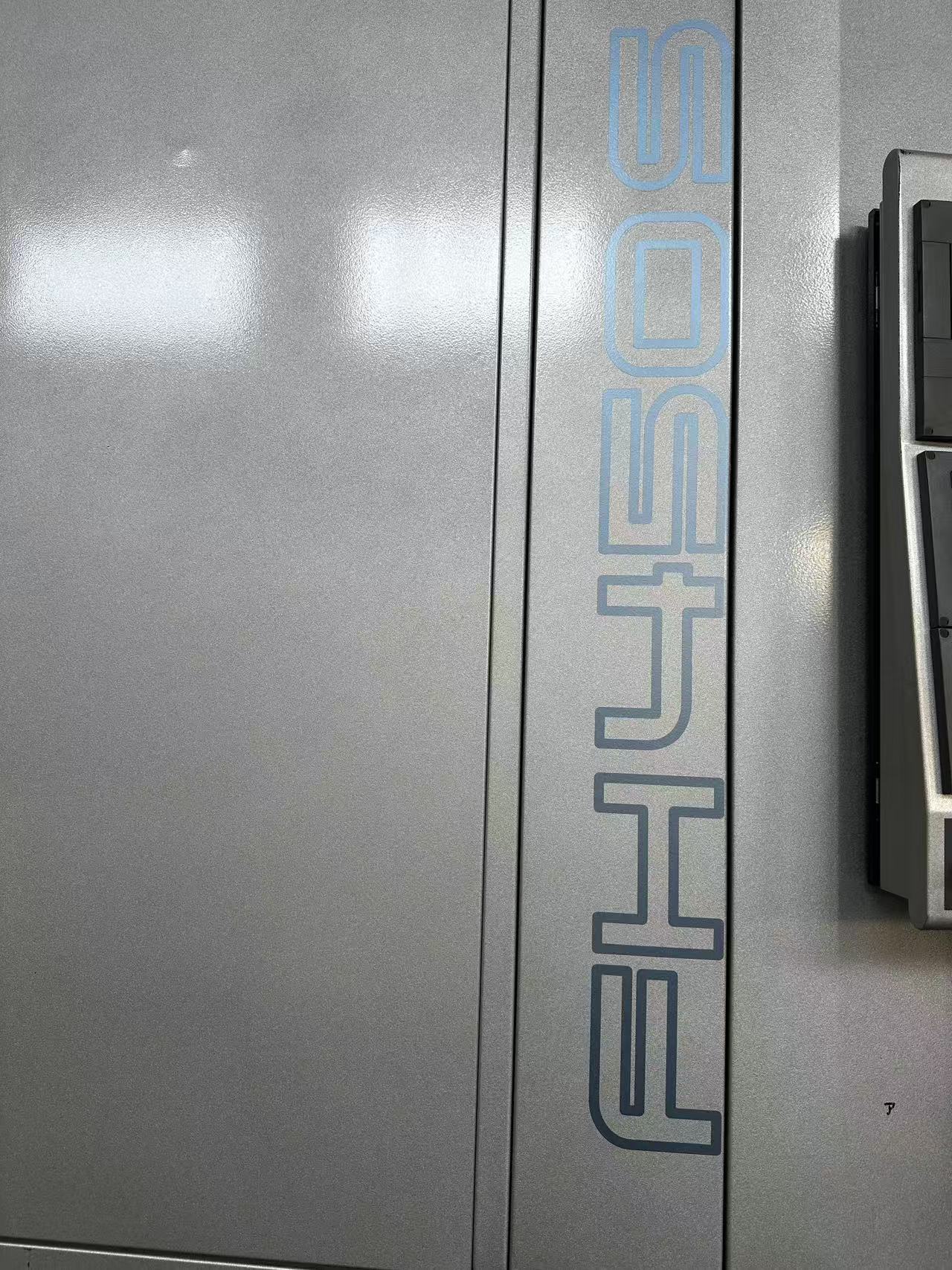

Used TOYODA FH450S Horizontal Machining Center

Loading carousel...

Product Highlight

TOYODA FH450S is a high-speed Japanese horizontal machining center designed for precision and production machining. This used machine features a 450 × 450 mm pallet, 600 × 600 × 600 mm XYZ travel, BT40 spindle, 15,000 rpm spindle speed, 60-tool ATC, FANUC Series 31i-A CNC control, and linear scales on all three axes. Well suited for automotive parts, hydraulic components, housings, and other precision engineering applications. TOYODA’s official specifications also confirm the FH450S platform with a 450 mm pallet, 600 × 600 × 600 mm travel and 15,000 rpm spindle configuration.

Product Description

Used TOYODA FH450S horizontal machining center originally operated in Japan , China. Equipped with a FANUC Series 31i-MODEL A CNC control, 450 × 450 mm pallet, 600 × 600 × 600 mm axis travel, BT40 spindle, 15,000 rpm spindle speed, 60-tool chain-type magazine, and linear scales on three axes. The machine has been well maintained and is suitable for high-precision, high-efficiency machining of automotive, hydraulic, machinery and industrial components.

Technical Specifications

Specification	Details
Machine Type	Used Horizontal Machining Center
Brand	TOYODA / Toyoda Koki
Model	FH450S
Country of Origin	Japan
CNC Control	FANUC Series 31i-MODEL A

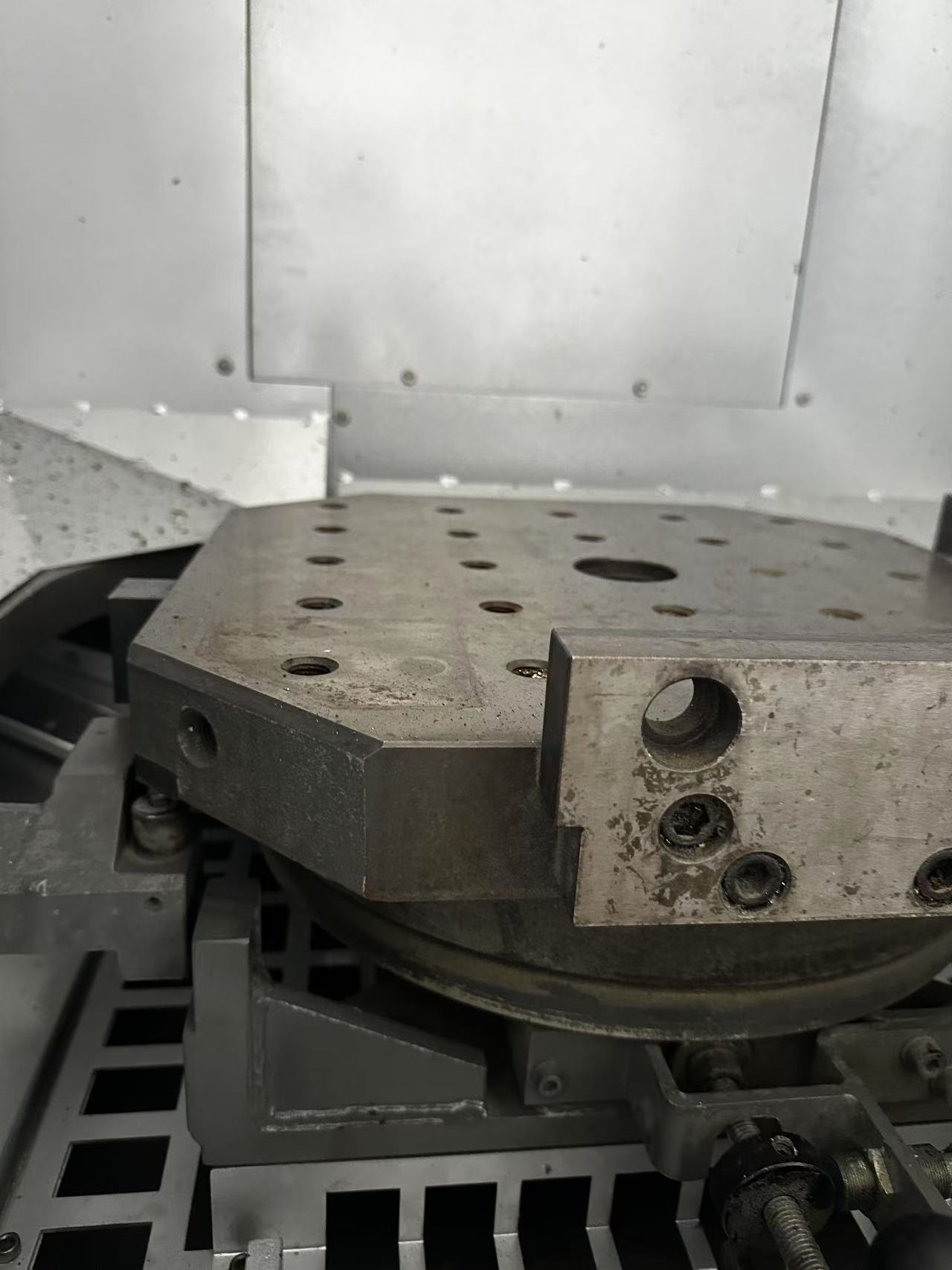

Pallet / Table Size	450 × 450 mm
X-Axis Travel	600 mm
Y-Axis Travel	600 mm
Z-Axis Travel	600 mm
Axis Guideway	Linear Guideways
Spindle Taper	BT40
Maximum Spindle Speed	15,000 rpm
Tool Magazine	60-Tool Chain-Type ATC
Linear Scales	X / Y / Z Axes
Through-Spindle Coolant	Equipped
Chip Removal System	Screw + Chain-Type Chip Conveyor
Oil Cooler	Equipped
Hydraulic Unit	Equipped
Machine Condition	Used / Well Maintained
Previous Location of Use	Japan

Applications & Suitable Machining Jobs

The used TOYODA FH450S horizontal machining center is particularly suitable for manufacturers requiring stable multi-face machining, high spindle speed and repeatable production.

Automotive Components – transmission housings, gearbox cases, engine-related components and structural parts.
Hydraulic Components – valve bodies, manifolds, pump housings and hydraulic blocks.
Industrial Machinery Parts – machine housings, bearing seats, brackets and precision structural components.
General Precision Engineering – batch machining of steel, cast iron and aluminum parts.
Multi-Side Machining – horizontal machining configuration reduces repeated workpiece repositioning and is suitable for parts requiring machining on several faces.
Production Manufacturing – 60-tool automatic tool changer is suitable for parts requiring multiple milling, drilling, boring and tapping operations.

Key Selling Points

Japan-Origin Used TOYODA FH450S
Previously operated in Japan and maintained in good overall condition.

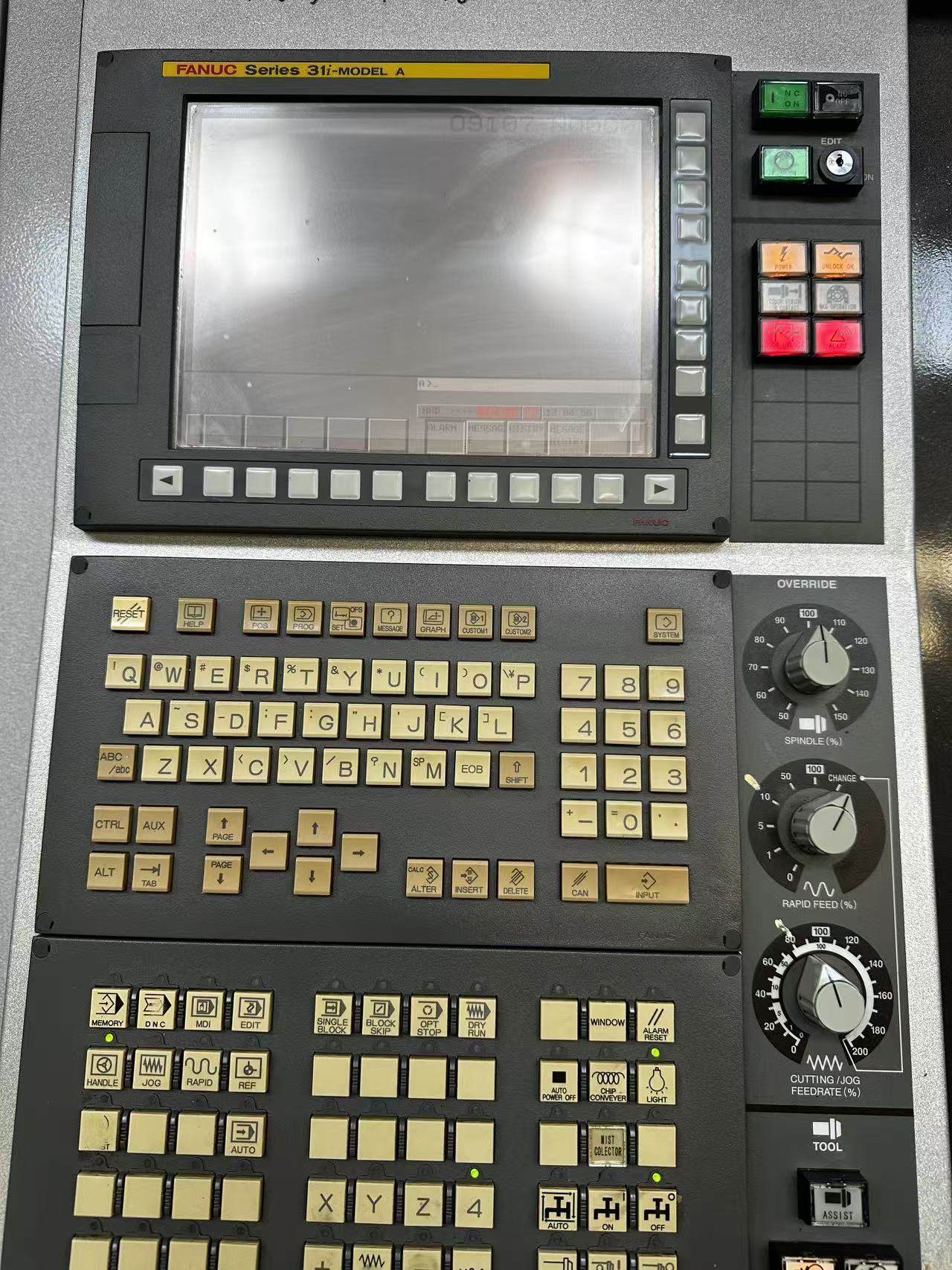

FANUC 31i-A CNC Control
Uses the widely recognized FANUC Series 31i-MODEL A control platform, convenient for operators already familiar with FANUC CNC systems.

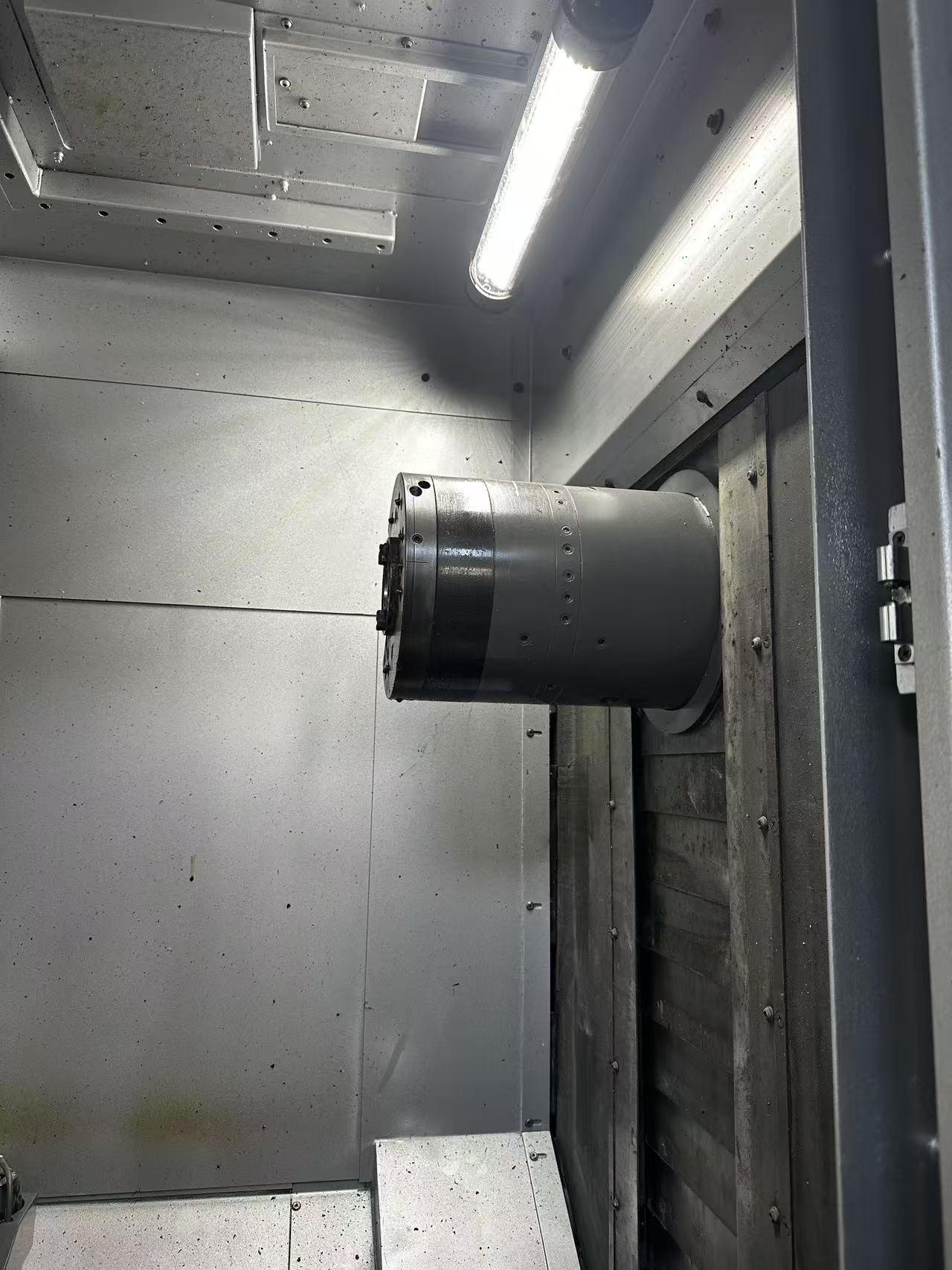

15,000 RPM BT40 Spindle
Suitable for both general machining and higher-speed machining of aluminum and precision components.

600 × 600 × 600 mm Travel
Provides balanced machining capacity in all three linear axes.

60-Tool Chain Magazine
Supports machining processes requiring multiple cutting tools and helps reduce manual tool changes.

Three-Axis Linear Scales
A valuable configuration for applications where machining accuracy and positioning feedback are important.

Complete Auxiliary Equipment
Configured with through-spindle coolant, chip removal system, oil cooler and hydraulic unit.

Why Consider This Used TOYODA FH450S?

If you are looking for a used Japanese horizontal machining center without the investment required for a new machine, this TOYODA FH450S offers a practical combination of machining capacity, spindle speed and automation.

With its 450 × 450 mm pallet, 600 mm travel on X/Y/Z axes, 15,000 rpm BT40 spindle and 60-tool magazine, the machine can handle a wide range of precision production parts. The FANUC 31i-A CNC system also makes it easier for factories already operating FANUC-controlled equipment to integrate the machine into existing production.
