Used TOYODA FA800S Horizontal Machining Center

▶

Loading carousel...

Product Highlight

The used TOYODA / JTEKT FA800S Horizontal Machining Center is a heavy-duty Japanese CNC machine designed for high-precision and high-volume production. It features an 800 × 800 mm double-pallet system, BT50 tooling, FANUC Series 31i control, and approximately 1350 × 1150 × 1150 mm XYZ travel. The machine is well suited for machining engine blocks, transmission housings, large cast-iron components, and other automotive or industrial parts. These pre-owned FA800S machines were previously used in a diesel engine FMS production line and are suitable for manufacturers looking to expand machining capacity with proven Japanese equipment at a lower investment cost than buying new.

Product Description

Used JTEKT TOYODA FA800S horizontal machining centers from an installed FMS diesel-engine machining line in China. Originally manufactured in Japan, these double-pallet CNC HMCs are equipped with FANUC Series 31i control, BT50 tooling, 800 × 800 mm pallets and through-spindle coolant configurations.

Technical Specifications

Specification	Details
Equipment Condition	Used / Pre-owned
Manufacturer / Brand	JTEKT / TOYODA
Model	FA800S
Machine Type	CNC Horizontal Machining Center
Configuration	Double-pallet HMC
Country of Origin	Japan
CNC Control	FANUC Series 31i-MODEL A
X-Axis Travel	1,350 mm
Y-Axis Travel	1,150 mm
Z-Axis Travel	1,150 mm
Pallet Size	800 × 800 mm
Pallet Indexing	NC indexing or 1° indexing, depending on machine
Tool Interface	BT50

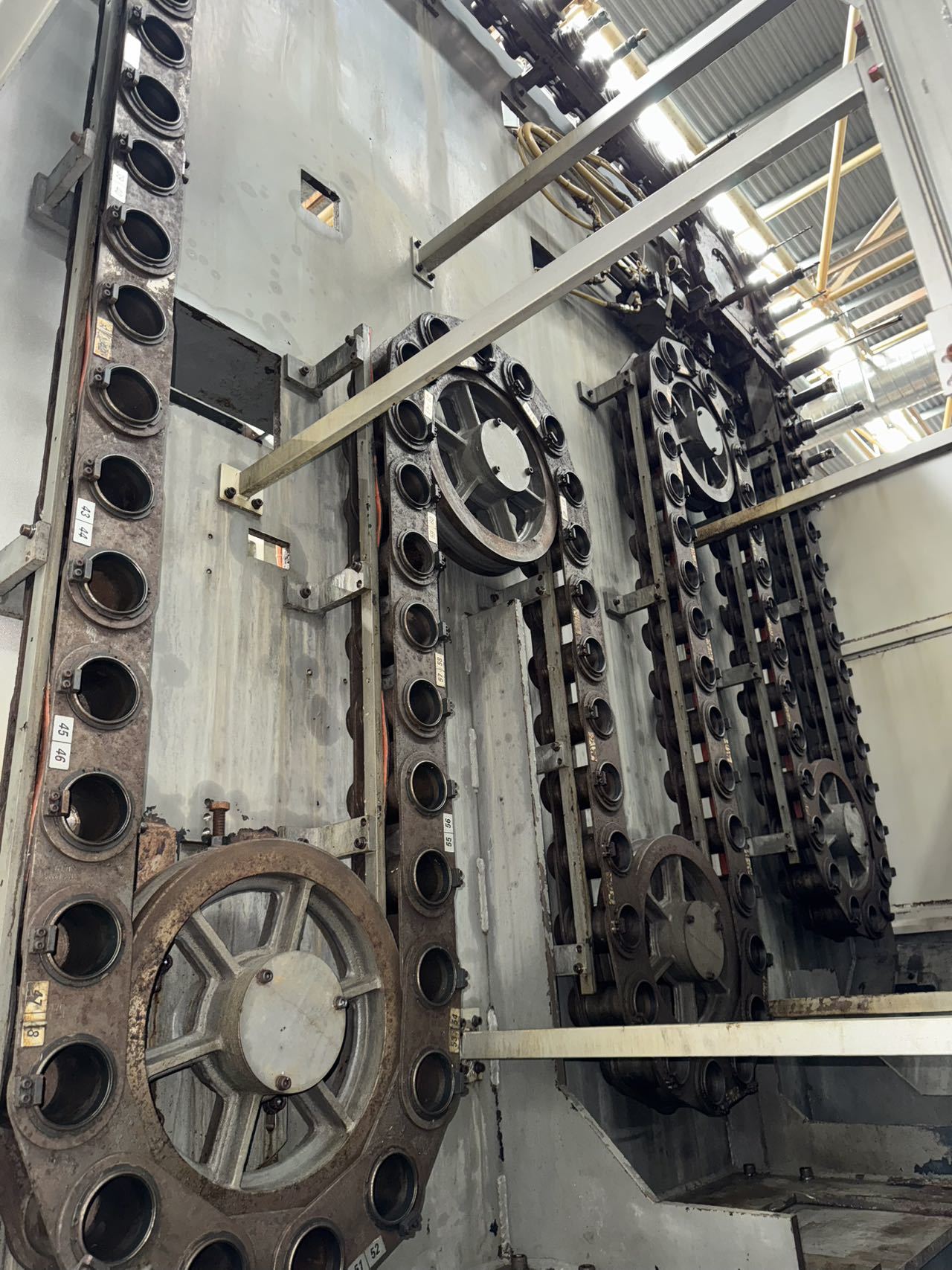

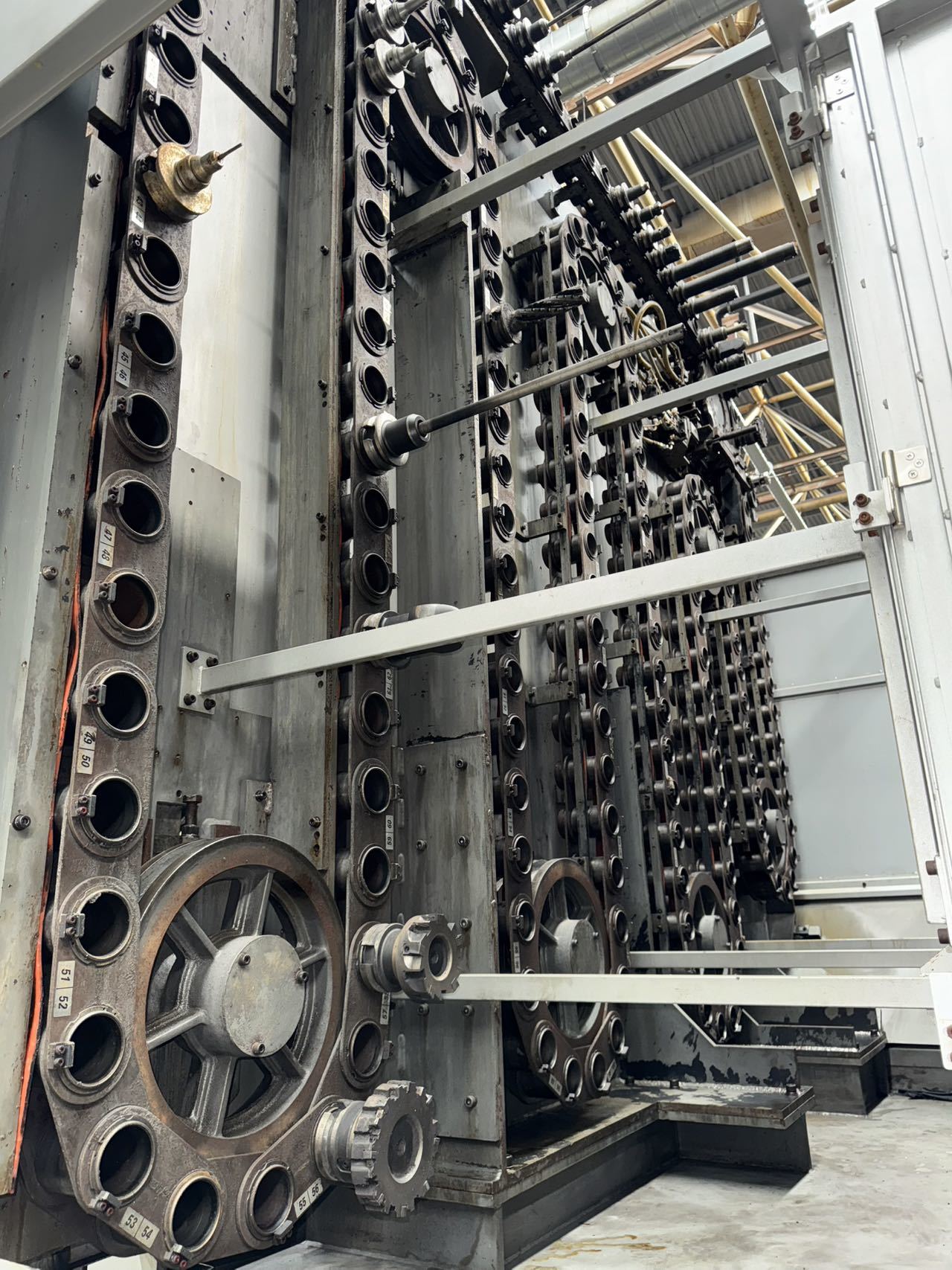

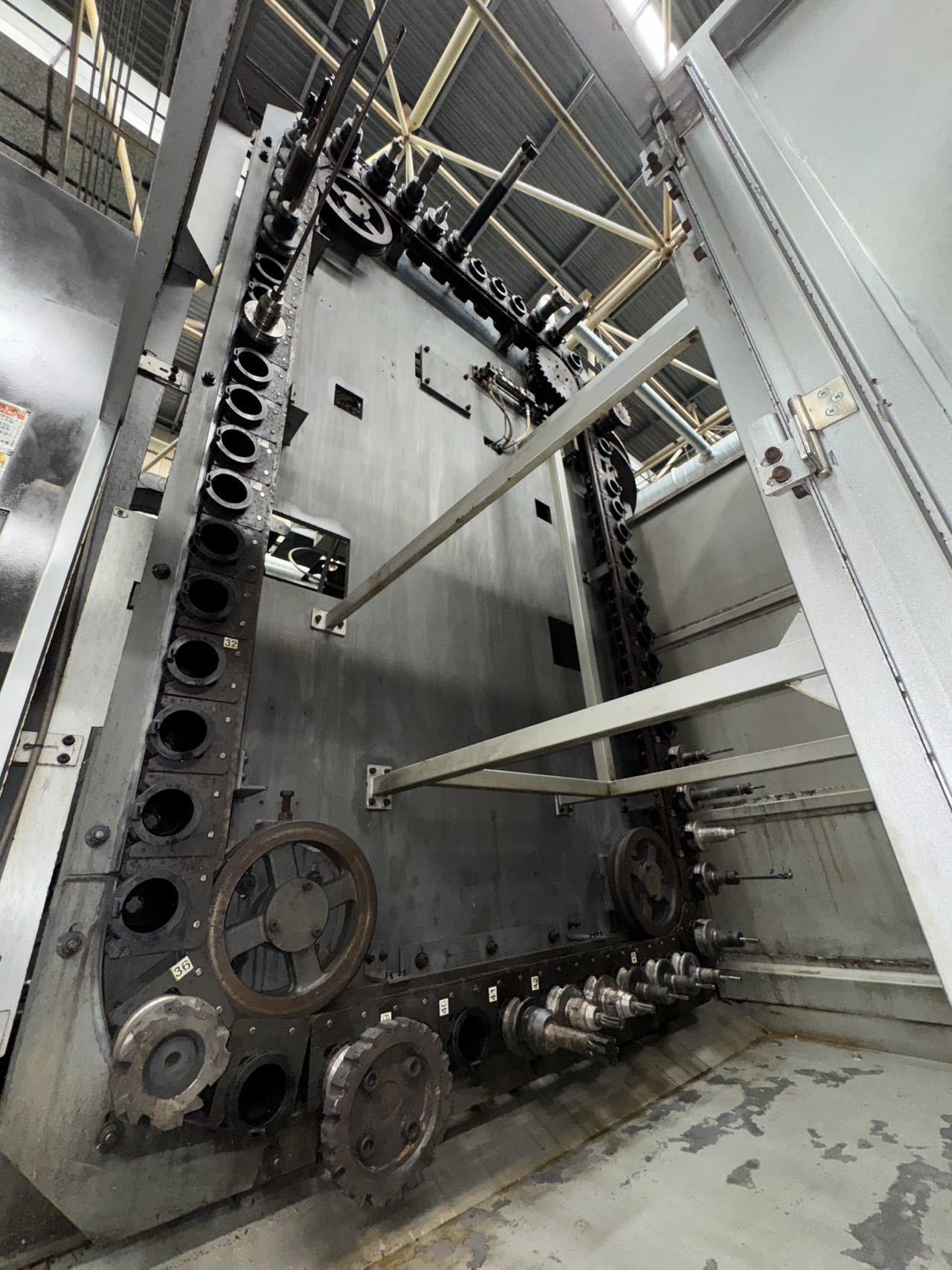

Tool Magazine Options	60 / 120 / 190 tools, depending on machine
Coolant	Through-spindle coolant / center coolant
Feed Range	0.001–24,000 mm/min, according to supplied information
Tool Size Noted	Ø120 × 800 mm
Maximum Tool Weight	35 kg
Maximum Tool Moment	29 N·m
FMS Line Quantity	2 production lines
Machines per FMS Line	8 FA800S machines
Total Machines Referenced	1 units

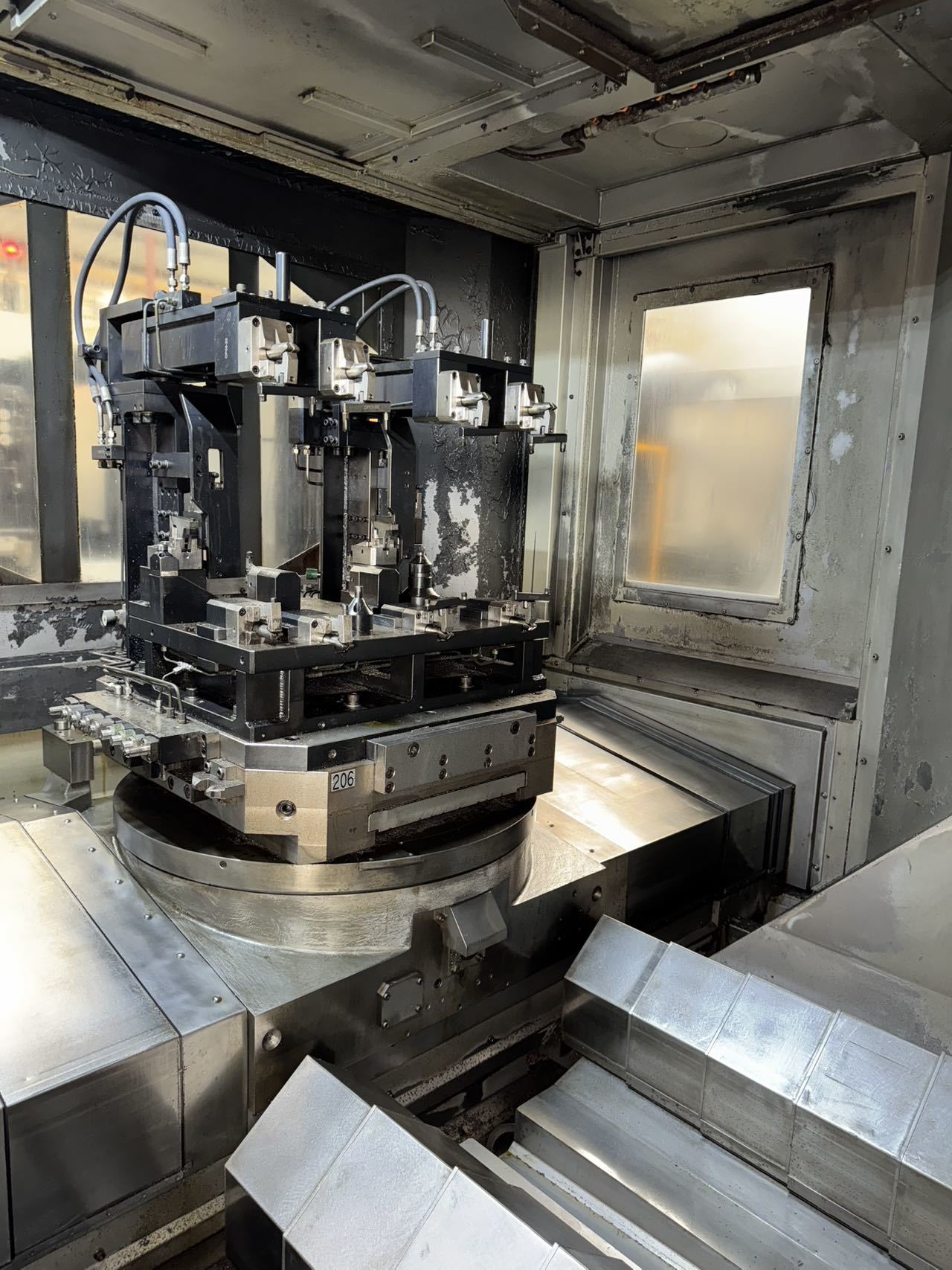

Pallet Capacity	800 × 800 mm, 1,300 kg
Pallets per Line	17
Pallet Transfer Cart	1 per line
Pallet Storage Stations	4 per line

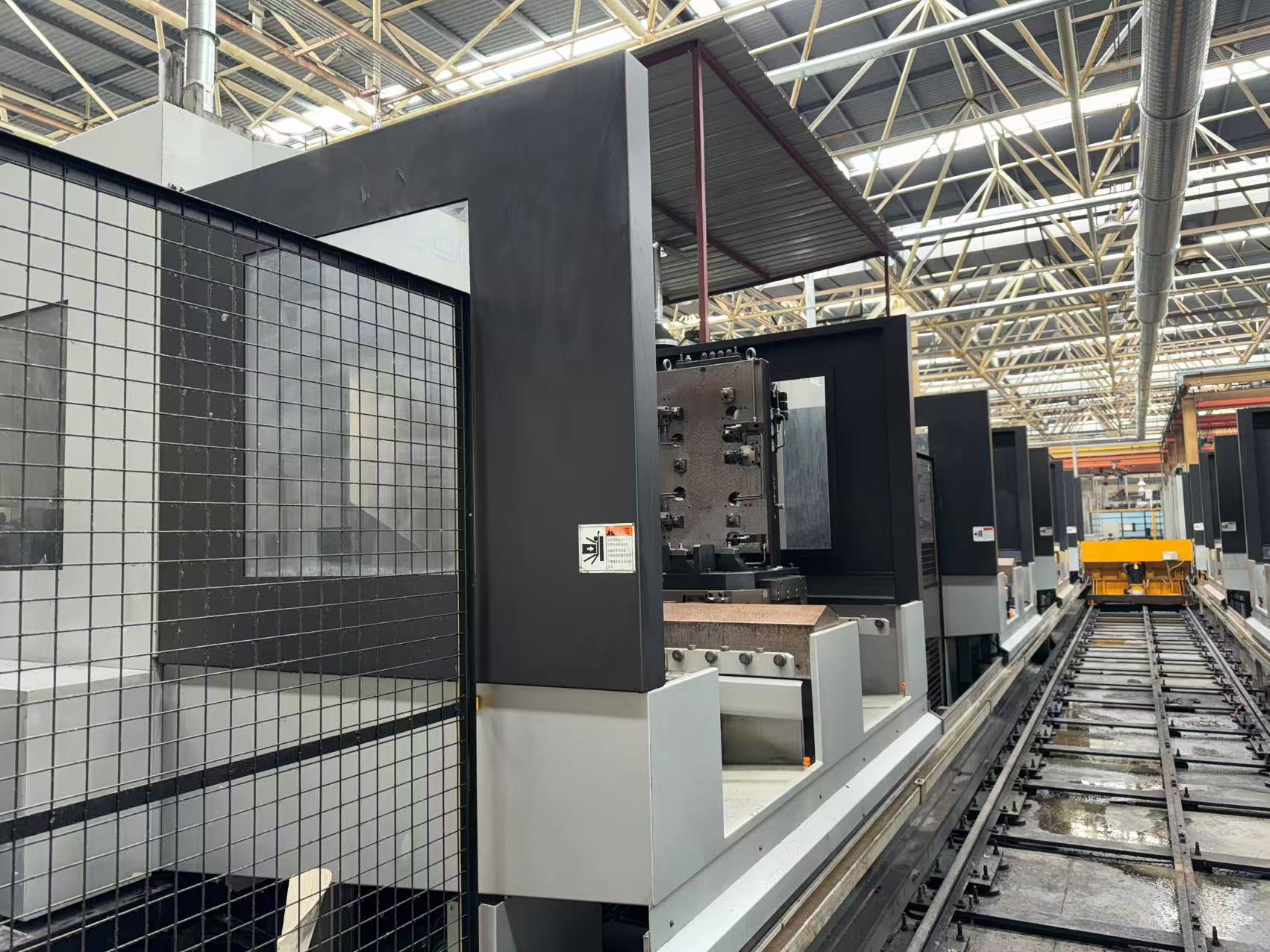

Transfer Rail	1 system per line
Application Previously Used For	Diesel engine cylinder block machining
Example Workpiece	Cylinder block
Workpiece Model	11411-E0630
Workpiece Dimensions	L900 × W430 × H450 mm
Workpiece Material	FC250 equivalent cast iron
Rough Workpiece Weight	Approx. 250 kg

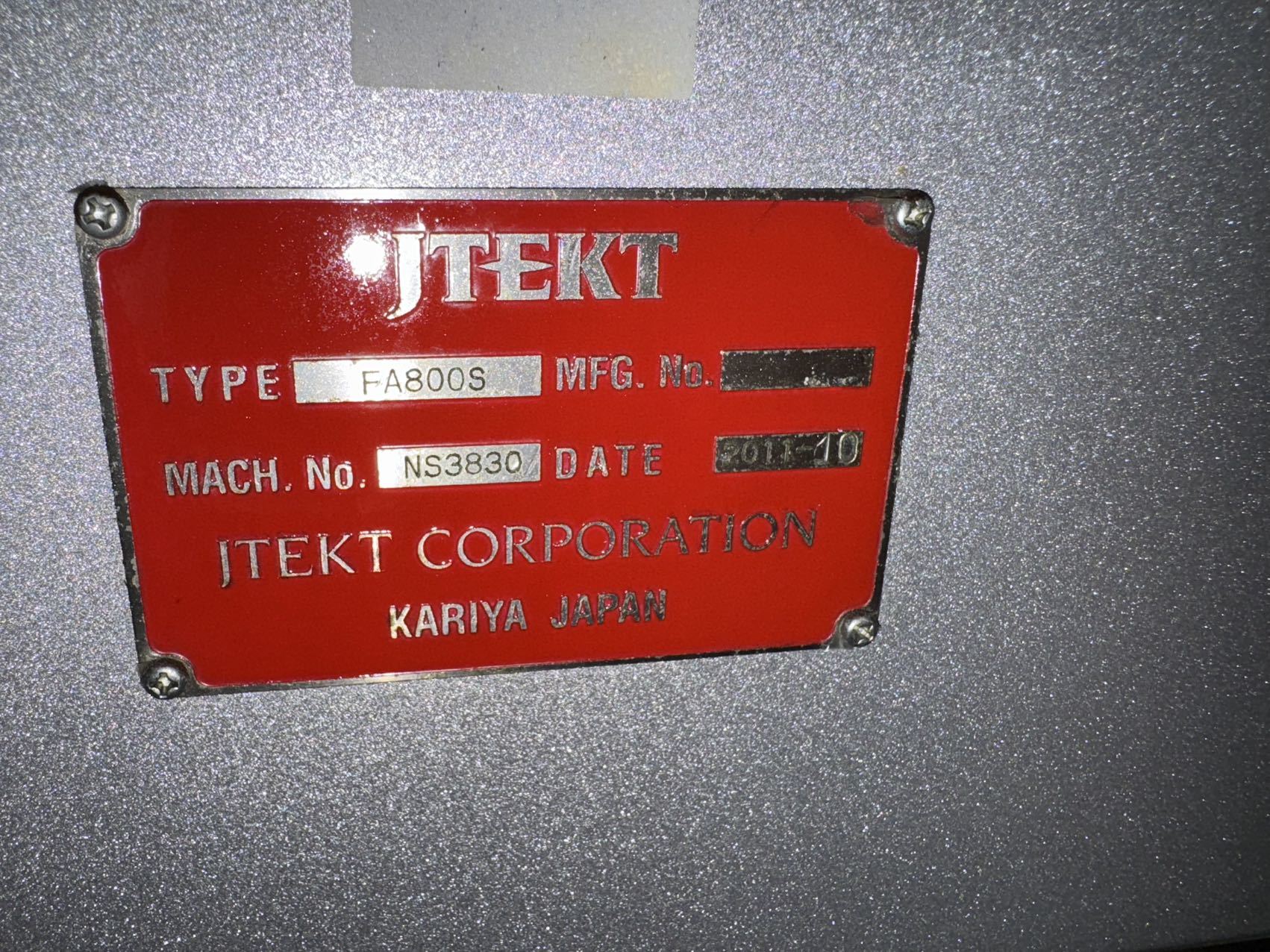

Machine No. Shown in Photo	NS3830
Manufacturing Date Shown	2011/10, subject to nameplate verification

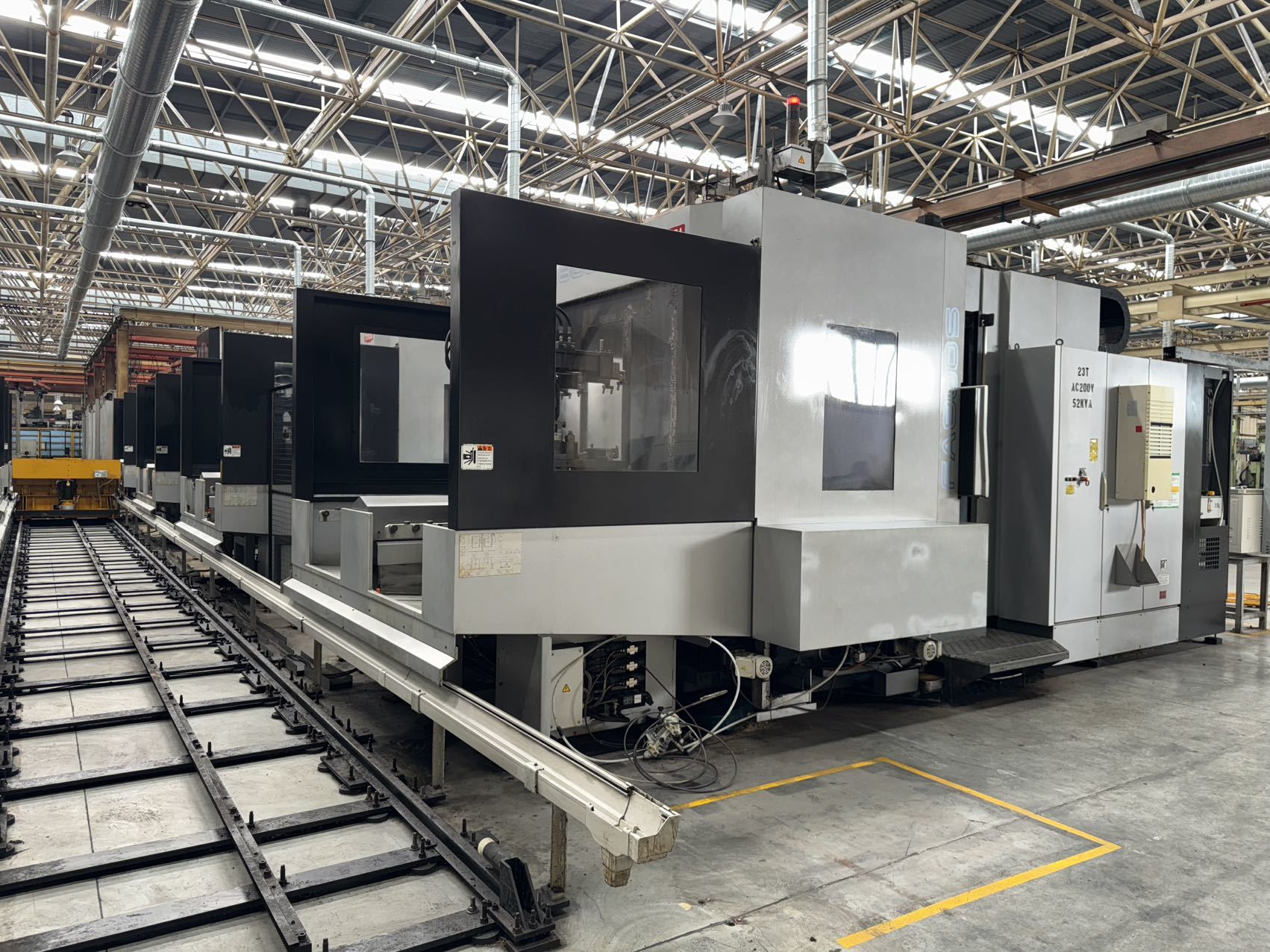

FMS Line Configuration

FMS Line 1: Eight TOYODA FA800S horizontal machining centers are referenced. Four units are listed with BT50, 60-tool magazines, NC pallet indexing and through-spindle coolant. Another four units are referenced with BT50 and 120-tool magazines; however, this configuration is crossed out in one of the supplied source screenshots, so the current quantity and availability should be confirmed before publication or quotation.

FMS Line 2: Eight TOYODA FA800S horizontal machining centers are referenced, including six units with BT50, 190-tool magazines, 1° indexing and through-spindle coolant, plus two units with BT50, 60-tool magazines, NC indexing and through-spindle coolant.

FAQ

What CNC control is installed on the used TOYODA FA800S?

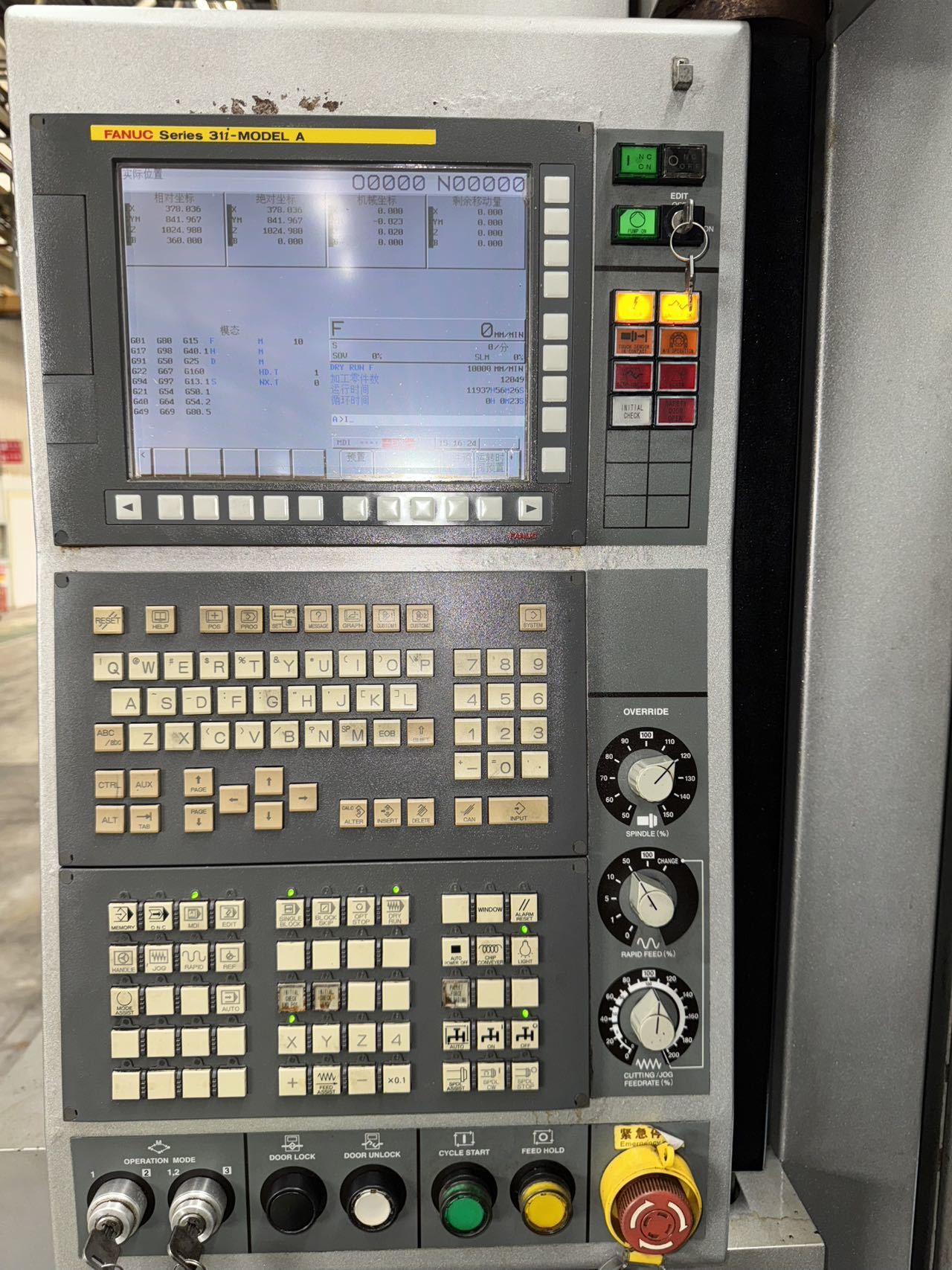

The machines shown are equipped with FANUC Series 31i-MODEL A CNC control. The control panel can be seen clearly in the supplied machine photographs.

What is the pallet size and machining travel of the FA800S?

The supplied specifications show an 800 × 800 mm pallet with approximately 1,350 mm X-axis, 1,150 mm Y-axis and 1,150 mm Z-axis travel. This makes the machine suitable for relatively large components and multi-face machining.

Can these TOYODA FA800S machines be supplied as an FMS production line?

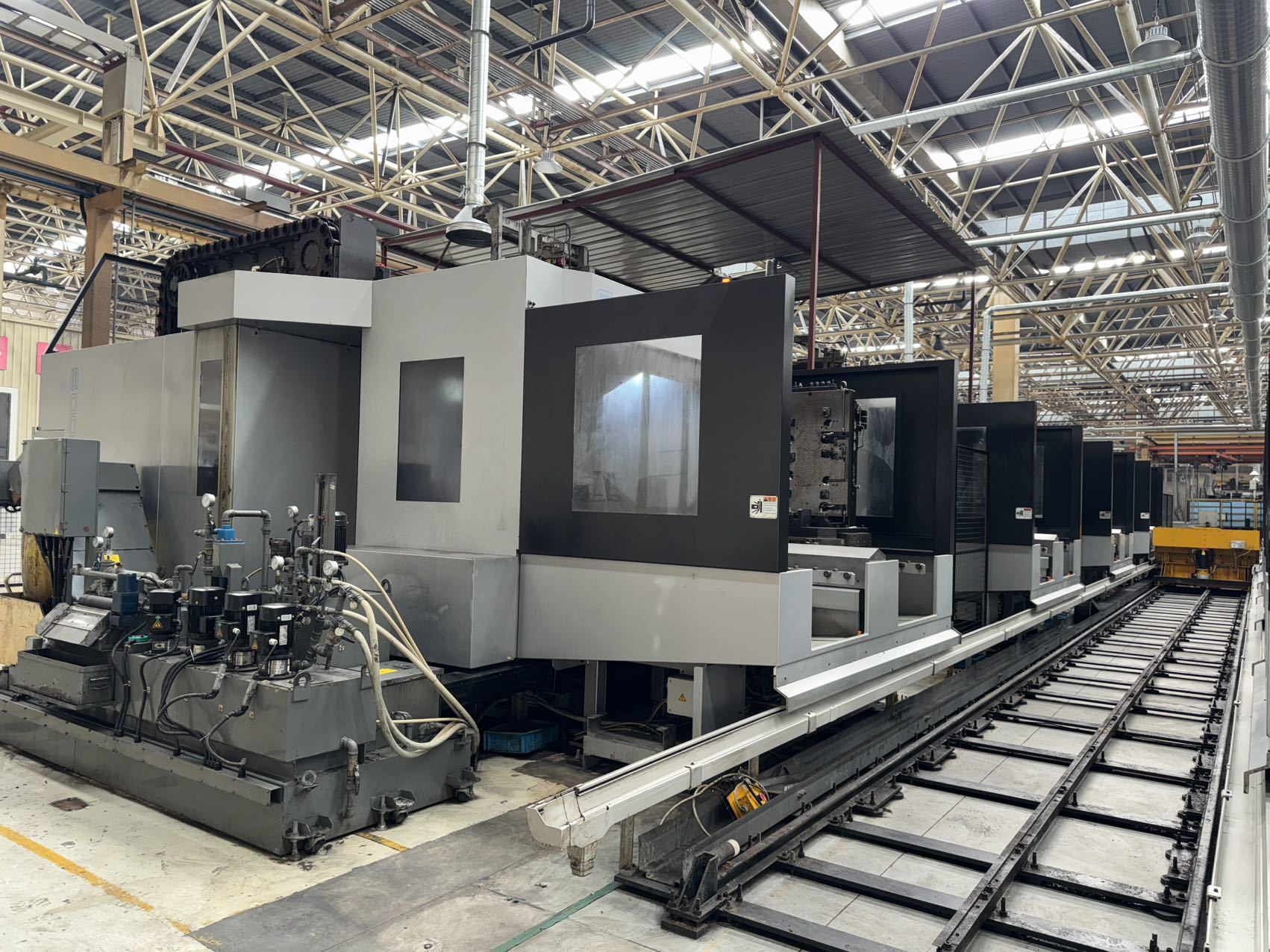

The equipment originates from two FMS diesel-engine machining lines, with eight FA800S machines referenced in each line. The system also includes pallet handling equipment, pallet storage stations and transfer rails. Final available scope should be confirmed before quotation.
