Product Highlight

Used TAIYO KOKI NVG-5L CNC vertical grinding machine from Japan, equipped with FANUC 32i control. Featuring Ø550 mm maximum workpiece capacity, 500 kg table load, and ID/OD grinding capability, this machine is suitable for precision grinding of rings, sleeves, bearings and other rotational components. Approx. 2,777 power-on hours shown on the CNC control.

Product Description

Pre-owned TAIYO KOKI NVG-5L CNC vertical grinding machine made in Japan, equipped with a FANUC Series 32i control. With a maximum workpiece diameter of Ø550 mm, ID grinding capacity from Ø30 to Ø350 mm, 1 μm roundness capability and a 500 kg workpiece load, this used vertical grinder is a strong option for precision internal and external cylindrical grinding applications.

Technical Specifications

Specification	Details
Manufacturer	TAIYO KOKI
Model	NVG-5L
Machine Type	CNC Vertical Grinding Machine / Vertical Grinder
Condition	Used / Pre-owned
Country of Origin	Japan
CNC Control	FANUC Series 32i-Model A
X-Axis Travel	1,125 mm
Z-Axis Travel	550 mm
Maximum Workpiece Load	500 kg
Grinding Wheel Weight	30 kg
Spindle Speed	20–200 min⁻¹
Grinding Wheel Size Range	Ø25–Ø205 mm*
Grinding Wheel Speed	3,000–15,000 min⁻¹
Maximum Workpiece Diameter	Ø550 mm
ID Grinding Diameter	Ø30–Ø350 mm
Maximum OD Grinding Diameter	Ø550 mm
ID Grinding Length	Up to 225 mm for Ø200 mm ID; up to 300 mm for IDs above Ø200 mm*
Grinding Roundness	1 μm*
Minimum Feed Increment	0.0001 mm
Rapid Traverse Rate	24,000 mm/min
Chip / Coolant System	Flushing type with magnetic separator
Approx. Machine Dimensions	3,100 × 2,940 × 3,250 mm
Power-On Time	Approx. 2,777 hours**

Specifications are based on the information supplied with the machine and should be confirmed before purchase.

Applications & Suitable Workpieces

The used TAIYO KOKI NVG-5L vertical grinder is suitable for manufacturers that need accurate ID, OD and face grinding of medium to large rotational components.

Typical applications include:

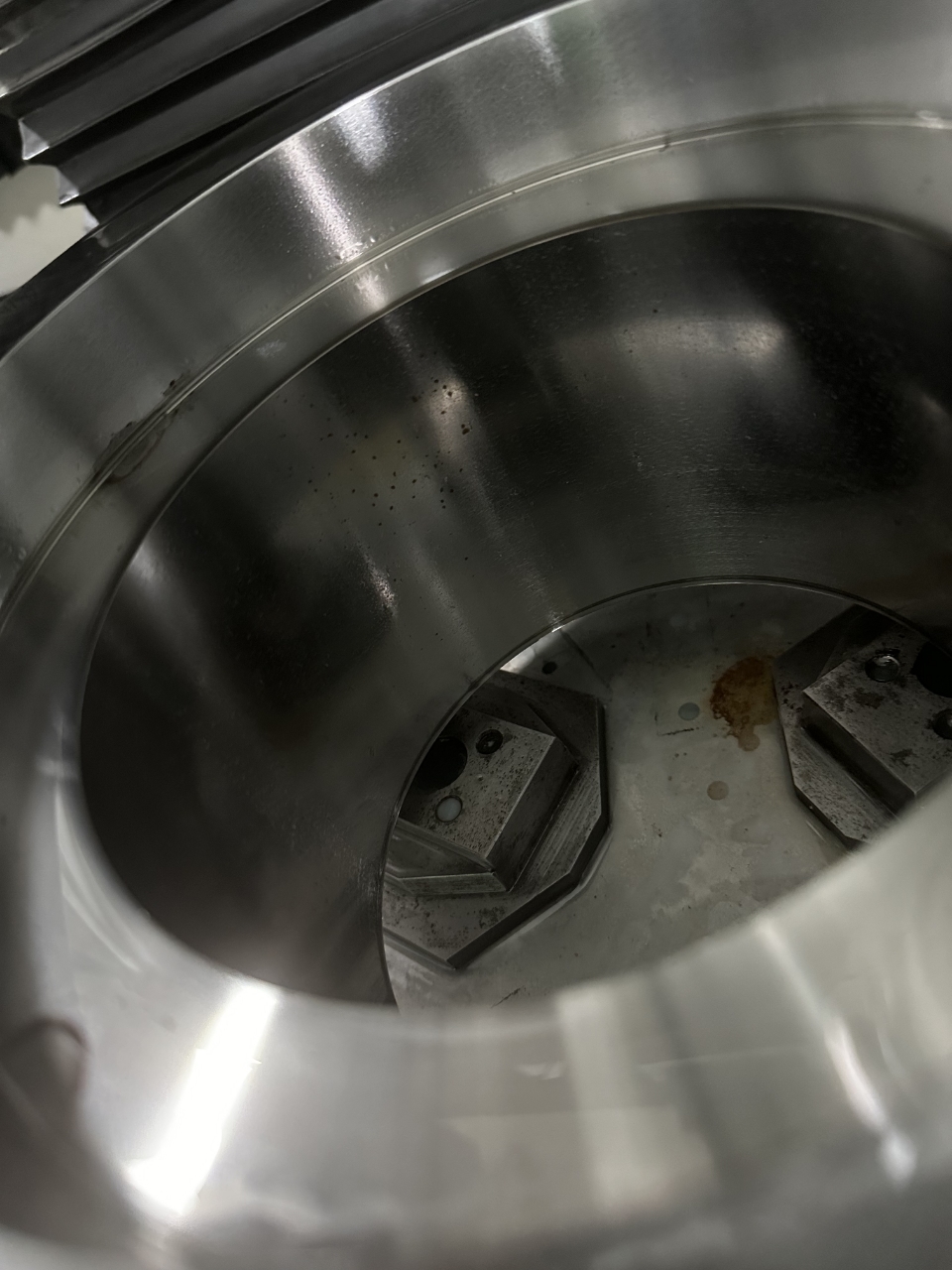

Internal diameter grinding of precision bores and cylindrical components

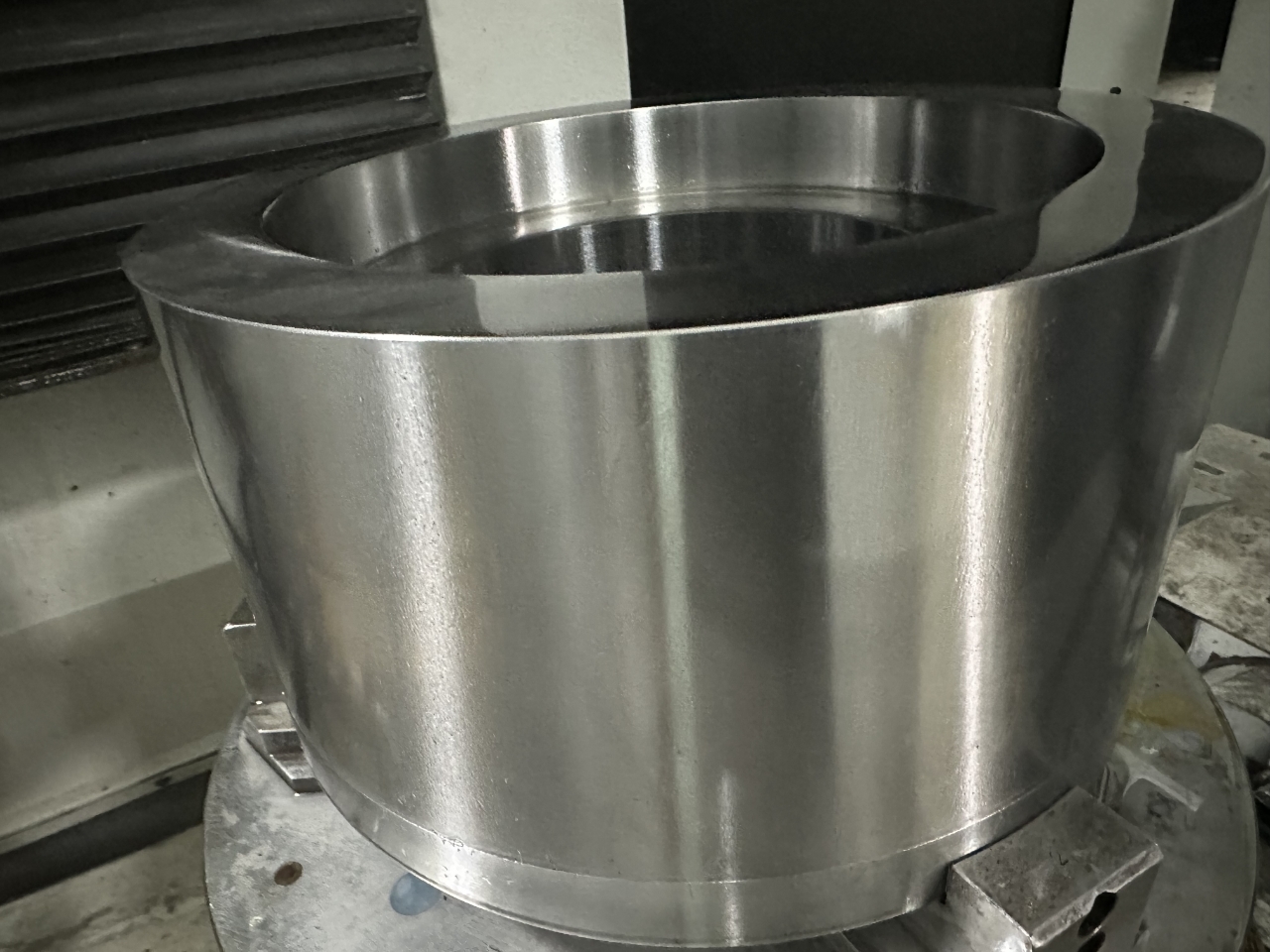

External diameter grinding of rings, sleeves and rotational parts
Face grinding where perpendicularity and dimensional accuracy are important
Precision grinding of bearing components
Grinding of gear-related components and transmission parts
Machining of large rings, flanges and sleeves
Precision finishing of automotive and industrial components
Production of components requiring tight roundness and dimensional tolerances
Heavy workpieces where a vertical grinding configuration provides easier loading and stable support

The vertical machine configuration is particularly useful for heavier circular workpieces because the workpiece is supported by gravity rather than being suspended horizontally.

Why Consider This Used TAIYO KOKI NVG-5L?

When a factory needs additional precision grinding capacity, purchasing a new Japanese vertical grinder can involve a significant capital investment and long delivery cycle.

This pre-owned TAIYO KOKI NVG-5L CNC vertical grinder provides an alternative for buyers who want established Japanese machine-tool technology while controlling equipment investment.

The machine is equipped with a FANUC Series 32i CNC control and provides both internal and external grinding capability for workpieces up to approximately Ø550 mm.

Its combination of a 500 kg workpiece capacity, 1 μm stated roundness specification, 0.0001 mm minimum feed increment and high-speed grinding spindle makes it especially relevant for precision component manufacturers, machine shops and factories upgrading their cylindrical grinding capacity.

FAQ

Is this TAIYO KOKI NVG-5L a new or used machine?

This is a used / pre-owned TAIYO KOKI NVG-5L CNC vertical grinding machine, not a new machine. The listing is intended for buyers looking for second-hand Japanese precision grinding equipment.

What is the maximum workpiece size of the TAIYO KOKI NVG-5L?

According to the available machine specifications, the NVG-5L can accommodate workpieces up to approximately Ø550 mm, with a maximum stated workpiece load of 500 kg.

Can this vertical grinder perform both ID and OD grinding?

Yes. The available specifications indicate an ID grinding range of approximately Ø30–Ø350 mm and a maximum OD grinding diameter of approximately Ø550 mm, making the machine suitable for both internal and external grinding applications.

What CNC control is installed on this used NVG-5L?

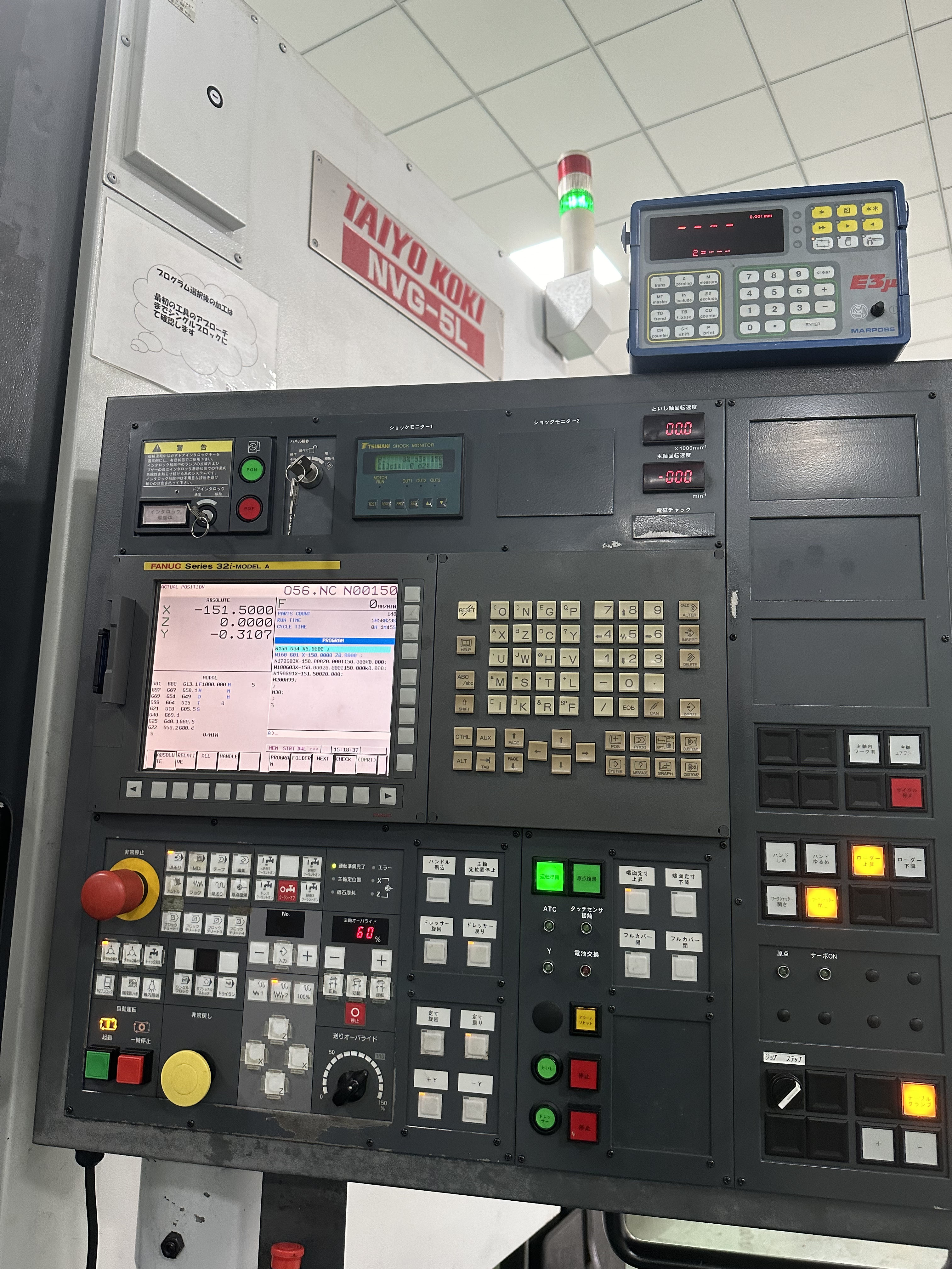

The machine is equipped with a FANUC Series 32i-Model A CNC control. The supplied photographs show the FANUC control panel and machine operating interface.

How many operating hours does this TAIYO KOKI grinder have?

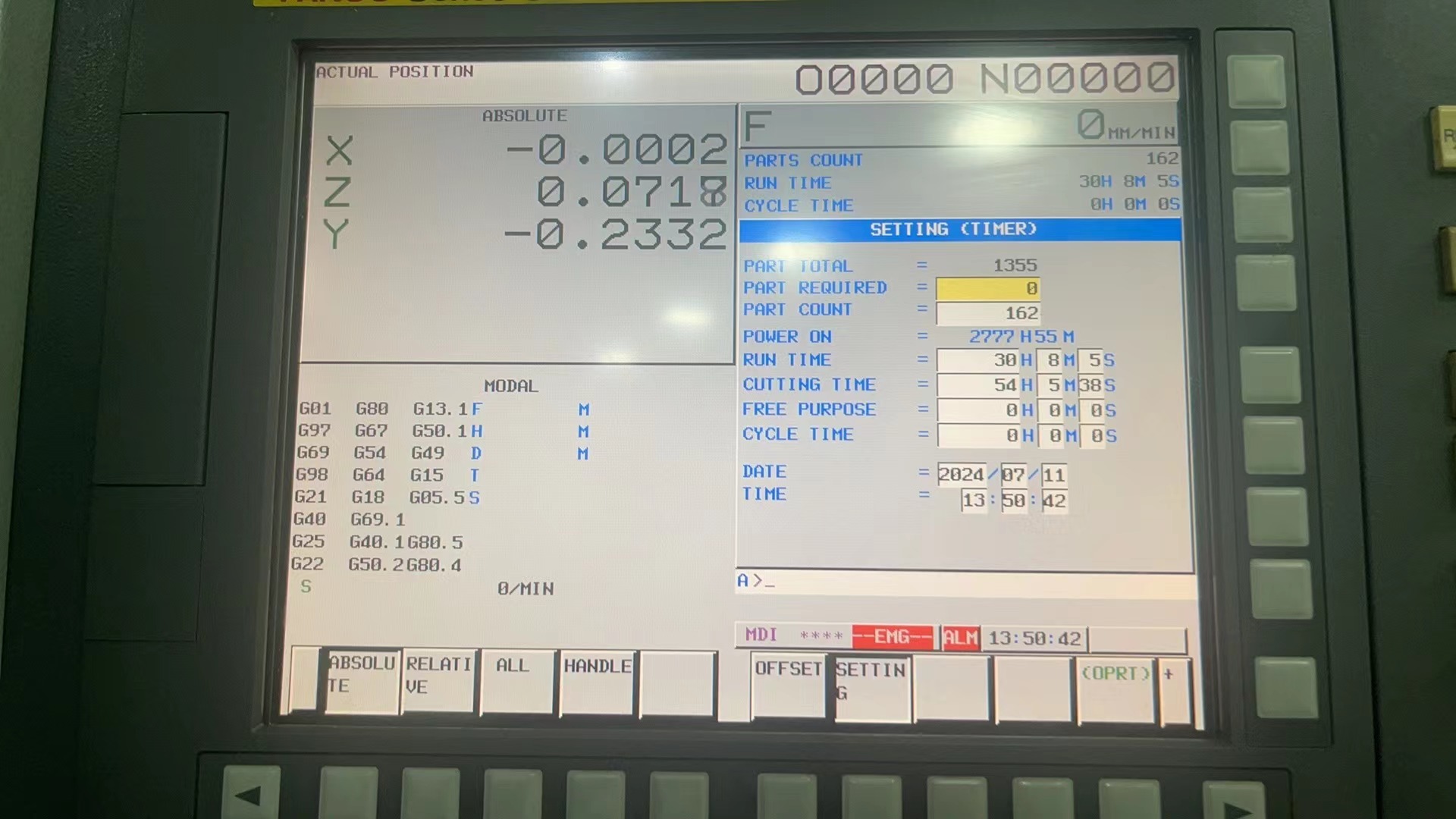

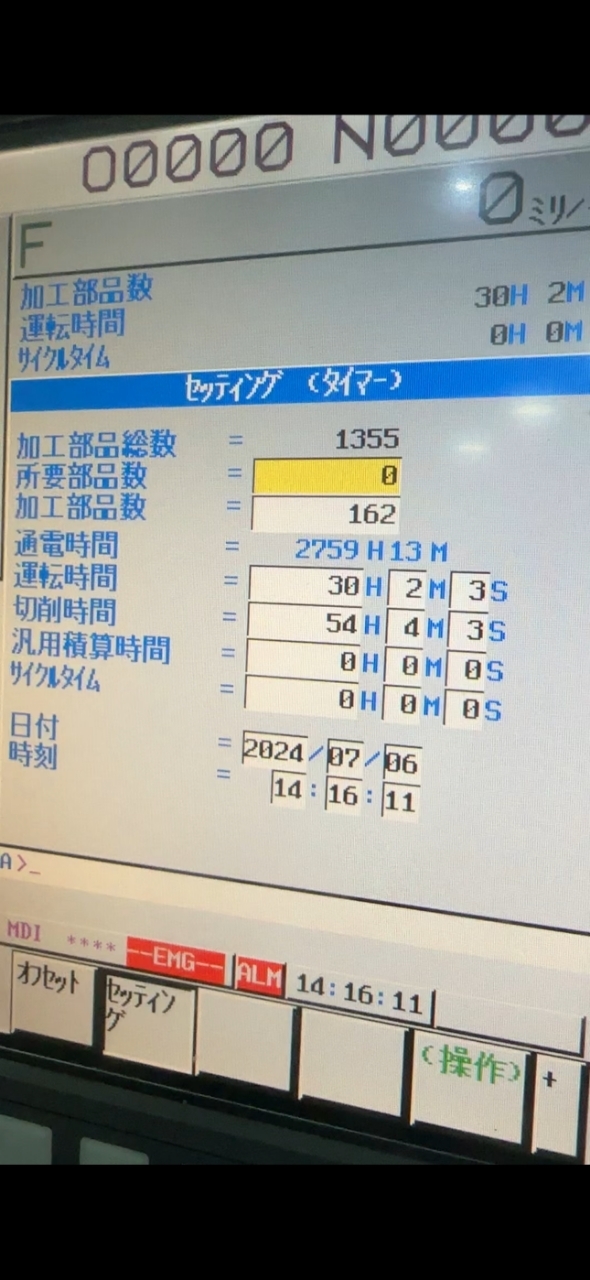

The latest photographed FANUC timer shows approximately 2,777 power-on hours. Operating-hour data should be reconfirmed with the seller before final purchase because the machine may accumulate additional hours.
