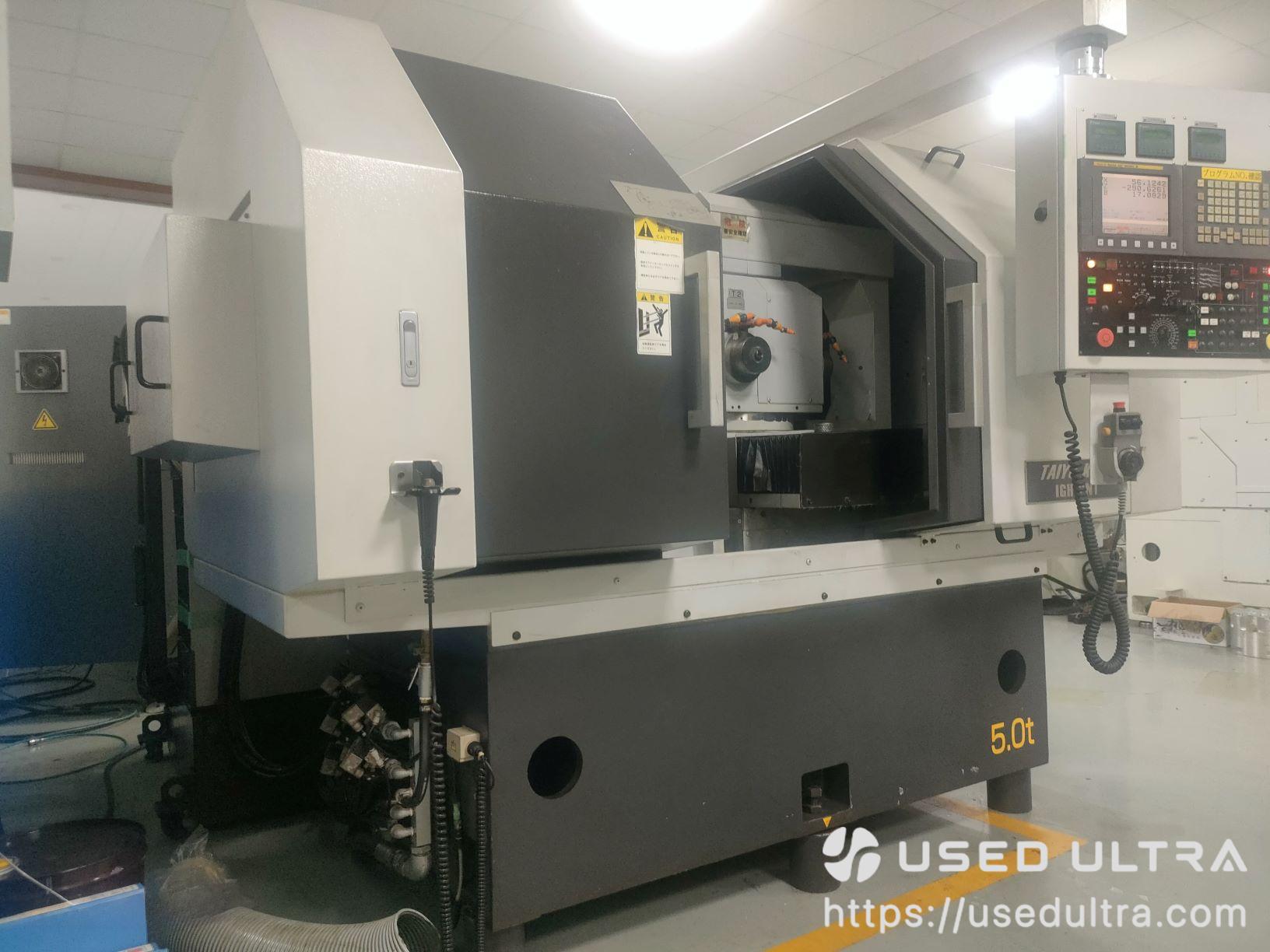

Used TAIYO KOKI IGH-2NT CNC Grinding Machine
Product Description
Used TAIYO KOKI IGH-2NT CNC grinding machine from Japan, equipped with FANUC 32i-B CNC system, B-axis rotary capability and C-axis workpiece control. Ideal for precision internal and external cylindrical grinding applications with a machining diameter range of 3–200 mm.
Machine Specifications
| Item | Specification |
|---|---|
| Machine Brand | TAIYO KOKI |
| Model | IGH-2NT |
| Machine Type | CNC Internal & External Grinding Machine |
| Origin | Japan |

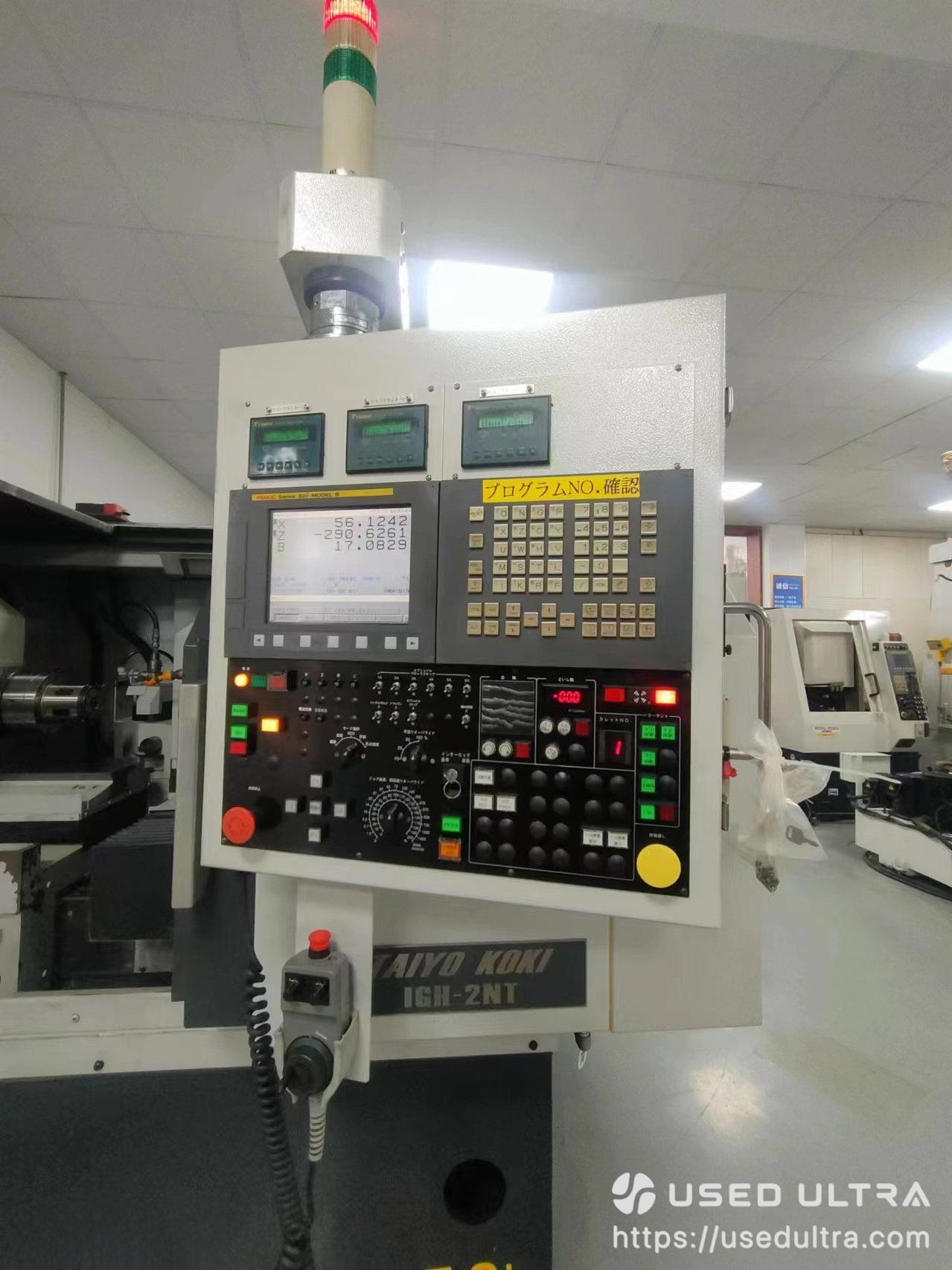

| CNC Control | FANUC 32i-B |
| Condition | Used Machine |
| Year of Manufacture | 2012 |
| X Axis Travel | 250 mm |
| Z Axis Travel | 400 mm |
| B Axis Rotation | +1° / -16° |
| B Axis Resolution | 0.0001 mm |
| Grinding Diameter Range | Ø3–200 mm |
| Maximum Grinding Length | 150 mm |
| Workpiece Spindle Diameter | Ø300 mm |
| Workpiece Spindle Speed | 50–1000 min⁻¹ |
| X Axis Rapid Feed Rate | 0–12 m/min |
| Z Axis Rapid Feed Rate | 0–24 m/min |
| Wheel Spindle Quantity | 3 units |
| Turret Rotation Angle | 90° |
| Machine Weight | Approx. 5,000 kg |

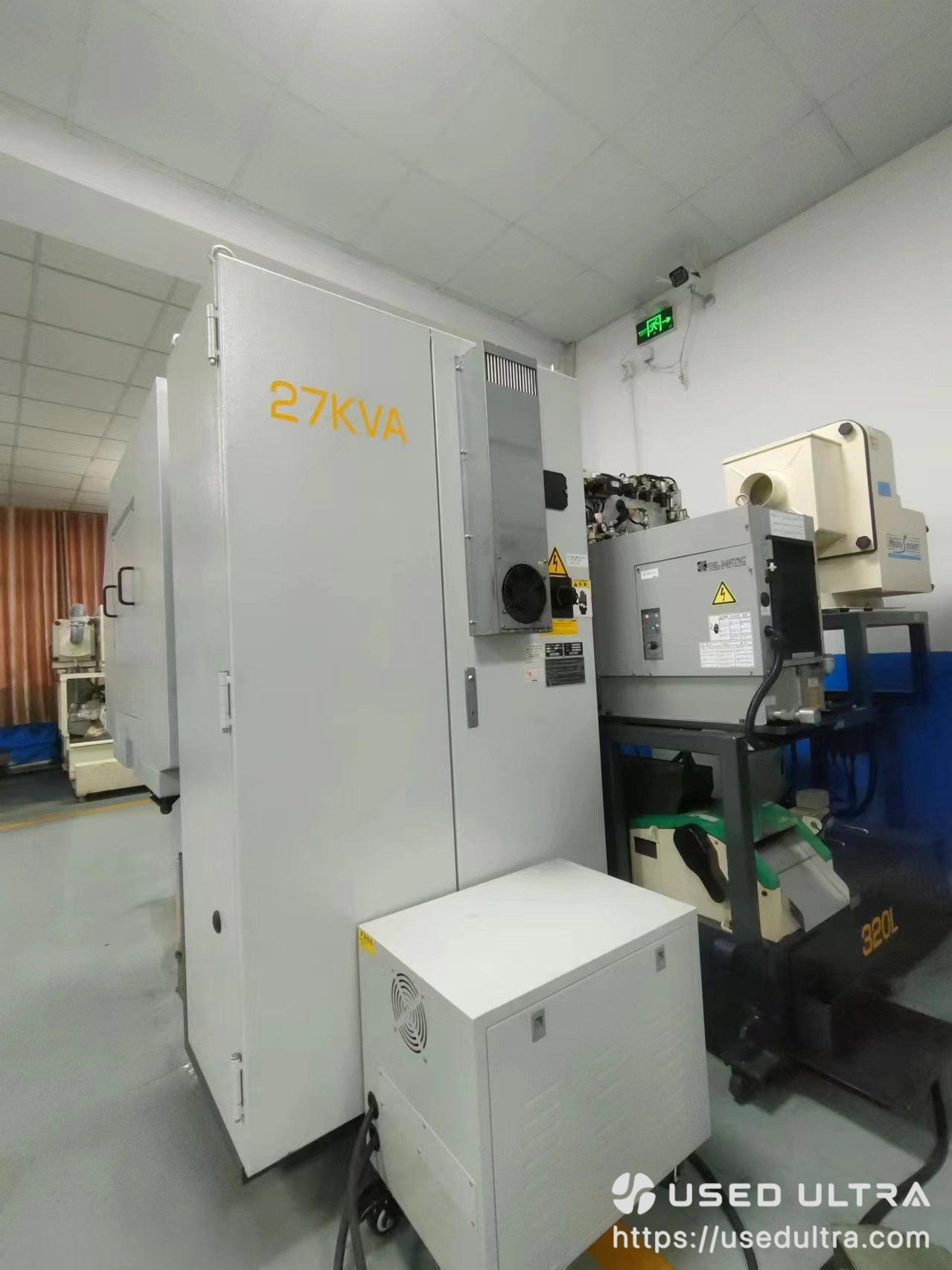

| Power Capacity | 27 kVA |

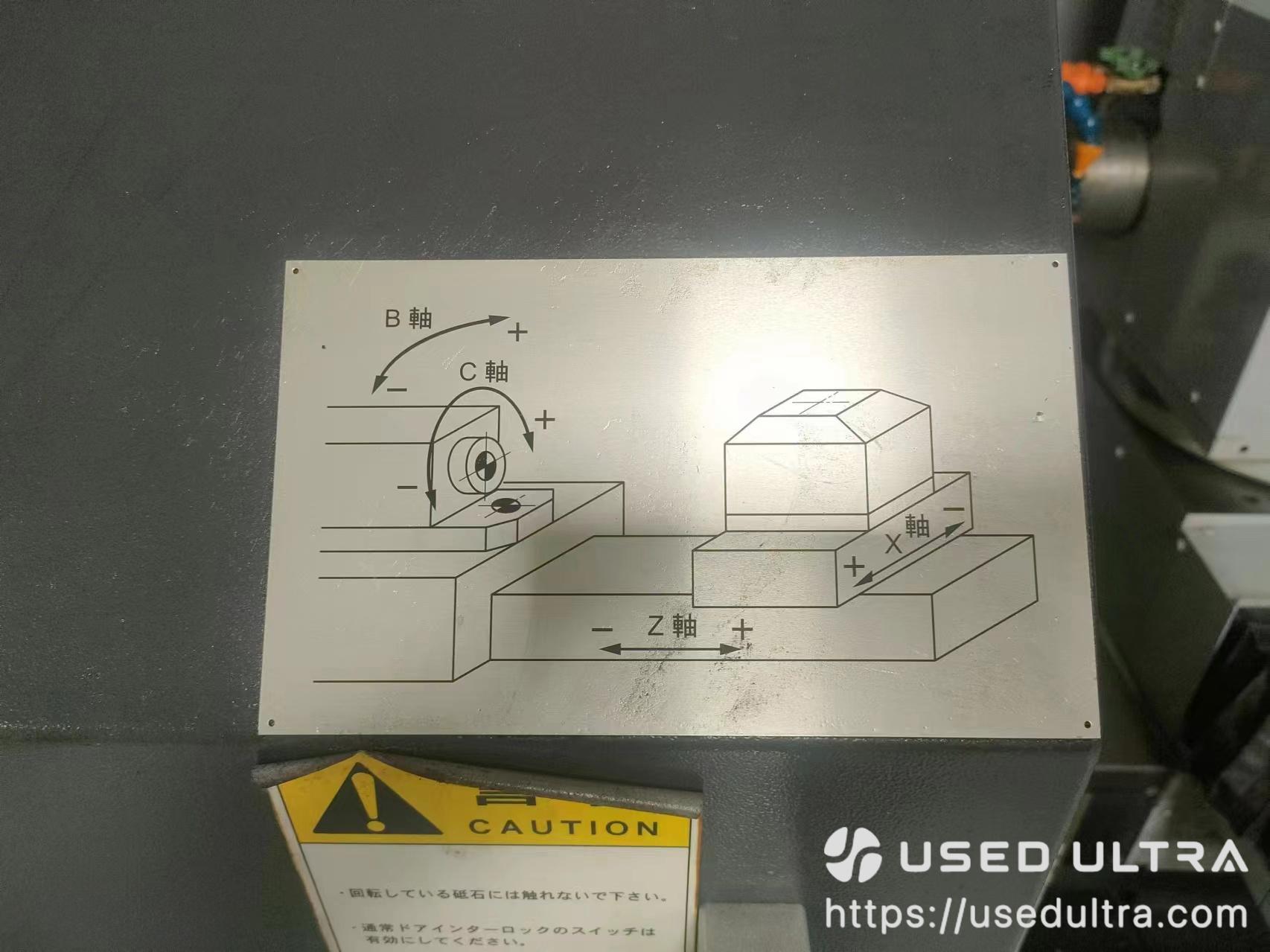

| CNC Features | X/Z/B/C axis control, precision grinding control |
| Accessories Included | Oil mist collector, water tank, oil collector, filtration system, complete documentation |
Product Application & Suitable Industries
Used TAIYO KOKI IGH-2NT CNC grinding machine is designed for high-accuracy internal and external grinding operations where surface finish and dimensional precision are critical.
Typical applications include:
- Precision cylindrical grinding
- Internal hole grinding
- External diameter grinding
- Small and medium precision components
- Hydraulic components
- Automotive parts
- Aerospace precision parts
- Bearing components
- Mold and die components
- Medical equipment parts
- High-precision mechanical parts
This machine is suitable for manufacturers requiring Japanese grinding technology with lower investment costs compared with purchasing new CNC grinding equipment.
FAQ
What materials can be processed by this CNC grinding machine?
The IGH-2NT is commonly used for grinding precision metal components such as steel, hardened steel, alloy materials and other industrial parts.
What is the maximum grinding diameter of this machine?
The machine supports grinding diameters from approximately Ø3 mm to Ø200 mm.
Does the machine include accessories?
Yes. The machine comes with accessories including oil mist collector, water tank, oil collector, filtration system and related documentation.
$90000.00
Used machine prices fluctuate with the market — this price is for reference only and is not a real-time quote.
Brand
TAIYO KOKI
Model
IGH-2NT
Origin
JP
Processing Time
1631h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 9 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check

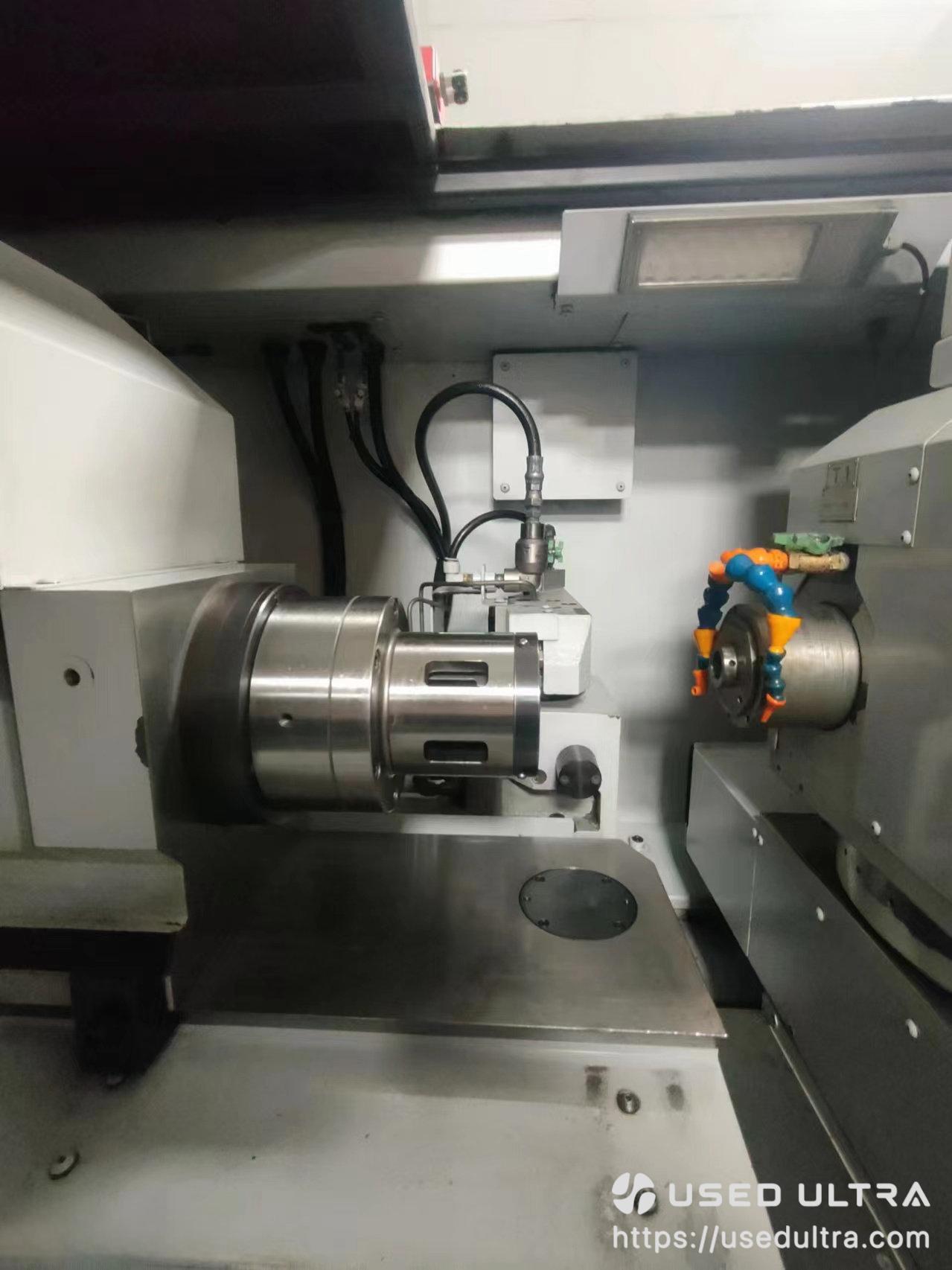

- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
