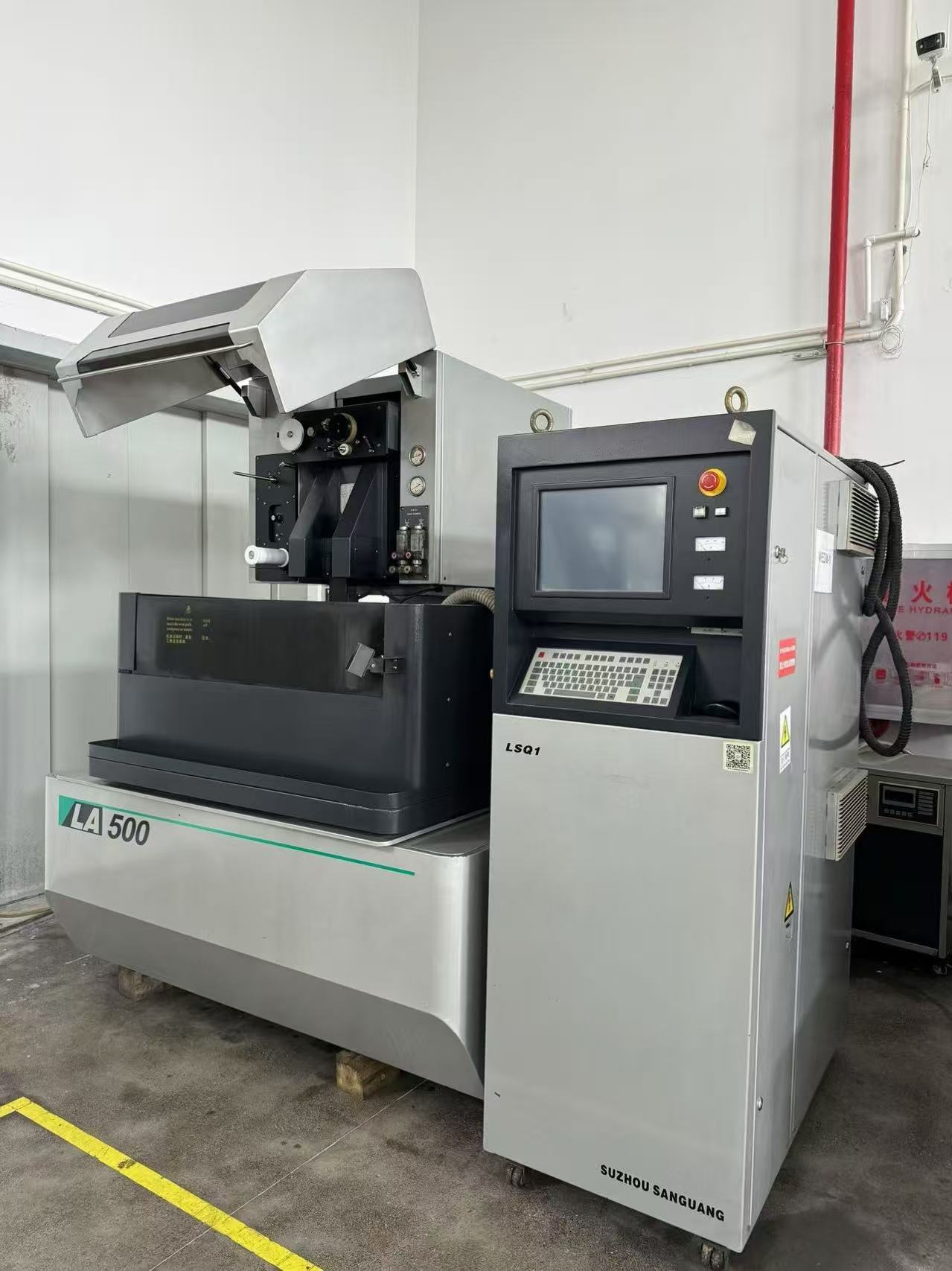

Used Suzhou Sanguang LA500 CNC Wire Cut EDM Machine
Product Description
This used Suzhou Sanguang LA500 CNC wire-cut EDM machine is available . Built in 2013, it offers a 500 × 350 mm worktable travel, 260 mm cutting thickness, closed-loop control, touch-screen operation, and reliable performance for precision metal cutting applications. A cost-effective choice for workshops looking for a second-hand wire EDM machine with proven machining capability.
Technical Specifications
| Item | Specification |
|---|---|
| Machine Type | CNC Wire-Cut EDM Machine |
| Brand | Suzhou Sanguang / Sanguang Science & Technology |
| Model | LA500 |
| Condition | Used / Second-hand |
| Year of Manufacture | 2013 |
| Location | Kunshan Warehouse, China |
| Worktable Travel | 500 × 350 mm |
| XYZ Travel | 500 × 350 × 270 mm |
| Worktable Size | 745 × 510 mm |
| Max. Workpiece Weight | 700 kg |
| Max. Workpiece Thickness | 260 mm |
| Max. Taper Cutting Angle | ±15° / 100 mm, total 30° / 100 mm shown on nameplate |
| Max. Cutting Speed | >210 mm/min |
| Electrode Wire Diameter | 0.15–0.30 mm |
| Machining Method | Flushing / Jet Cutting |
| Machine Dimensions | 2420 × 2500 × 2150 mm |
| Machine Weight | Approx. 2640 kg |
| Control System | Closed-loop control |
| Guide & Drive System | Imported linear scale with THK screw/guide system |
| Power Supply | LRT1 intelligent power supply |
| Operation Interface | Windows XP-based touch-screen control panel |
Applications & Suitable Working Scenarios
The used LA500 CNC wire-cut EDM machine is suitable for precision cutting of conductive metal materials, especially where conventional machining is difficult. It can be used for mold parts, tooling inserts, precision plates, dies, punches, electrodes, fixtures, mechanical components, and complex profile cutting.
This second-hand wire EDM machine is ideal for mold factories, precision machining workshops, tool and die manufacturers, spare parts processing centers, and companies looking to reduce equipment investment while maintaining stable EDM cutting capability.
FAQ
What is the maximum cutting thickness of this used LA500 EDM machine?
The maximum workpiece thickness is 260 mm, making it suitable for many mold, tooling, and precision metal cutting jobs.
Can this machine cut tapered parts?
Yes. The machine supports taper cutting, with a rated taper capacity of ±15° / 100 mm, while the nameplate shows 30° / 100 mm.
What type of control system does the machine use?
This LA500 is equipped with a closed-loop control system, linear scale feedback, and a Windows XP-based touch-screen interface.
$29412.00
Brand
Sanguang
Model
LA500
Origin
CN
Processing Time
5216h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 7 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
