Used Sodick K1BL EDM Drilling Machine Japan
Product Description

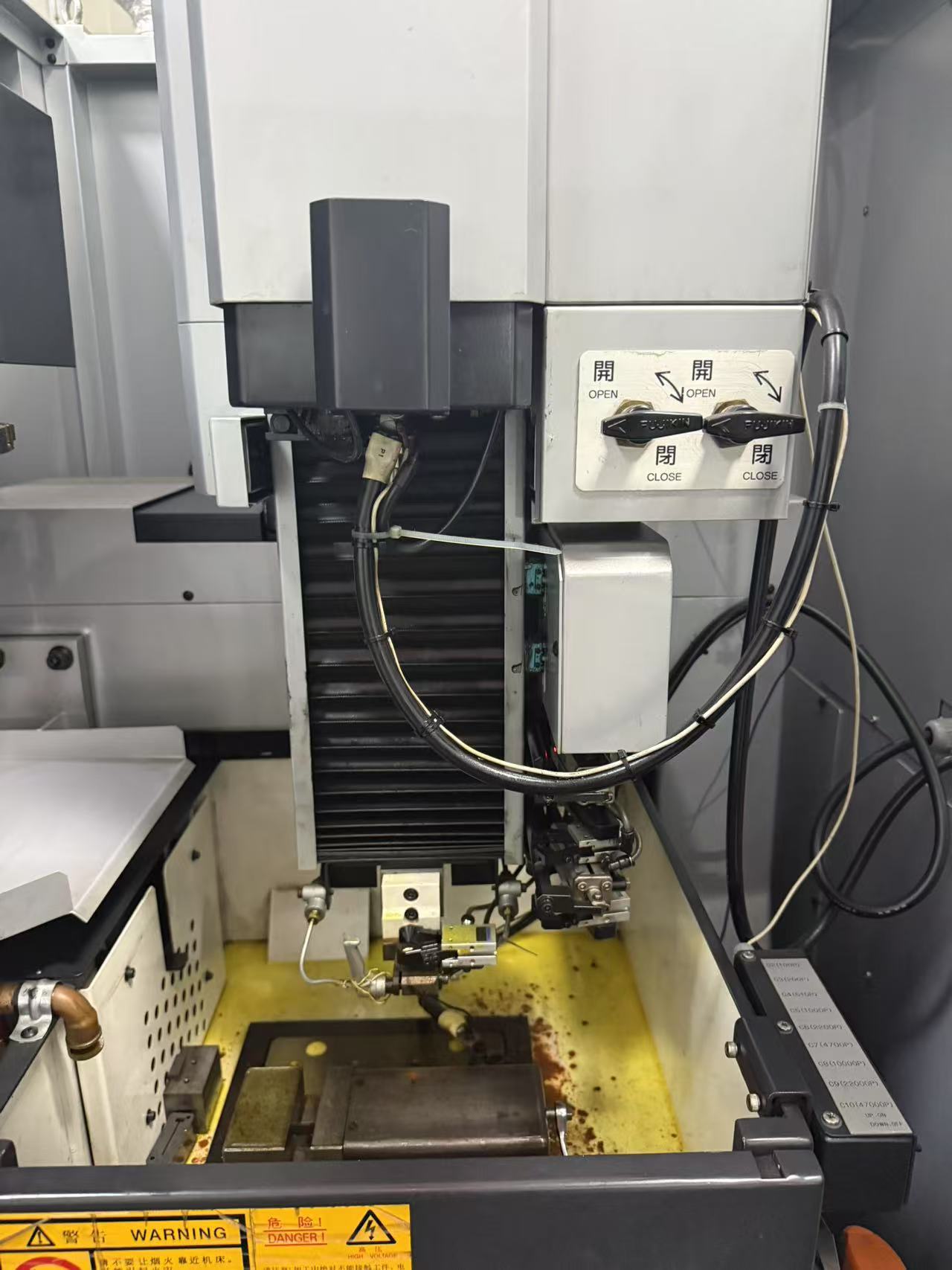

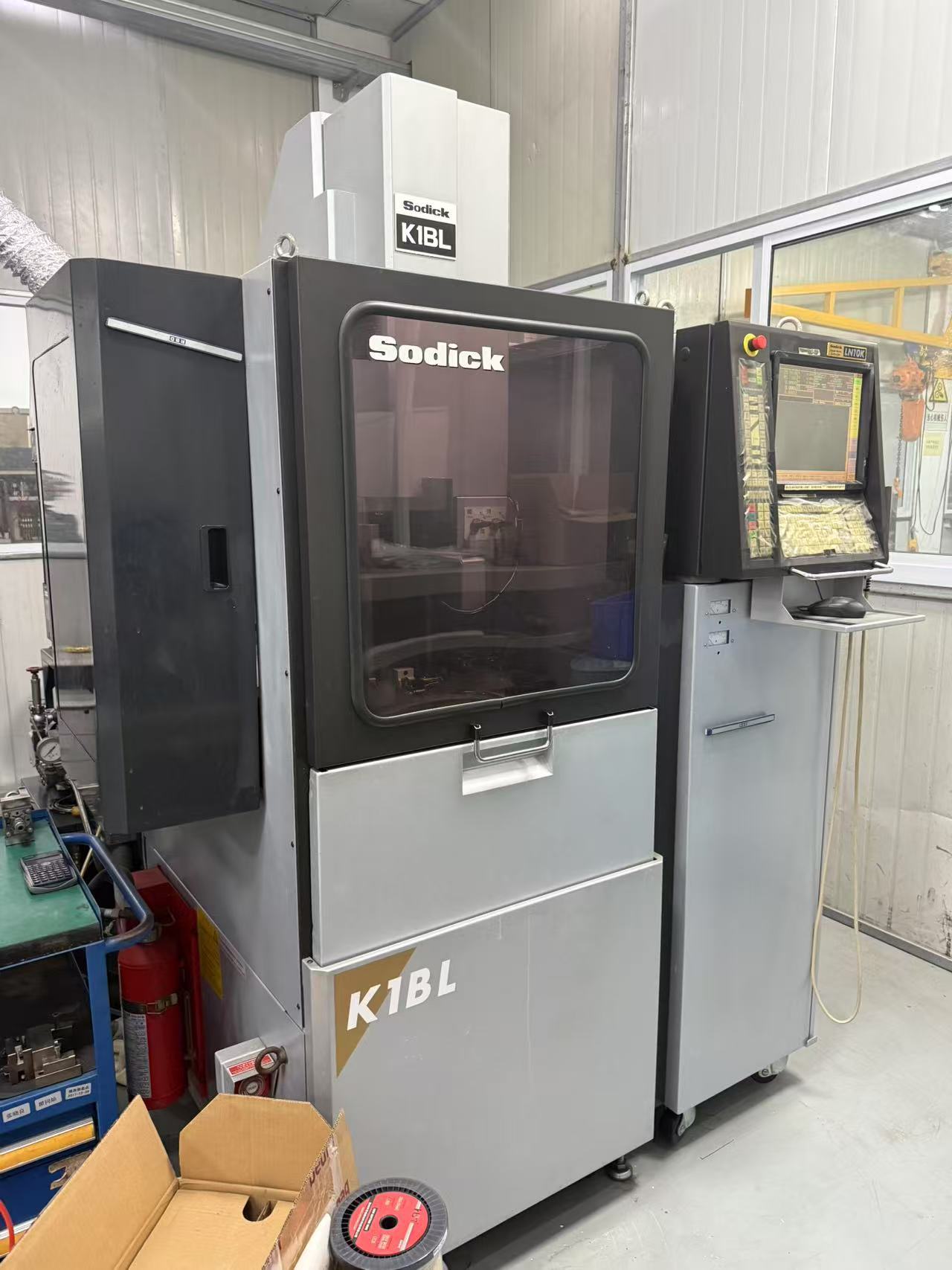

This used Sodick K1BL CNC small hole EDM drilling machine is made in Japan and equipped with a Sodick LN10K linear servo controller, automatic electrode changer, and rigid gantry-style structure. It is suitable for precision micro-hole drilling, multi-hole EDM machining, and mold-related small hole applications, offering a reliable second-hand option for manufacturers looking to reduce equipment investment.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | Sodick |
| Model | K1BL |
| Machine Type | CNC Small Hole EDM Drilling Machine / EDM Hole Driller |
| Country of Origin | Japan |
| Controller | Sodick LN10K Linear Servo Controller |
| Machine No. | M091 |
| Manufacturing Date | 2009-12 |
| X-axis Travel | 120 mm |
| Y-axis Travel | 150 mm |
| Z-axis Travel | 300 mm |
| Worktable Size | 200 × 250 mm |
| Max Workpiece Weight | 50 kg |
| Machine Dimensions | 1600 × 1530 × 2305 mm |
| Main Spindle Drive | Linear Motor |
| Structure | High-rigidity gantry-style structure |

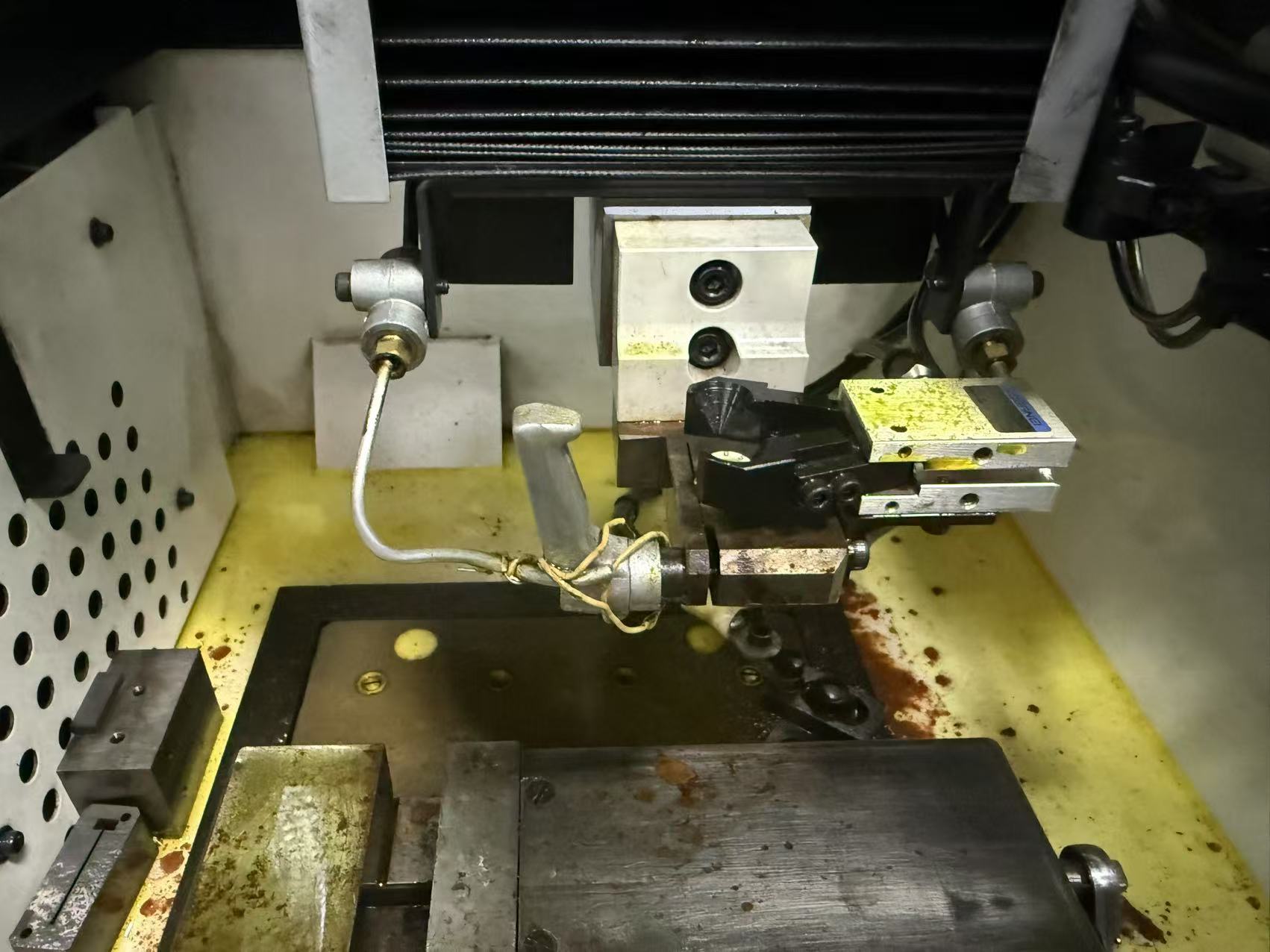

| Electrode System | AEC Automatic Electrode Changer |
| Electrode Diameter Range | Approx. 0.08–0.25 mm |
| Condition | Used / Pre-owned |
| Note | Specifications are for reference only. Actual machine condition and configuration should be confirmed before purchase. |
Applications & Suitable Scenarios
The used Sodick K1BL EDM hole drilling machine is designed for high-precision small hole machining and is especially suitable for manufacturers working with molds, precision components, and difficult-to-machine materials.
It can be used for micro-hole EDM drilling, starter hole machining, multi-hole continuous processing, and fine electrode drilling applications. With its linear motor spindle drive and automatic electrode changer, this machine is a practical choice for factories that need stable small hole performance without the cost of a new Sodick EDM machine.
Typical applications include:
| Application Area | Suitable Use |
|---|---|
| Mold Manufacturing | Vent holes, cooling holes, precision small holes |
| Precision Parts Processing | Micro-hole drilling on metal components |
| EDM Starter Holes | Start holes for wire EDM cutting |
| Multi-hole Machining | Continuous small hole production |
| Tooling & Die Industry | Fine hole drilling for dies, punches, and inserts |
| Hard Material Machining | Small hole EDM on hardened steel and conductive materials |
FAQ
Is this Sodick K1BL a new machine or a used EDM drilling machine?
This is a used Sodick K1BL small hole EDM drilling machine. It is a pre-owned machine made in Japan, suitable for buyers who want Sodick EDM performance with a lower equipment investment.
What kind of machining work is the Sodick K1BL suitable for?
The Sodick K1BL is mainly used for precision small hole EDM drilling, micro-hole machining, starter holes for wire EDM, mold vent holes, and multi-hole EDM processing.
Does this used Sodick K1BL come with a CNC controller?

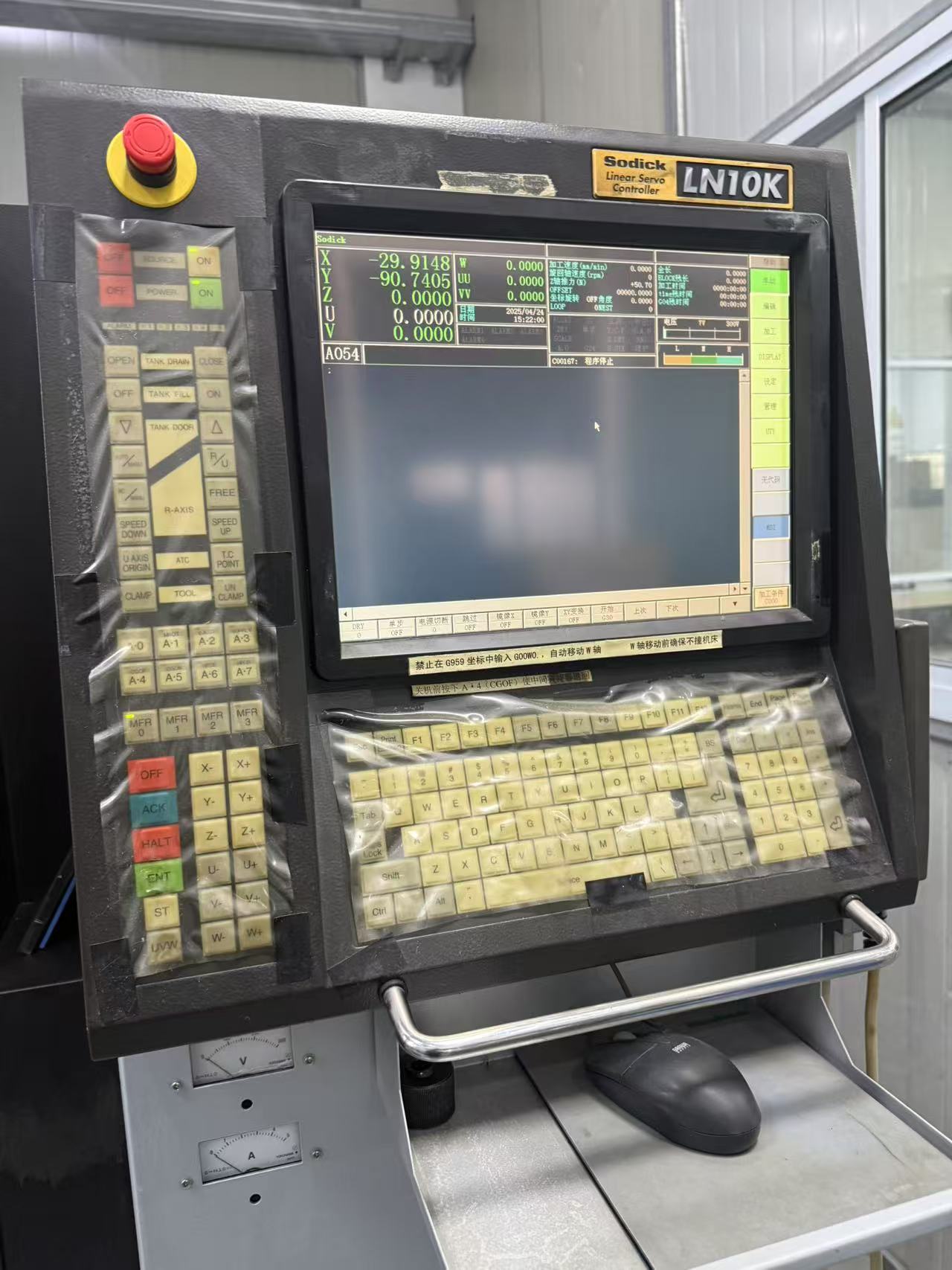

Yes. Based on the machine photos, this unit is equipped with a Sodick LN10K Linear Servo Controller, which is commonly used for precision EDM operation and axis control.
What is the electrode diameter range for this EDM hole drilling machine?
According to the provided information, the machine supports fine electrode processing, with an electrode diameter range of approximately 0.08–0.25 mm, suitable for micro-hole EDM applications.
Why choose a used Sodick K1BL instead of buying a new EDM drilling machine?
A used Sodick K1BL can help reduce investment cost while still offering Japanese-made EDM quality, rigid machine structure, linear motor spindle drive, and automatic electrode changing capability for precision small hole work.
$48824.00
Brand
Sodick
Model
K1BL
Origin
JP
Processing Time
5039h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 7 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
