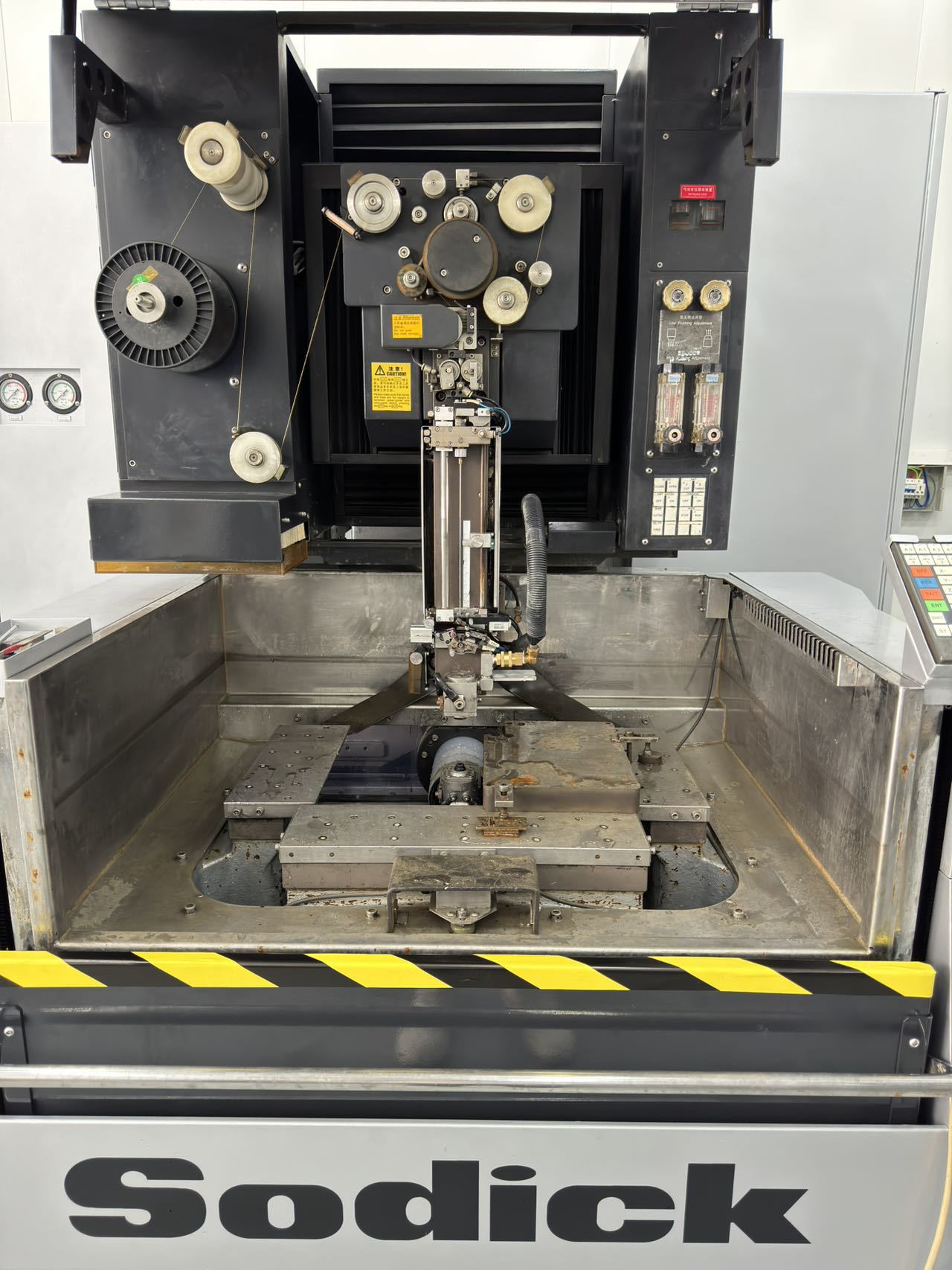

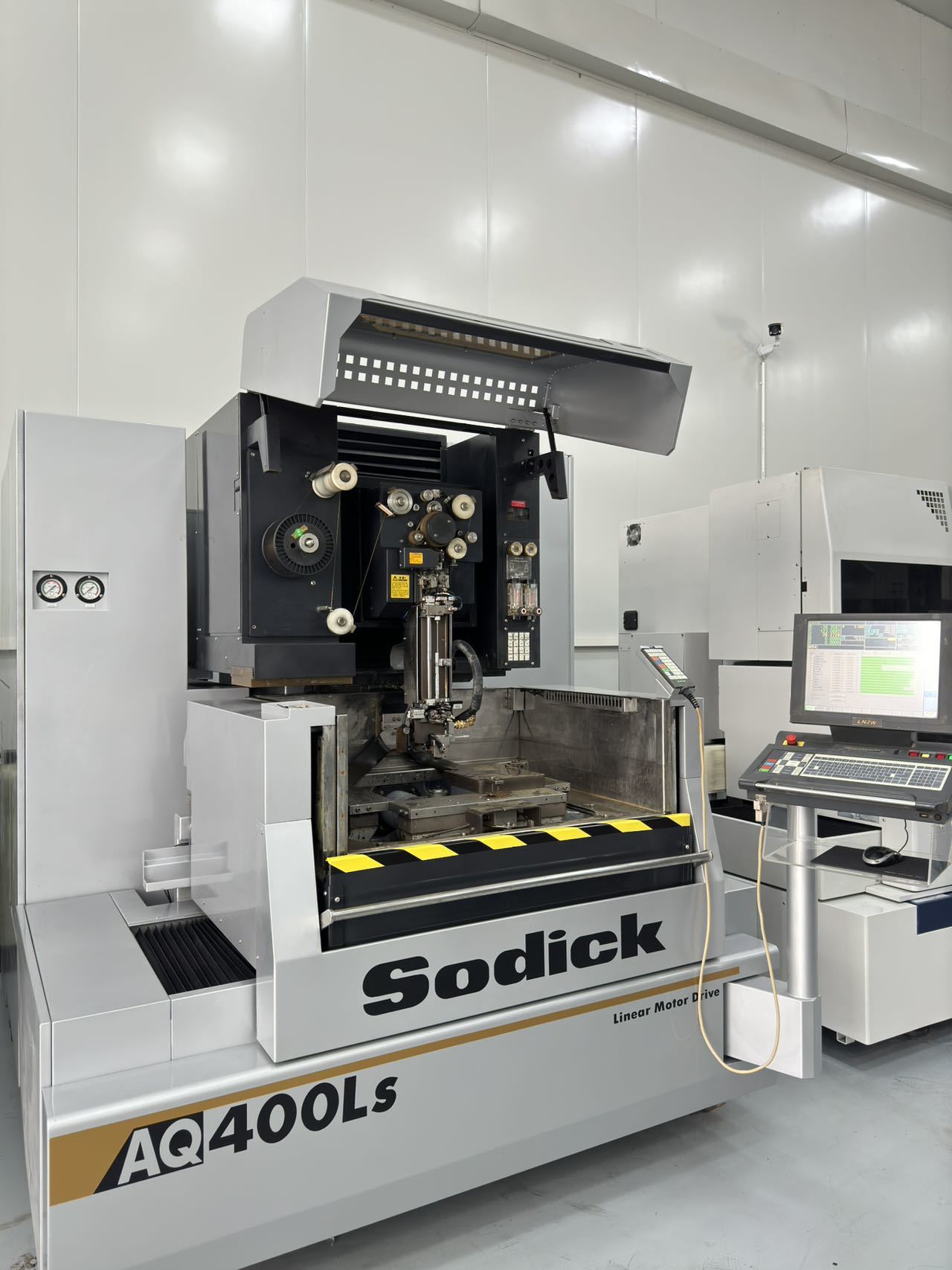

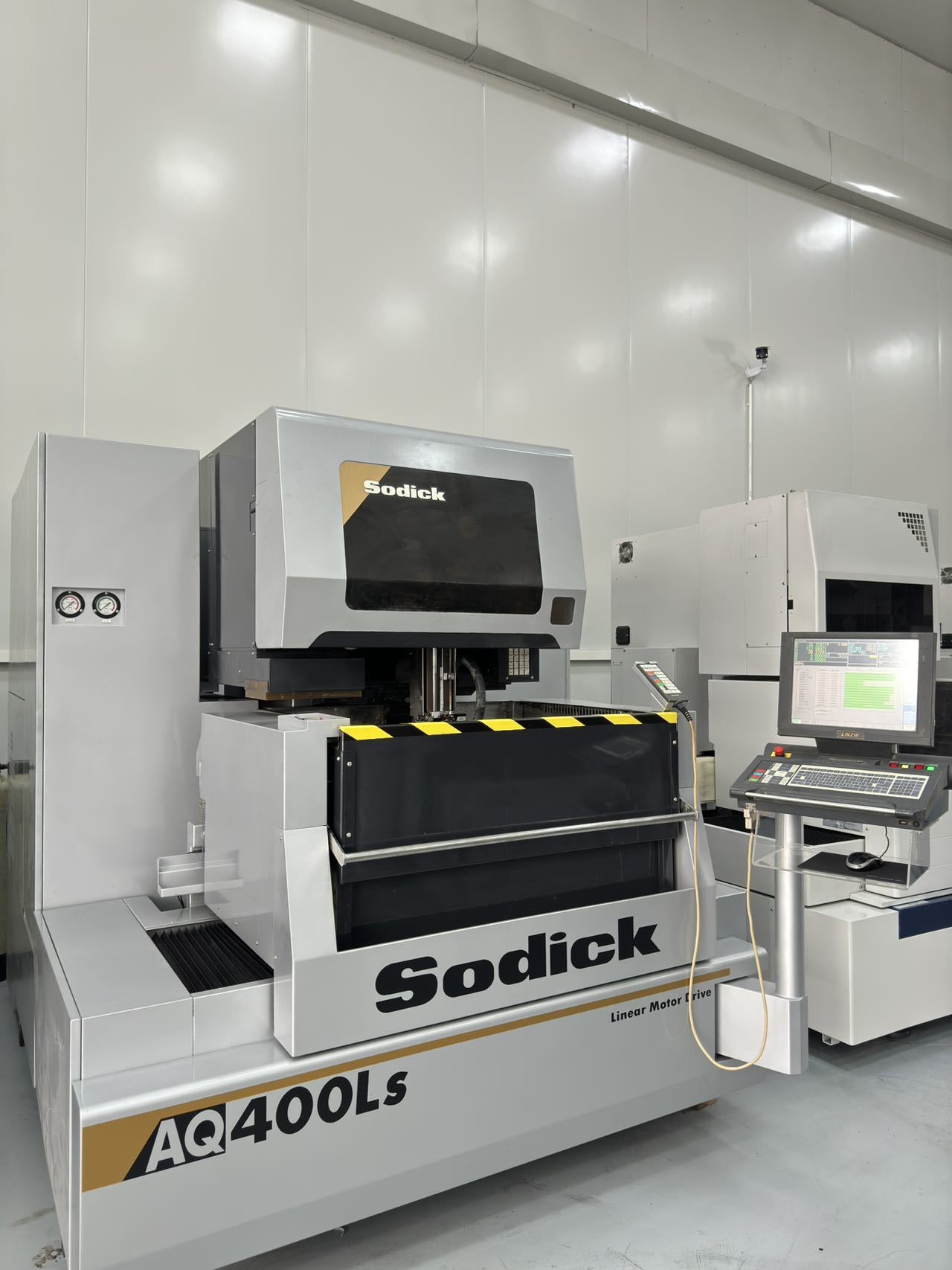

Used Sodick AQ400Ls Wire EDM Machine from Japan
Product Description
This used Sodick AQ400Ls CNC wire cut EDM machine is a Japanese-made precision EDM solution with linear motor drive, submerged cutting capability, and a generous 590 × 450 × 250 mm workpiece capacity. Suitable for mold making, precision parts, carbide, tool steel, and complex profile cutting.Pre-owned equipment. Sodick brand name is used for machine identification only.
Technical Specifications
| Item | Specification |
|---|---|
| Machine Model | Sodick AQ400Ls |
| Machine Type | CNC Wire Cut EDM / Wire Electrical Discharge Machine |
| Brand | Sodick |
| Country of Origin | Japan |
| Max. Workpiece Size | 590 × 450 × 250 mm |
| Max. Workpiece Height | 200 mm under submerged cutting |
| Max. Workpiece Weight | 550 kg |
| Workpiece Weight under Submerged Cutting | 430 kg |
| Work Tank Inner Size | 935 × 770 mm |
| X/Y/Z Axis Travel | 400 × 300 × 250 mm |
| U/V Axis Travel | 80 × 80 mm |
| Taper Cutting Angle | ±20° |
| Wire Electrode Diameter | Ø0.1 – Ø0.3 mm |
| Wire Feed Speed | 420 mm/sec |
| Wire Tension | 3 – 23 N |
| Machining Method | Upper/lower flushing cutting, submerged cutting |
| Work Tank Structure | 980 mm height, front drop-down door |
| Machine Installation Size | 2980 × 3675 mm |
| Machine Weight | 4300 kg |
| Air Supply | 0.5 MPa, 30 NL/min |
| Power Requirement | 3-phase, 50/60 Hz, 13 kVA |
| Knife / Blade Diameter | Not specified |
| Machine Outer Size | L1710 × W1325 × H1660 mm |
| Dielectric Tank Size | L290 × W1320 mm |
| Dielectric Capacity | 610 L |
| Filtration Method | Paper filter system, core-type filter, internal pressure 2-cartridge type |
| Deionization Resin | eco-10N ion exchange resin, 18 L specification |
| Source On Time | Approx. 22,900 hours |
| Cut Time | Approx. 16,871 hours |
| Condition | Used / Pre-owned, actual condition subject to inspection |
Applications & Suitable Industries
The used Sodick AQ400Ls wire EDM machine is suitable for high-precision cutting applications where accuracy, fine surface finish, and stable machining performance are required. It can be used for mold inserts, stamping dies, precision tooling, carbide components, hardened steel parts, aerospace components, automotive parts, electronic connectors, medical device components, and complex profile machining.
With its submerged cutting function and linear motor drive design, this second-hand Sodick wire cut EDM is a practical choice for workshops looking for reliable Japanese EDM technology at a lower investment cost than buying a new machine.
FAQ
Is this Sodick AQ400Ls a new or used wire EDM machine?
This is a used Sodick AQ400Ls CNC wire EDM machine. It is pre-owned equipment, and the Sodick brand name is used only to identify the machine model.
What is the cutting travel of this used Sodick AQ400Ls?
The machine offers X/Y/Z travel of 400 × 300 × 250 mm and U/V travel of 80 × 80 mm, suitable for precision wire cutting and taper cutting.
Can this machine perform submerged wire EDM cutting?
Yes. This Sodick AQ400Ls wire cut EDM supports submerged machining, with a maximum workpiece height of 200 mm under submerged cutting.
What industries can use this second-hand Sodick wire EDM?
It is commonly used for mold making, stamping dies, precision tooling, carbide parts, hardened steel components, electronic parts, and complex profile cutting.
$58294.00
Brand
Sodick
Model
AQ400Ls
Origin
JP
Processing Time
6423h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 7 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
