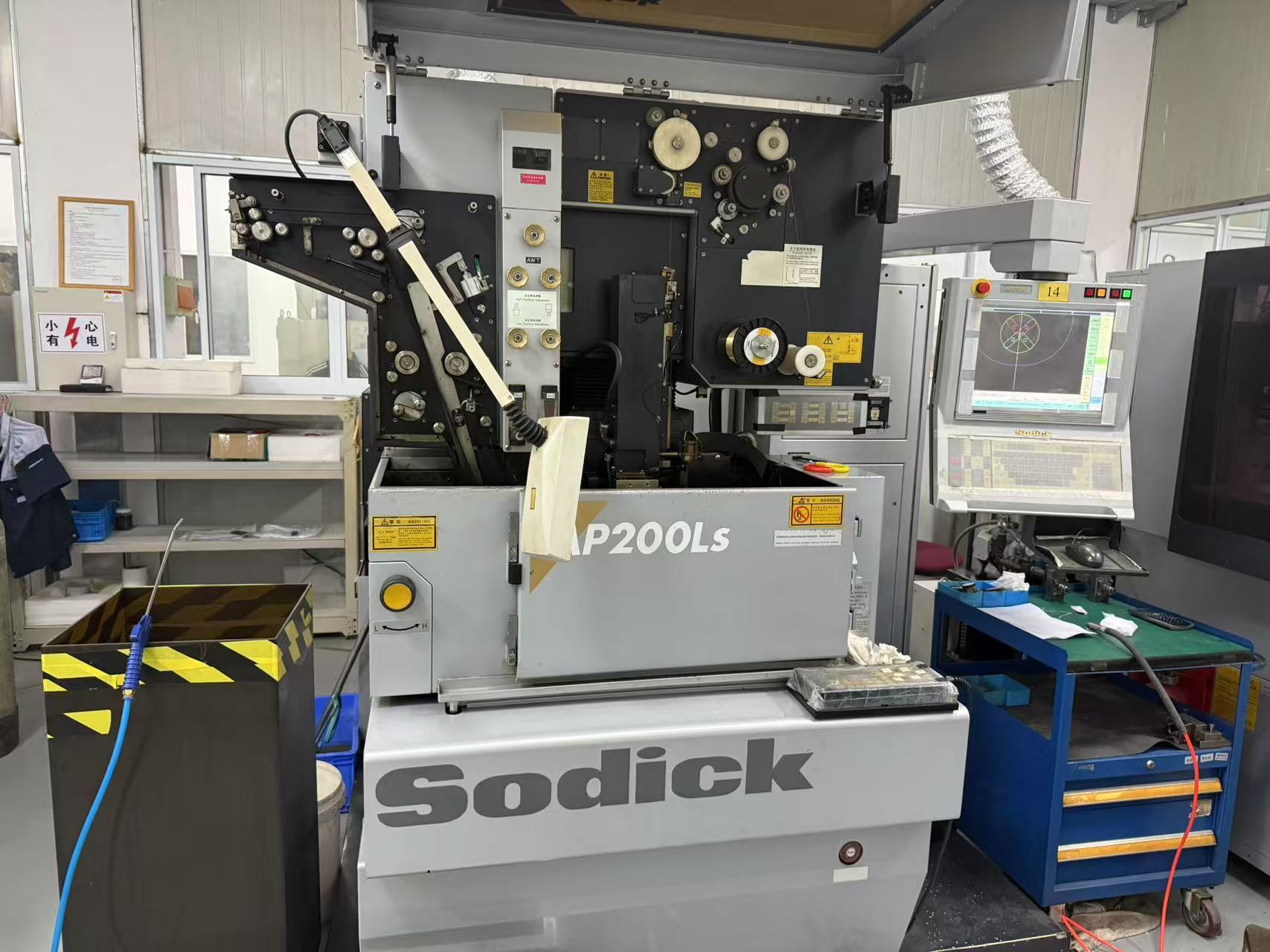

Used Sodick AP200LS Wire EDM Machine from Japan
Product Description
This used Sodick AP200LS oil-type wire EDM machine from Japan is suitable for high-precision micro cutting, mold parts, punches, electrodes, and small precision components. With 0.03–0.25 mm wire range, X/Y/Z travel of 220/150/120 mm, and Sodick’s stable EDM cutting technology, it is a cost-effective choice for buyers looking for a reliable second-hand Japanese wire cut EDM machine.
Machine Specification Table
| Item | Specification |
|---|---|
| Brand | Sodick |
| Model | AP200LS / AP200Ls |
| Machine Type | Used Oil-Type Wire EDM Machine |
| Country of Origin | Japan |
| Machine No. | C526 |
| Year / Date | 2009-09 |

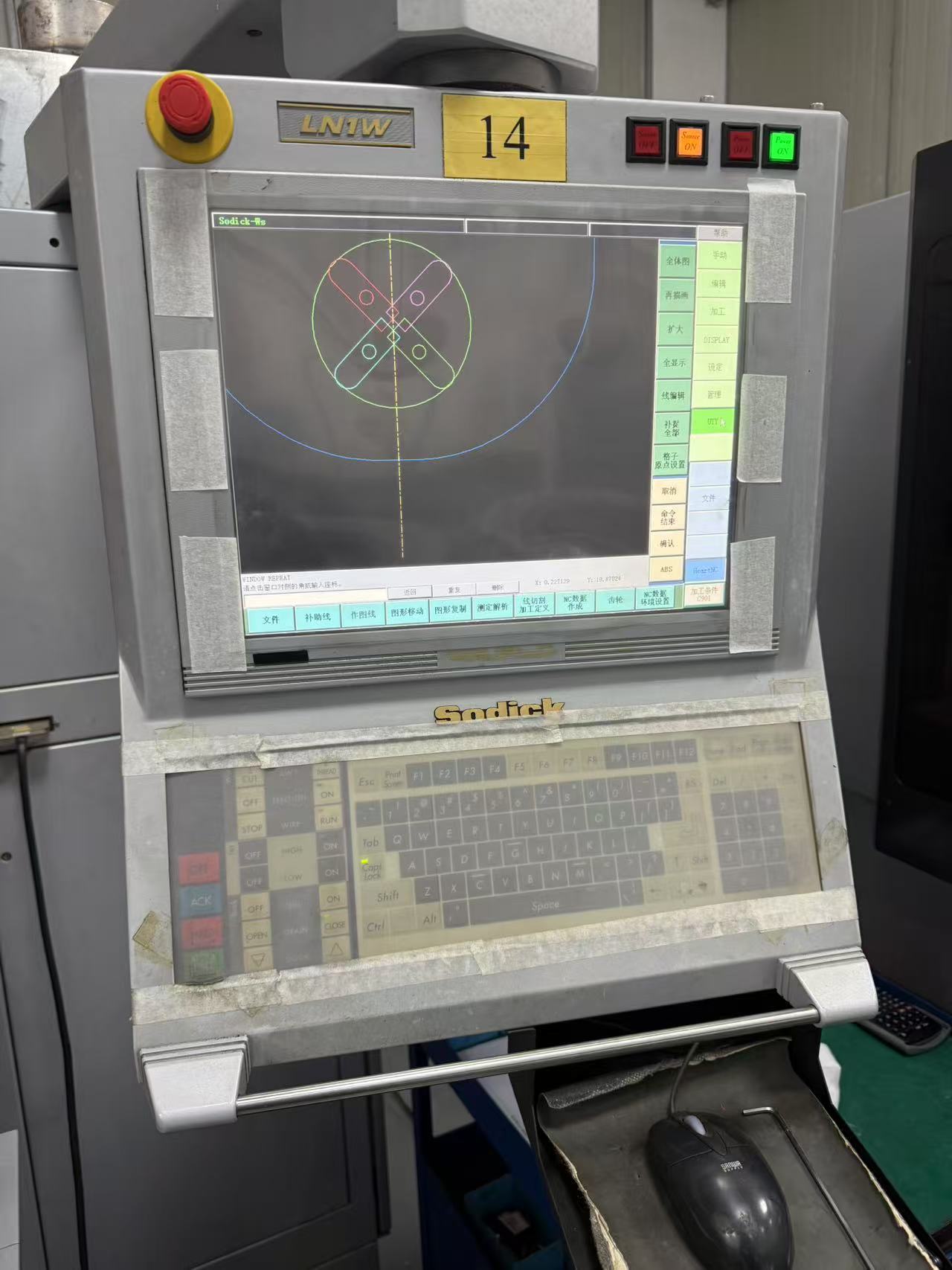

| CNC Control | Sodick LN1W Control |
| X-Axis Travel | 220 mm |
| Y-Axis Travel | 150 mm |
| Z-Axis Travel | 120 mm |
| U / V Axis Travel | 35 × 35 mm |
| Worktable Size | 395 × 425 mm |
| Max Workpiece Weight | 50 kg |
| Wire Diameter Range | 0.03–0.25 mm |
| Max Taper Angle | ±7° / 100 mm thickness |
| Max Wire Feed Speed | 250 mm/sec |
| Wire Tension | 3–18 N |
| Machining Accuracy | Up to 0.001 mm, depending on actual cutting conditions |
| Surface Finish | Ry 0.6, depending on material and process |
| Corner / R Accuracy | Approx. 0.002–0.003 mm |
| Condition | Used machine, actual condition subject to inspection |
Application Range & Suitable Industries
The used Sodick AP200LS oil wire cut EDM is suitable for factories that need fine cutting accuracy and stable small-part machining. It can be used for:
Precision mold inserts, micro molds, connector molds, semiconductor tooling, punch and die parts, tungsten carbide parts, precision electrodes, small medical components, watch parts, electronic components, optical parts, and high-accuracy sample machining.
It is especially suitable for buyers who want a Japanese second-hand Sodick wire EDM machine with lower investment cost than a new machine, while still requiring fine surface finish and stable precision cutting.
FAQ
Is this Sodick AP200LS a new machine or a used machine?
This is a used Sodick AP200LS wire EDM machine from Japan. It is not a new machine. The actual condition can be checked by photos, videos, or on-site inspection.
What type of EDM machine is the Sodick AP200LS?
The Sodick AP200LS is an oil-type precision wire EDM machine, commonly used for fine wire cutting, micro parts, mold components, and high-accuracy machining.
What is the wire diameter range of this used Sodick AP200LS?
The wire diameter range is 0.03–0.25 mm, making it suitable for small, precise, and fine-detail wire cutting applications.
What is the origin and year of this Sodick AP200LS machine?
This machine is made by Sodick, Japan. According to the machine nameplate, the model is AP200Ls, machine number C526, dated 2009-09.
Why choose a second-hand Sodick AP200LS wire EDM machine?
A used Sodick AP200LS can offer Japanese EDM machining quality at a lower investment cost, which is ideal for mold shops and precision parts manufacturers looking to control equipment budgets.
$54294.00
Brand
Sodick
Model
AP200LS
Origin
JP
Processing Time
9527h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 7 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
