Used SIMMONS 2500mm CNC Cylindrical Grinder | Ø650mm

Loading carousel...

Product Highlight

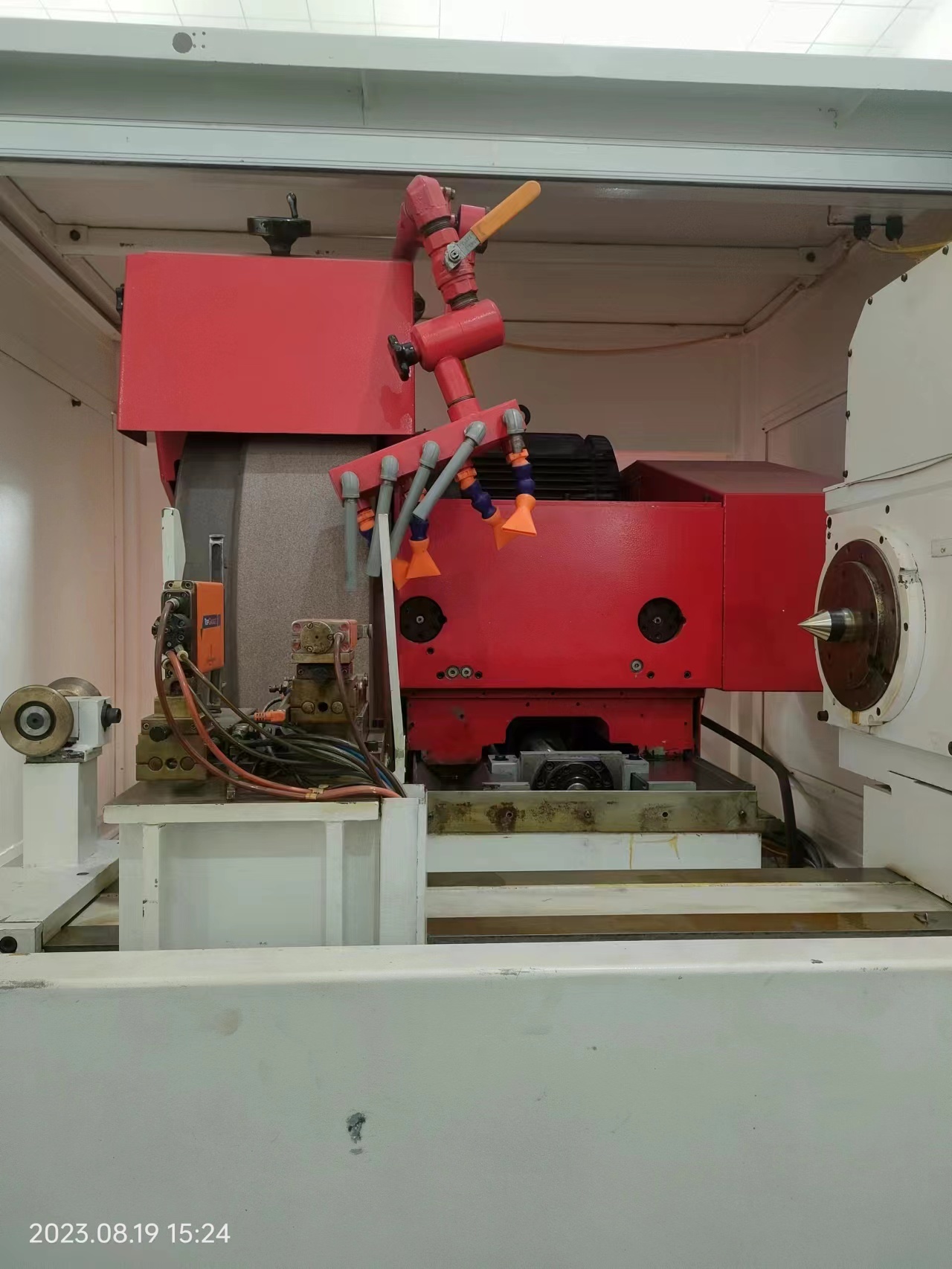

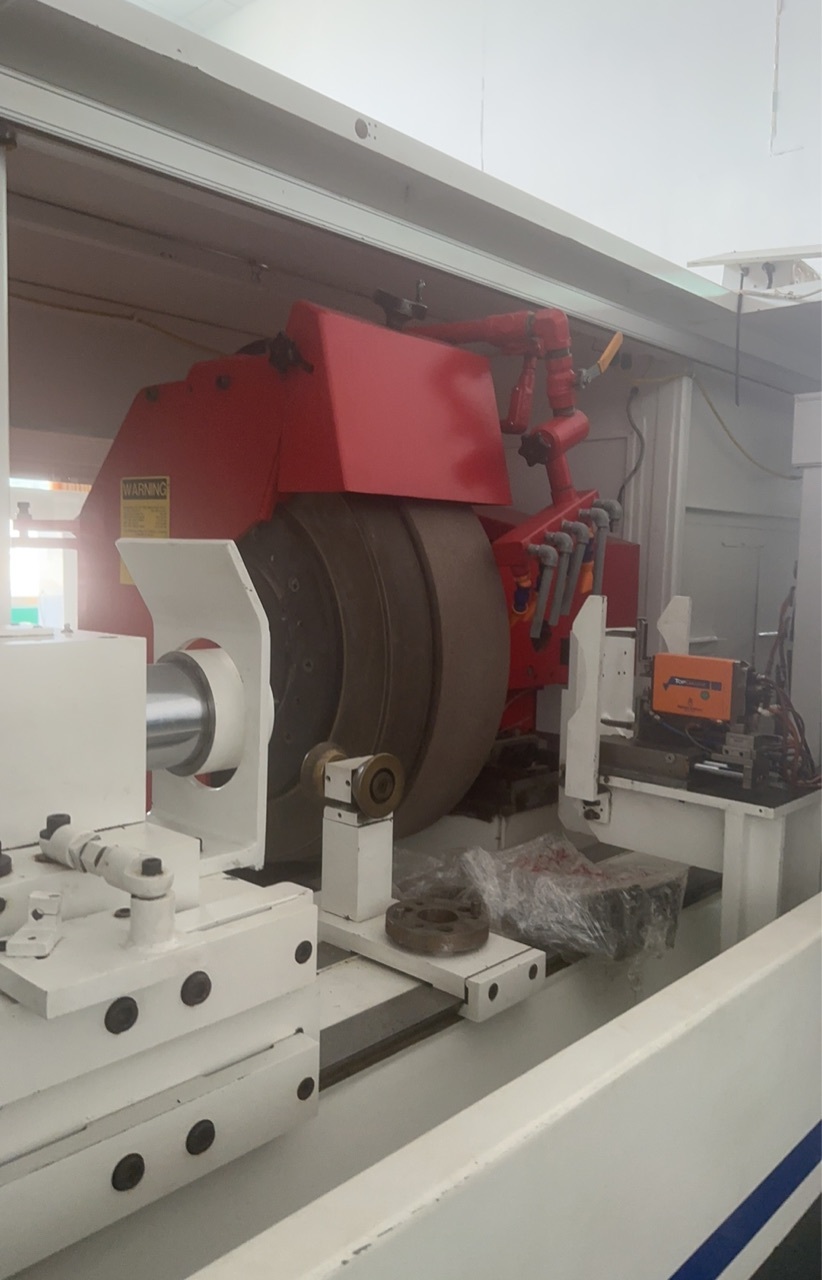

Used SIMMONS 2500mm CNC cylindrical grinder is a large-capacity precision grinding machine designed for cylindrical workpieces up to approximately Ø650 × 2500 mm. Equipped with GE Fanuc CNC control, a large Ø1000 mm grinding wheel and hydrostatic precision technology, it is suitable for shafts, rotors, industrial rollers and other demanding cylindrical grinding applications.

Product Description

Used SIMMONS 2500mm CNC external cylindrical grinder is designed for precision grinding of large shafts, rollers, rotors and other cylindrical components.

With a maximum grinding capacity of approximately Ø650 × 2500 mm, a large Ø1000 mm grinding wheel, GE Fanuc CNC control and hydrostatic precision grinding configuration, this machine is suitable for demanding applications requiring excellent dimensional accuracy and high-quality surface finishes.

For manufacturers searching for a used large CNC cylindrical grinding machine, this SIMMONS grinder provides substantial grinding capacity without the investment required for a new heavy-duty precision grinder.

Technical Specifications

Specification	Details
Machine Type	CNC External Cylindrical Grinding Machine
Condition	Used
Brand	SIMMONS
Manufacturer	Simmons Machine Tool Corporation
Brand Origin	USA
Supplier-Stated Origin	Germany
Grinding Capacity	Ø650 × 2500 mm
Maximum Grinding Diameter	Ø650 mm
Maximum Grinding Length	2500 mm
Grinding Stroke	2500 mm
CNC System	GE Fanuc
HMI	XYCOM Automation
Grinding Wheel Diameter	Ø1000 mm
Grinding Wheel Specification	Ø1000 × 320 × Ø160 mm
Alternative Supplied Wheel Data	1000 × 400 mm
Grinding Wheel Speed	Approx. 1082 rpm
X-Axis Travel	2300 mm*
Z-Axis Travel	1000 mm*
Worktable Size	2800 × 400 mm
Maximum Table Load	Approx. 1000 kg
Feed Resolution	0.0001 mm
Axis Guide System	Hydrostatic / closed-loop configuration according to supplied data
Main Spindle Configuration	Hydrostatic spindle system
Claimed Straightness	Up to 2 μm
Surface Finish Capability	High-finish and mirror-finish grinding
Chip Removal	Magnetic chip removal
Machine Layout	Horizontal Cylindrical Grinder
Approx. Machine Dimensions	9500 × 3000 × 2900 mm

Important Specification Note

The supplied technical information lists:

X-axis travel: 2300 mm
Z-axis travel: 1000 mm

For a conventional cylindrical grinder, these axis values may require confirmation because longitudinal movement is commonly associated with the Z axis.

Therefore, before publishing a final technical datasheet, I recommend verifying the actual CNC axis configuration.

Applications

Used SIMMONS CNC cylindrical grinder is suitable for companies manufacturing or repairing large precision rotational components.

Typical applications include:

Aerospace shafts and rotor components
Turbine shafts
Motor and generator shafts
Gear shafts
Transmission shafts
Spline shafts
Compressor shafts
Pump shafts
Hydraulic components
Industrial rollers
Printing rollers
Coating rollers
Precision guide rollers
Machine tool spindles
Mining equipment shafts
Oil and gas equipment components
Heavy machinery components
Automotive transmission components
Semiconductor equipment components
Photovoltaic equipment components

It can also be considered by contract machining companies requiring a 2500 mm

FAQ

What is the maximum grinding capacity of this used SIMMONS cylindrical grinder?

The machine is specified for workpieces up to approximately Ø650 mm in diameter and 2500 mm in grinding length, making it suitable for long shafts, industrial rollers and other large cylindrical components.

Is this SIMMONS grinder equipped with a Fanuc CNC control?

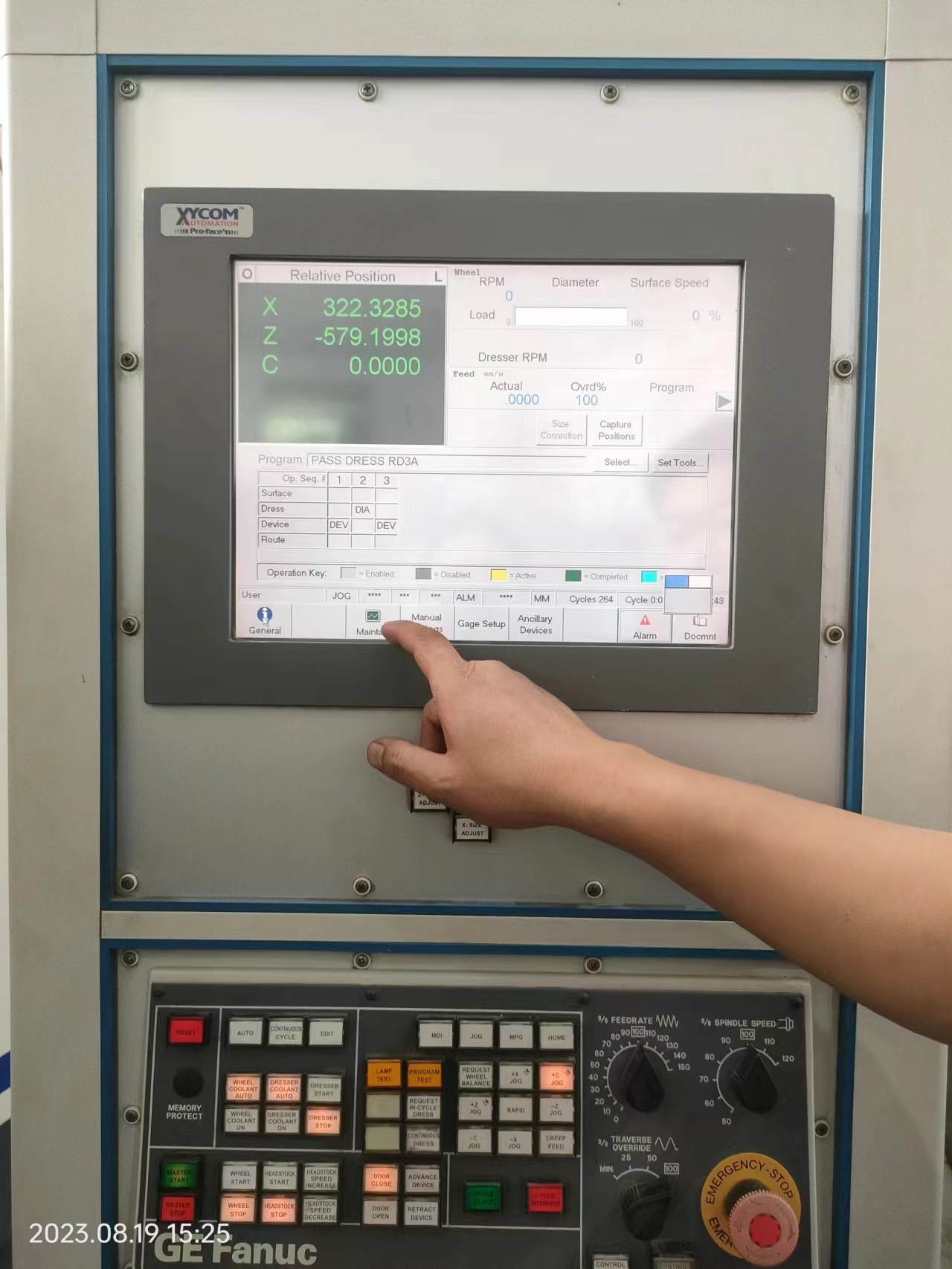

Yes. The machine is equipped with a GE Fanuc CNC control system together with an industrial XYCOM operator interface for machine operation and grinding cycle control.

Can this machine grind long precision shafts?

Yes. With a grinding length of approximately 2500 mm, this machine is particularly suitable for long shafts, rotors, rollers, transmission components and other precision cylindrical workpieces.

Does this cylindrical grinder use a hydrostatic spindle system?

According to the supplied machine specifications, the grinder incorporates a hydrostatic spindle and hydrostatic precision guidance configuration, designed to support smooth movement and high-precision grinding.

Can this SIMMONS grinder achieve mirror-finish grinding?

The machine is designed for high-quality precision cylindrical grinding and may be used for mirror-finish applications when the correct grinding wheel, dressing method, coolant, workpiece material and grinding parameters are used. Final achievable surface roughness should be confirmed by an actual grinding test.
