Used Okamoto PSG65DX Surface Grinder from Japan
Product Description

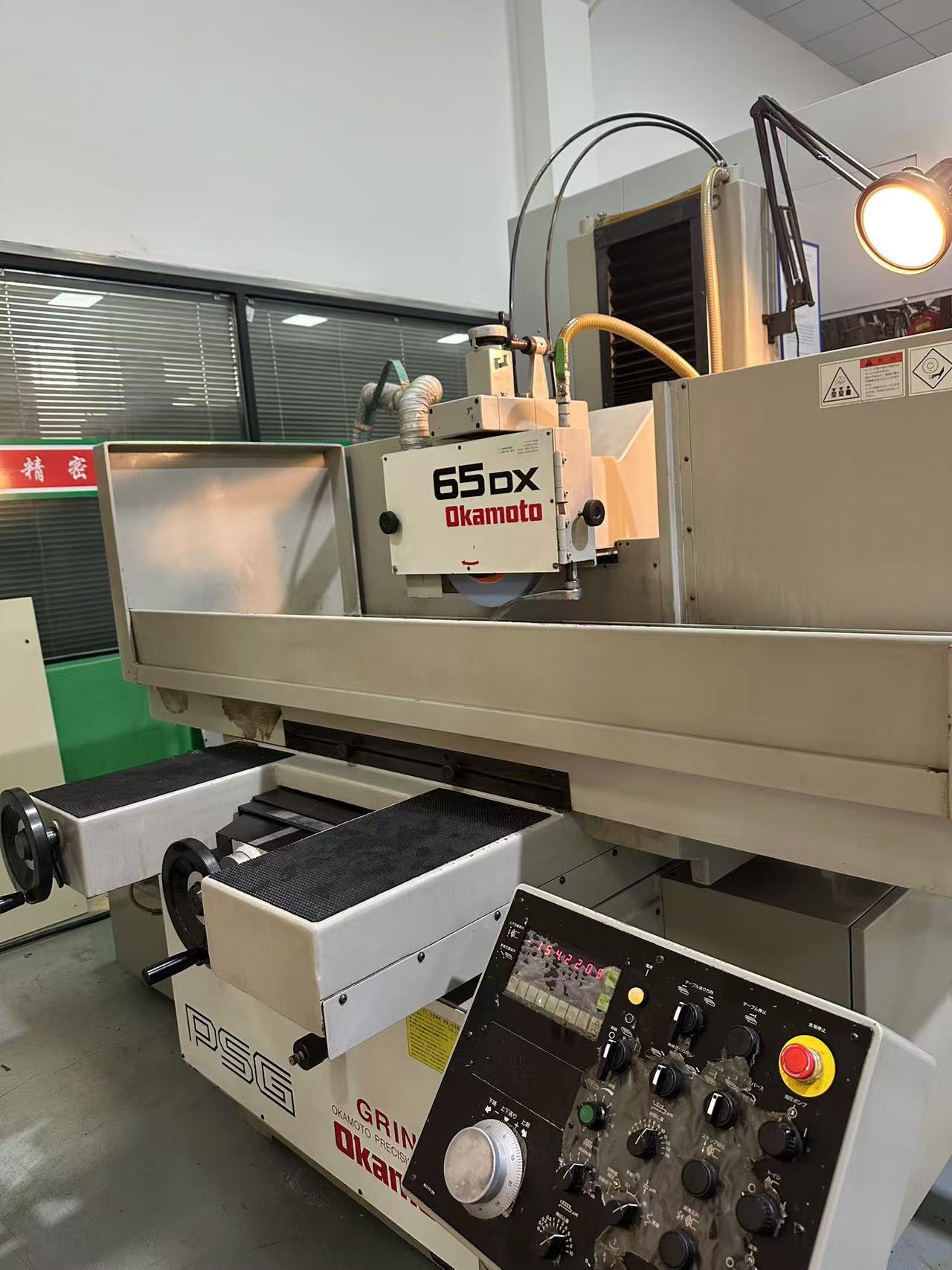

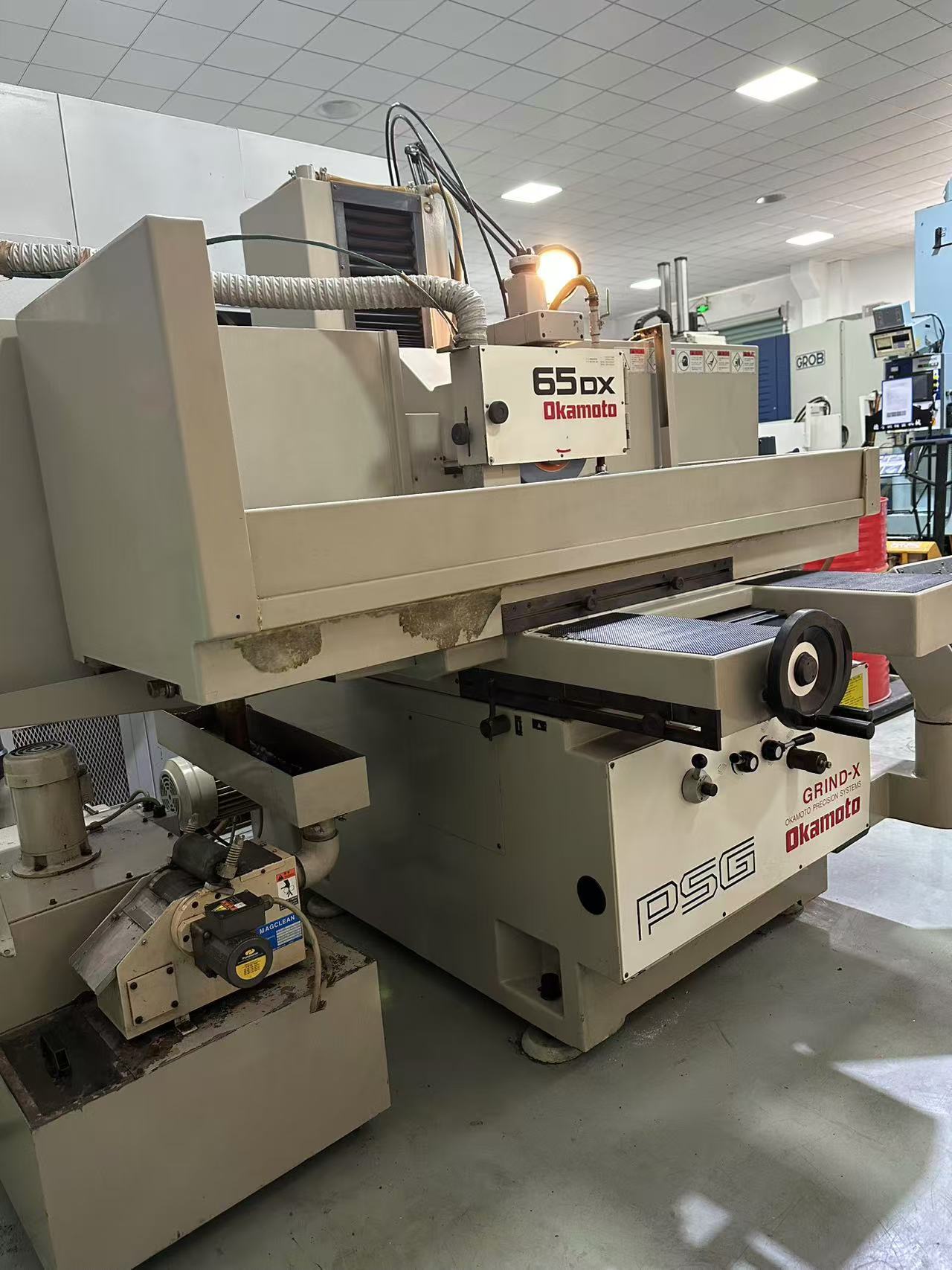

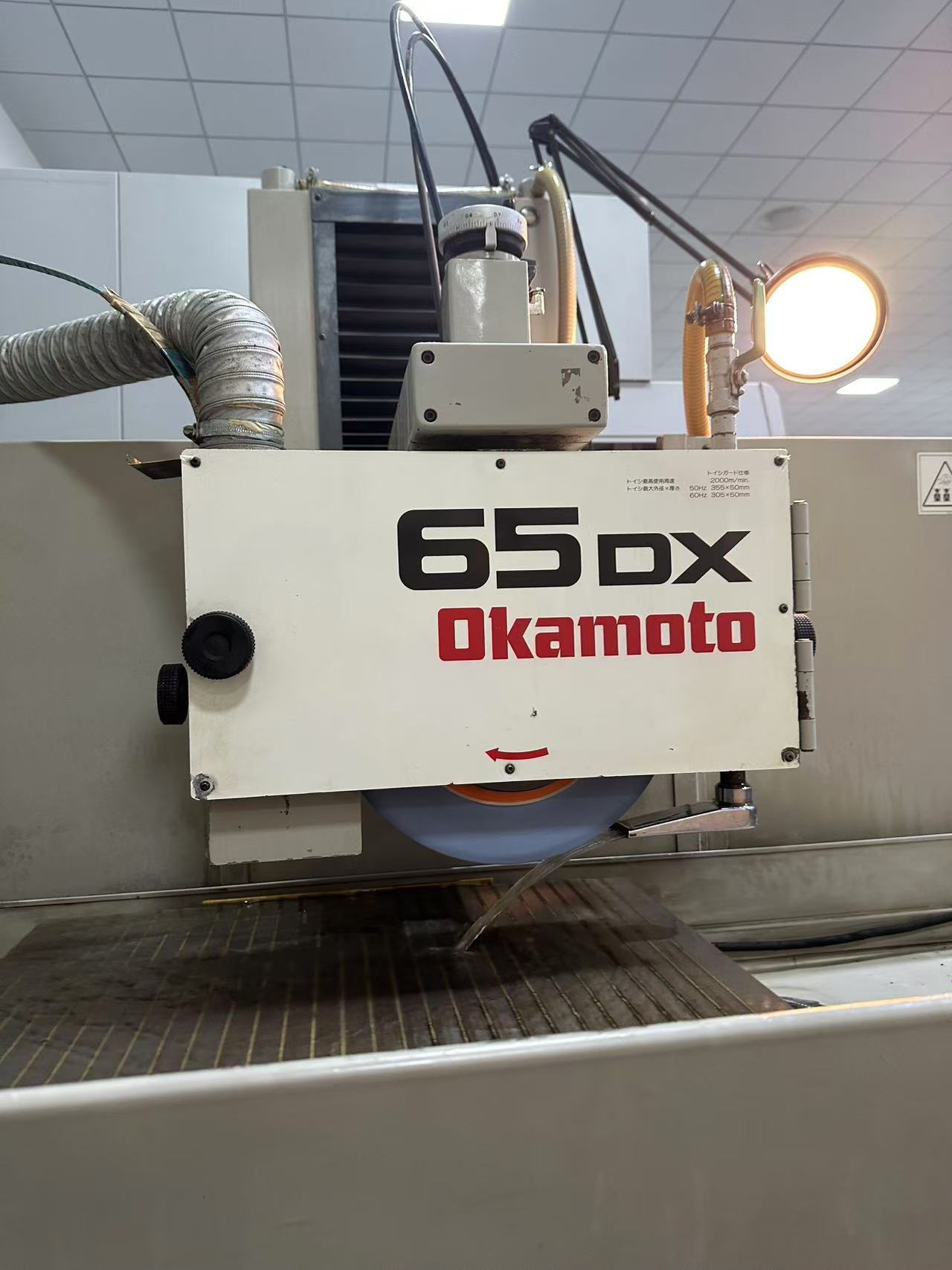

This used Okamoto PSG65DX precision surface grinder was originally made in Japan and has been well maintained for more than ten years. With a 650×500mm working area, automatic feed functions, and reliable Japanese grinding accuracy, it is a cost-effective choice for buyers who need Okamoto quality at a much lower price than a new machine.
Technical Specifications
| Item | Specification |
|---|---|
| Machine Type | Used Precision Automatic Surface Grinder |
| Brand | Okamoto |
| Model | PSG65DX |
| Origin | Japan |
| Working Table Grinding Area | 650×500mm |
| Standard Magnetic Chuck Size | 600×500×85mm |
| Table Load Capacity | 420kg, including magnetic chuck |
| T-slot | 3 slots × 17mm |
| Longitudinal Feed Max. Travel | 750mm |
| Longitudinal Feed Speed | 0.3–25m/min |
| Manual Longitudinal Feed per Revolution | 47mm |
| Cross Feed Max. Travel | 440mm |
| Manual Cross Feed per Revolution | 5.0mm |
| Cross Feed Handwheel Graduation | 0.02mm |
| Automatic Intermittent Cross Feed | 0.5–20mm |
| Continuous Cross Feed | 0.1–1.0m/min |
| Vertical Automatic Down Feed / Cross-cut Feed | 0.0001–0.03mm, 15 steps |
| Manual Fine Down Feed Setting | 0.0001 / 0.001 / 0.01mm |
| Vertical Handwheel Feed per Revolution | 0.01 / 0.1 / 1.0mm |
| Spark-out Grinding Passes | 0–5 times |
| Vertical Rapid Feed Speed | 600mm/min |
| Grinding Wheel Size, 50/60Hz | Ø255 / Ø305 × 38 × 127mm |
| Grinding Wheel Speed, 50/60Hz | 1500 / 1800rpm |
| Spindle Motor Power | 3.7 / 4kW |
| Hydraulic Pump Motor | 1.5 / 4kW |
| Condition | Used, well maintained, good appearance |
| Price Advantage | Around 30% of new machine cost, based on seller information |
Applications & Suitable Working Scenarios
This pre-owned Okamoto PSG65DX surface grinding machine is suitable for high-precision flat grinding, mold grinding, toolroom work, and metal component finishing. It can be used for machine tool fixtures, precision jigs, rigid mechanical sealing parts, semiconductor equipment components, automotive hardware parts, medical alloy parts, automation equipment parts, textile and sewing machine parts, packaging machinery parts, electronic precision molds, IC chip molds, medical syringe molds, precision ceramic molds, precision plastic connector molds, gear molds, powder metallurgy molds, carbide molds, precision molds, electronic connector molds, small die-casting molds, and graphite molds.
It is a practical choice for workshops that want Japanese Okamoto grinding performance without investing in a brand-new surface grinder.
FAQ
Is this Okamoto PSG65DX a new machine?
No. This is a used Okamoto PSG65DX precision surface grinder from Japan. It has been in service for more than ten years but is well maintained.
What is the working table size of this used Okamoto grinder?
The machine has a 650×500mm working table grinding area and a standard magnetic chuck size of 600×500×85mm.
Why choose a used Okamoto PSG65DX instead of a new surface grinder?
It offers reliable Japanese grinding quality at a much lower investment cost. For many factories, it is a smart option when budget control and precision machining are both important.
What materials or parts can this machine grind?
It is suitable for precision grinding of metal parts, molds, fixtures, tools, carbide parts, alloy parts, graphite molds, ceramic molds, and electronic connector molds.
Is this machine suitable for precision mold manufacturing?
Yes. The PSG65DX is suitable for precision mold grinding, including plastic molds, gear molds, IC chip molds, medical mold parts, and small die-casting molds.
$83529.00
Brand
Okamoto
Model
PSG65DX
Origin
JP
Processing Time
3256h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 7 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
