Used Makino EDNC85 EDM Machine from Japan
Product Description
This used Makino EDNC85 CNC EDM sinker machine from Japan is a solid choice for precision mold machining, mirror-finish EDM work, and heavy workpiece processing. With 800mm X-axis travel, 120A max current, automatic up/down work tank, and Makino MGH control system, it offers reliable EDM performance for toolrooms and mold manufacturers looking for cost-effective Japanese equipment.
Specification Table
| Item | Specification |
|---|---|
| Machine Type | CNC EDM Sinker Machine / Mirror EDM Machine |
| Brand | Makino |
| Model | EDNC85 |
| Origin | Japan |
| Condition | Used, Approx. 90% New |

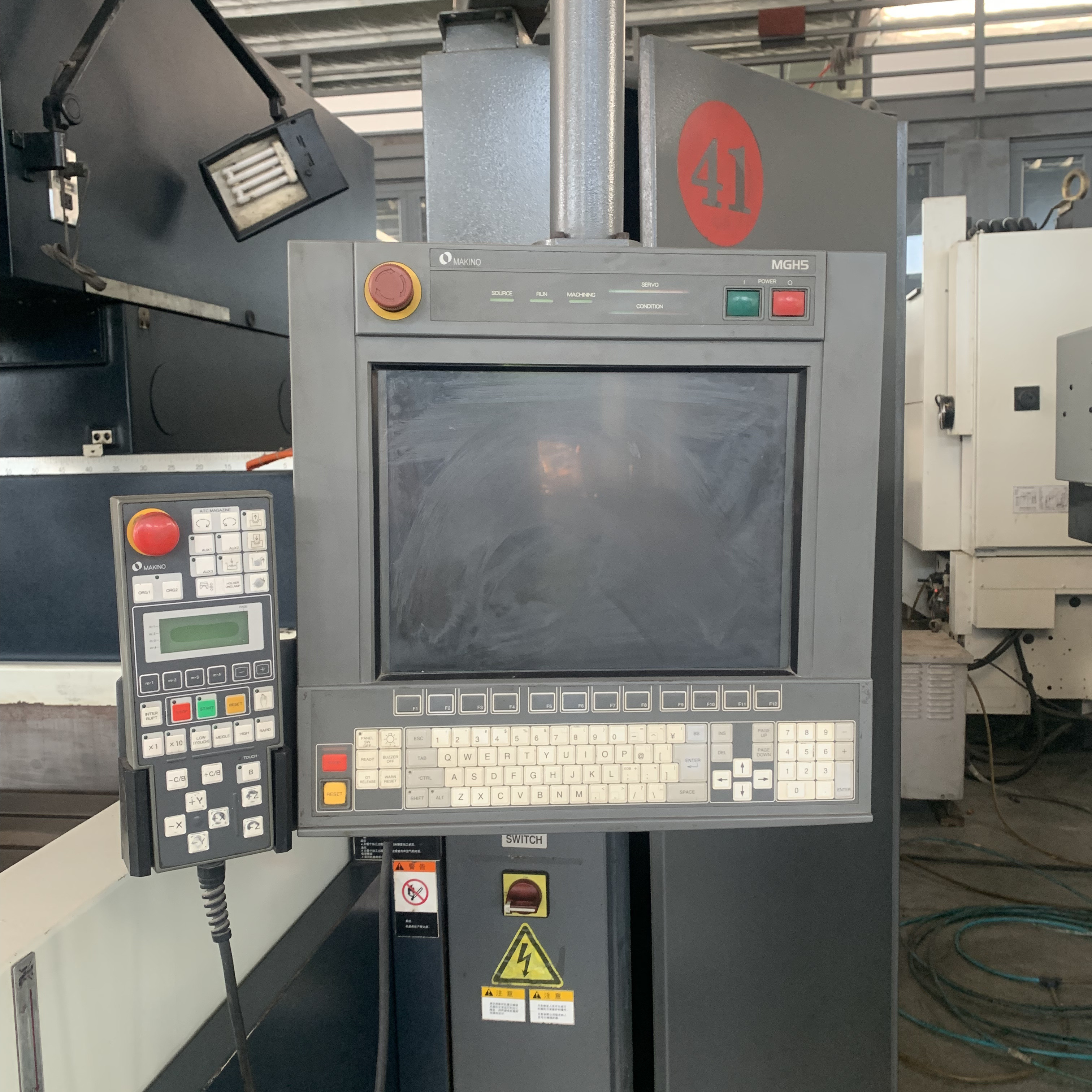

| CNC Control | Makino MGH Series Control |
| X-Axis Travel | 800 mm |
| Y-Axis Travel | 500 mm |
| Z-Axis Travel | 400 mm |
| Worktable Size | 800 × 500 mm |
| Work Tank Internal Size | 1400 × 900 × 500 mm |
| Table Working Area | 1100 × 700 mm |
| Max Electrode Weight | 200 kg |
| Max Workpiece Weight | 3000 kg |
| Rapid Traverse Speed | 5000 mm/min |
| Work Tank Opening Method | Automatic Up/Down Work Tank |
| Number of Filters | 2 pcs |
| Dielectric Fluid Capacity | 800 L |
| Max Available Current | 120 A |
| Suitable Process | EDM sinking, mold cavity machining, mirror finish EDM |
Applications & Working Scenarios
The used Makino EDNC85 EDM machine is suitable for precision die and mold manufacturing, especially where stable discharge performance and fine surface quality are required.
It can be used for:
| Application | Typical Workpieces |
|---|---|
| Plastic Mold Manufacturing | Mold cavities, inserts, sliders, ribs |
| Die Casting Mold Machining | Deep cavities, complex mold shapes |
| Precision Mold Repair | Local EDM repair, cavity correction |
| Automotive Parts Tooling | Large mold components, forming dies |
| Aerospace & Precision Components | Hard material machining, fine-feature EDM |
| Mirror Finish EDM | High-quality surface cavity finishing |
| Heavy Workpiece EDM | Large molds up to 3000 kg |
This machine is especially useful for factories that need a Japanese used EDM machine with a larger working area, strong current capacity, and stable machining performance without the cost of a new Makino EDM system.
FAQ
Is this Makino EDNC85 a new machine or a used machine?
This is a used Makino EDNC85 CNC EDM sinker machine from Japan. It is clearly sold as pre-owned equipment, not a new Makino machine.
What type of machining is this EDNC85 suitable for?
It is suitable for EDM sinking, mold cavity machining, mirror finish EDM, precision mold repair, and hard metal processing.
What is the travel range of this used Makino EDNC85?
The machine has 800mm X-axis travel, 500mm Y-axis travel, and 400mm Z-axis travel, making it suitable for medium to large EDM workpieces.
Can this machine handle heavy molds?
Yes. The listed maximum workpiece weight is 3000 kg, which makes it suitable for large mold and die components.
Why choose a used Japanese Makino EDM machine?
A used Japanese Makino EDM machine can offer strong machining stability, proven build quality, and lower investment cost compared with buying new equipment.
$56924.00
Brand
Makino
Model
EDNC85
Origin
JP
Processing Time
7658h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 7 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check
- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
