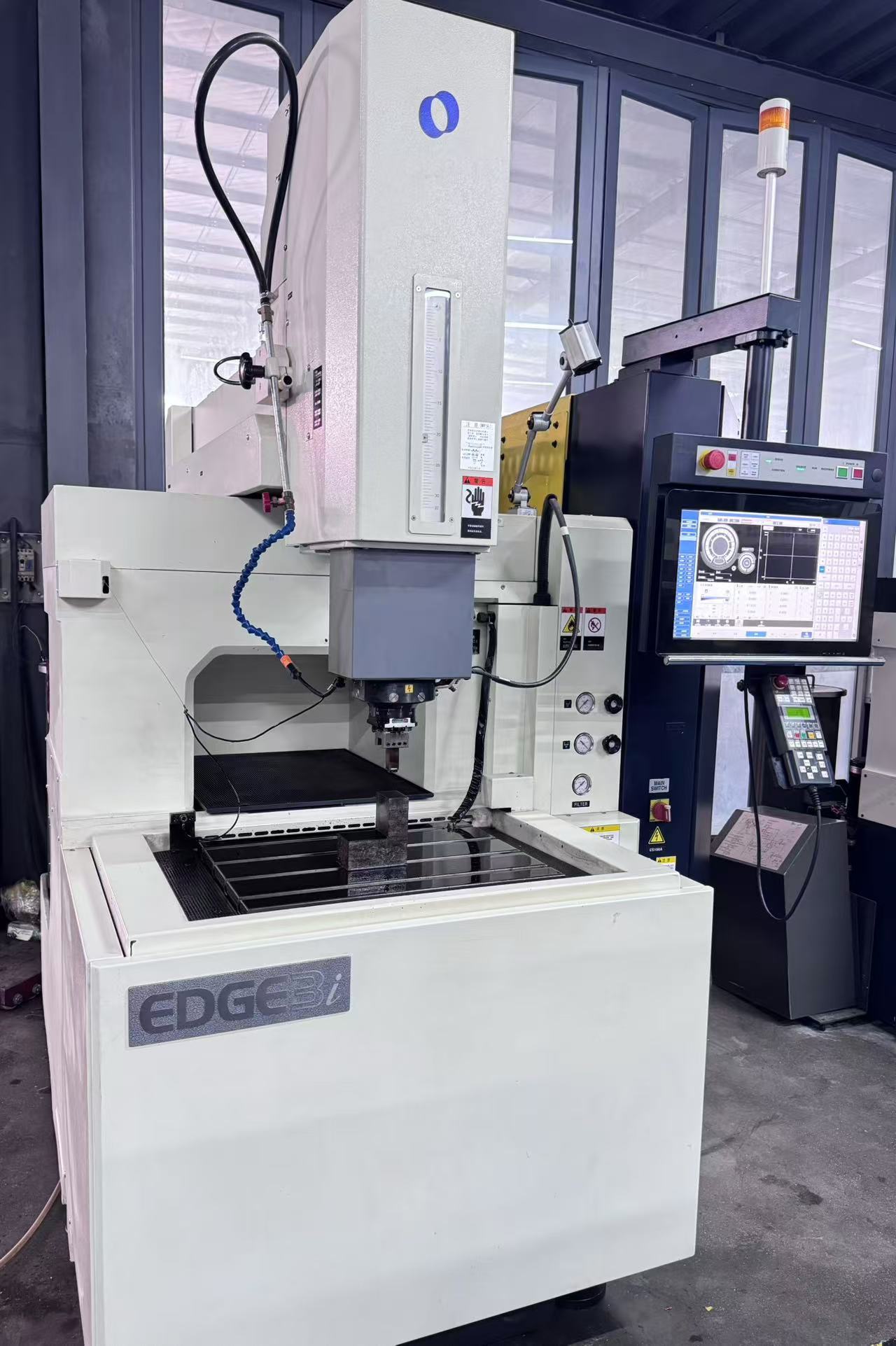

Used Makino EDGE3i CNC Sinker EDM Machine for Sale
Product Description
This used Makino EDGE3i CNC sinker EDM machine is a Japan-made electrical discharge machine designed for precision mold, die, and electrode machining. Equipped with C-axis, EROWA electrode chuck, automatic work tank movement, and CNC control, it is a cost-effective choice for manufacturers looking for reliable EDM performance without the cost of a new machine.
Product Specifications
| Item | Specification |
|---|---|
| Machine Type | CNC Sinker EDM / Die-Sinking EDM Machine |
| Brand | Makino |
| Model | EDGE3i |
| Condition | Used / Pre-owned |
| Country of Origin | Japan |
| X/Y/Z Axis Travel | 450 × 300 × 320 mm |
| Work Tank Inner Size | 800 × 550 × 350 mm |
| Work Table Size | 600 × 450 mm |
| Max Electrode Weight | 50 kg |
| Max Machining Current Capacity | 40 A |
| Max Workpiece Weight | 800 kg |
| Rapid Feed Speed | 5000 mm/min |
| Work Tank Opening Type | Automatic up/down work tank system |
| Number of Filters | 2 pcs |
| Dielectric Fluid Capacity | 380 L |
| C-Axis | Included |

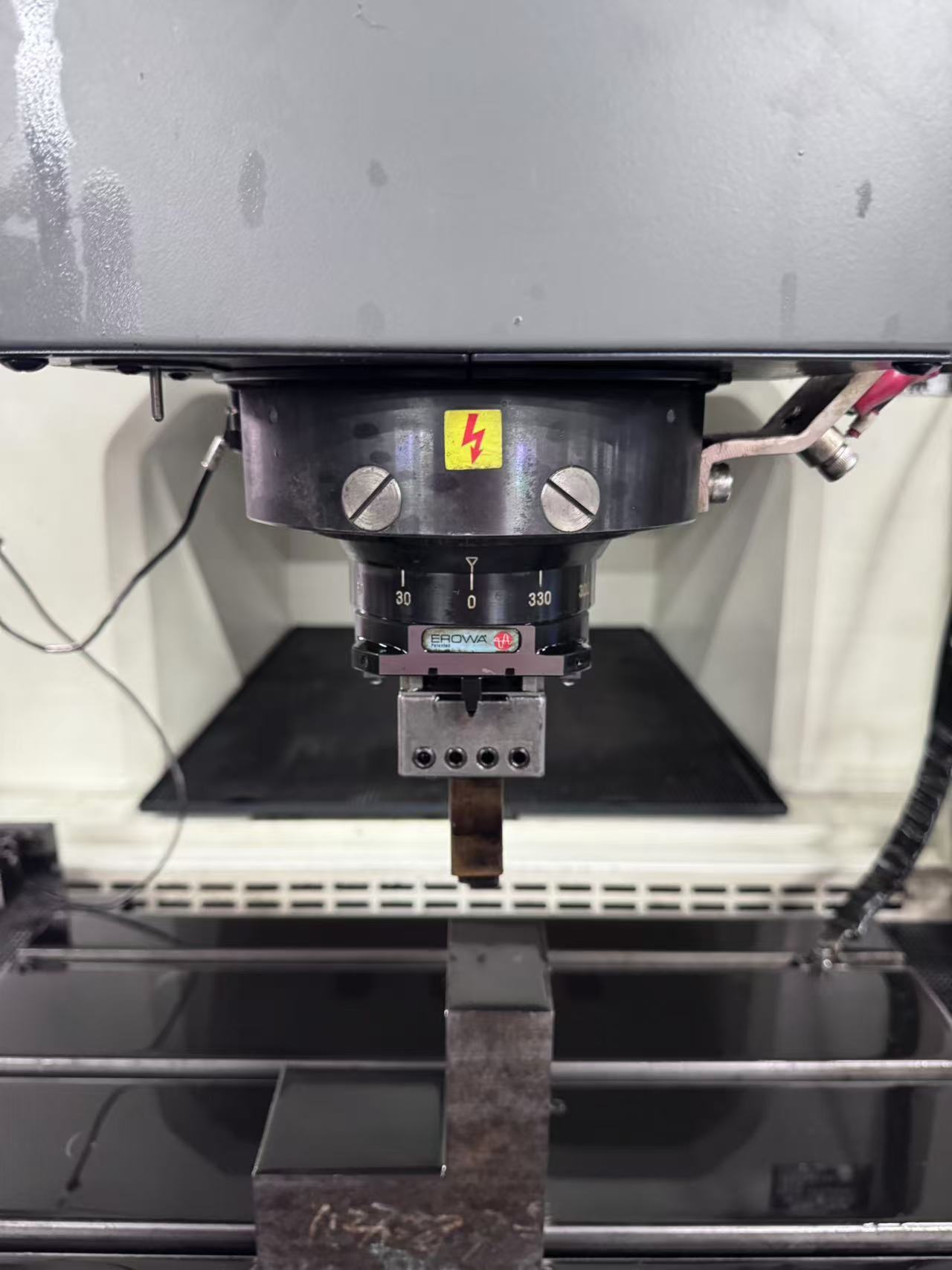

| Electrode Chuck | EROWA chuck, based on machine photos |

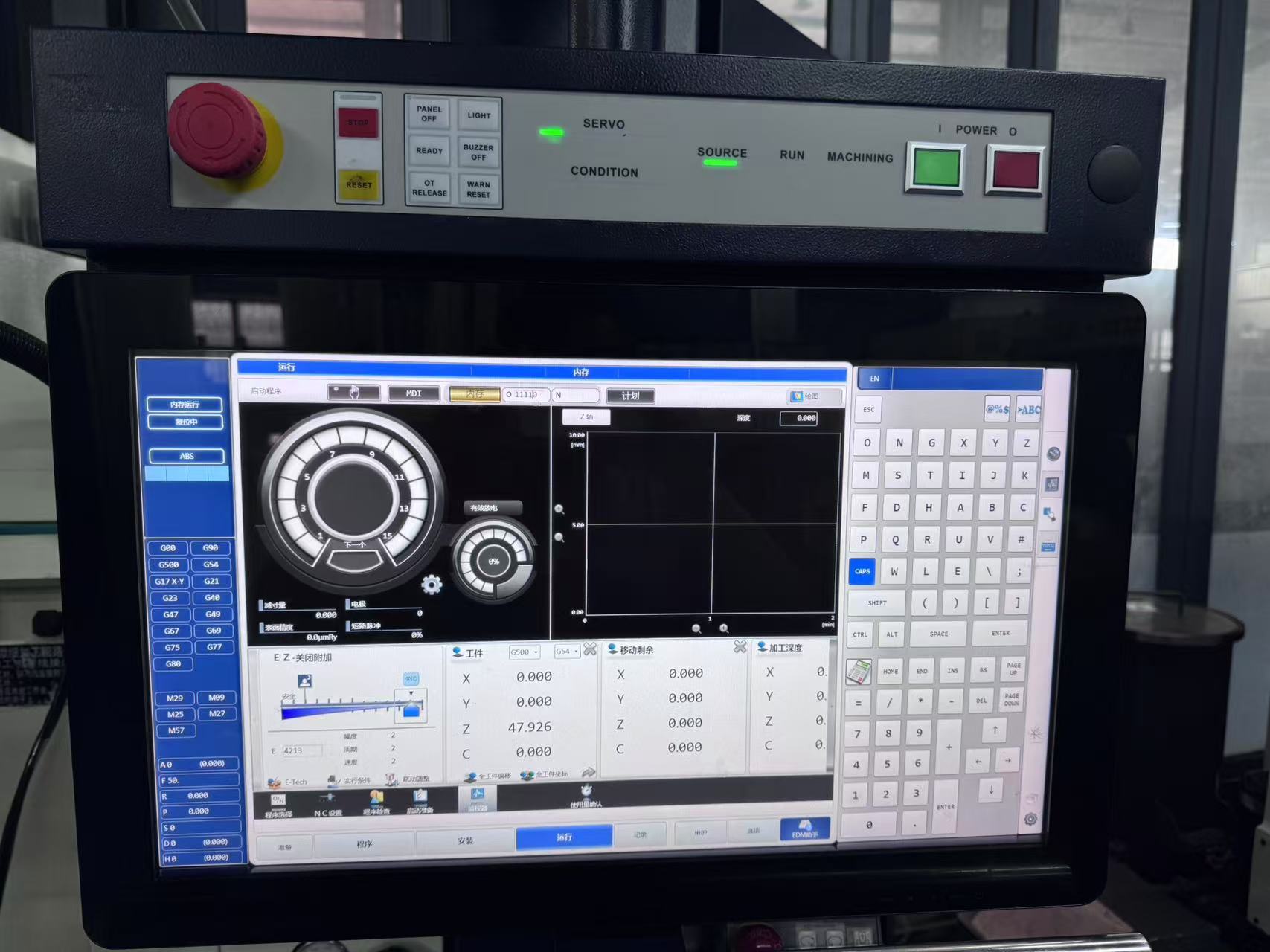

| Control System | CNC EDM control system |
| Suitable Process | Precision EDM machining, mold cavity machining, electrode discharge machining |
Application & Working Scenarios
The pre-owned Makino EDGE3i EDM machine is suitable for precision machining applications where complex shapes, fine cavities, and hard materials are required. It can be used in:
Mold and die manufacturing, including plastic injection molds, die-casting molds, connector molds, and precision tooling.
Precision cavity machining for hardened steel, carbide, copper, graphite electrodes, and difficult-to-cut metal parts.
Small and medium-sized component EDM machining where stable discharge performance, fine surface finish, and dimensional accuracy are important.
Tool rooms, mold repair workshops, precision machining factories, and manufacturers looking to upgrade EDM capacity with a reliable used Japan Makino EDM machine.
FAQ
Is this Makino EDGE3i EDM machine new or used?
This is a used Makino EDGE3i CNC sinker EDM machine. It is clearly sold as pre-owned equipment, not a new machine.
What is the travel size of this used Makino EDGE3i EDM?
The X/Y/Z axis travel is 450 × 300 × 320 mm, suitable for small to medium precision mold and die work.
Does this Makino EDGE3i come with C-axis?
Yes. According to the provided machine information, this Makino EDGE3i EDM machine is equipped with C-axis.
What kind of workpieces can this EDM machine process?
It is suitable for mold cavities, precision tooling, hardened steel parts, copper electrodes, graphite electrodes, and complex metal components.
Why choose a used Makino EDGE3i sinker EDM machine?
A pre-owned Makino EDGE3i offers Japan-made EDM performance at a lower investment cost, making it a practical option for mold shops and precision machining factories.
$57824.00
Brand
Makino
Model
EDGE3i
Origin
JP
Processing Time
6728h
Machine Status
- In stock
- Company-owned inventory
- Delivery time: 7 days
Available inspection support
- Machine appearance check
- Control system power-on check
- Spindle and axis movement check
- Grinding area photo check

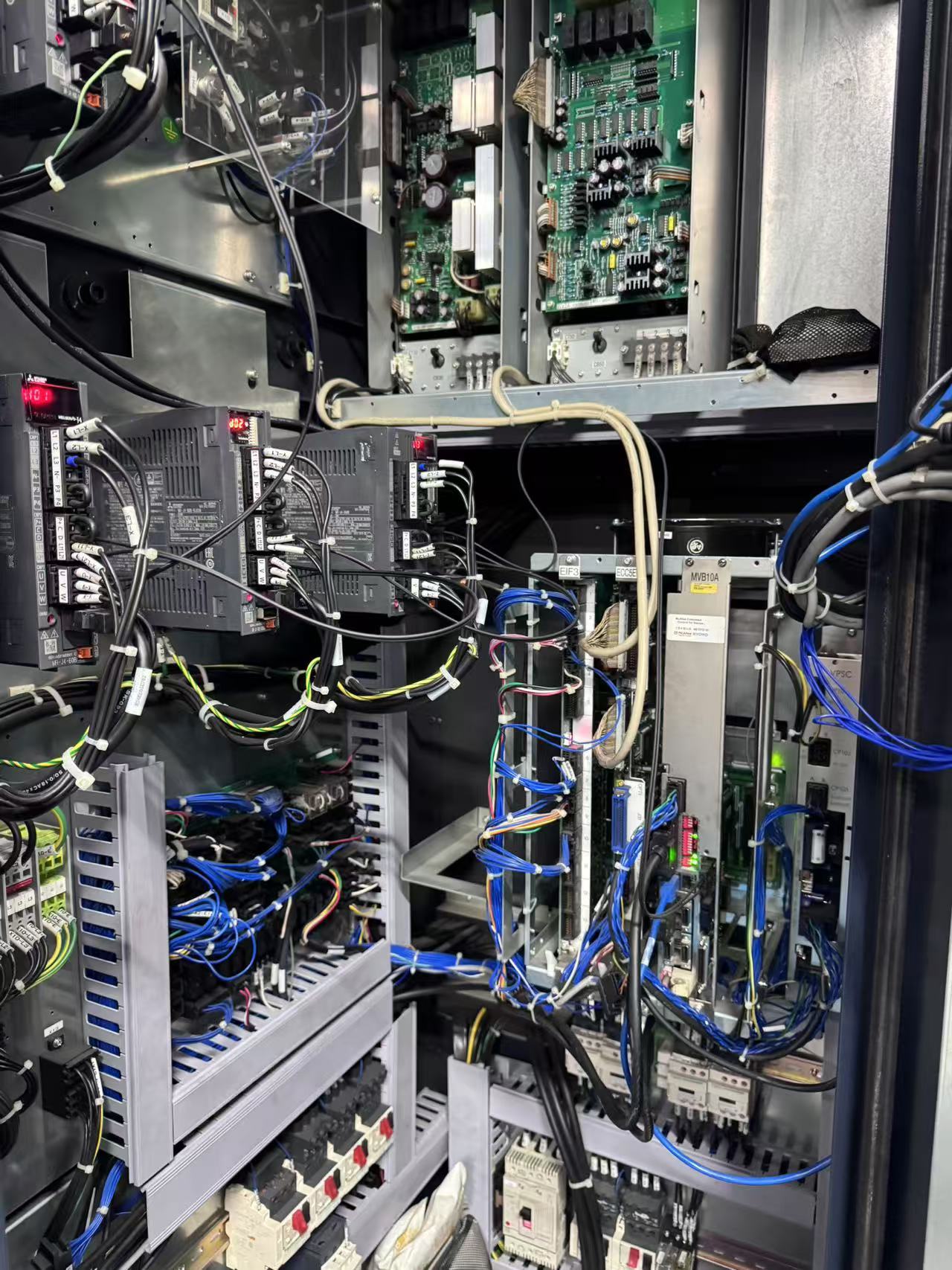

- Electrical cabinet photo check
- Machine nameplate verification
- Remote video inspection
- Optional third-party inspection
Supplier's customization ability
- Minor customization
- Drawing-based customization
- Sample-based customization
- Full customization
