Used Makino A99e Horizontal Machining Center

Loading carousel...

Product Highlight

The Makino A99e is a large Japanese horizontal machining center designed for heavy-duty and high-precision machining. This used machine features an 800 × 800 mm pallet, BT50 spindle, maximum spindle speed of 18,000 rpm, 90-tool magazine, and X/Y/Z travels of approximately 1250 × 1100 × 1250 mm. It is well suited for aerospace components, automotive parts, engine and transmission housings, molds, construction machinery, and other large precision workpieces. For manufacturers seeking reliable Japanese machining capability at a lower investment than a new machine, a pre-owned Makino A99e offers strong value.

Product Description

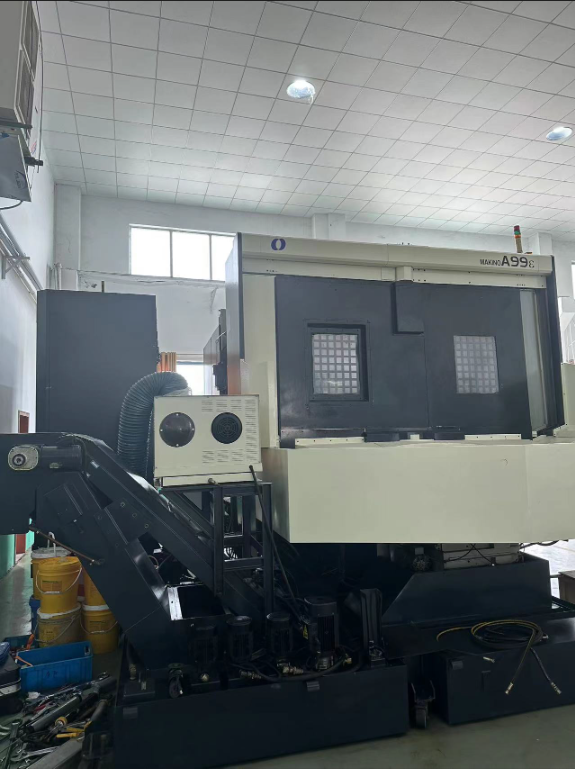

Used Makino A99e horizontal machining center, originally manufactured in Japan, featuring an 800 × 800 mm pallet, 3,000 kg table load capacity, BT50 spindle, 18,000 rpm spindle speed and 90-tool chain-type ATC.

Designed for demanding heavy-duty and precision machining applications, this pre-owned Makino A99e combines a rigid horizontal machine structure with large X/Y/Z travels of 1250 × 1100 × 1250 mm. The machine is equipped with Makino Professional 3 CNC control, linear scales, through-spindle coolant and chip conveyor.

Technical Specifications

Specification	Details
Manufacturer	Makino
Model	A99e
Machine Condition	Used / Pre-Owned
Machine Type	Horizontal Machining Center
Country of Origin	Japan
CNC Control	Makino Professional 3
X-Axis Travel	1250 mm
Y-Axis Travel	1100 mm
Z-Axis Travel	1250 mm
Rotary Table	360°

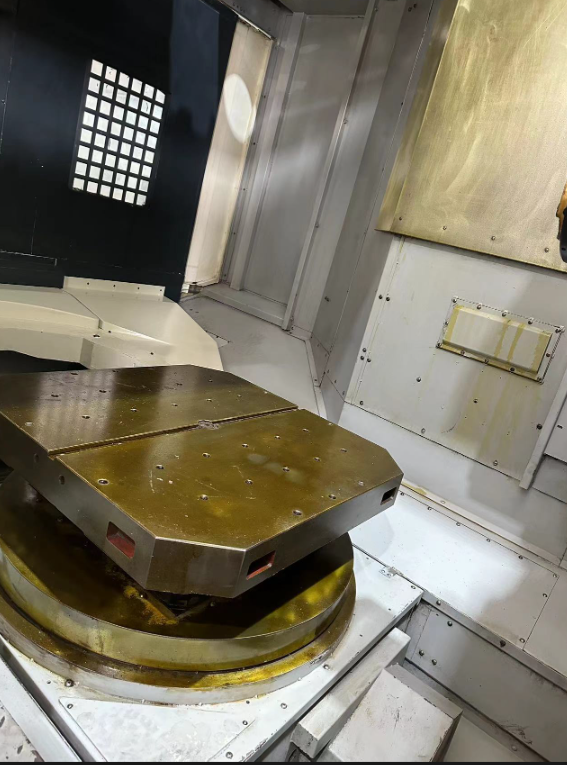

Pallet / Table Size	800 × 800 mm
Maximum Table Load	3,000 kg
Spindle Speed	Up to 18,000 rpm
Spindle Taper	BT50
Spindle Drive	Motorized Spindle
Motor Power	32 kW

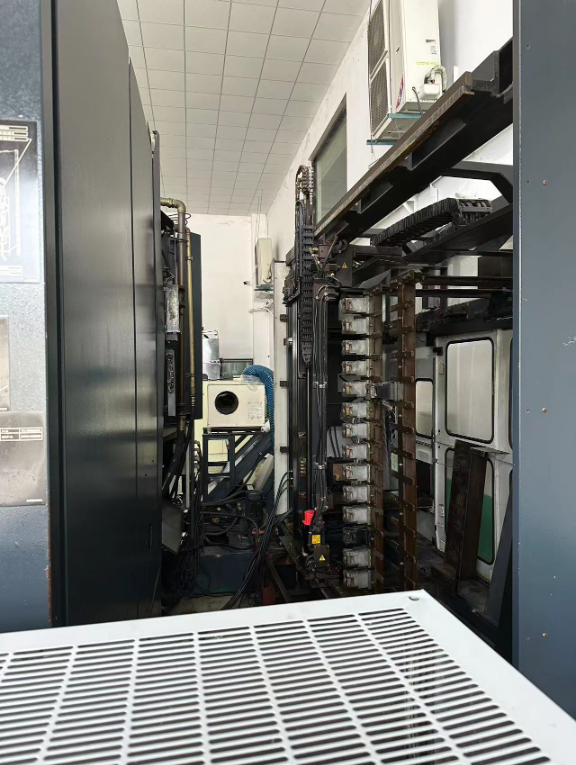

Tool Magazine Type	Chain Type
Tool Capacity	90 Tools
Guideway Type	Linear Guideways
Spindle-to-Table Distance	950 mm
Linear Scales	Equipped
Chip Removal	Chain-Type Chip Conveyor
Through-Spindle Coolant	Equipped
Coolant Tank	Equipped
Machine Configuration	Horizontal

Applications & Suitable Industries

The used Makino A99e horizontal machining center is especially suitable for manufacturers machining large, heavy and high-precision components.

Aerospace Components

Suitable for machining structural aerospace parts, housings, frames and other complex components requiring rigidity and repeatable accuracy.

Automotive & Engine Manufacturing

The large work envelope and 3,000 kg table capacity make the machine suitable for:

Engine blocks
Gearbox housings
Large transmission components
Automotive molds
Heavy aluminum components

Heavy Equipment Components

Suitable for machining:

Construction machinery parts
Hydraulic components
Pump and valve bodies
Large housings
Industrial machinery components

Mold & Die Manufacturing

The combination of a large machining envelope and 18,000 rpm spindle makes the A99e suitable for both heavy material removal and precision machining of large molds and tooling components.

General Precision Engineering

The machine can also be used for:

Large precision fixtures
Machine tool components
Compressor housings
Large aluminum alloy components
Cast iron components
Steel components
High-value batch production

For buyers who require large machining capacity but want to control capital expenditure, a pre-owned Makino A99e can provide a much lower entry cost compared with investing in a new machine of similar size.

FAQ

What is the pallet size and maximum load of this used Makino A99e?

The machine is equipped with an 800 × 800 mm pallet, with a stated maximum table load of approximately 3,000 kg. This makes it suitable for relatively large and heavy workpieces.

What spindle does the Makino A99e use?

This used Makino A99e is equipped with a BT50 motorized spindle with a maximum spindle speed of 18,000 rpm. The available machine information lists spindle motor power at 32 kW.

What are the X, Y and Z travels of the Makino A99e?

The machine has approximately 1250 mm X-axis travel, 1100 mm Y-axis travel and 1250 mm Z-axis travel, providing a large working envelope for heavy-duty and precision component machining.
