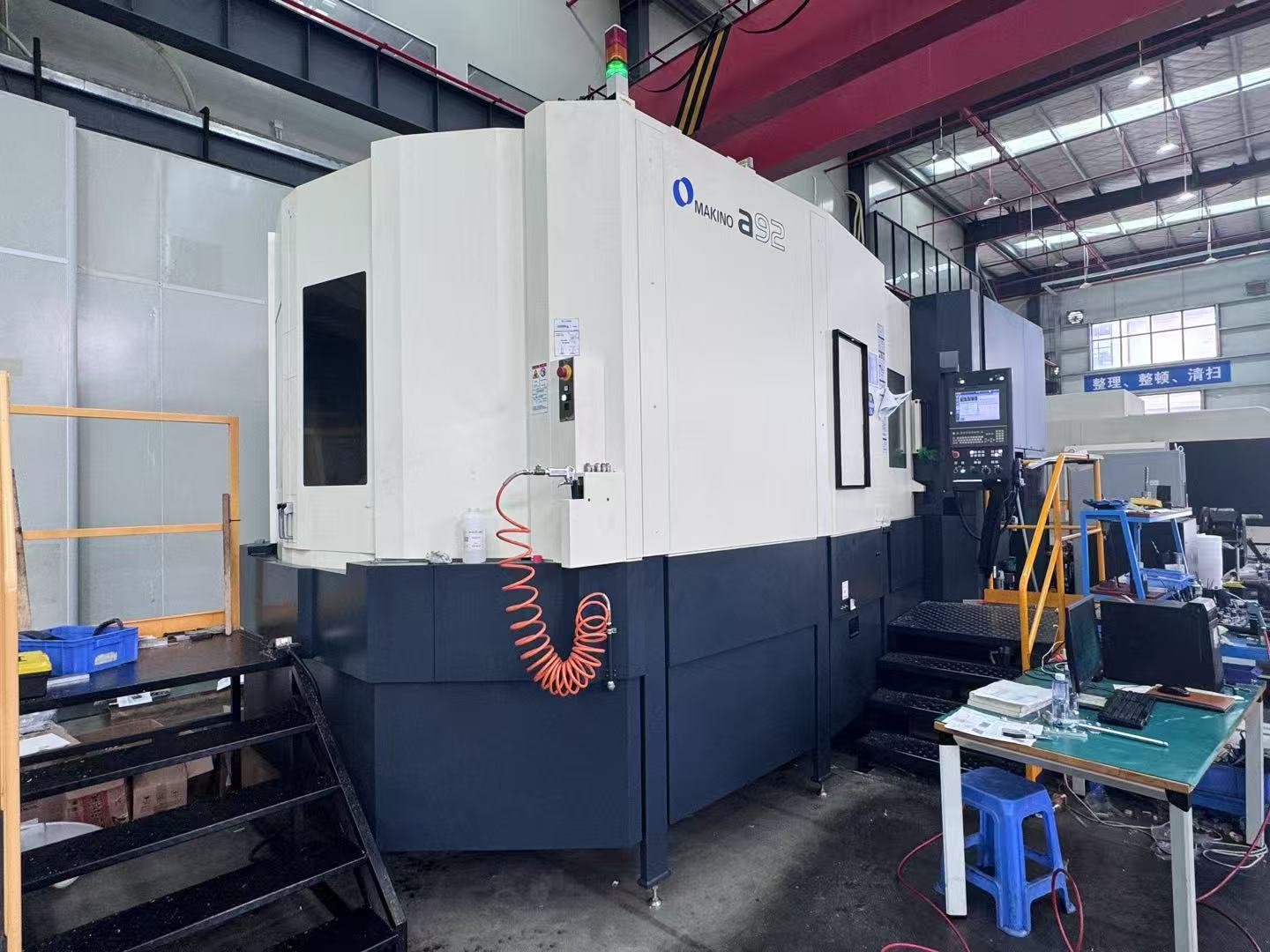

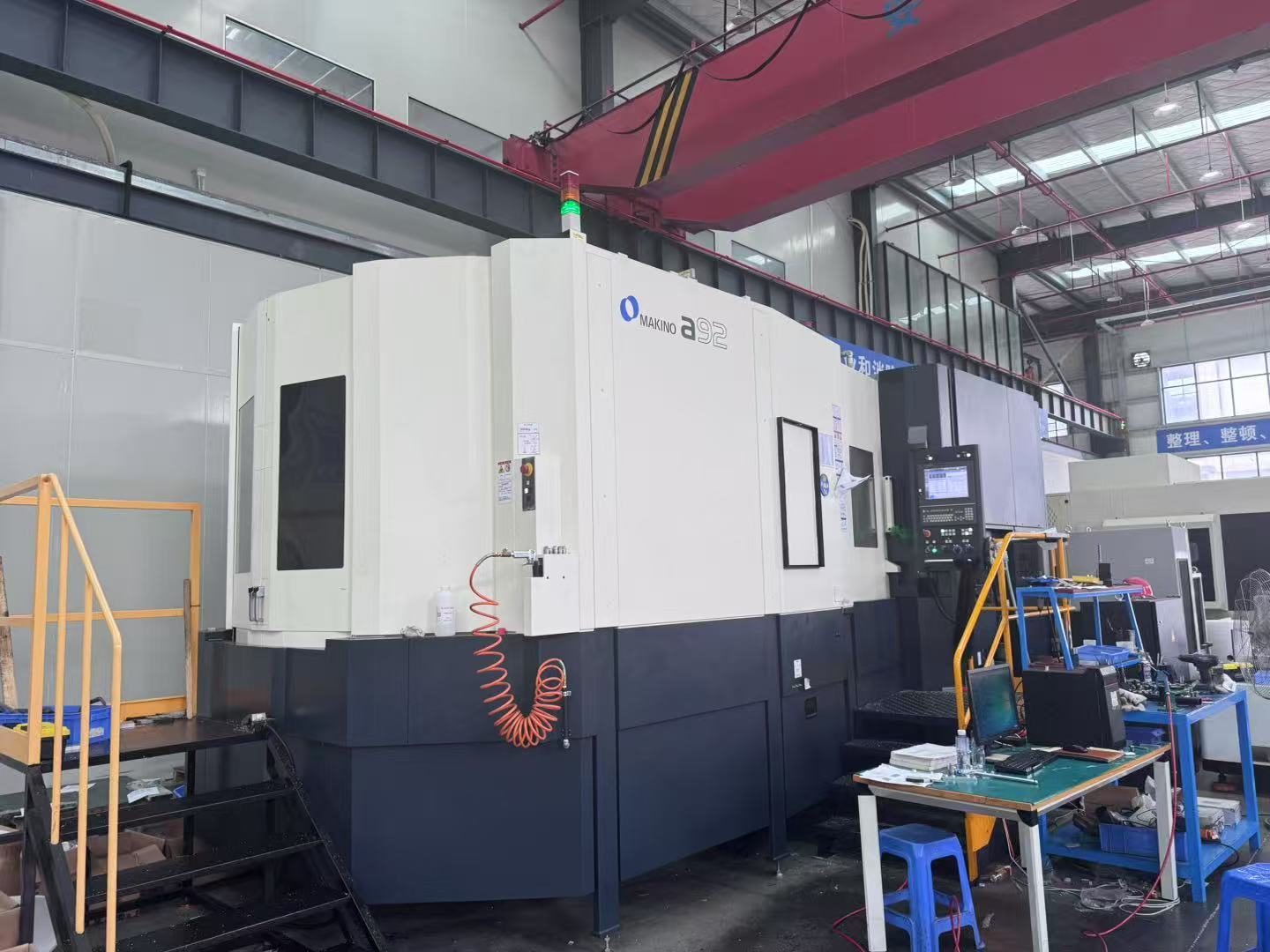

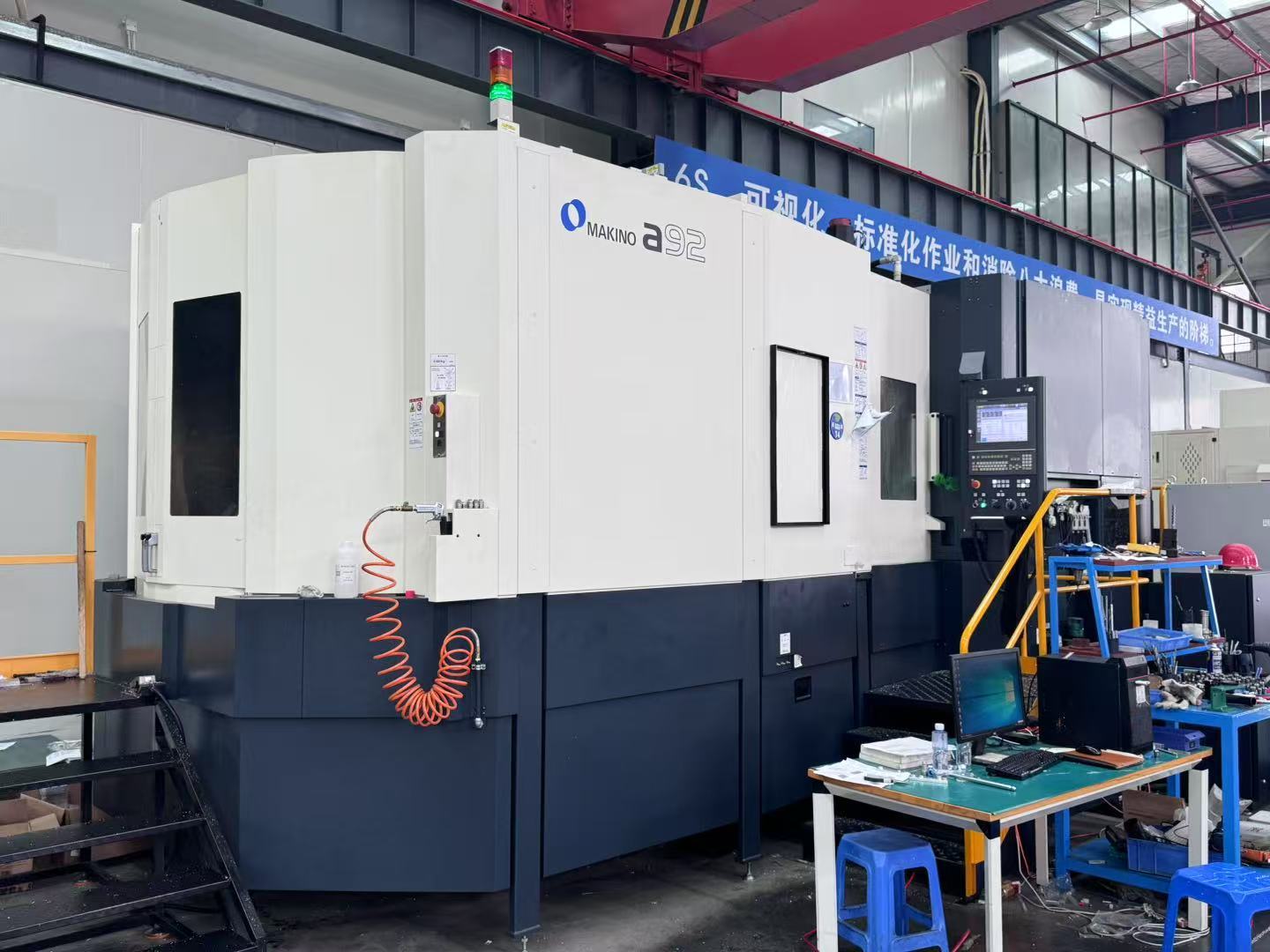

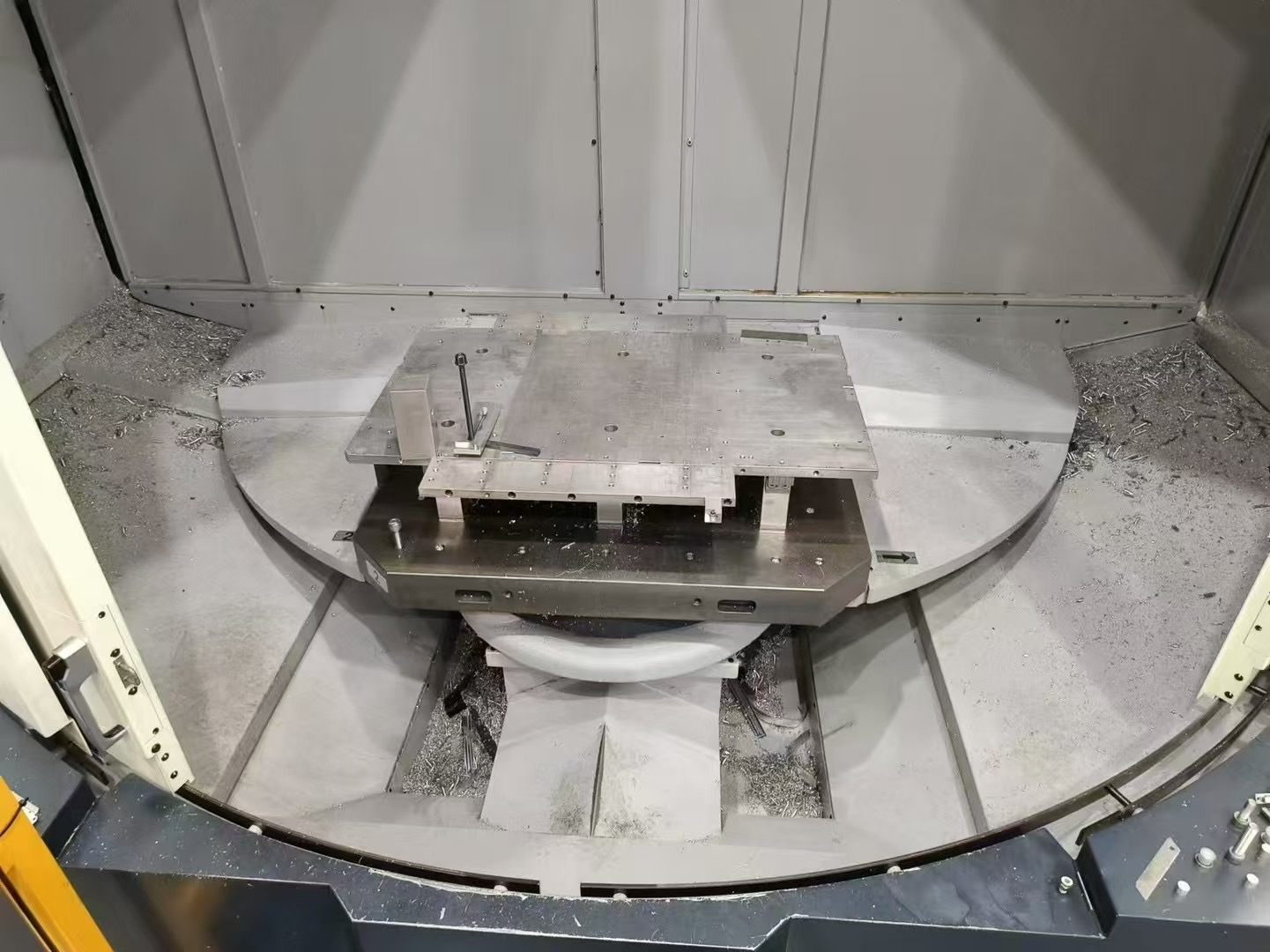

Used MAKINO a92 CNC Horizontal Machining Center Japan

Loading carousel...

Product Highlight

Used MAKINO a92 CNC Horizontal Machining Center is a high-performance Japanese horizontal machining center designed for precision and heavy-duty machining applications. Manufactured in 2022, this pre-owned MAKINO a92 features a high-speed spindle, HSK-A100 tooling system, 60-tool automatic tool changer, and coolant through spindle (CTS) capability. With excellent rigidity, large workpiece capacity and advanced automation functions, it is suitable for aerospace, automotive, mold, and precision component manufacturing. This used Japanese CNC machine offers an excellent opportunity for manufacturers seeking premium machining performance at a more competitive investment cost.

Product Description

Available Used MAKINO a92 CNC Horizontal Machining Center made in Japan. Manufactured in 2022, this high-performance HMC features a high-speed spindle, 60-tool magazine, automatic tool changer and coolant through spindle system. Ideal choice for manufacturers looking for premium Japanese machining performance at a lower investment cost.

Product Specifications

Item	Specification
Machine Type	Used CNC Horizontal Machining Center
Brand	MAKINO
Model	a92
Country of Origin	Japan
Manufacturing Date	October 2022
Machine Condition	Used / Second-hand
CNC Controller	MAKINO CNC System

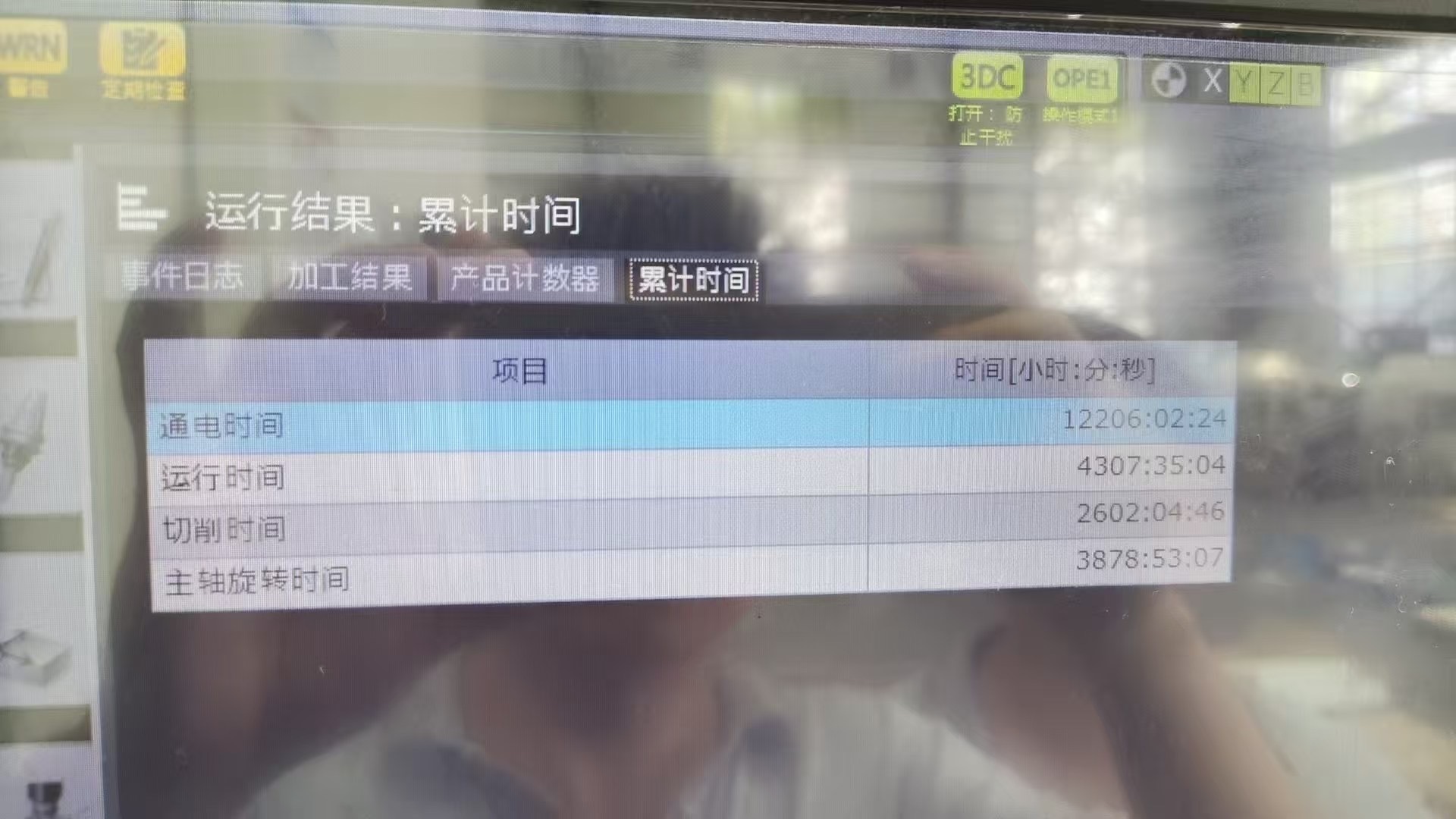

Working Hours	Approx. 4,307 hours
Cutting Hours	Approx. 2,602 hours
Spindle Hours	Approx. 3,878 hours

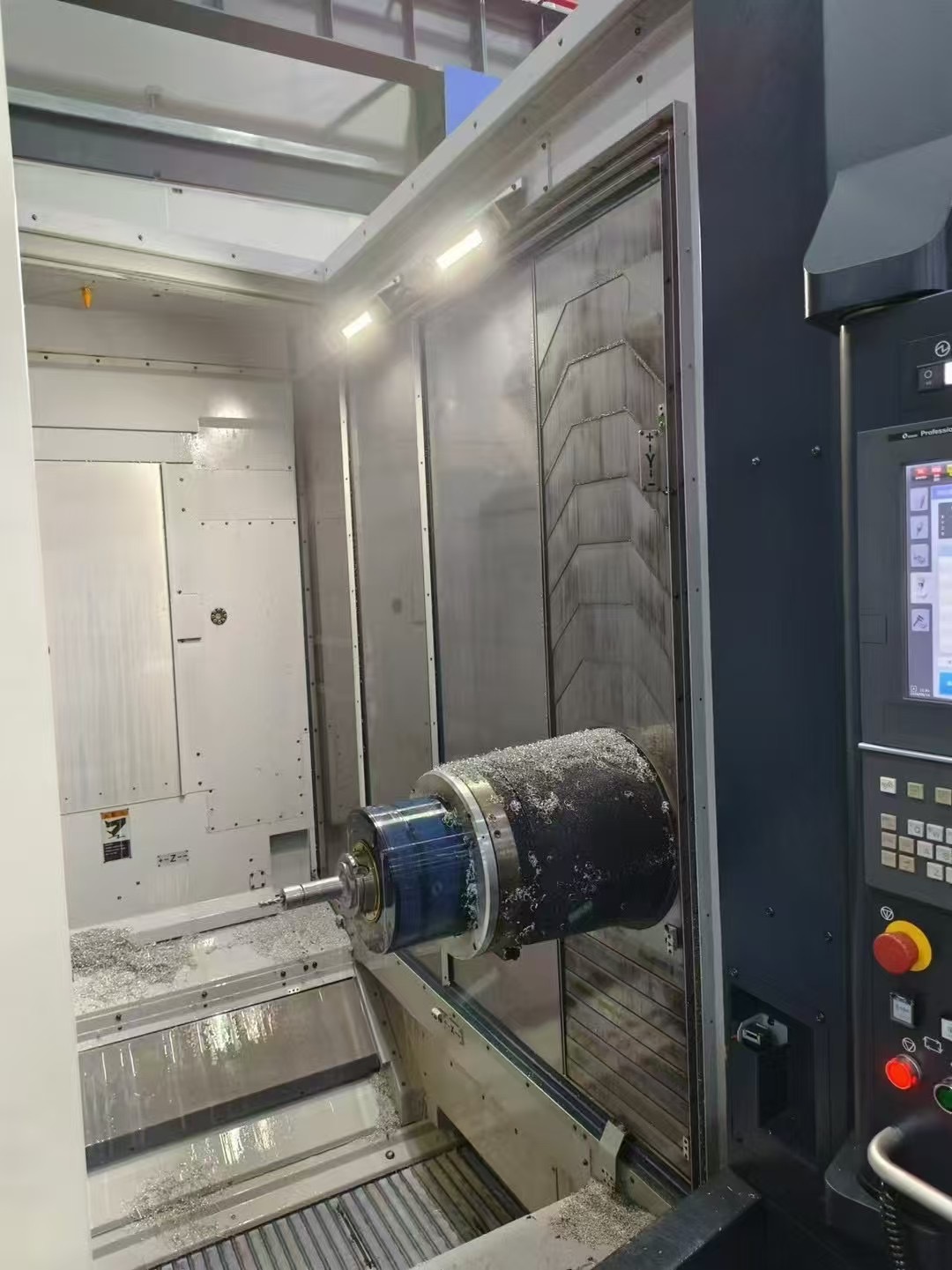

Spindle Type	High-speed spindle
Spindle Speed Range	20 - 20,000 rpm
Tool Magazine Capacity	60 tools
Tool Holder	HSK-A100
Automatic Tool Changer	Yes
Coolant Through Spindle	Yes
Workpiece Size	Max. Dia. 1,500 × Height 1,500 mm
Workpiece Weight Capacity	2,000 kg (uniform load) / 3,000 kg (reference)

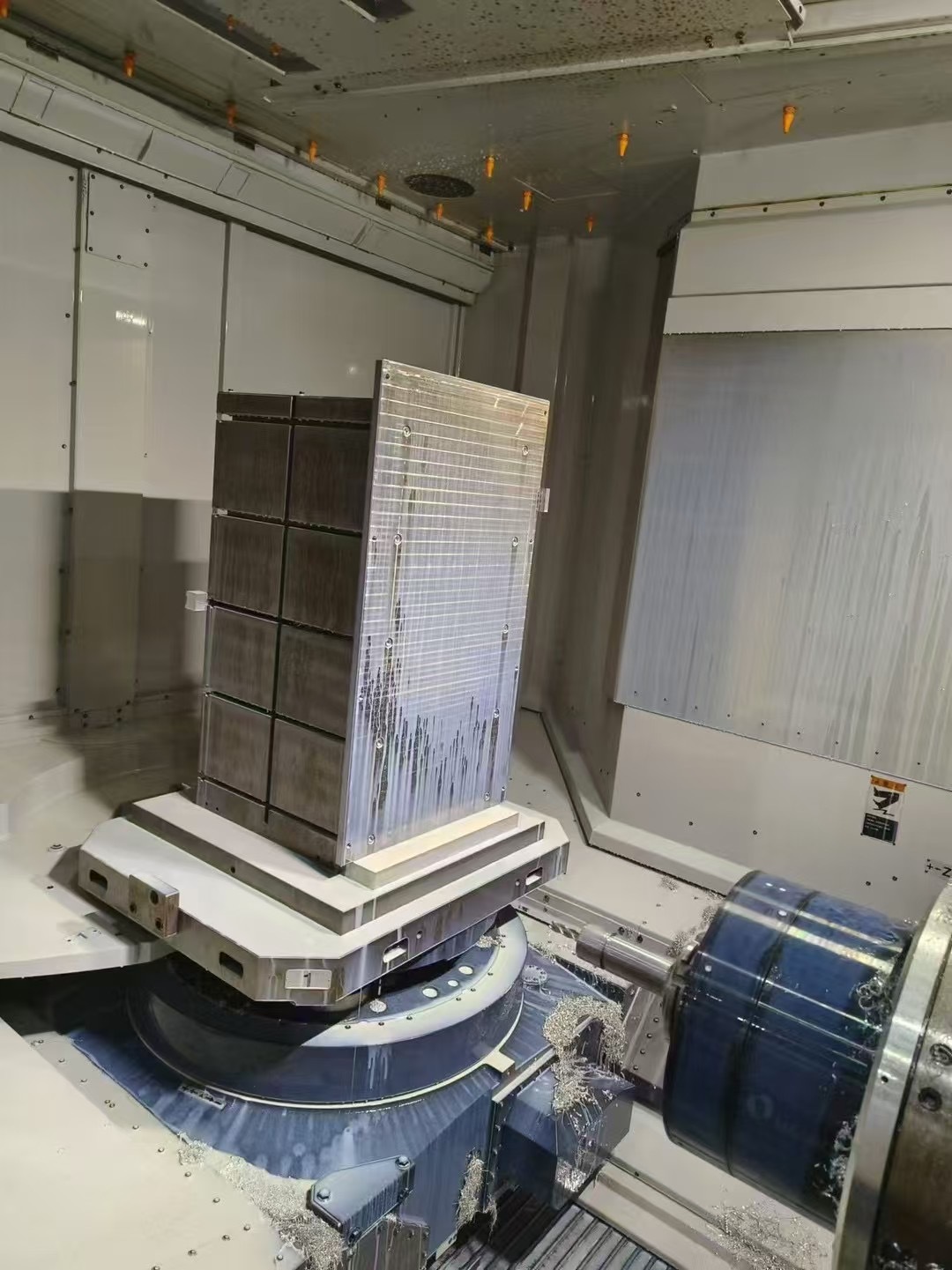

Pallet Size	Approx. 800 × 1000 mm
X Axis Travel	1,520 mm
Y Axis Travel	1,250 mm
Z Axis Travel	1,350 mm
Distance Pallet Surface to Spindle Center	100 - 1,350 mm
Distance Pallet Center to Spindle Nose	150 - 1,500 mm
Maximum Tool Length	690 mm
Maximum Tool Weight	20 kg
Machine Dimensions	Approx. 4695 × 3640 × 3906 mm

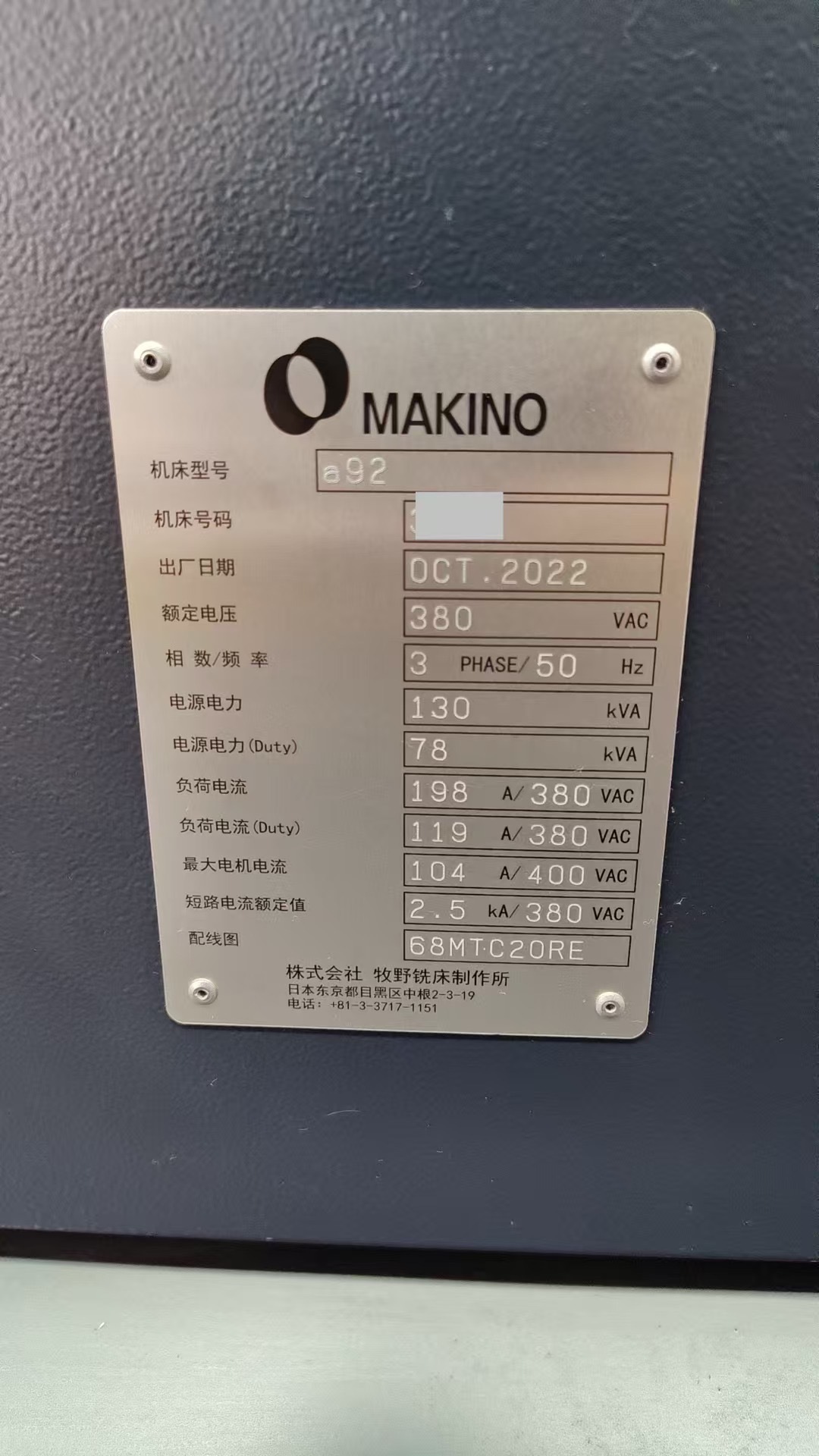

Power Supply	380 VAC
Phase / Frequency	3 Phase / 50 Hz
Rated Power	130 kVA
Rated Duty Power	78 kVA

Product Description

This used MAKINO a92 horizontal machining center is a high-performance CNC machine manufactured in Japan in October 2022. Designed for heavy-duty and precision machining applications, the MAKINO a92 combines excellent rigidity, high-speed cutting capability and advanced automation functions.

The machine is equipped with a high-speed spindle with a speed range up to 20,000 rpm, an HSK-A100 tool interface, and a 60-tool automatic tool changer, making it suitable for complex machining processes requiring high efficiency and stable accuracy.

This second-hand MAKINO a92 has approximately 4,307 operating hours and 2,602 cutting hours, offering an excellent opportunity for manufacturers who want Japanese CNC machining quality while reducing investment costs compared with purchasing a new machine.

The machine also features coolant through spindle (CTS), large workpiece capacity and a strong pallet system, making it ideal for aerospace, automotive, energy equipment, mold manufacturing and precision component machining.

Applications & Industries

Suitable Applications:

Aerospace Parts Manufacturing

The MAKINO a92 is suitable for machining large and complex aerospace components requiring high accuracy, rigidity and stable performance.

Automotive Industry

Ideal for machining engine parts, transmission components, structural parts and high-strength aluminum or steel components.

Mold & Die Manufacturing

High-speed spindle and precision control make it suitable for mold bases, cavities and complex tooling applications.

Precision Machinery Components

Used for manufacturing hydraulic parts, industrial equipment components and high-value precision parts.

Heavy Duty Machining

Large pallet capacity and strong machine structure allow machining of large workpieces with high material removal requirements.

FAQ

Is this MAKINO a92 horizontal machining center new or used?

This MAKINO a92 is a used CNC horizontal machining center. The machine was manufactured in Japan in October 2022 and has been professionally maintained with approximately 4,307 operating hours.

Why choose a used MAKINO a92 instead of a new CNC machine?

A used MAKINO a92 provides access to premium Japanese machining technology at a lower investment cost. It is a good choice for manufacturers who need high precision and productivity while controlling equipment budgets.

What is the spindle speed of the MAKINO a92?

The MAKINO a92 is equipped with a high-speed spindle with a speed range from 20 to 20,000 rpm, suitable for both high-speed machining and precision cutting applications.

Does this used MAKINO a92 include automatic tool changing?

Yes. This machine is equipped with a 60-tool automatic tool changer, allowing efficient multi-process machining and reducing setup time.

Can this MAKINO a92 machine large workpieces?

Yes. The MAKINO a92 supports large workpieces with a maximum size of approximately 1,500 mm diameter × 1,500 mm height and a maximum loading capacity of up to 3,000 kg under reference conditions.
