Used Makino A51 Horizontal Machining Center

Loading carousel...

Product Highlight

Used Makino A51 Horizontal Machining Center featuring a Makino Professional 5 CNC control, HSK-A63 spindle, 12,000 rpm spindle speed, 560 × 560 × 600 mm travels, 400 × 400 mm pallet, and 40-tool magazine. Designed for high-precision and efficient multi-face machining, this used Makino A51 is well suited for automotive parts, precision components, hydraulic parts, and general production machining.

Product Description

Used Makino A51 horizontal machining center equipped with the Makino Professional 5 CNC control, 560 × 560 × 600 mm axis travel, HSK-A63 spindle and up to 12,000 rpm spindle speed. With a 400 × 400 mm pallet, 40-tool capacity, 1-degree B-axis indexing, through-spindle coolant and chip conveyor, this used Makino CNC HMC is a practical choice for high-precision multi-face machining and production applications.

Technical Specifications

Specification	Details
Brand	Makino
Model	A51
Machine Type	Horizontal Machining Center / CNC HMC
Condition	Used / Pre-owned
Year	2013
Brand Origin	Japan
CNC Control	Makino Professional 5
X-Axis Travel	560 mm
Y-Axis Travel	560 mm
Z-Axis Travel	600 mm
Pallet / Table Size	400 × 400 mm
B-Axis Indexing	1°
Spindle Interface	HSK-A63
Spindle Speed	50–12,000 rpm
Maximum Table Load	400 kg
Rapid Traverse Rate	50,000 mm/min
Tool Magazine Capacity	40 tools
Pallet Change Time	Approx. 7.0 sec
Through-Spindle Coolant	Yes
Chip Conveyor	Yes
Machine Configuration	Horizontal spindle

Applications & Suitable Industries

The used Makino A51 horizontal machining center is particularly suitable for production environments where repeatability, multi-side machining and efficient cycle times are important.

Typical applications include:

Automotive component machining – transmission housings, gearbox components, brackets and structural parts.
Aerospace component machining – precision aluminum and alloy components requiring multiple machining faces.
Hydraulic and valve components – valve bodies, pump housings and manifold blocks.
Industrial machinery parts – bearing housings, machine bodies and precision mechanical components.
Mold and die components – precision machining of complex mold bases and inserts.
General precision engineering – medium-size components requiring milling, drilling, boring and tapping.
Batch and production machining – horizontal machine configuration and pallet system help reduce non-cutting time.
Multi-face machining – the B-axis indexing table allows different sides of a component to be accessed with fewer manual setups.

For manufacturers comparing a used Makino A51 for sale with a new CNC horizontal machining center, this machine can provide an attractive balance between machining capability, production efficiency and capital investment.

Why Consider This Used Makino A51?

The Makino A51 is designed around productive horizontal machining. For buyers who do not need to invest in a brand-new machine, a properly inspected used unit can offer considerable cost advantages.

This 2013 machine includes several specifications commonly requested by production workshops: HSK-A63 tooling, 12,000 rpm spindle speed, 40-tool magazine, 50 m/min rapid traverse, 400 × 400 mm pallet and through-spindle coolant.

FAQ

What CNC control does this Makino A51 use?

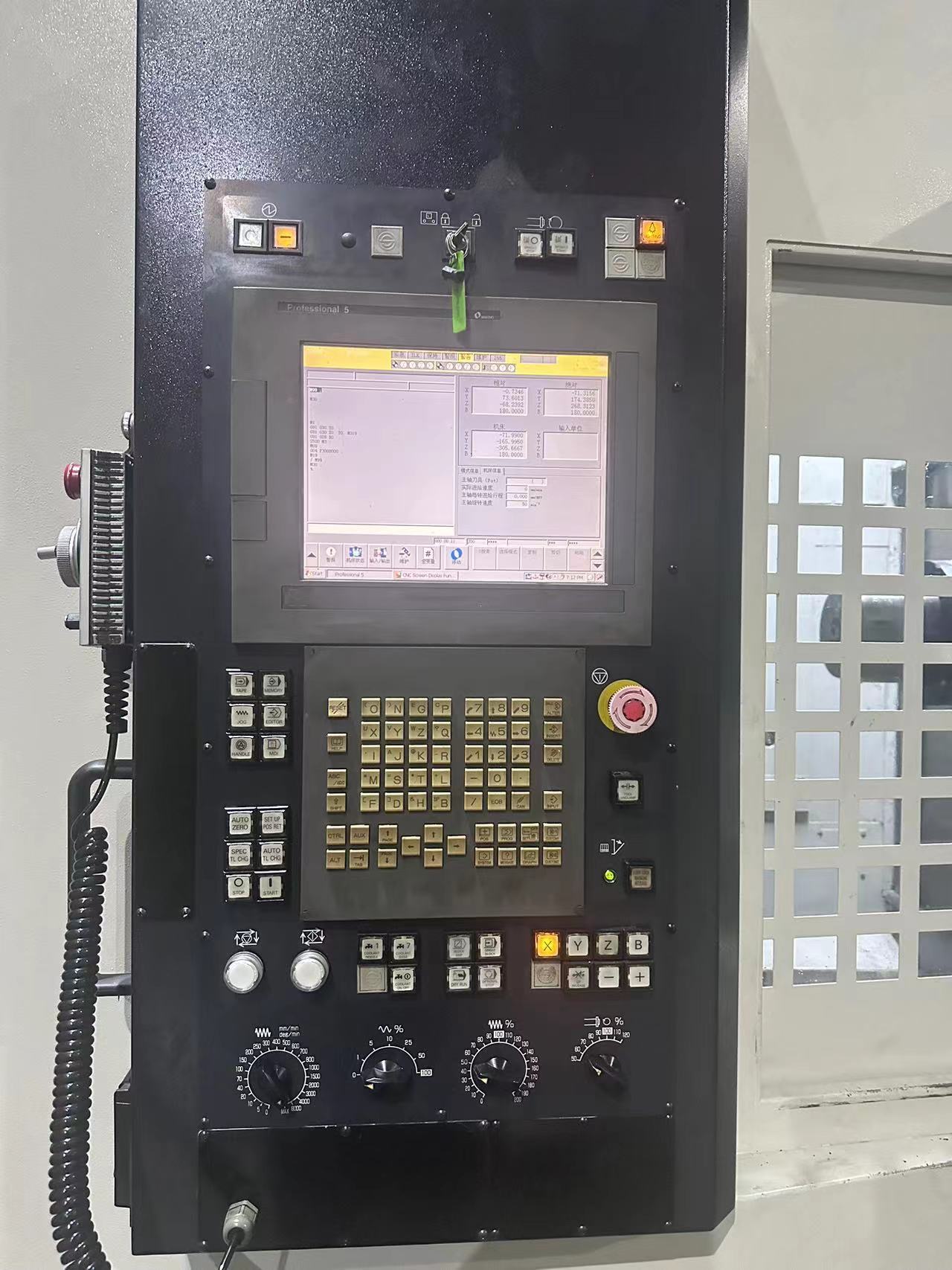

The machine is equipped with a Makino Professional 5 CNC control, as shown on the control panel in the supplied photos.

What are the travels and pallet size of this Makino A51?

The machine has approximately 560 mm X-axis travel, 560 mm Y-axis travel and 600 mm Z-axis travel. The pallet/table size is 400 × 400 mm, with a maximum stated load of 400 kg.

What spindle does this used Makino A51 have?

This Makino A51 uses an HSK-A63 spindle interface with a spindle speed range of approximately 50 to 12,000 rpm. It is also equipped with through-spindle coolant according to the provided machine information.
