Used MAKINO A51-418 Horizontal Machining Center

Loading carousel...

Product Highlight

Used MAKINO A51-418 Horizontal Machining Center from Japan is a high-precision 4-axis CNC machine designed for aerospace, automotive and precision component manufacturing. Equipped with FANUC Professional 3 CNC control, BT40 spindle, 12,000 rpm spindle speed and a 400 × 400 mm pallet, this Japanese-made MAKINO machining center delivers excellent accuracy, rigidity and reliability. With low operating hours and Renishaw Ballbar inspection records available, it is an ideal solution for manufacturers looking for a premium used CNC horizontal machining center at a competitive investment cost.

Product Description

High-precision used MAKINO A51-418 horizontal machining center imported from Japan. Equipped with FANUC Professional 3 CNC, BT40 spindle, 40-tool magazine and proven Renishaw ballbar accuracy testing. Ideal for aerospace and precision component machining at a competitive investment cost.

Technical Specifications

Item	Specification
Machine Brand	MAKINO
Model	A51-418
Machine Type	Horizontal Machining Center
Origin	Japan
Condition	Used / Second-hand Machine
CNC Controller	FANUC Professional 3
Number of Axes	4-axis machining center
Pallet Size	400 × 400 mm
Workpiece Loading Capacity	Approx. 400 kg
X Axis Travel	560 mm
Y Axis Travel	560 mm
Z Axis Travel	600 mm
B Axis Indexing	1 degree indexing
Spindle Taper	BT40
Spindle Speed Range	50–12,000 rpm
Rapid Traverse Rate	50,000 mm/min
Tool Magazine Capacity	40 tools
Tool Change Time	Approx. 7.0 sec

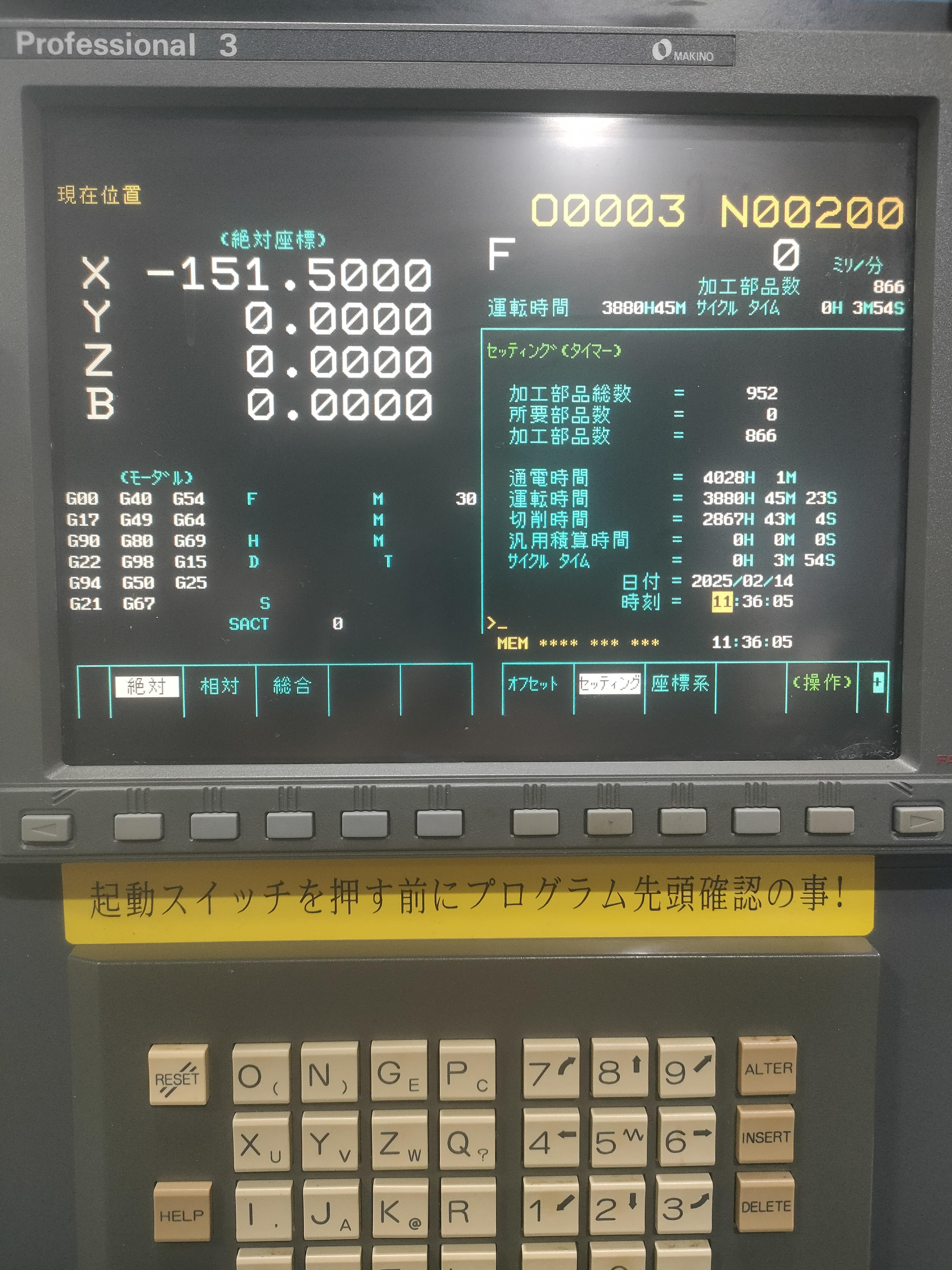

Operating Hours	Approx. 3,888 hours
Cutting Time	Approx. 2,867 hours
Work Table Size	400 × 400 mm
Spindle Condition	Tested and operational
Accuracy Inspection	Renishaw Ballbar test available

Application & Industry

The used MAKINO A51-418 horizontal machining center is designed for high-precision machining applications requiring stability, accuracy and productivity.

Typical applications include:

Aerospace Component Manufacturing

Suitable for machining:

Aircraft structural parts
Aerospace engine components
Aluminum alloy precision parts
Titanium and difficult-to-cut materials

Automotive & Transportation Industry

Used for:

Engine components
Transmission parts
Mold inserts
Precision mechanical parts

Precision Mold & Die Manufacturing

Ideal for:

Mold bases
Precision cavities
Tooling components
Complex geometries

General Industrial Manufacturing

Suitable for:

Hydraulic components
Pump and valve parts
Automation equipment parts
High-accuracy mechanical components

FAQ

Is this MAKINO A51-418 machining center new or used?

This MAKINO A51-418 is a used horizontal machining center originally manufactured in Japan. The machine has relatively low operating hours and has been inspected before sale.

What CNC controller does the MAKINO A51-418 use?

This used MAKINO A51-418 is equipped with FANUC Professional 3 CNC control, providing reliable operation and easy programming for precision machining applications.

Can this used MAKINO horizontal machining center machine aerospace parts?

Yes. The MAKINO A51-418 was designed for high-accuracy manufacturing and is suitable for aerospace structural components, engine parts, aluminum alloy machining and other precision applications.

What is the spindle specification of this used MAKINO A51-418?

The machine features a BT40 spindle with a speed range of 50–12,000 rpm, suitable for both high-speed finishing and stable heavy cutting operations.

How can I check the accuracy condition of this used CNC machine?

The machine has Renishaw Ballbar inspection records available, allowing buyers to evaluate positioning accuracy and geometric performance before purchase.
